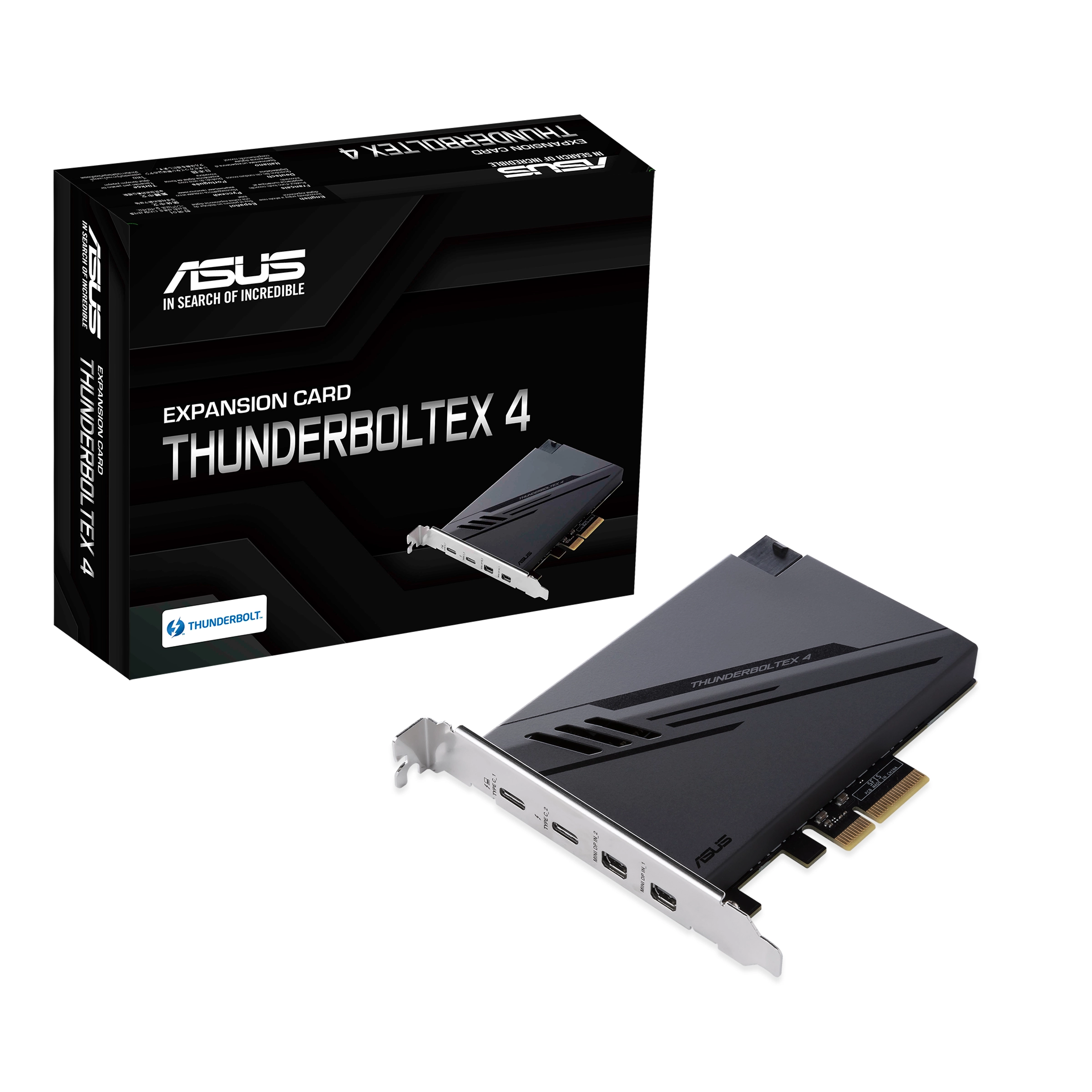

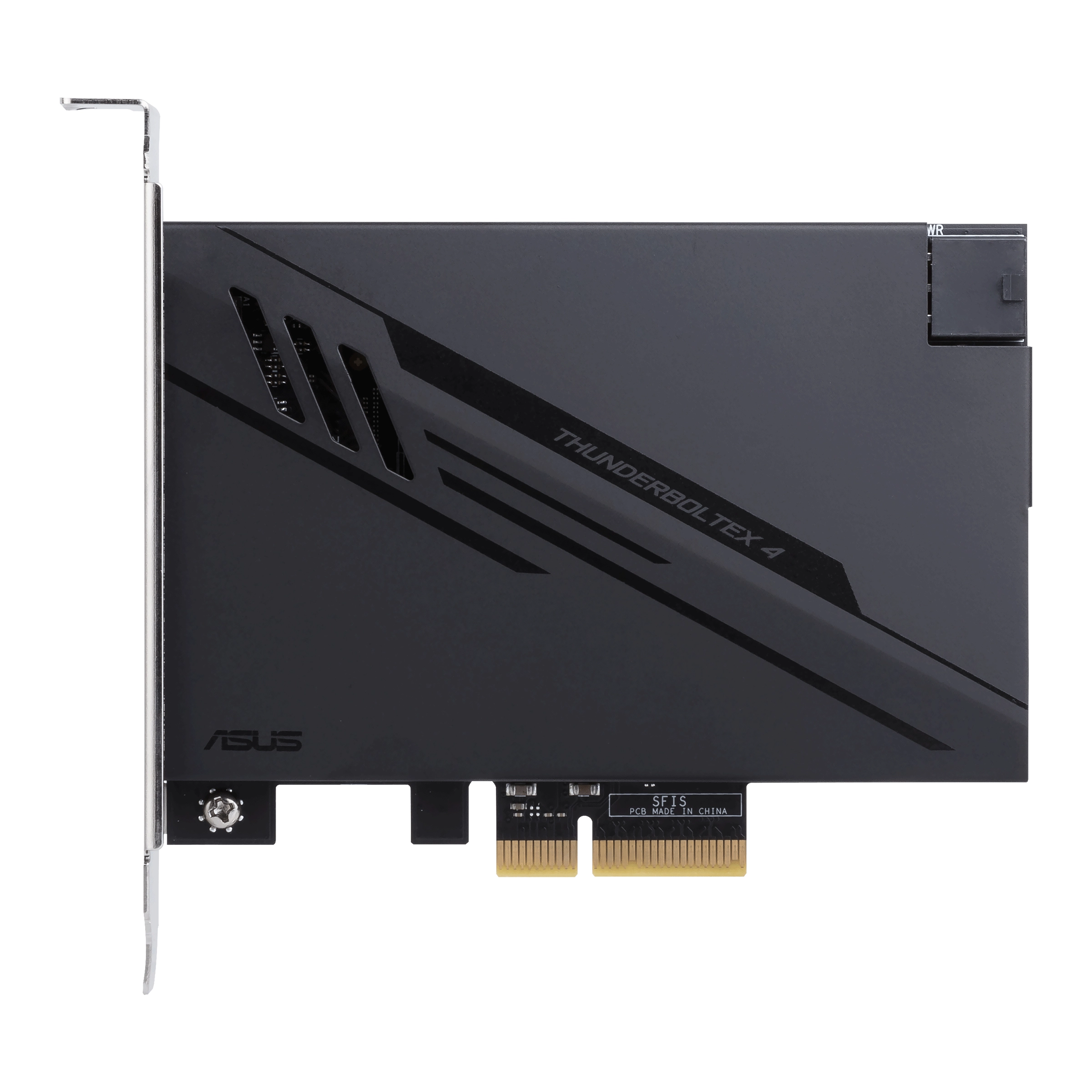

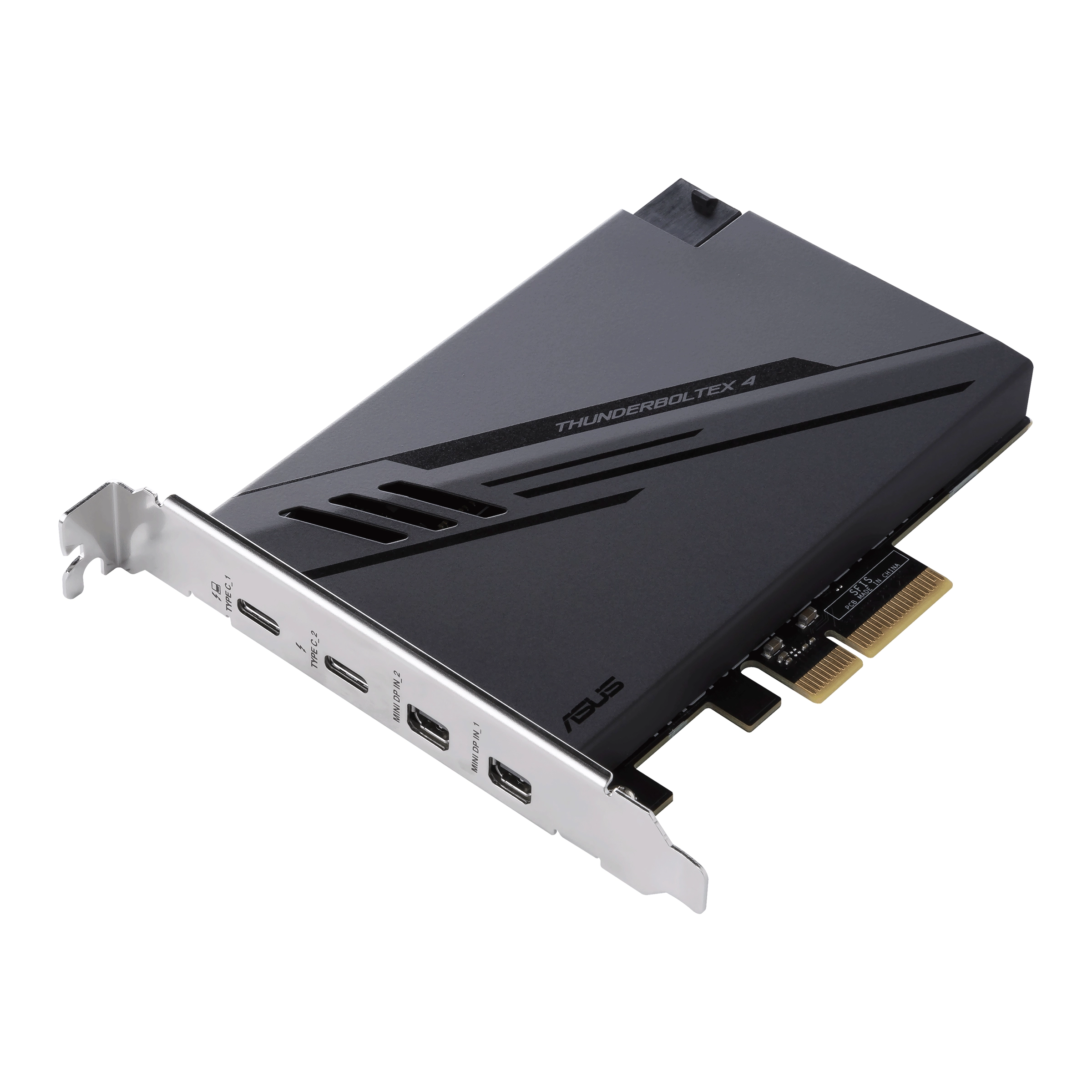

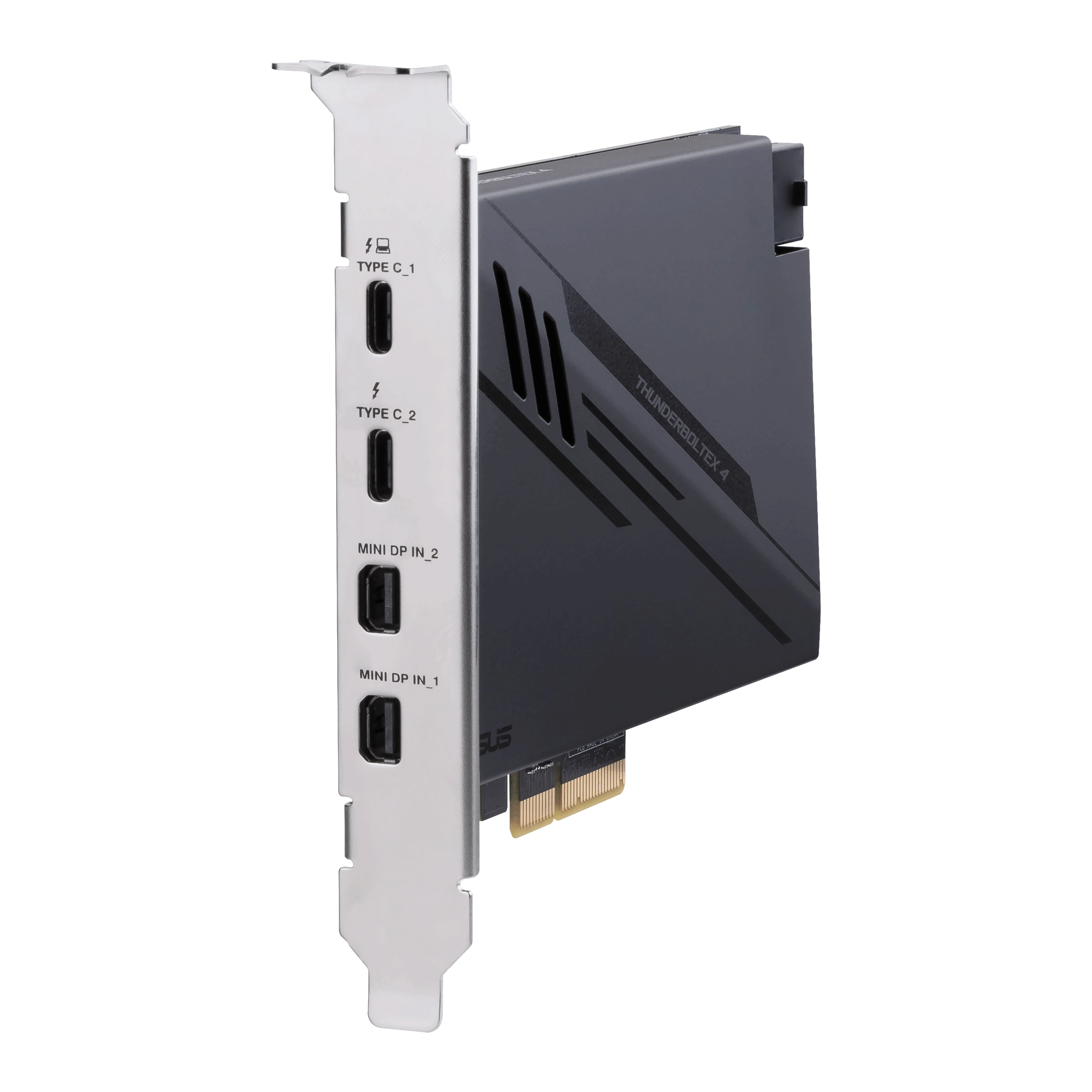

ASUS PCIe 3.0 x4 - 2x Thunderbolt 4 ThunderboltEX 4 Controller

AsusTek

Not in stock

€ 90,20

€ 109,14 incl 21% VAT

Would you like to ask us a question about this product?

Enable blisteringly fast speeds and any-way-up connectivity
ASUS ThunderboltEX 4 is a Thunderbolt™ 4 add-on card that offers 40 Gbps bi-directional bandwidth, USB4™ device compatibility, and DisplayPort™ 1.4. It supports up to five Thunderbolt devices in a daisy chain and enables up to 100-watt USB-C® charging for laptops.

Specification

Product
Product id	819914
Brand	AsusTek
Partnr	90MC09P0-M0EAY0
EAN/UPC code	4711081115243
Warranty (months)	36 months
Technical details
Chipset	Intel Thunderbolt 4 JHL8540
Ports & interfaces
Host interface	PCIe
Output interface	Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard	PCIe 3.0
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Design
Internal	Y
Product colour	Black
Purpose	PC
Features
Data transfer rate (max)	40 Gbit/s
Plug and Play	Y
Harmonized System (HS) code	84733020
Packaging data
Quantity	1

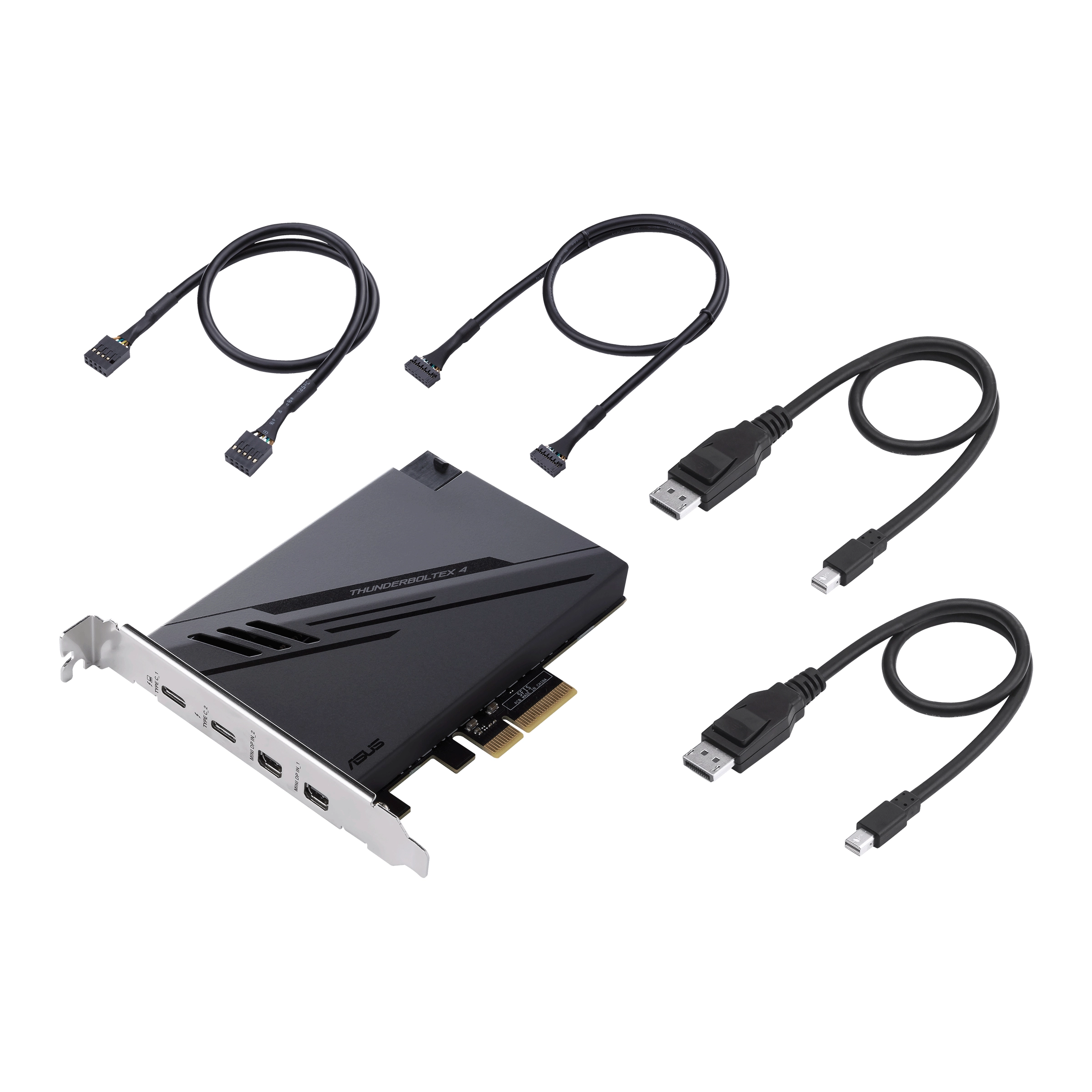

Cables included	Mini DisplayPort, Thunderbolt, USB
Drivers included	Y
Manual	Y
Package type	Box
System requirements
Windows operating systems supported	Windows 10 x64
Weight & dimensions
Width	117.7 mm
Depth	180.5 mm
Other features
Maximum resolution	7680 x 4320 Pixels
Compatibility	ASUS Intel 500
