ASUS Chromebox 6a features 14th Generation Intel® Core™ processors and supports up to four 4K displays, with DDR5 memory and upgrades in Wi-Fi 7 & 2.5G ethernet connectivity, delivering faster performance and responsiveness for improved user productivity

Seamless Connectivity for Modern Workflows

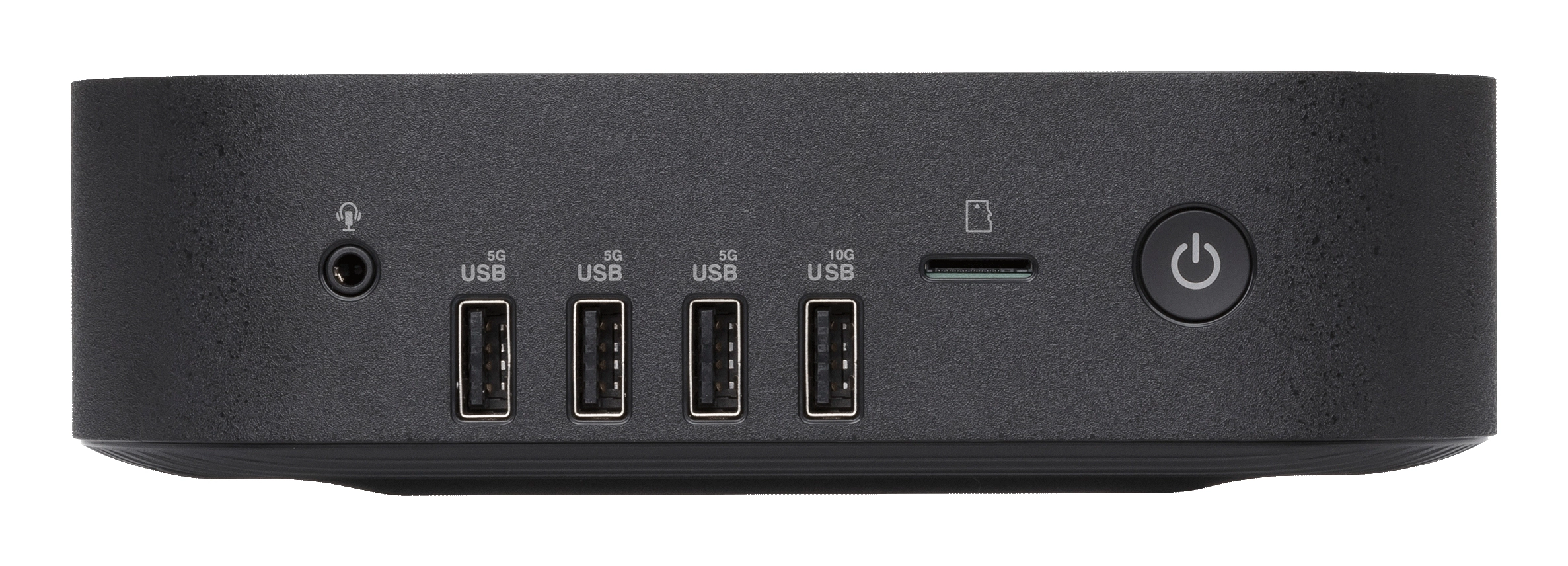

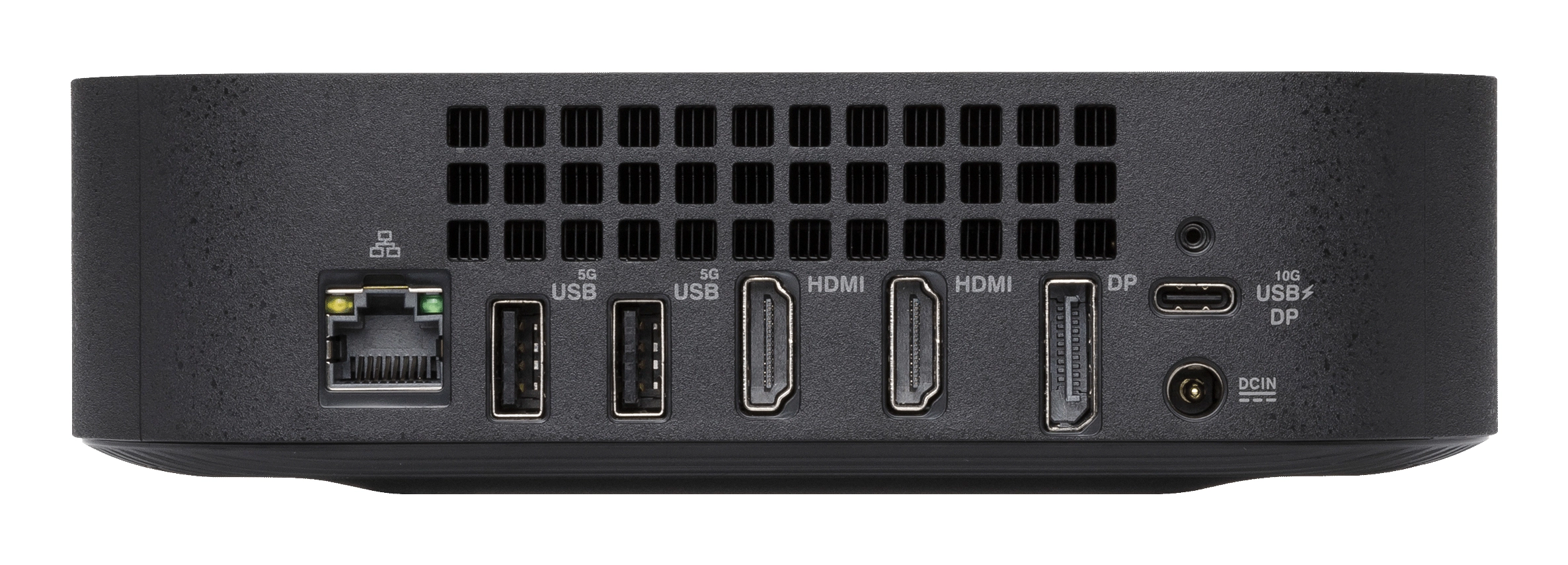

ASUS Chromebox 6a features an array of USB Type-A ports, a USB Type-C port, an SD card reader, a 2.5G LAN port, two HDMI® ports, and a DisplayPort™ connection—supporting peripherals, external drives, and multiple monitors for a seamless work experience.

Specification

Product
Product id	1025775
Brand	AsusTek
Partnr	90MS03H1-M00010
EAN/UPC code	4711636690904
Warranty (months)	24 months
Processor
Processor manufacturer	Intel
Processor family	Intel Core 3
Processor generation	Intel Core (Series 3)
Processor model	100U
Processor cores	6
Processor boost frequency	4.7 GHz
Performance cores	2
Processor socket	BGA 1744
Efficient cores	4
Processor cache	10 MB
Processor cache type	Smart Cache
Performance-core base frequency	1.2 GHz
Processor threads	8
Efficient-core base frequency	0.9 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core Max Turbo Frequency	4.7 GHz
Memory
Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Memory clock speed	5600 MHz
Storage
Optical drive type	N
Card reader integrated	Y
Storage media	SSD
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Graphics
Network
Ethernet LAN	Y
Ethernet LAN data rates	2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Bluetooth	Y
Bluetooth version	5.4
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Y
HDMI ports quantity	2
DisplayPorts quantity	1
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Y
DC-in jack	Y
On/off button	Y
Design
Chassis type	Mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Certified refurbished	N
Performance
Product type	Mini PC (<= 3L)
Built-in speaker(s)	N
Software
Operating system installed	ChromeOS
Copilot+ PC	N
Power
Power supply	90 W
Power supply input voltage	19
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95 procent
Certificates
Certification	BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/Wi-Fi/RF/VCCI
Weight & dimensions
Width	166.5 mm
Depth	165.8 mm
Height	45.9 mm
Weight	800 g
Package width	334 mm
Package depth	206 mm
Package height	69 mm
Package weight	1800 g
Packaging content
Display included	N
