EXPANSIVE IMMERSION. MECHANIZED PERFORMANCE.

DO ANYTHING
Drive your Windows 11 gaming experiences with the power of the Intel® Core™ i7-13650HX processor

GORGEOUS VISUALS
Up to an NVIDIA® GeForce RTX™ 4060 Laptop GPU and a 2.5K resolution 165Hz G-SYNC display

BREATHE EASY
84-blade Arc Flow Fans™, 5 heatpipes, dust filters, and 4 exhaust vents

FULL UPGRADEABILITY
Thunderbolt™ 4 support, dual PCIe Gen 4x4 slots for expansion, and DDR5-4800MHz RAM

CRYSTAL CLEAR COMMS
Dolby Atmos and Two-Way AI Noise Cancelation technology ensure clear comms for all parties

STAYING POWER
A 90Wh battery, USB-C power delivery, and a larger keyboard and touchpad define this rugged chassis

DESIGN
SUBTLE STYLING

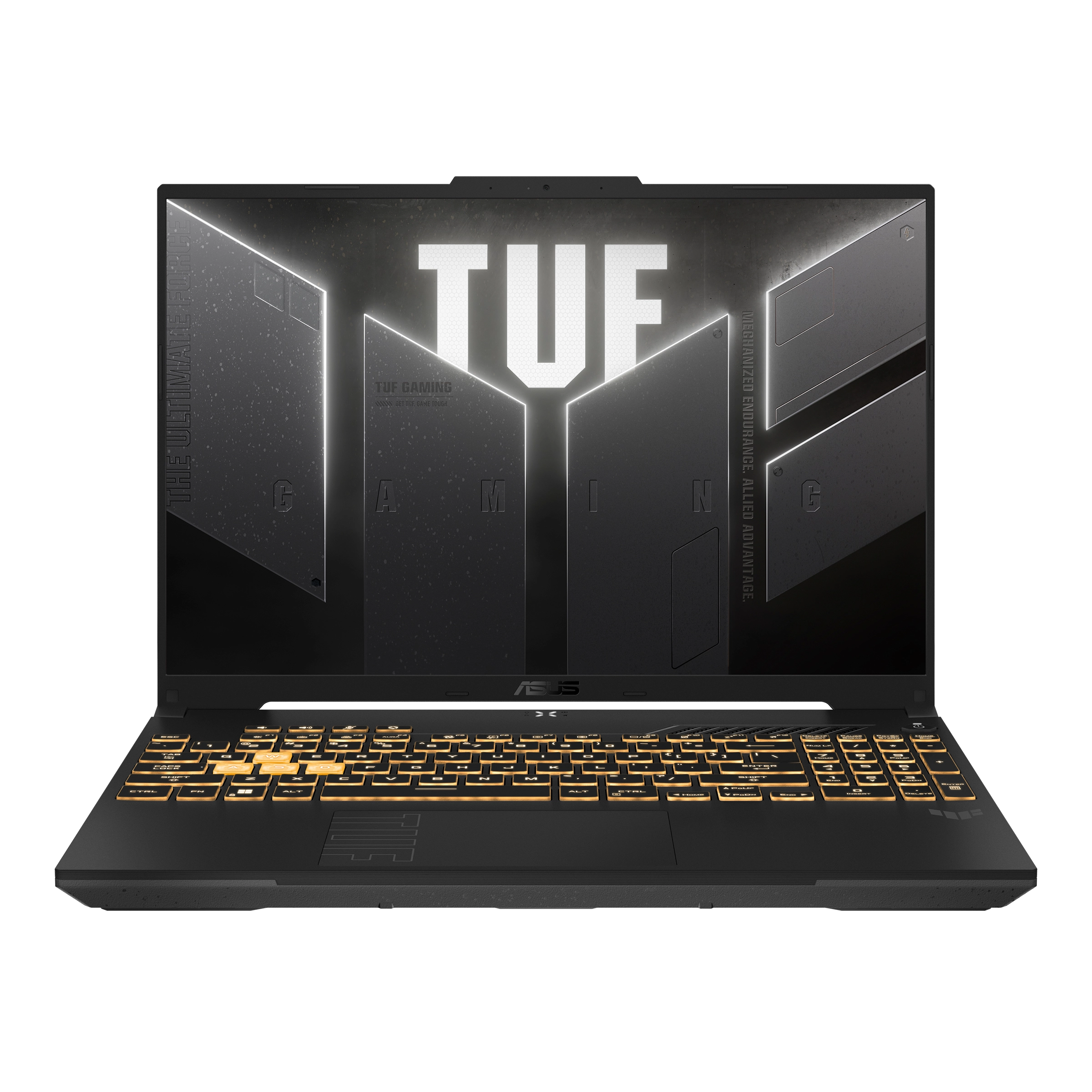

The 2024 TUF Gaming F16 retains its classic TUF styling, with a few new touches. The Mecha Gray variant sports an embossed TUF logo, while the Jaeger Gray editions have a stylish laser engraved logo. Four small triangles frame the corners of the lid, and subtle TUF references appear on the keyboard deck and trackpad.

Specification

Product
Product id	986426
Brand	AsusTek
Partnr	90NR0HV7-M006C0
EAN/UPC code	4711387430644
Design
Product type	Notebook
Product colour	Grey
Colour name	Jaeger Gray
Form factor	Clamshell
Introduction year	2023
Market positioning	Gaming
Display
Display diagonal	16 inch
Display resolution	1920 x 1200 Pixels
Touchscreen	N
Panel type	IPS
HD type	WUXGA
Native aspect ratio	16:10
Anti-glare screen	Y
Display brightness	250 cd/m²
Colour gamut	100 procent
RGB colour space	sRGB
Maximum refresh rate	165 Hz
Contrast ratio (typical)	1000:1
Processor
Processor manufacturer	Intel
Processor family	Intel Core i7
Processor model	i7-13650HX
Processor generation	Intel Core i7-13xxx
Processor boost frequency	4.9 GHz
Processor cores	14
Efficient-core Max Turbo Frequency	3.6 GHz
Processor cache	24 MB
Performance-core Max Turbo Frequency	4.9 GHz
Processor cache type	Smart Cache
Processor base power	55 W
Maximum turbo power	157 W
Performance cores	6
Efficient cores	8
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Optical drive type	N
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	Y
Discrete graphics adapter model	NVIDIA GeForce RTX 4060
On-board graphics adapter family	Intel UHD Graphics
On-board graphics adapter model	Intel UHD Graphics
Discrete graphics adapter memory	8 GB
Discrete graphics memory type	GDDR6
NVIDIA G-SYNC	Y
Audio
Audio system	Dolby Atmos
Number of built-in speakers	2
Built-in microphone	Y
Camera
Front camera	Y
Front camera resolution	1280 x 720 Pixels
Front camera HD type	HD
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Bluetooth version	5.2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Intel® Thunderbolt 4	Y
Combo headphone/mic port	Y
Thunderbolt 4 ports quantity	1
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery	Y
Keyboard
Pointing device	Touchpad
Keyboard language	Dutch
Keyboard backlit	Y
Numeric keypad	Y
Keyboard backlit colour	RGB
Keyboard backlit zone	1-zone RGB
Software
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required.
Bundled software	Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time. )
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity (Watt-hours)	90 Wh
Power
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12 A
AC adapter output voltage	20 V
Security
Cable lock slot	Y
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Y
Password protection	Y
Password protection type	BIOS, User
Weight & dimensions
Weight	2270 g
Width	355 mm
Depth	252 mm
Height (front)	22.1 mm
Height (rear)	28.2 mm
Packaging content
Cables included	AC
Technical details
Sustainability certificates	EPEAT Bronze, ENERGY STAR
