Powerful, expandable and always reliable

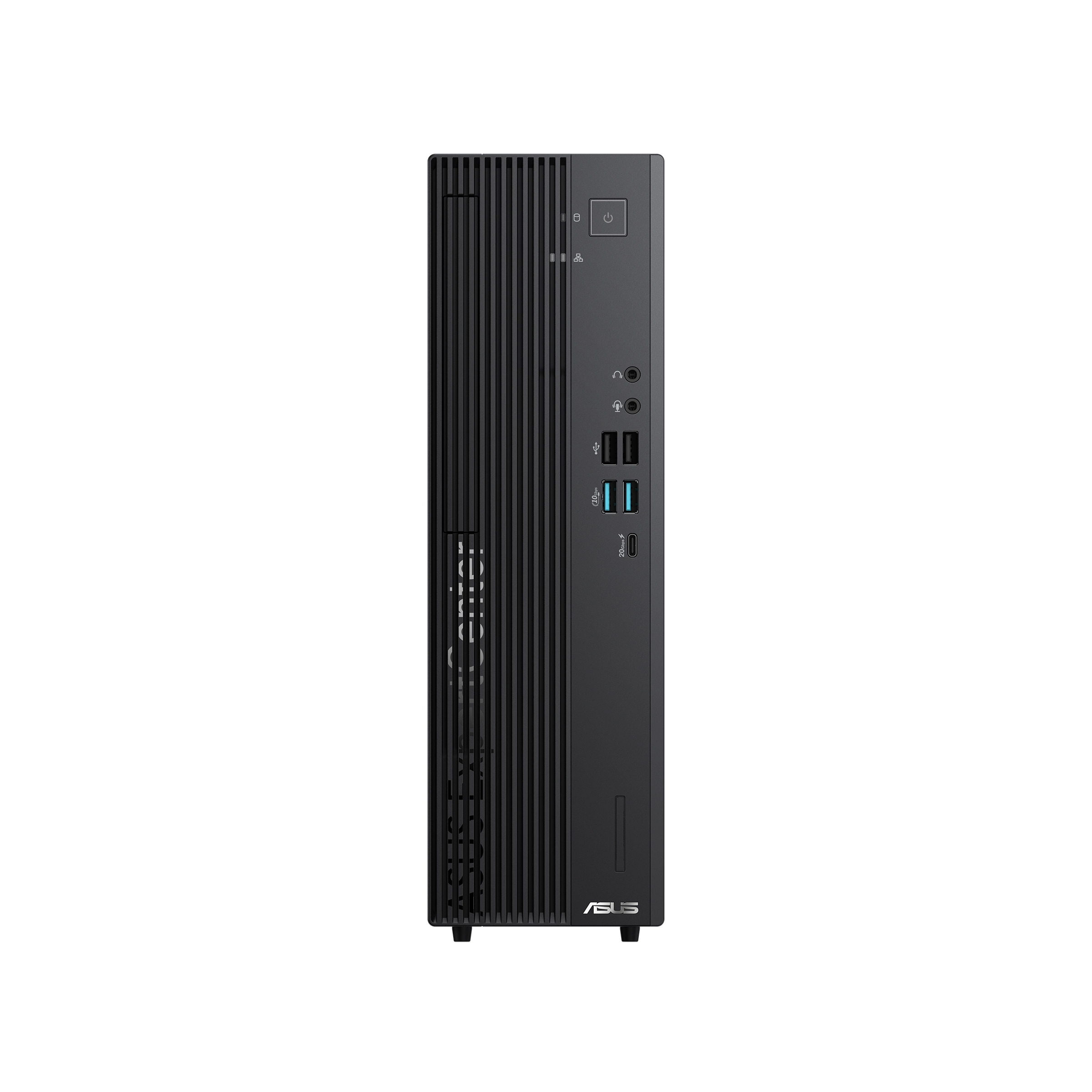

The ASUS ExpertCenter D7 SFF desktop with AI-driven Microsoft Copilot combines high performance, enterprise-grade security, and management features in an ultra-compact, sleek design, providing business users with a flexible and organized workspace. Designed to withstand and meet MIL-STD-810H US military standards1, it features an expandable chassis, ensuring prolonged reliability and convenient upgrades for professionals.

Specification

Product
Product id	1003725
Brand	AsusTek
Partnr	90PF05N1-M02TE0
EAN/UPC code	4711636252829
Warranty (months)	2Y OnSite Service
Processor
Processor manufacturer	Intel
Processor family	Intel Core i7
Processor generation	Intel Core i7-14xxx
Processor model	i7-14700
Processor cores	20
Processor boost frequency	5.4 GHz
Performance cores	8
Efficient cores	12
Processor cache	33 MB
Processor cache type	Smart Cache
Performance-core base frequency	2.1 GHz
Processor threads	28
Efficient-core base frequency	1.5 GHz
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Processor base power	65 W
Maximum turbo power	219 W
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory slots	4x DIMM
Memory clock speed	5600 MHz
Storage
Total storage capacity	1000 GB
Optical drive type	N
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board graphics adapter family	Intel UHD Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel UHD Graphics 770
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
LAN controller	Intel WGI219V
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Bluetooth	Y
Bluetooth version	5.4

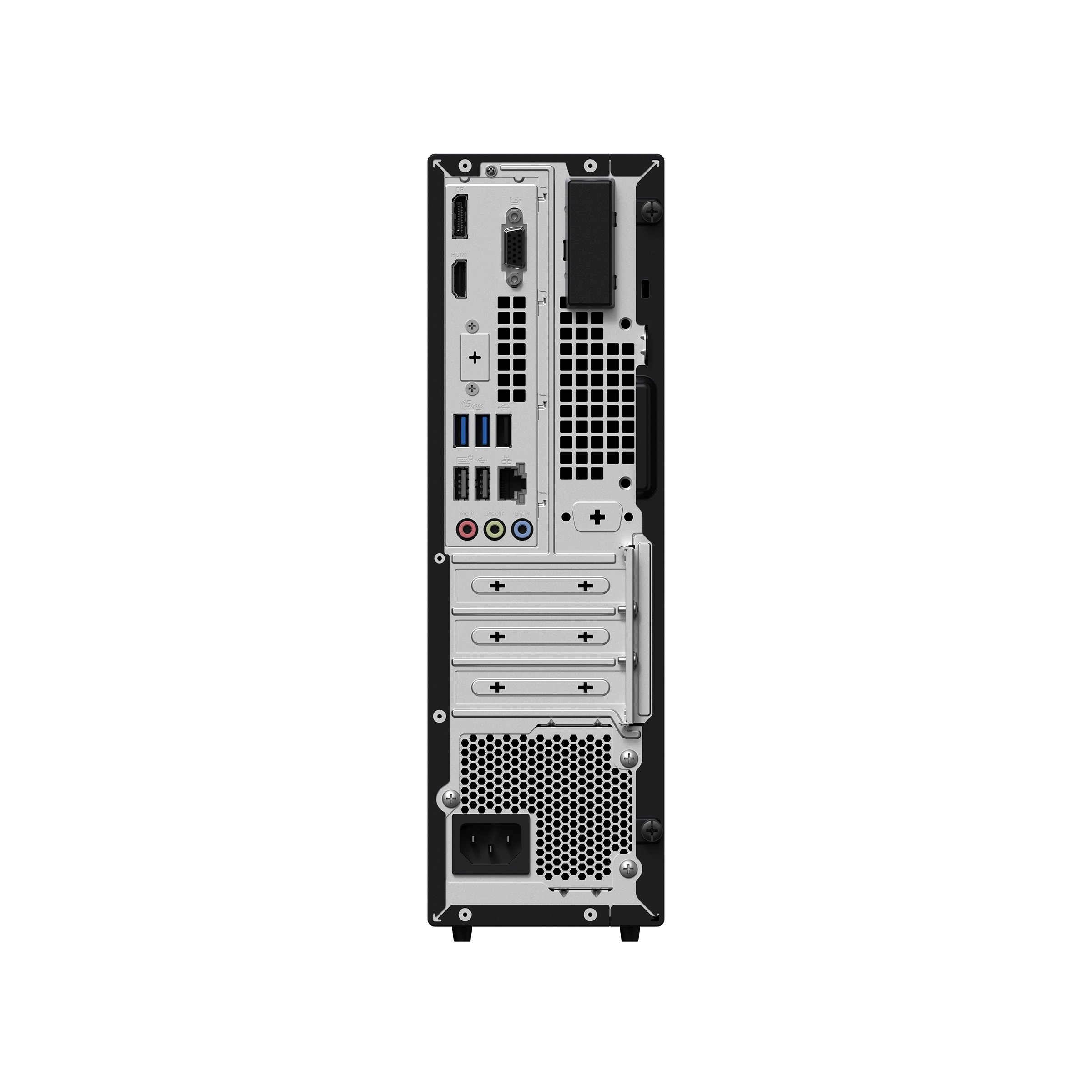

Ports & interfaces
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	1
Microphone in	Y
Headphone outputs	1
Line-in	Y
Line-out	Y
Combo headphone/mic port	Y
Number of SATA III connectors	4
Expansion slots
PCI Express x1 (Gen 3. x) slots	2
PCI Express x16 (Gen 4. x) slots	1
Design
Chassis type	SFF
Colour name	Black
Volume	8.6 l
Number of 3.5" bays	1
Number of 2.5" bays	1
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Performance
Product type	PC
Market positioning	Business
Motherboard chipset	Intel B760
Audio system	High Definition Audio
Audio output channels	7.1 kanalen
Password protection	Y
Password protection type	HDD, User
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required.
Bundled software	1-month Adobe Creative Cloud Hard Bundle *Terms and exclusions apply. Offer only available in eligible markets. Eligible markets are determined at activation, and varies by region, device, and time.
Power
Power supply	180 W
80 PLUS certification	80 PLUS Bronze
Certificates
Compliance certificates	REACH
Weight & dimensions
Width	93 mm
Depth	296 mm
Height	309 mm
Weight	5000 g
Packaging content
Display included	N
Mouse included	N
Keyboard included	N
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Silver
