Fast and secure, with dual-view interaction

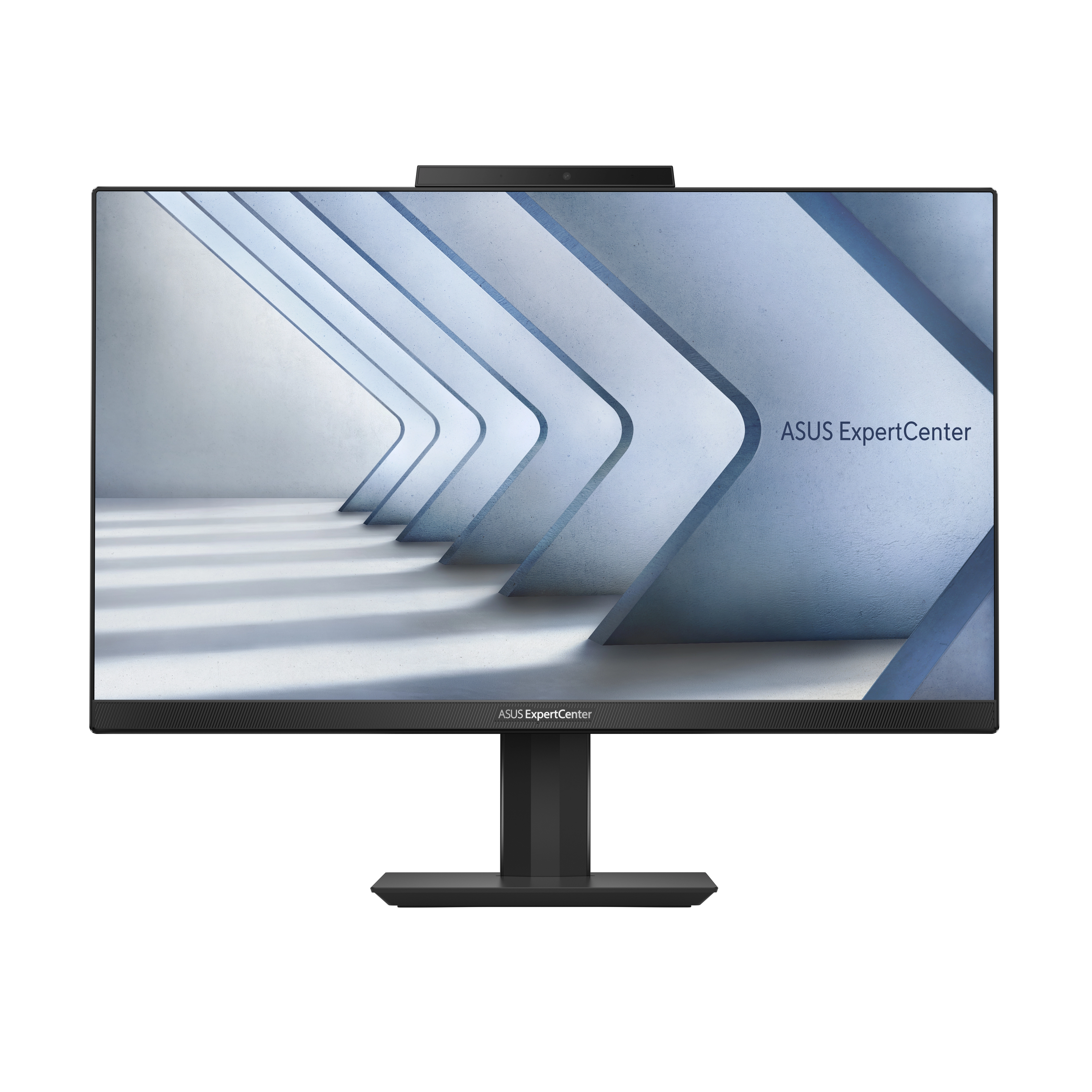

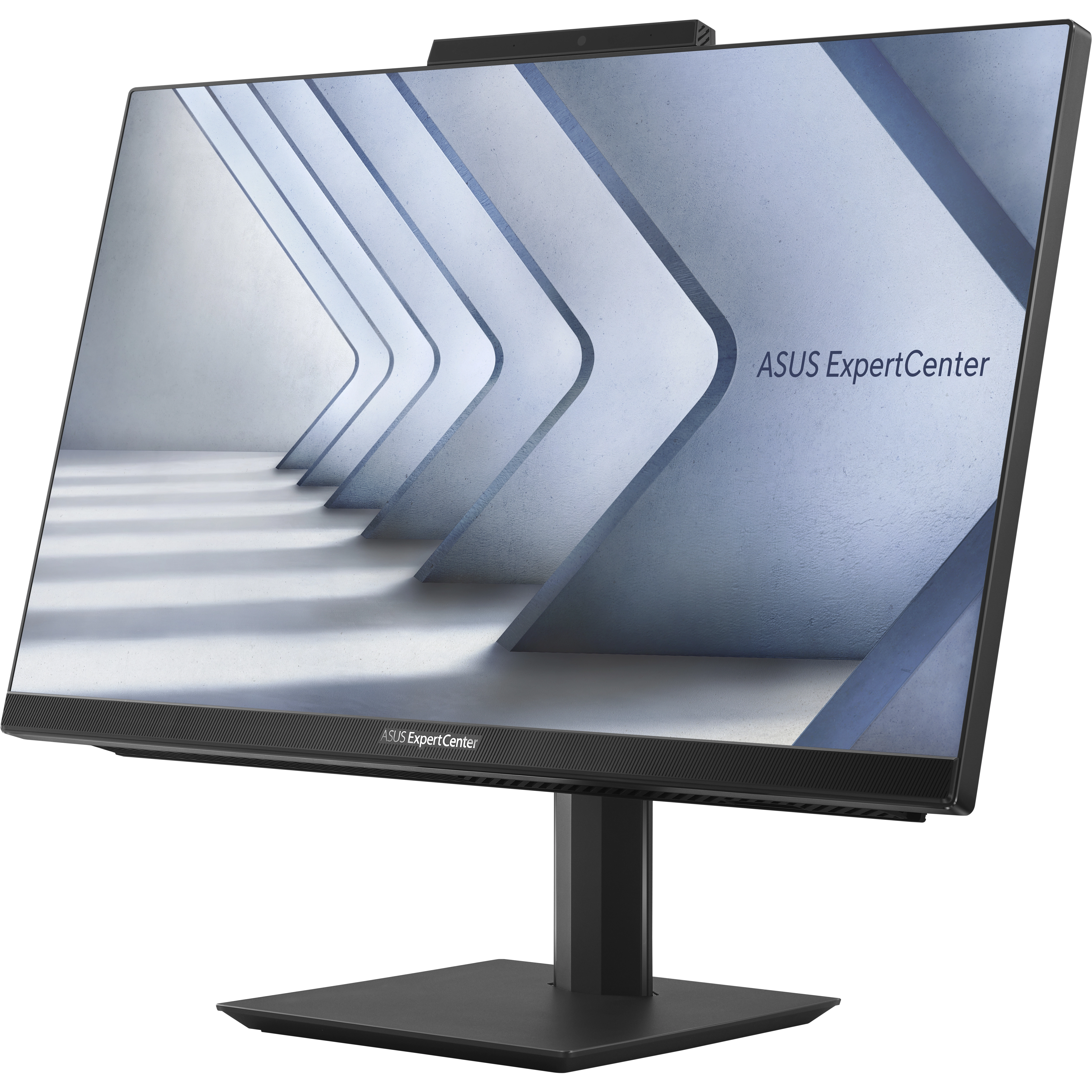

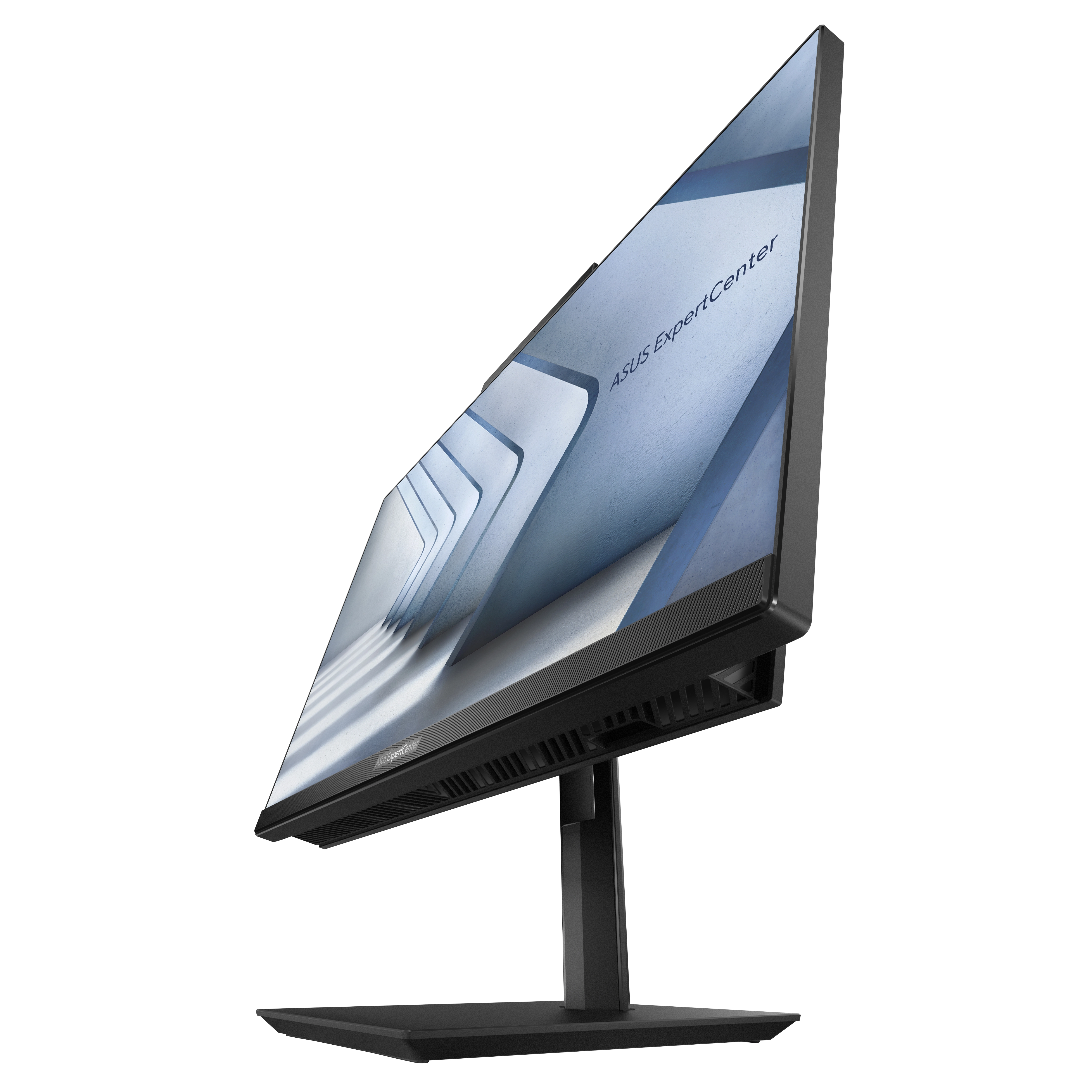

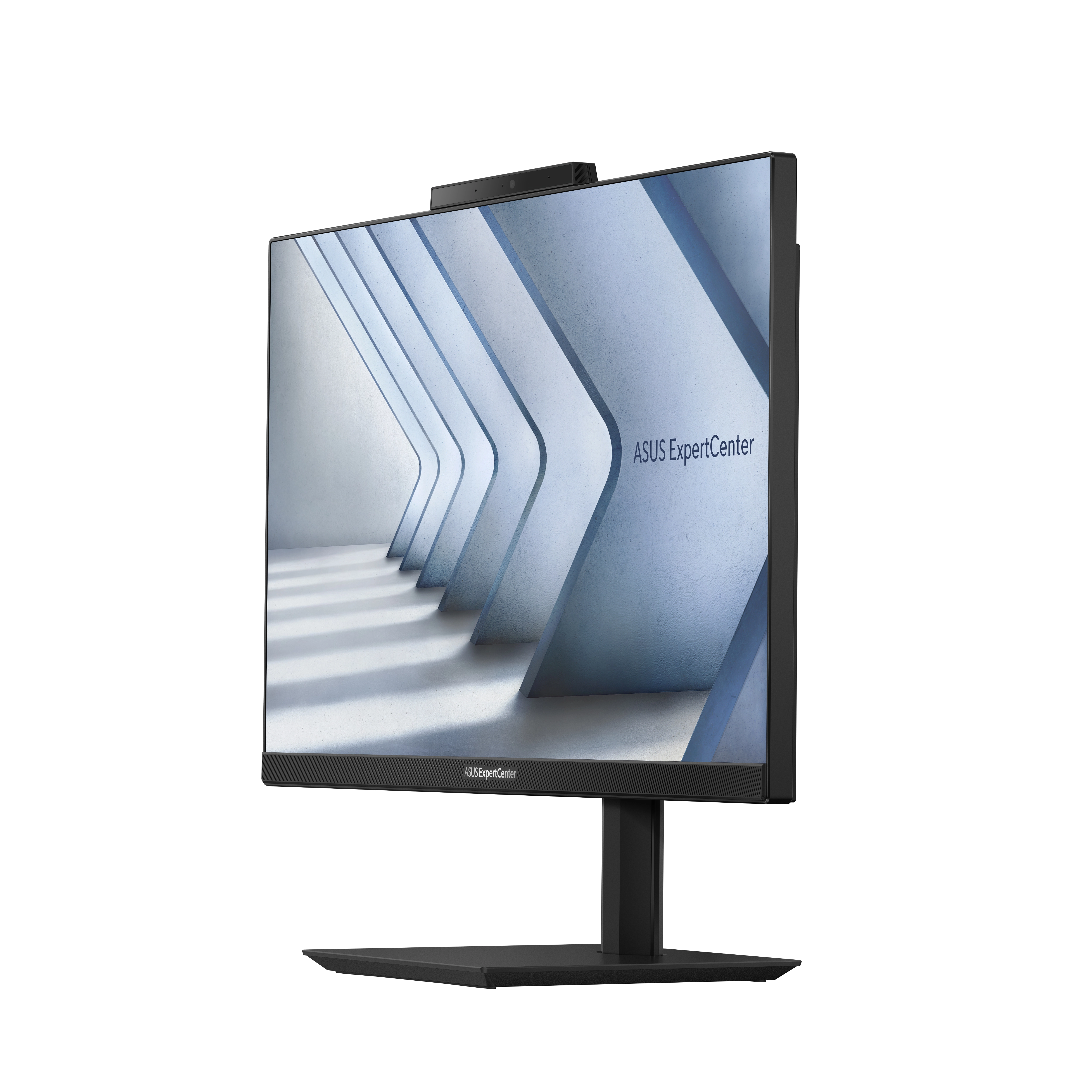

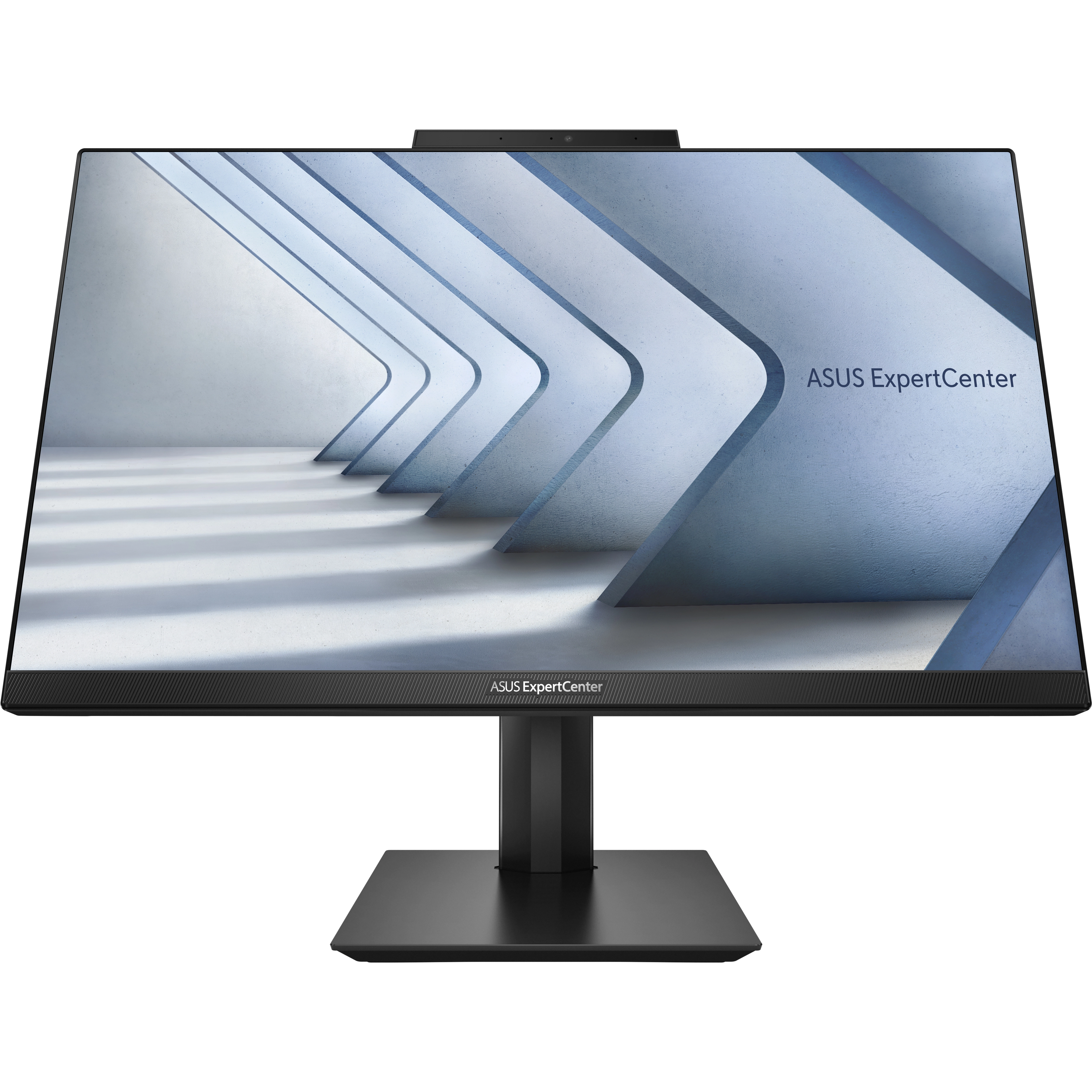

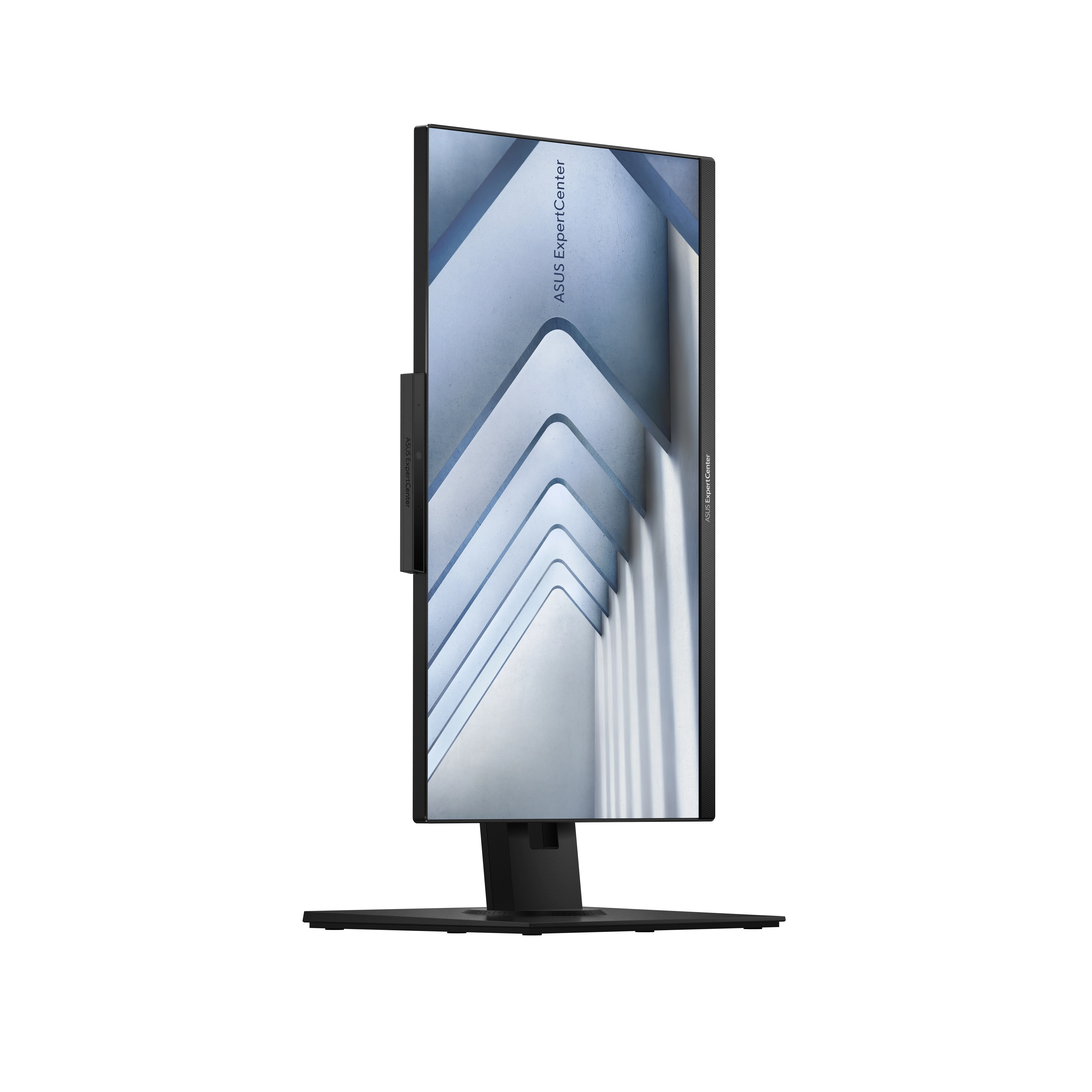

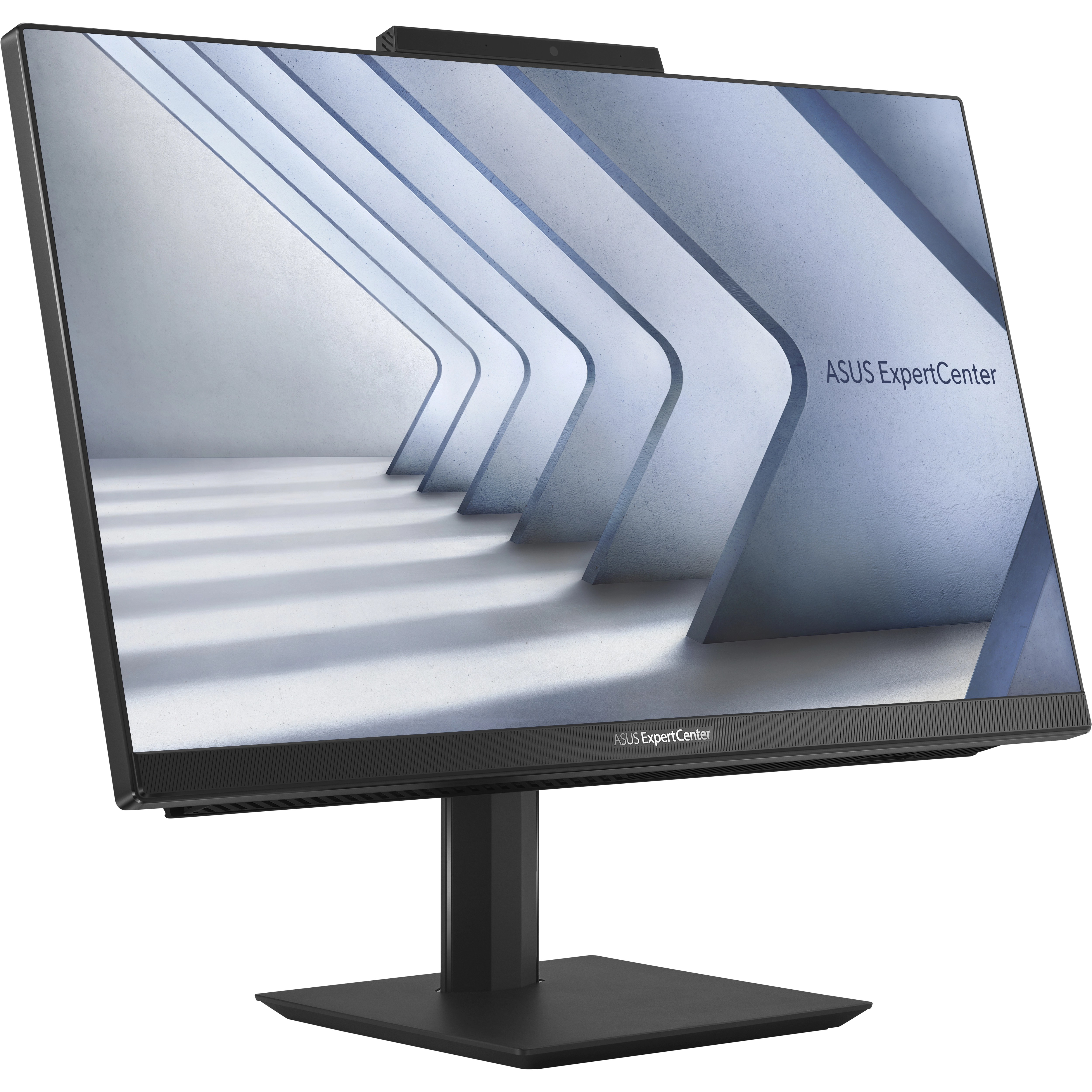

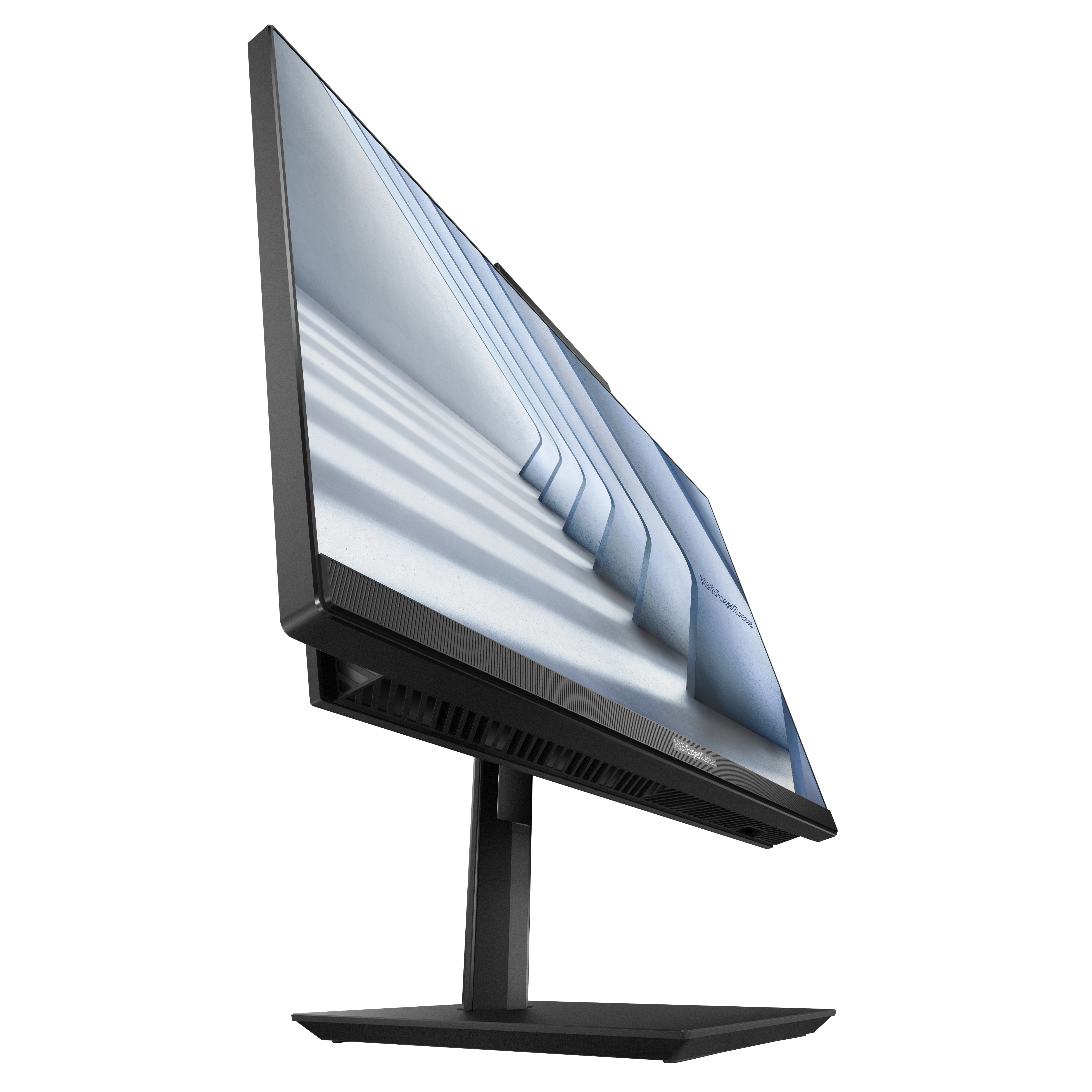

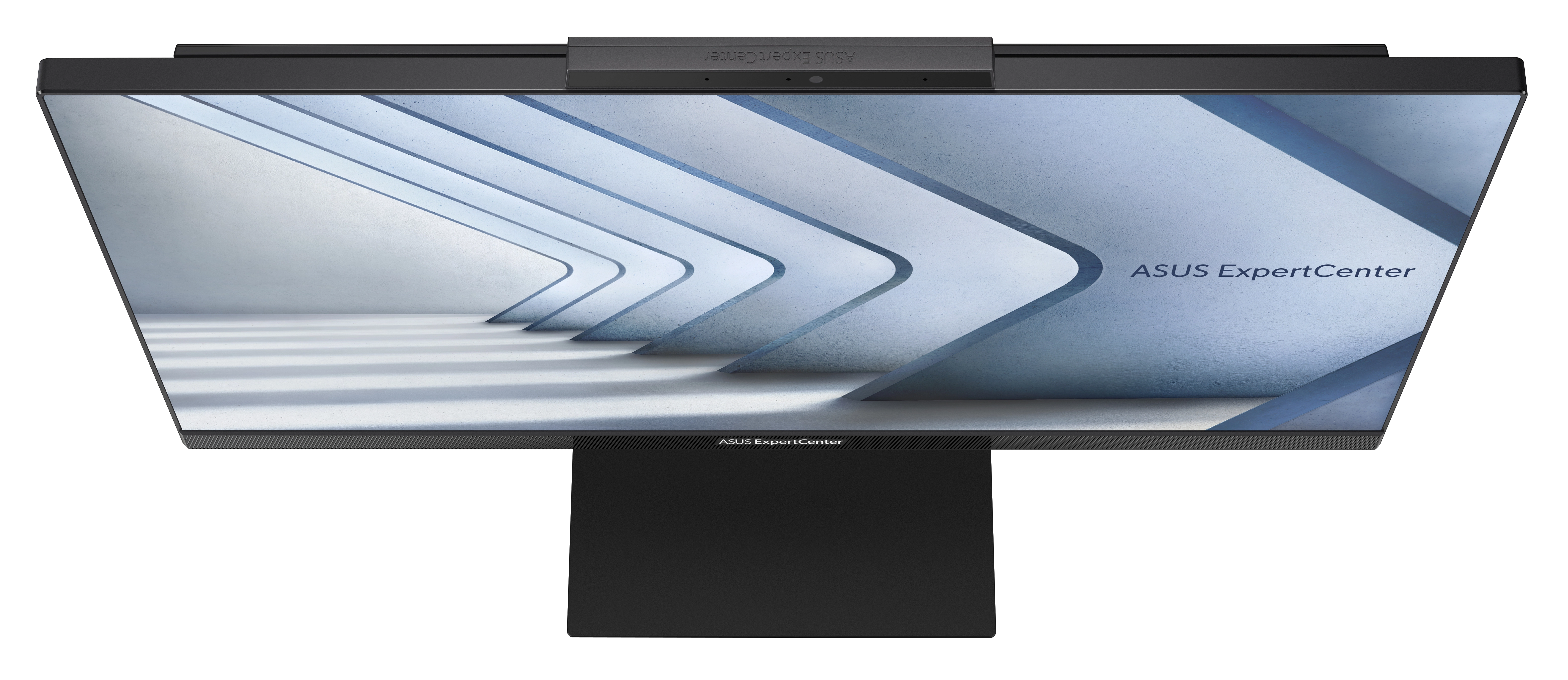

ASUS ExpertCenter E5 AiO 24 is the world’s only business-ready PC with ASUS VeriView1 — an optional second, outward-facing touchscreen for two-way interaction across diverse business scenarios. Featuring the latest powerful Intel Core™ i5 desktop processor, high-speed connectivity, two-way AI noise cancelation for clear conferencing, upgradeable storage, VESA mount compatibility, Modern Standby efficiency and enterprise-grade privacy security features, ExpertCenter E5 AiO is the no-compromise solution for forward-thinking businesses.

Specification

Product
Product id	958080
Brand	AsusTek
Partnr	90PT03J5-M03310
EAN/UPC code	4711387634523
Display
Display diagonal	23.8 inch
Display resolution	1920 x 1080 Pixels
Touchscreen	Y
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	LCD
Anti-glare screen	Y
RGB colour space	sRGB
Colour gamut	100 procent
Processor
Processor manufacturer	Intel
Processor family	Intel Core 5
Processor model	120U
Processor generation	Intel Core (Series 1)
Processor boost frequency	5 GHz
Efficient-core base frequency	0.9 GHz
Processor cores	10
Processor cache	12 MB
Processor cache type	Smart Cache
Performance-core base frequency	1.4 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Performance-core Max Turbo Frequency	5 GHz
Performance cores	2
Efficient cores	8
Processor base power	15 W
Maximum turbo power	55 W
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory layout (slots x size)	1 x 16 GB
Memory form factor	DIMM/SO-DIMM
Storage
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express 4.0
SSD form factor	M.2
NVMe	Y
Optical drive type	N
Card reader integrated	Y
Compatible memory cards	MMC, SD
Graphics
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter	Y
On-board graphics adapter family	Intel Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Graphics
Audio
Built-in speaker(s)	Y
Built-in microphone	Y
Camera
Built-in camera	Y
Camera resolution	1280 x 720 Pixels
Camera HD type	HD
Network
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Bluetooth	Y
Bluetooth version	5.3
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Intel® Thunderbolt 4	Y
HDMI ports quantity	1
Thunderbolt 4 ports quantity	1
HDMI version	2.1b
DisplayPorts quantity	1
Headphone outputs	1
Combo headphone/mic port	Y
DC-in jack	Y
Design
Product colour	Black
Colour name	Black
Cable lock slot	Y
Cable lock slot type	Kensington
Introduction year	2023
Performance
Market positioning	Business
Product type	All-in-One PC
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
HDD user password	Y
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers.
Power
AC adapter power	120 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	20 V
Weight & dimensions
Width (with stand)	541 mm
Depth (with stand)	426 mm
Height (with stand)	201 mm
Weight (with stand)	8900 g
Certificates
Compliance certificates	REACH
Packaging content

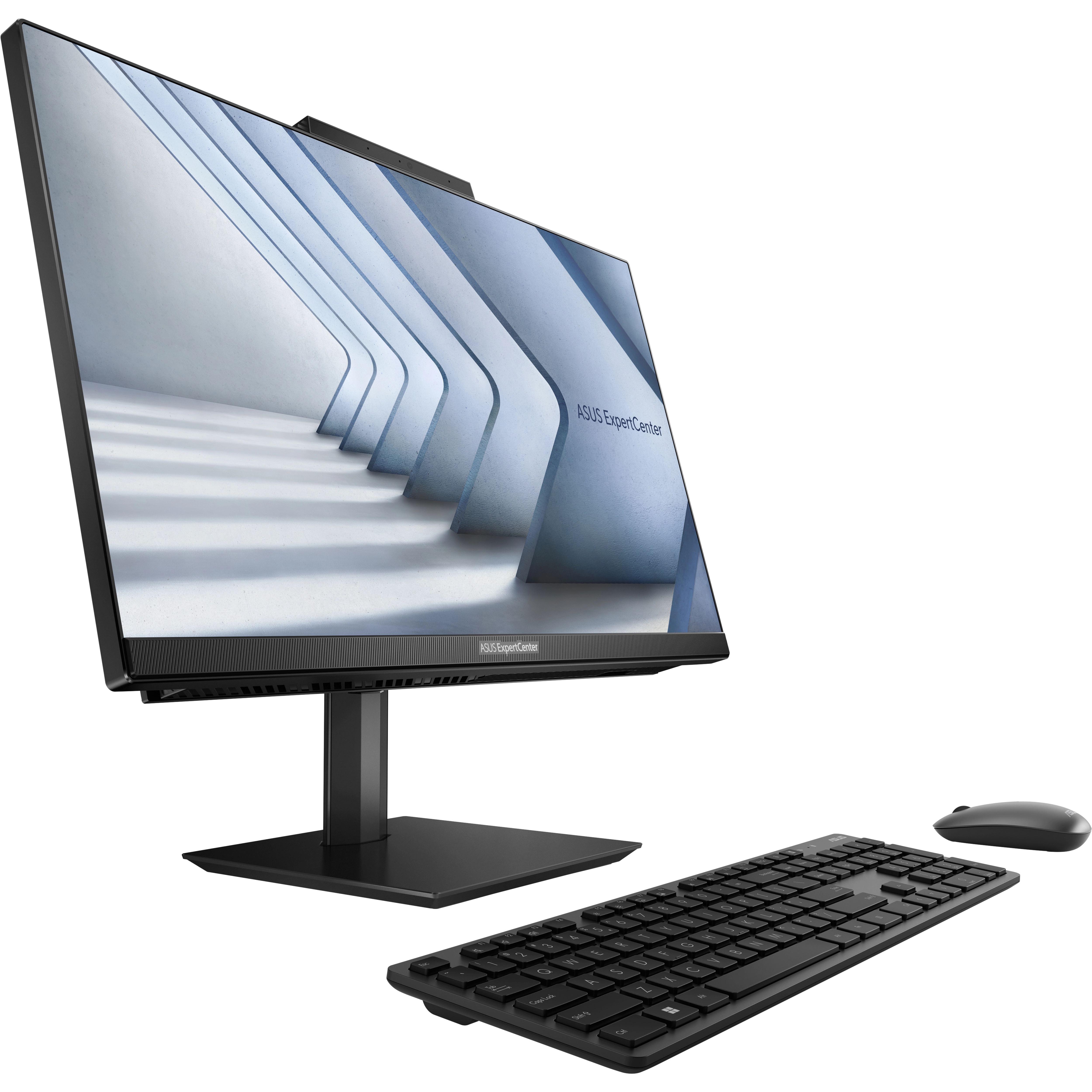

Mouse included	Y
Mouse connectivity	Wired
Keyboard included	Y
Keyboard layout	QWERTY
Keyboard language	Dutch
Keyboard connectivity	Wired
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Silver
