PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

Specification

Product
Product id	817222
Brand	AsusTek
Partnr	90SB0A90-M0UAY0
EAN/UPC code	4711081420217
Processor
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Xeon
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	2666, 2933, 3200 MHz
Supported memory module capacities	8GB, 16GB, 32GB
Maximum internal memory	128 GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	8
Number of storage drives supported	10
RAID support	Y
Graphics
On-board graphics adapter	Y
On-board graphics adapter model	Aspeed AST2600
On-board graphics adapter memory	64 MB
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	8
Power fan connector	Y
Number of chassis fan connectors	6
TPM connector	Y
Number of COM connectors	1

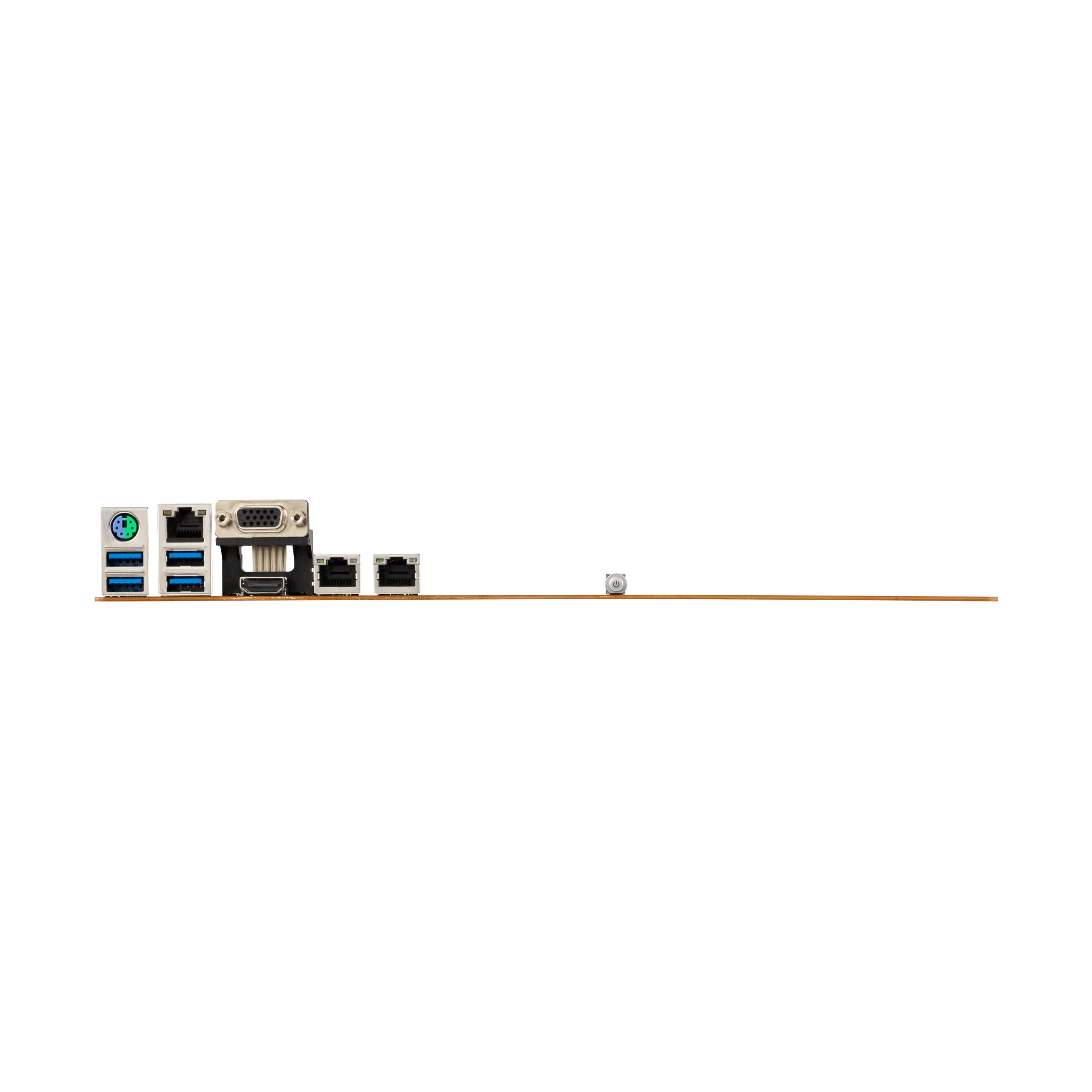

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
Features
Component for	Server
Motherboard form factor	ATX
Motherboard chipset family	Intel
PC health monitoring	CPU, FAN
Harmonized System (HS) code	84733020
Expansion slots
PCI Express x8 slots	3
PCI Express x16 slots	1
PCI Express x16 (Gen 3. x) slots	1
Number of M.2 (M) slots	2
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 50 procent
Storage relative humidity (H-H)	20 - 90 procent
Weight & dimensions
Width	305 mm
Depth	244 mm
Other features
Package weight	9.5 g
