PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

High-resolution HDMI monitoring
ASUS P12R server motherboards feature an HDMI 1.4 port directed from the CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.

Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

Server-management Solution

ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Enhanced security
ASUS P12R server motherboards integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all P12R server motherboards servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

Specification

Product
Product id	817223
Brand	AsusTek
Partnr	90SB0A90-M1UAY0
EAN/UPC code	4711081674016
Processor
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Pentium, Intel Xeon E
Memory
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
Supported memory clock speeds	2666, 2933, 3200 MHz
Supported memory module capacities	8GB, 16GB, 32GB
Maximum internal memory	128 GB
Storage controllers
Supported storage drive interfaces	M.2, SATA III
Graphics
Graphics adapter family	ASPEED
Graphics adapter	AST2600
On-board graphics adapter memory	64 MB
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	2
Number of SATA III connectors	8
ATX Power connector (24-pin)	Y
Peripheral (Molex) power connectors (4-pin)	6
EPS power connector (8-pin)	Y
Serial port headers	1
TPM connector	Y
Number of COM connectors	1

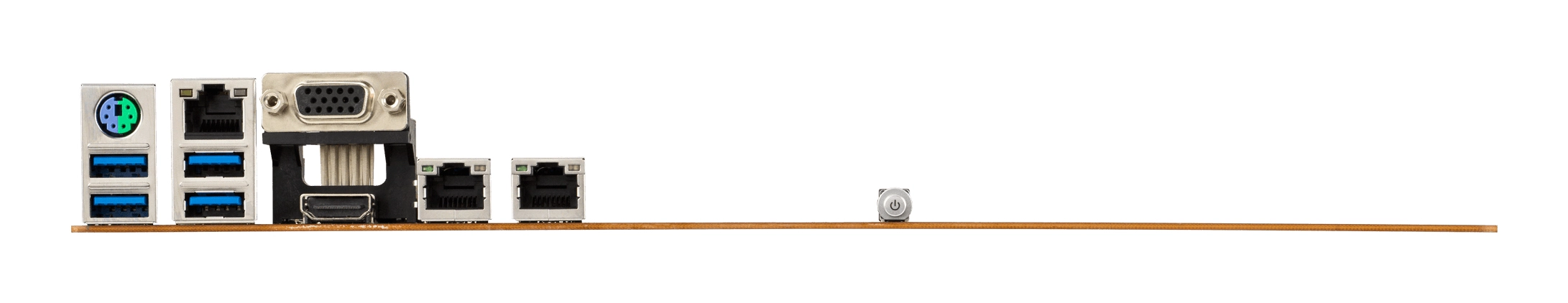

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	3
PS/2 ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
Network
Ethernet LAN	Y
Wi-Fi	N
Features
Component for	Server
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel C256
Harmonized System (HS) code	84733020
Expansion slots
PCI Express x4 slots	2
PCI Express x8 slots	1
PCI Express x16 (Gen 4. x) slots	1
Number of M.2 (M) slots	2
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 50 °C
Storage relative humidity (H-H)	20 - 90 procent
Weight & dimensions
Width	305 mm
Depth	244 mm
Other features
Package weight	9500 g
