1U dual-socket server powered by Intel® Xeon® 6 Scalable processors that supports up to 32 DIMMs, dual M.2, 12 NVMe, 4 PCIe slots and dual M.2, and ASUS ASMB12-iKVM.

Intel-based rack server for expansional workloads

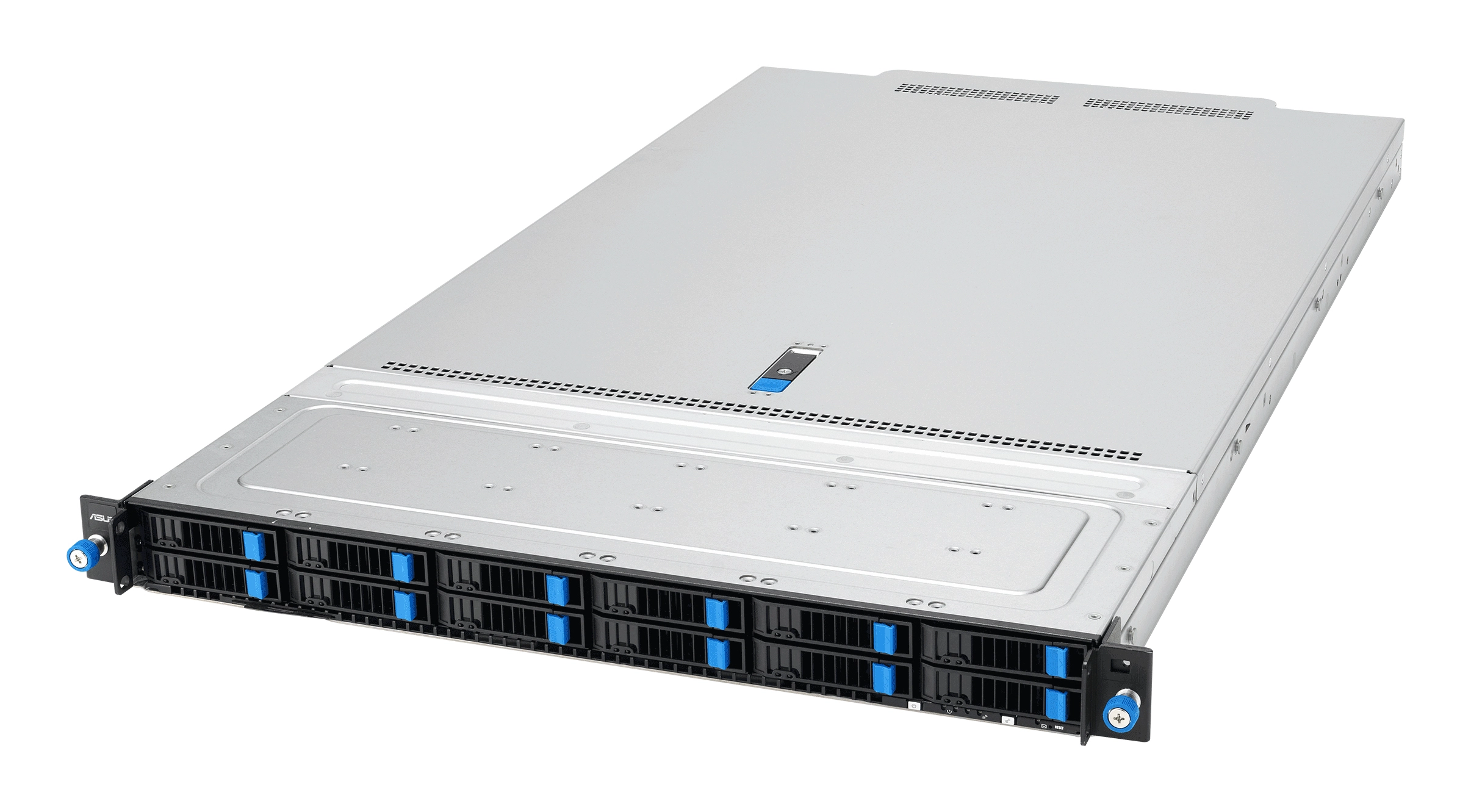

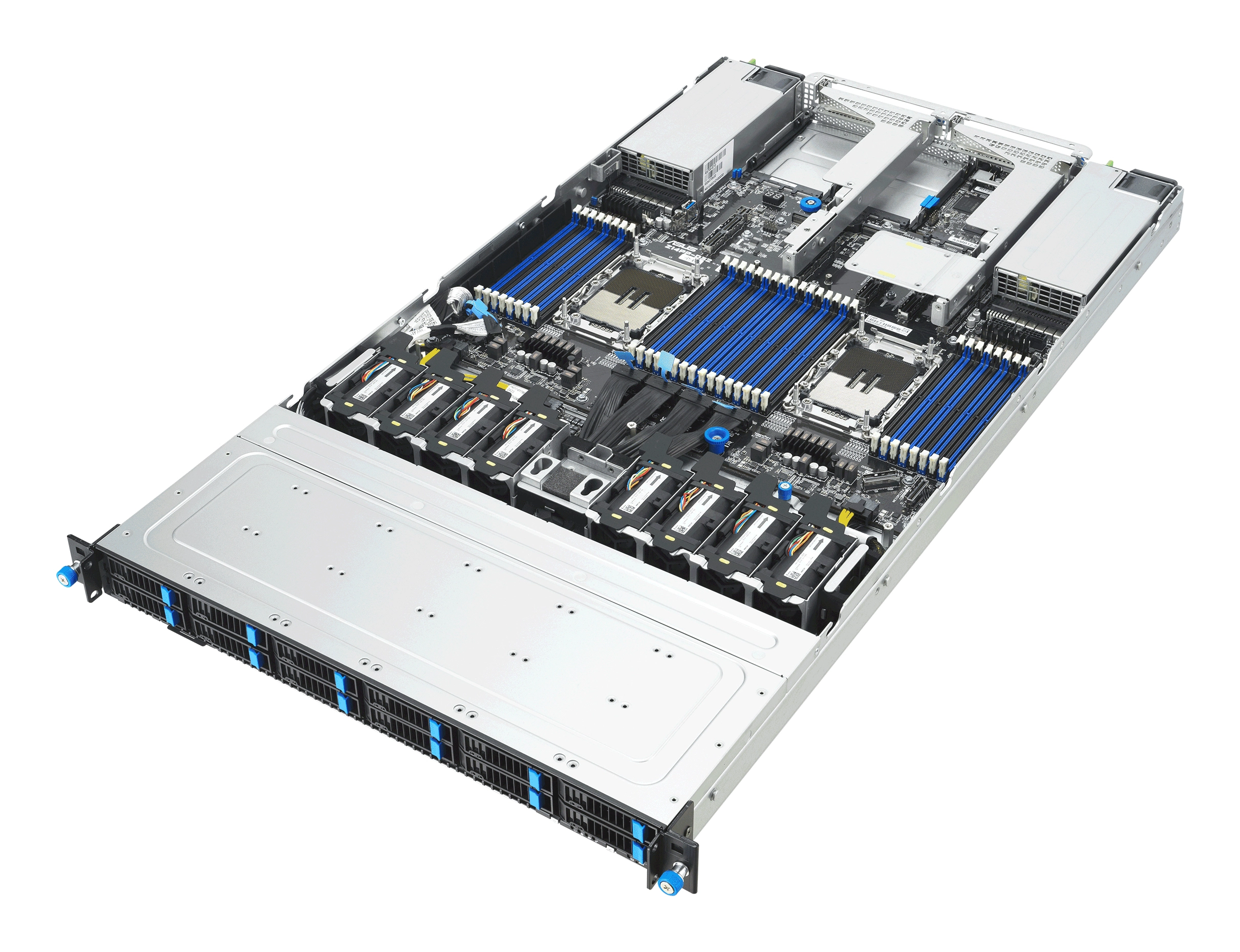

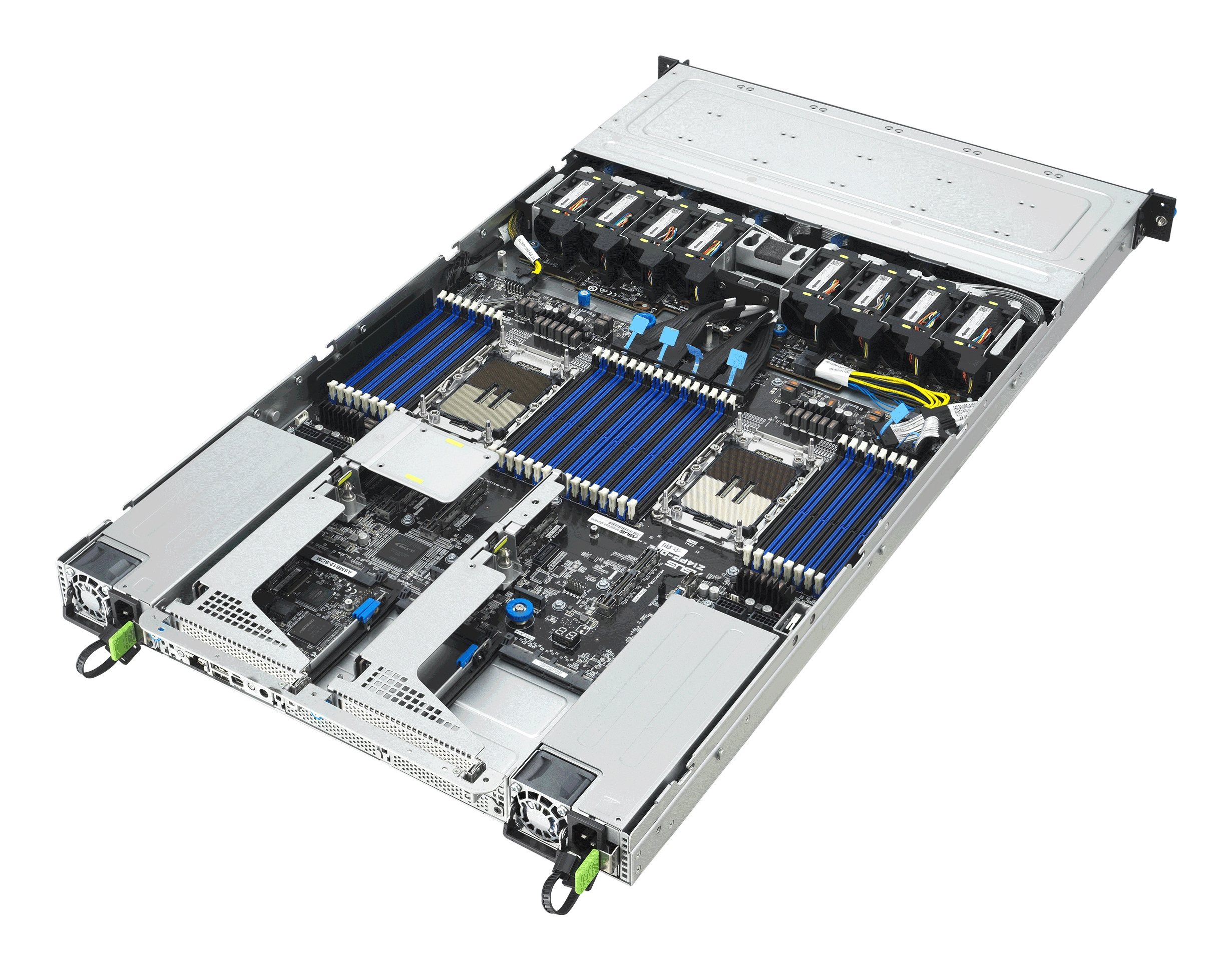

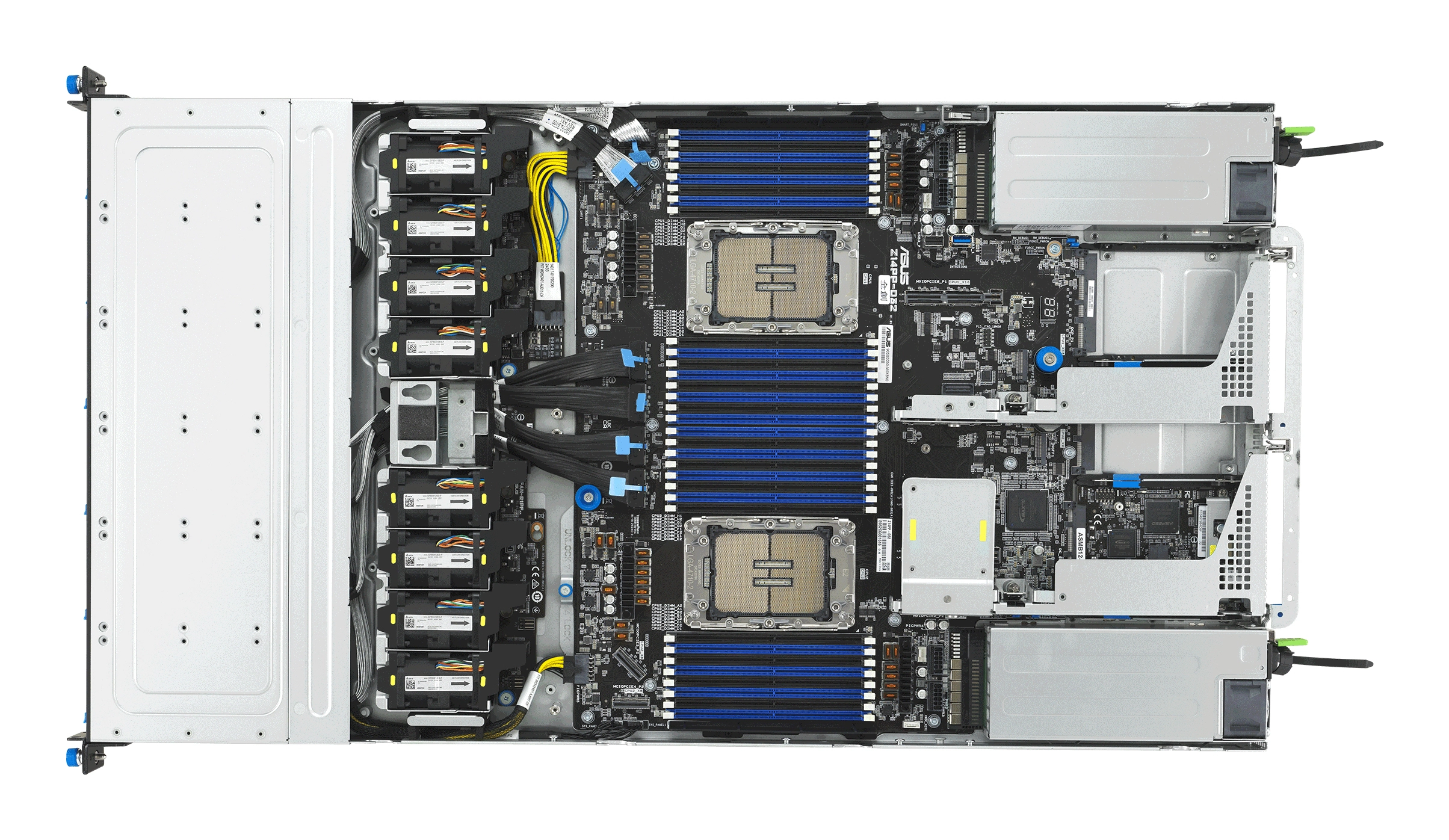

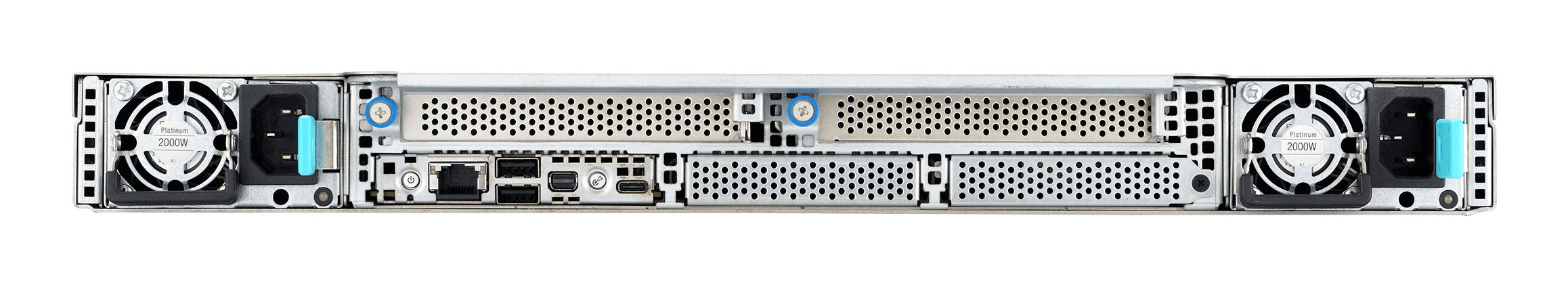

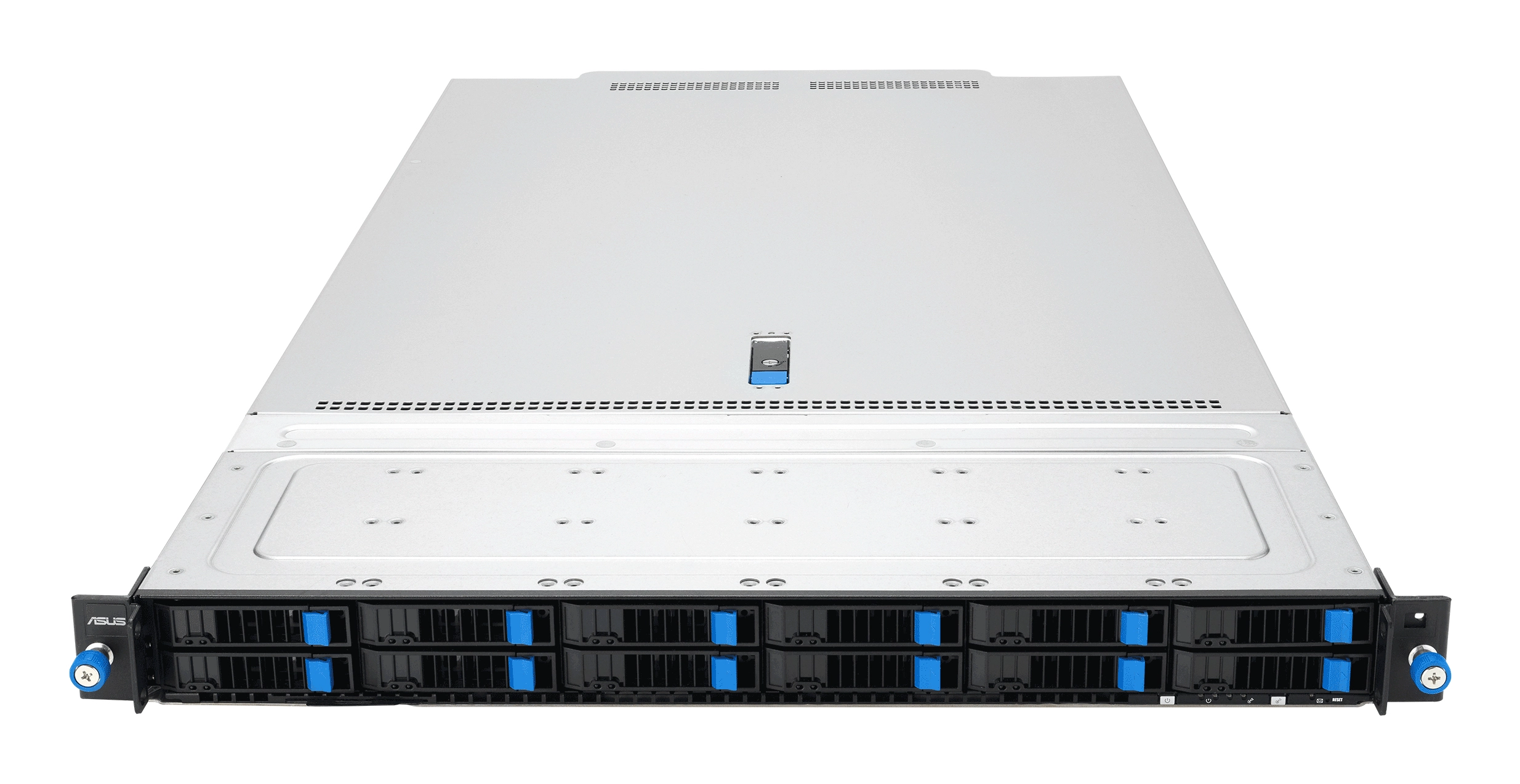

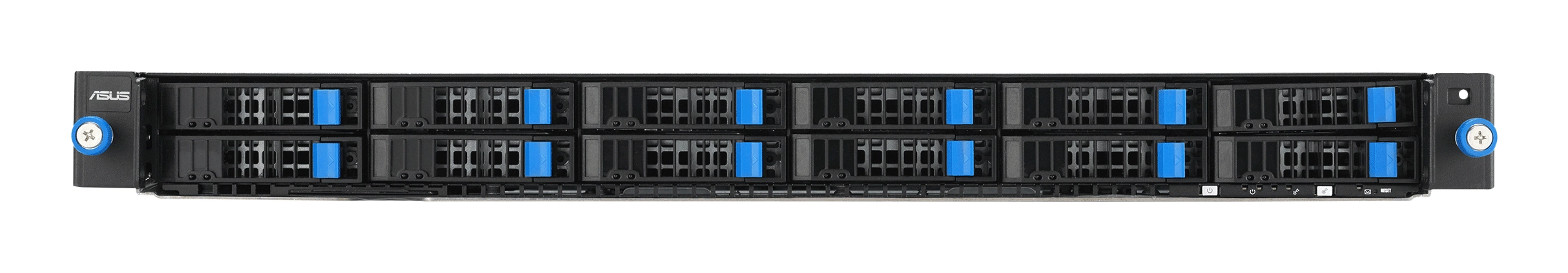

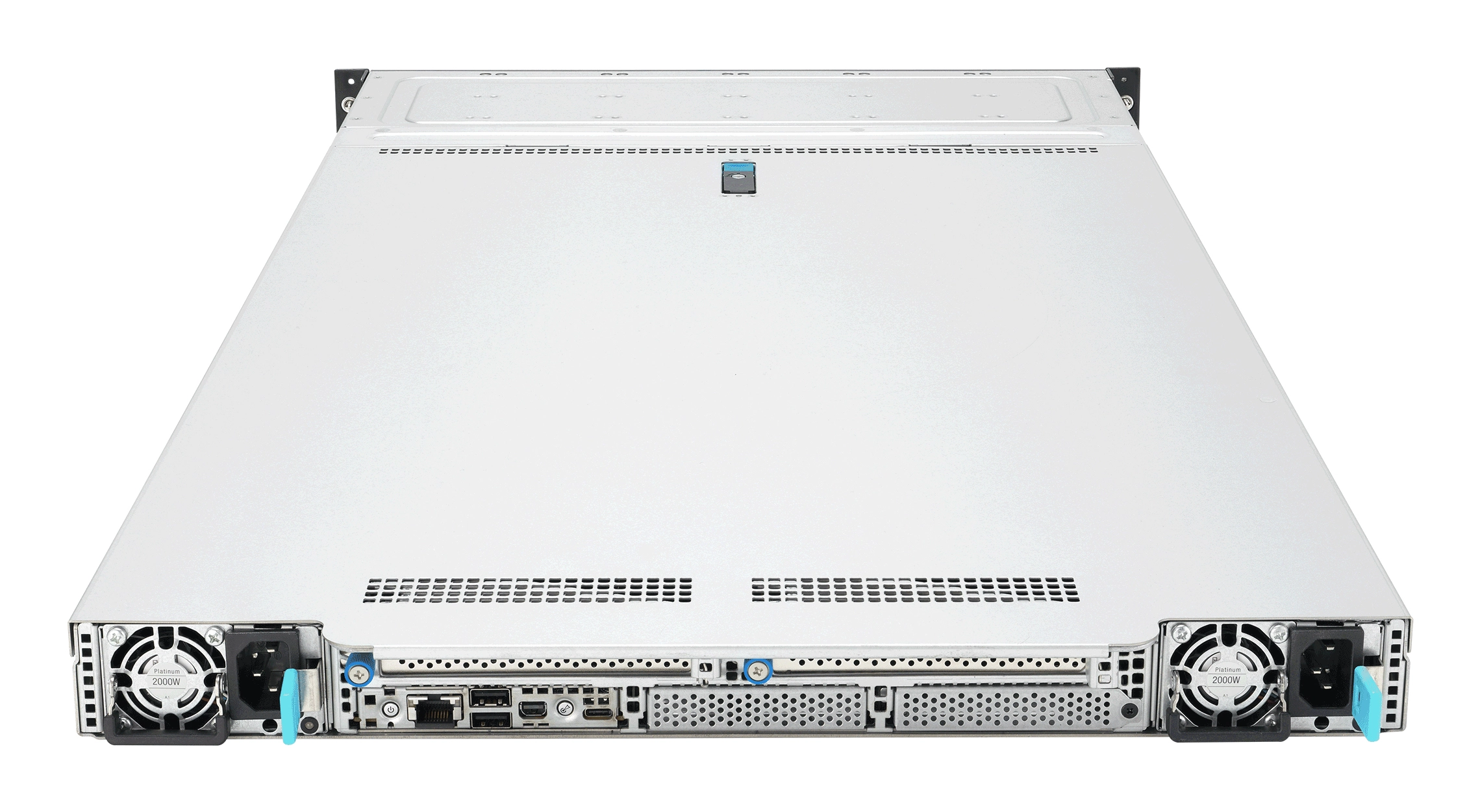

RS700-E12-RS12U is a versatile and high-performance 1U server powered by dual Intel® Xeon® 6 processors, supporting up to 32 DIMMs for enhanced memory performance maximum up to 4TB and delivering exceptional efficiency across a broad range of workloads. With a modular and scalable DC-MHS architecture, RS700-E12-RS12U provides seamless integration and optimization, making them ideal for modern data centers and diverse IT environments.

Specification

Product
Product id	998866
Brand	AsusTek
Partnr	90SF03S1-M00160
EAN/UPC code	4711636058537
Processor
Built-in processor	N
Processor manufacturer	Intel
Processor family	Intel Xeon
Number of processors supported	2
Compatible processor series	Intel Xeon
Memory
Number of DIMM slots	32
Supported memory types	DDR5-SDRAM
Supported DIMM module capacities	16GB, 32GB, 64GB, 128GB
Maximum internal memory	4096 GB
Supported RDIMM clock speeds	6400 MHz
Storage
Number of storage drives supported	14
Hot-swap HDD bays	Y
Number of 2.5" bays	12
Storage drive sizes supported	2.5, M.2 "
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA, Serial Attached SCSI (SAS)
Graphics
On-board graphics adapter model	Aspeed AST2600
On-board graphics adapter memory	64 MB
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Mini DisplayPorts quantity	1
Expansion slots
PCI Express slots version	5.0
PCI Express x16 (Gen 5. x) slots	4
Number of M.2 (M) slots	2
Features
Integrated BMC with IPMI	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Design
Chassis type	Rack (1U)
Product colour	Black, Steel
LED indicators	Y
Cooling type	Active
Number of fans	8 ventilator(en)
Certification	BSMI, CE, CB, RCM, FCC(Class A), ISED
Power
Power supply	2000 W
Redundant power supply (RPS) support	Y
Number of redundant power supplies supported	2
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
80 PLUS certification	80 PLUS Platinum
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 90 procent
Weight & dimensions
Width	821.7 mm
Depth	483 mm
Height	43.2 mm
Weight	13810 g
Packaging data
Package weight	16710 g
