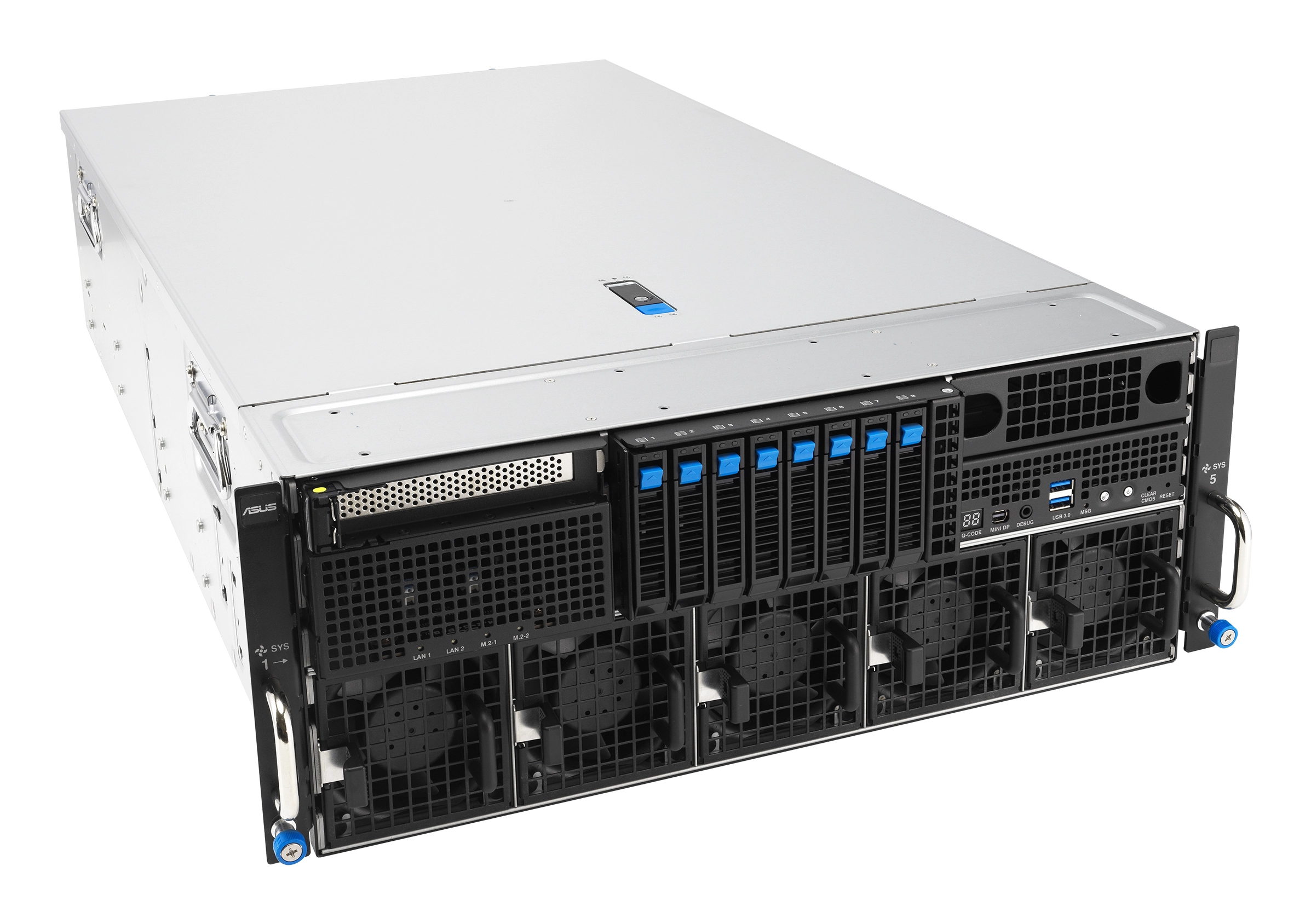

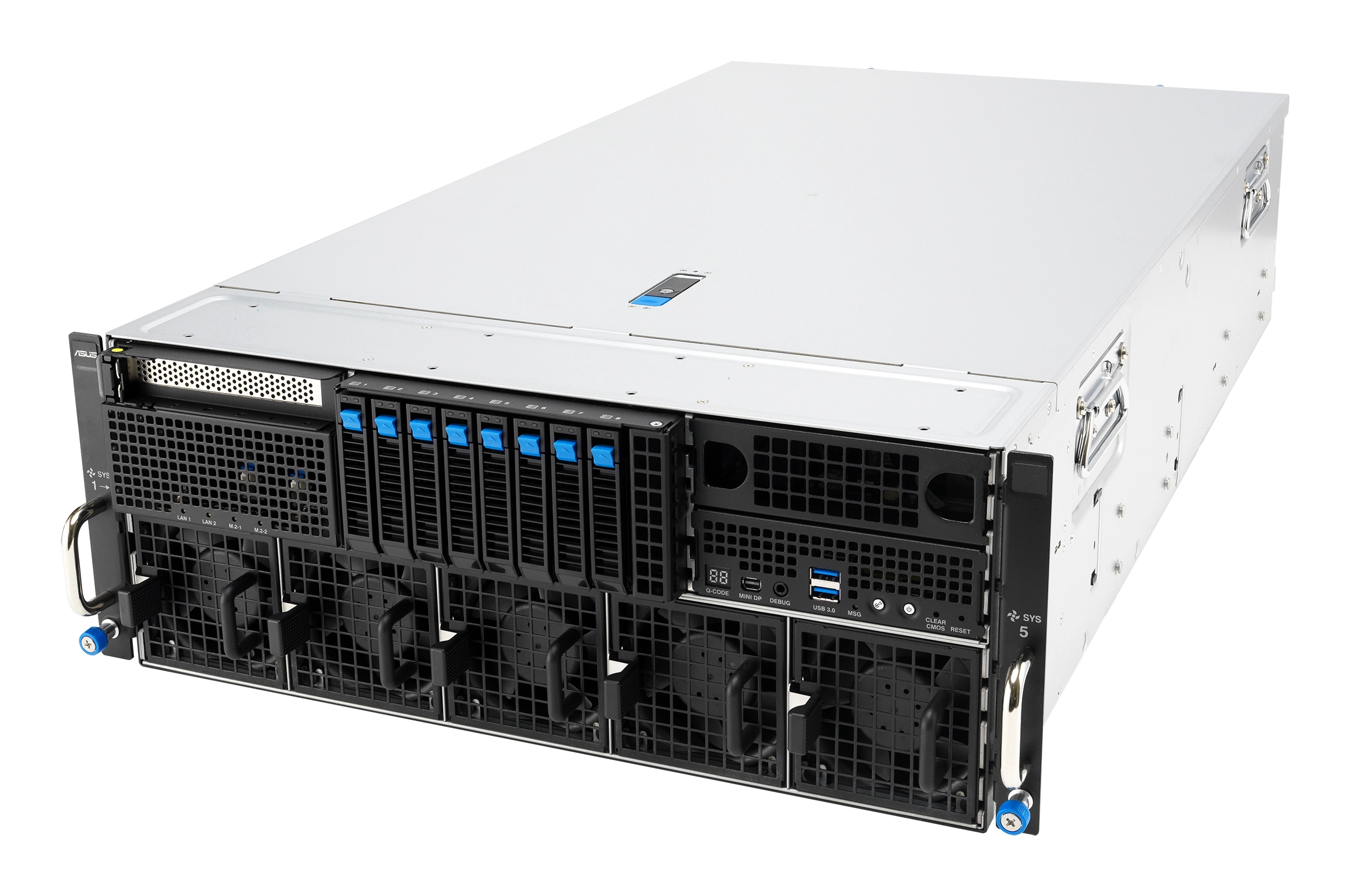

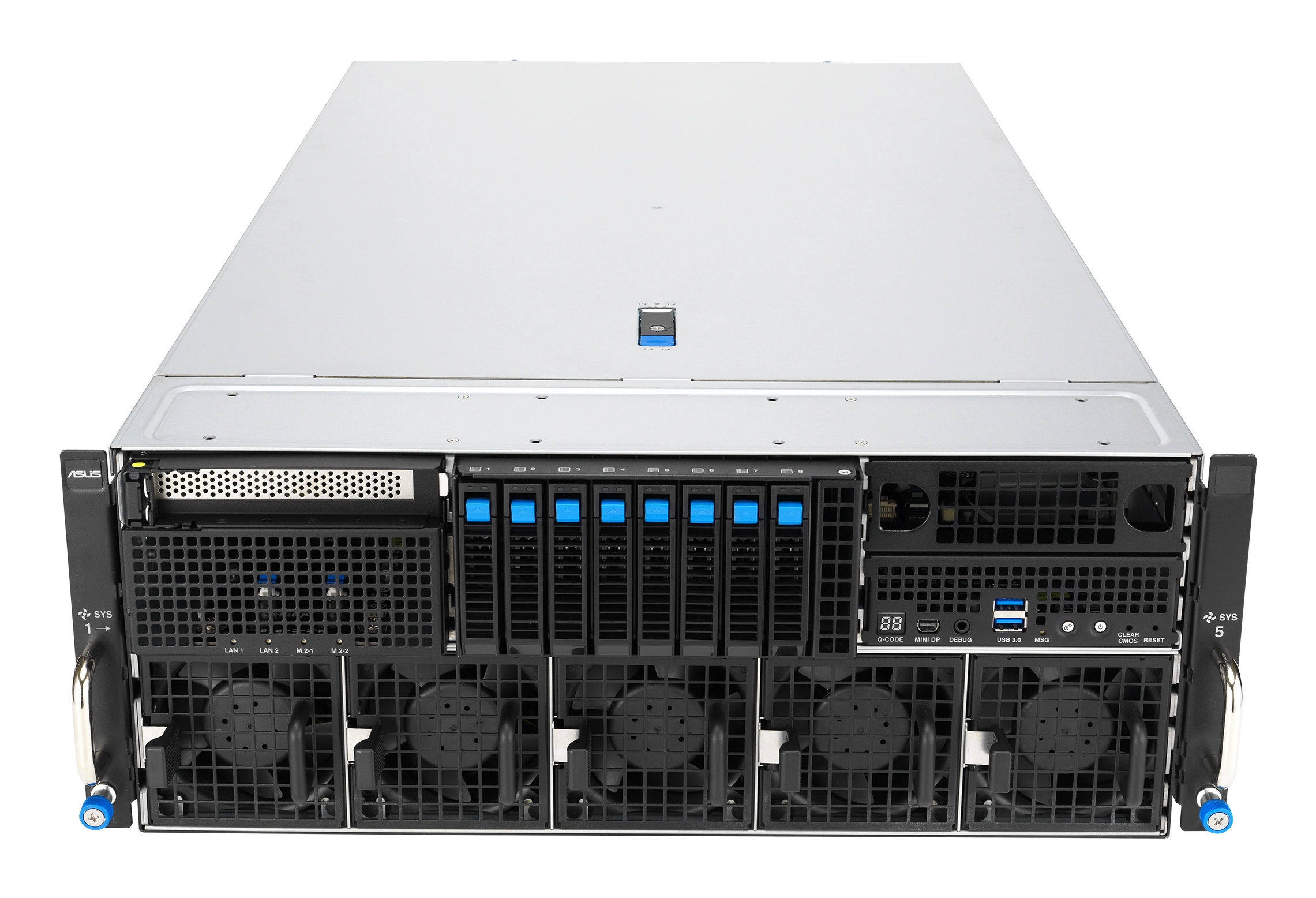

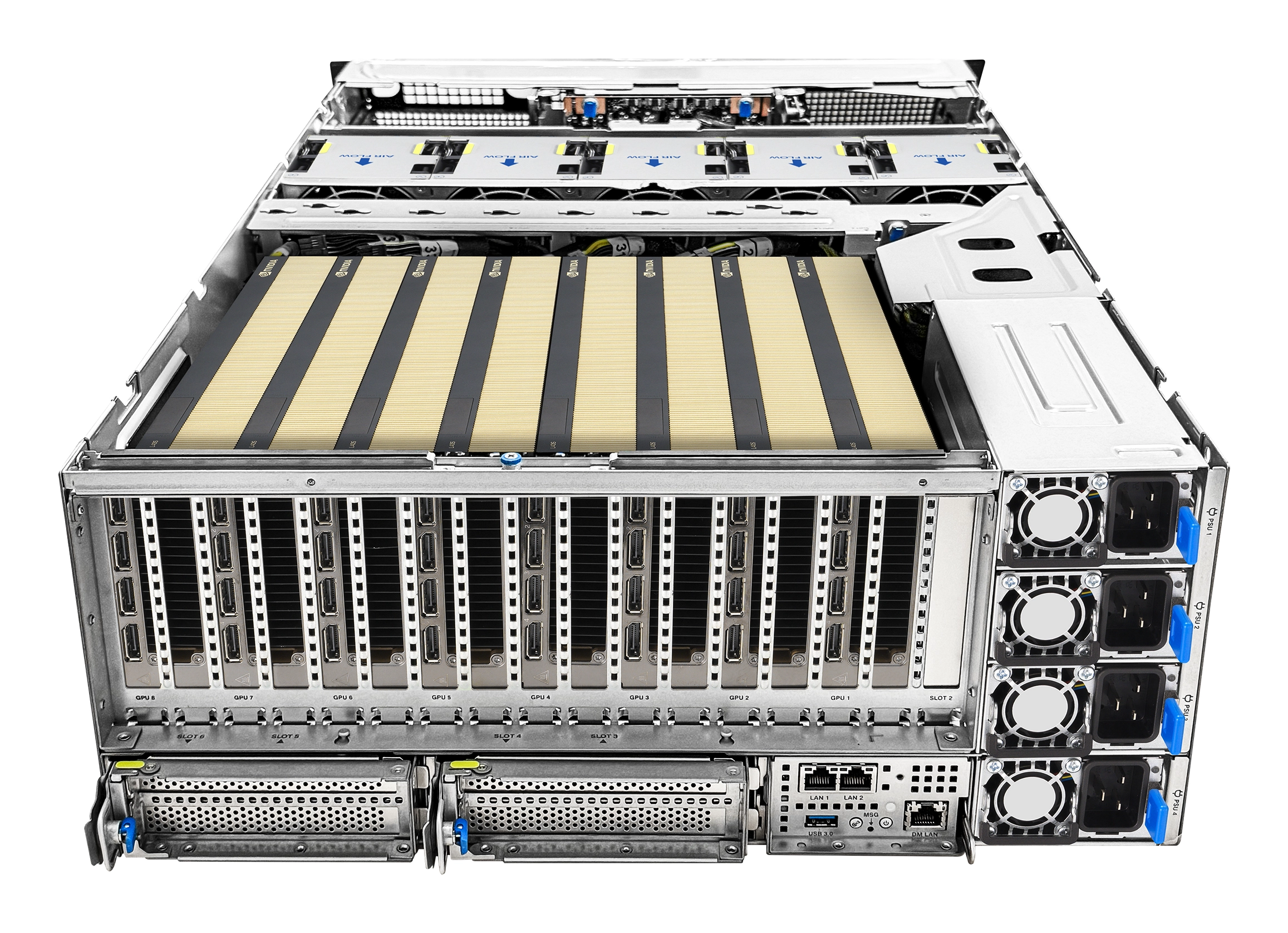

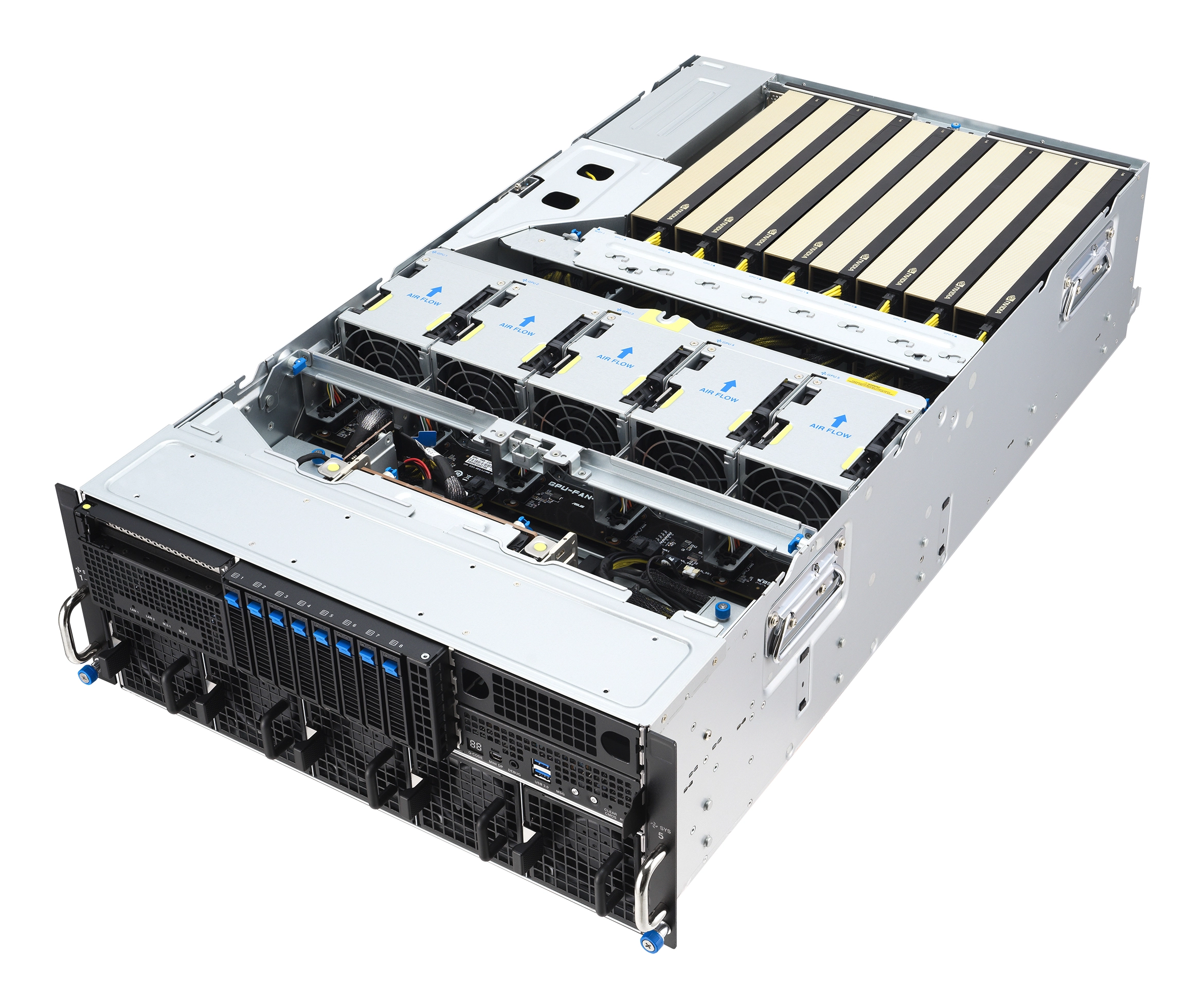

AMD EPYC™ 9005 dual-processor 4U NVIDIA® MGX server that supports eight dual-slot NVIDIA® H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, up to 24 DIMM, five PCIe® 5.0 slots and eight 2.5" NVMe

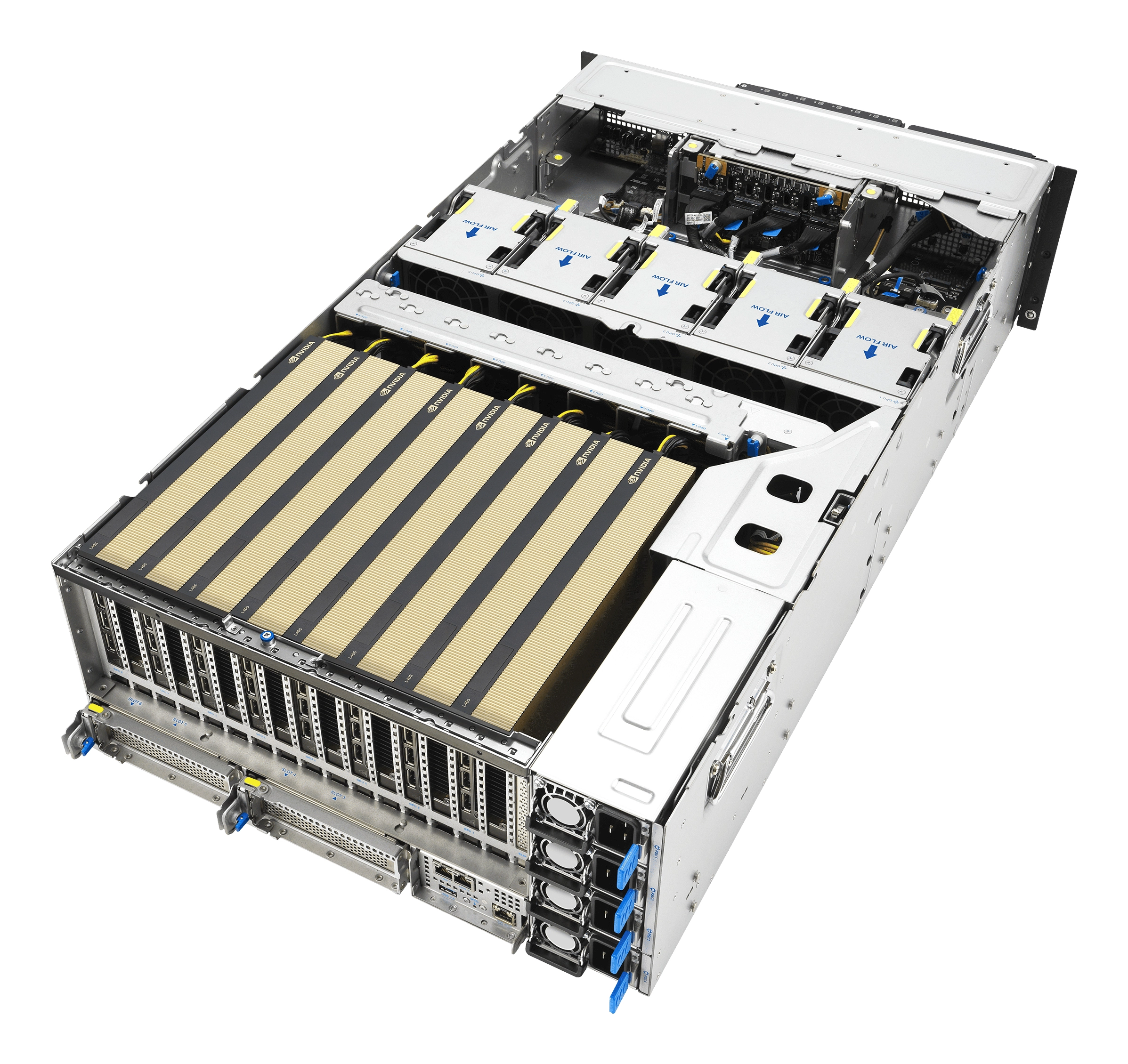

Eight dual-slot GPUs in a high-density 4U compute server
Powered by AMD EPYC™ 9005 processors, ESC8000A-E13P delivers exceptional performance, featuring top-tier GPUs, faster GPU interconnects, and higher-bandwidth fabric. This powerhouse server supports up to eight dual-slot GPUs, either active or passive, and offers flexible scalability with options for NVIDIA® NVLink® Bridge or AMD Infinity Fabric™ Link. This configuration allows seamless scaling and performance enhancement, making ESC8000A-E13P an ideal choice for tackling the most Enterprise AI and HPC tasks.

Specification

Product
Product id	1002628
Brand	AsusTek
Partnr	90SF0404-M00ZR0
EAN/UPC code	4711636268882
Processor
Built-in processor	N
Processor socket	LGA 6096
Processor manufacturer	AMD
Processor family	AMD EPYC
Number of processors supported	2
Memory
Number of DIMM slots	24
Supported memory types	DDR5-SDRAM
Supported DIMM module capacities	16GB, 32GB, 64GB, 128GB
Maximum internal memory	3072 GB
Supported RDIMM clock speeds	6400, 5600 MHz
Storage
Number of storage drives supported	10
Hot-swap HDD bays	Y
Number of 2.5" bays	8
Storage drive sizes supported	2.5, M.2 "
Supported storage drive types	HDD & SSD
Network
Ethernet LAN	Y
Ethernet interface type	10 Gigabit Ethernet
Ethernet LAN data rates	10000 Mbit/s
LAN controller	Intel X710-AT2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	2
Mini DisplayPorts quantity	1
Expansion slots
PCI Express x16 (Gen 5. x) slots	14
Number of M.2 (M) slots	2
Design
Chassis type	Rack (4U)
Product colour	Silver, Black
LED indicators	Y
Certification	BSMI, CB, CE, FCC(Class A), RCM
Power
Power supply	3200 W
Redundant power supply (RPS) support	Y
Number of redundant power supplies supported	4
AC input voltage	220 - 240 V
AC input frequency	50/60 Hz
80 PLUS certification	80 PLUS Titanium
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	20 - 90 procent
Weight & dimensions
Width	800 mm
Depth	439.5 mm
Height	1745 mm
Weight	42000 g
Packaging data
Package weight	44230 g
