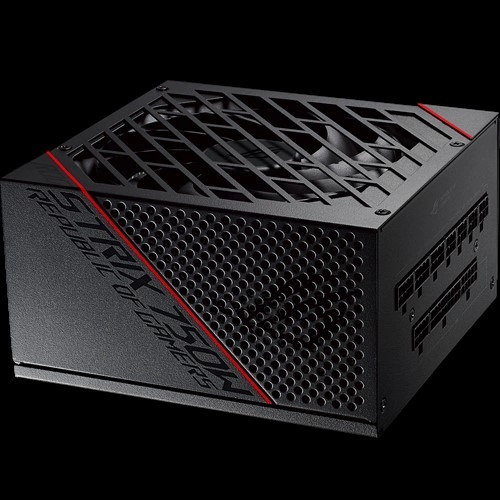

The ROG Strix 750W Gold PSU brings premium cooling performance to the mainstream.

Frozen Silence
The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. In terms of cooling, massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTX™ graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.

ROG Heatsinks
Let it sink in

The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside Strix PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.

Axial-tech Fan Design
Better, faster, stronger

Originally the result of R&D efforts for top-end ROG graphics cards, Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. The enhanced efficiency allows the fan to keep things cool at low RPMs, resulting in less overall system noise and increased component lifespan.

Dual Ball Fan Bearings
2x longer lifespan

Different bearing types have unique pros and cons. In a PSU, durability is paramount, so we built a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology
Quiet intelligence

An onboard controller brings the 135mm fan to a standstill when total draw power (TDP) is below 40%, letting you enjoy light gaming in relative silence. Above 40% TDP, the fans automatically start up again.

80 Plus Gold Certification
Heart of gold

Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

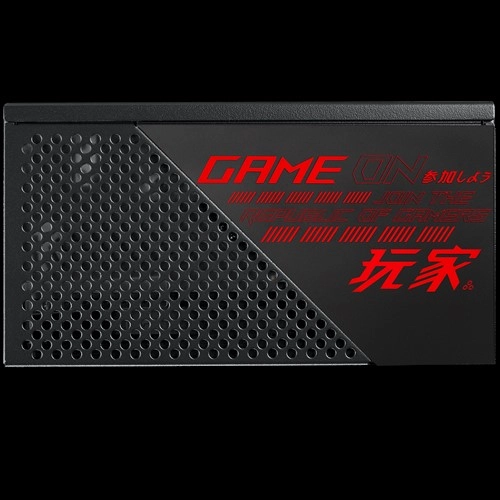

Cosmetic Customization
A e s t h e t i c

Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.

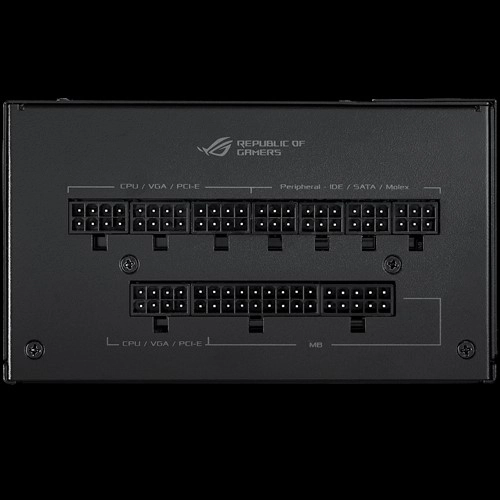

Fully Modular Cables
Plug in

Keep your rig neat and tidy with fully modular cables. One 24-pin, two 6+2-pin PCI-e, and two 8-pin CPU cables come with embedded capacitors that reduce voltage ripple, and the included CableMod coupon will set you on your way towards next-level customization.

Specification

Product
Product id	662504
Brand	AsusTek
Partnr	90YE00A0-B0NA00
EAN/UPC code	4718017375917
Warranty (months)	10-year
Power
Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Max output current (+3.3V)	20 A
Max output current (+12V)	62 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overload
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Y
Performance
Purpose	PC
Power supply unit (PSU) form factor	1U
80 PLUS certification	80 PLUS Gold
Design
Fan diameter	135 mm
Technical details
Sustainability certificates	RoHS
Weight & dimensions
Width	160 mm
Depth	150 mm
Height	86 mm
Weight	1820 g
Packaging data
Cables included	AC, PCIe, SATA
Package weight	3140 g
Other features
Cable ties included	Y
