Product |
Product id
| 943363
|
Brand
| AsusTek
|
Partnr
| 90YE00N0-B0NA00
|
EAN/UPC code
| 4711081721574
|
Warranty (months)
| 10 years
|
Power |
Total power
| 1200 W
|
Peak power
| 1200 W
|
AC input voltage
| 100 - 240 V
|
Power Factor Correction (PFC) type
| Active
|
Combined power (+3.3V)
| 110 W
|
Combined power (+12V)
| 1200 W
|
Combined power (+5V)
| 110 W
|
Combined power (-12V)
| 9.6 W
|
Combined power (+5Vsb)
| 15 W
|
Max output current (+3.3V)
| 20 A
|
Max output current (+12V)
| 100 A
|
Max output current (+5V)
| 20 A
|
Max output current (-12V)
| 0.8 A
|
Max output current (+5Vsb)
| 3 A
|
Power protection features
| Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
|

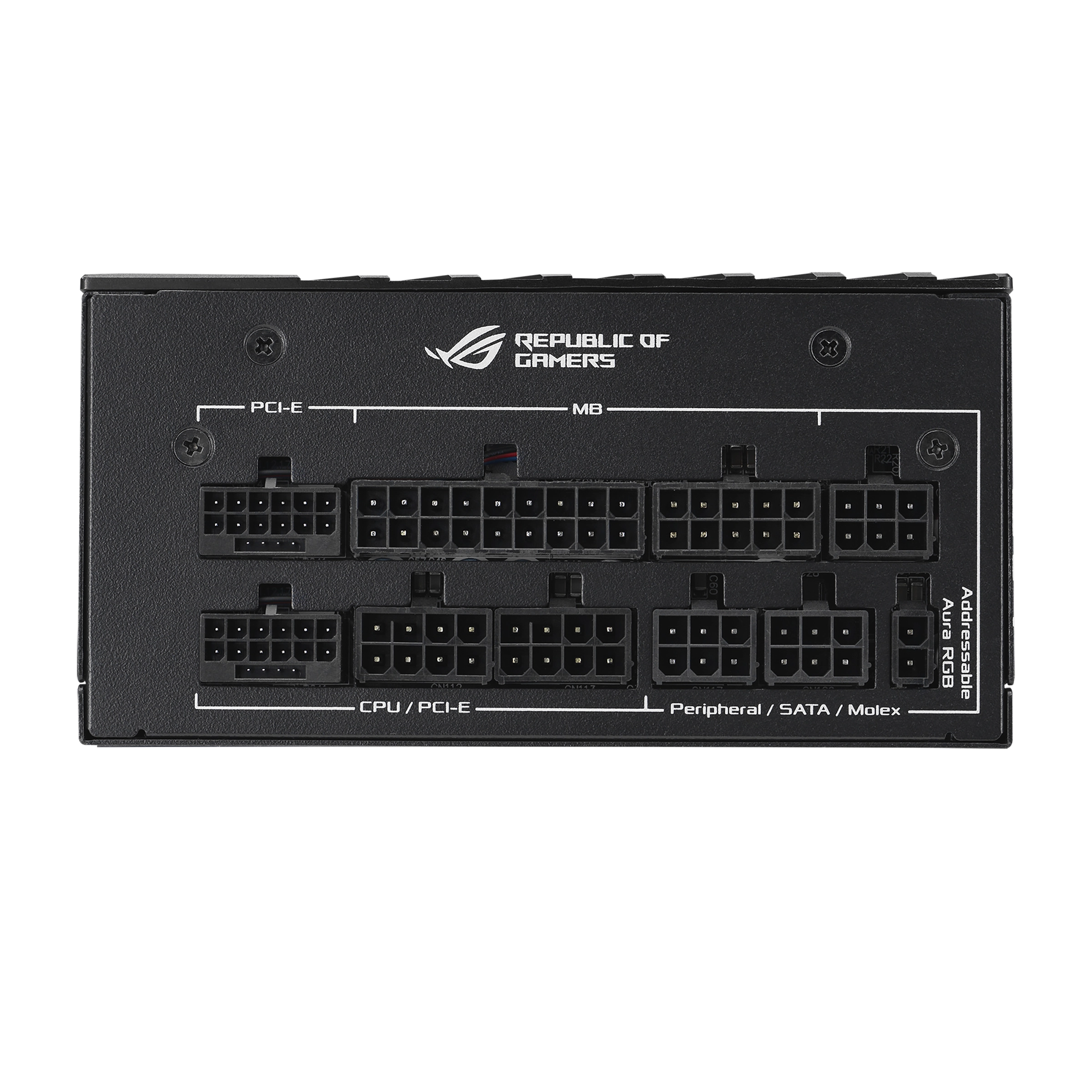

Ports & interfaces |
Motherboard power connector
| 20+4 pin ATX
|
Motherboard power cable length
| 450 mm
|
Number of SATA power connectors
| 6
|
SATA power cable length
| 100, 200, 300 mm
|
Peripheral (Molex) power connectors (4-pin)
| 4
|
Peripheral (Molex) power cable length
| 100, 300 mm
|
PCI Express power connectors (8-pin)
| 4
|
PCI Express power connectors (16-pin)
| 2
|
CPU power connector (4+4 pin)
| Y
|
CPU power cable length
| 550 mm
|
ATX power connector (20+4 pin)
| Y
|
Cabling type
| Fully-Modular
|
Performance |
Purpose
| PC
|
Power supply unit (PSU) form factor
| SFX-L
|
80 PLUS certification
| 80 PLUS Platinum
|
ATX version
| 3.0
|
Bearing technology
| Ball bearing
|
Design |
Product colour
| Black, Silver
|
Cooling type
| Active
|

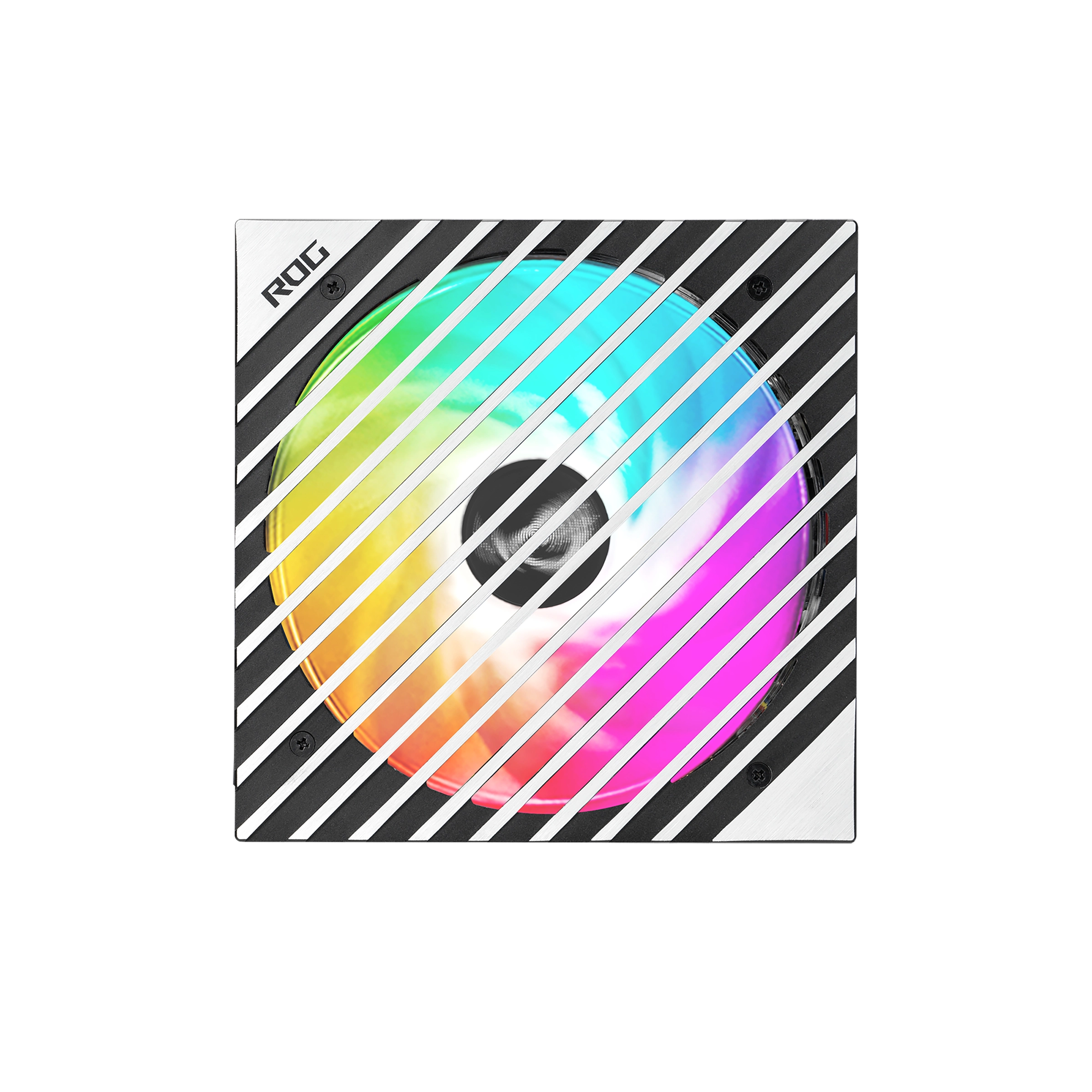

Fan diameter
| 120 mm
|
Number of fans
| 1 ventilator(en)
|
Illumination
| Y
|
On/off switch
| Y
|
Technical details |
Sustainability compliance
| Y
|
Sustainability certificates
| RoHS
|
Warranty period
| 10 jaar
|
Weight & dimensions |
Width
| 125 mm
|
Depth
| 125 mm
|
Height
| 63.5 mm
|
Weight
| 2150 g
|
Packaging data |
Cables included
| AC, CPU, PCIe, Peripheral (Molex), SATA
|
Package width
| 285 mm
|
Package depth
| 190 mm
|
Package height
| 100 mm
|
Package weight
| 2840 g
|
Package type
| Box
|
Other features |
Manual
| Y
|
