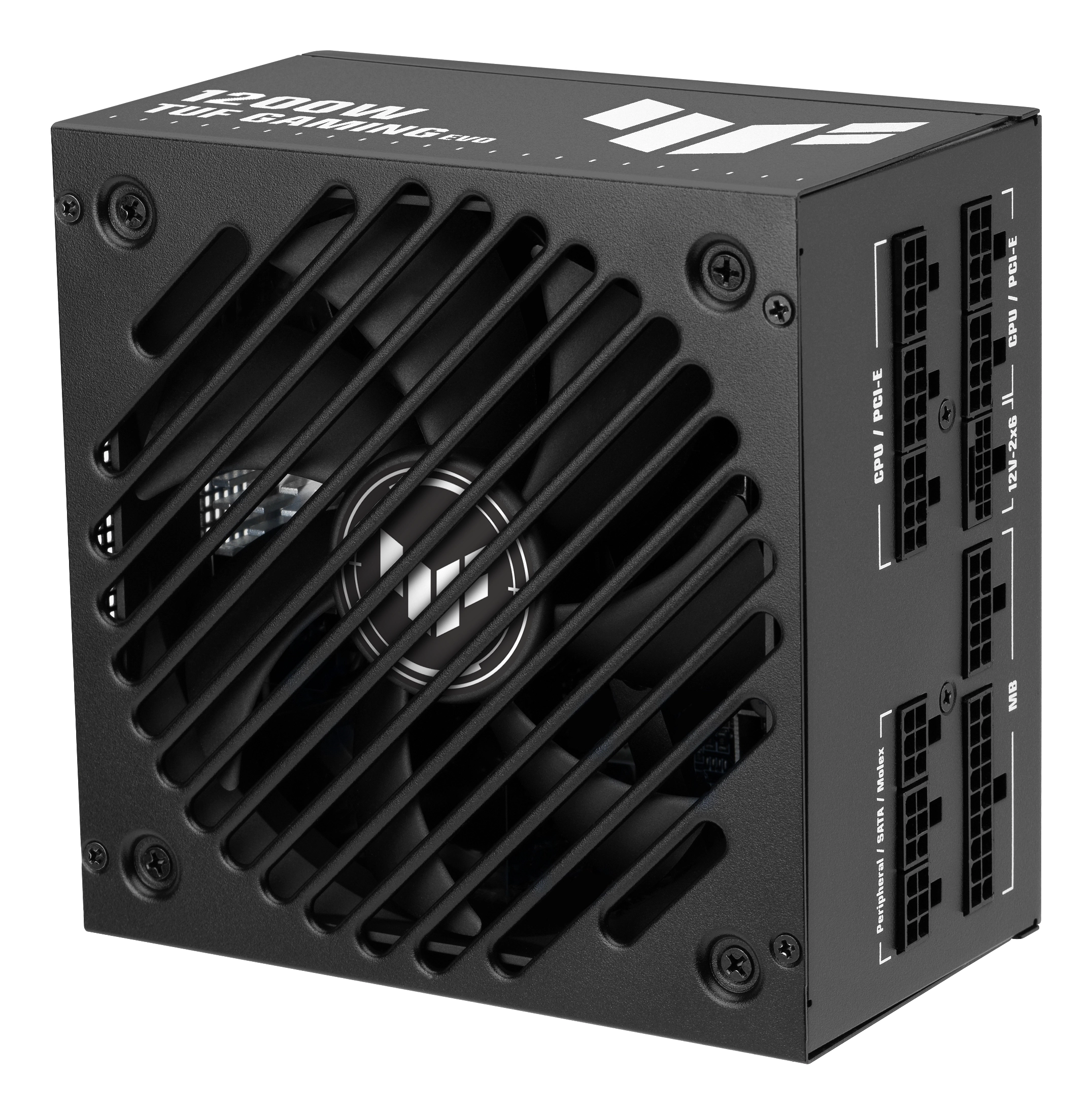

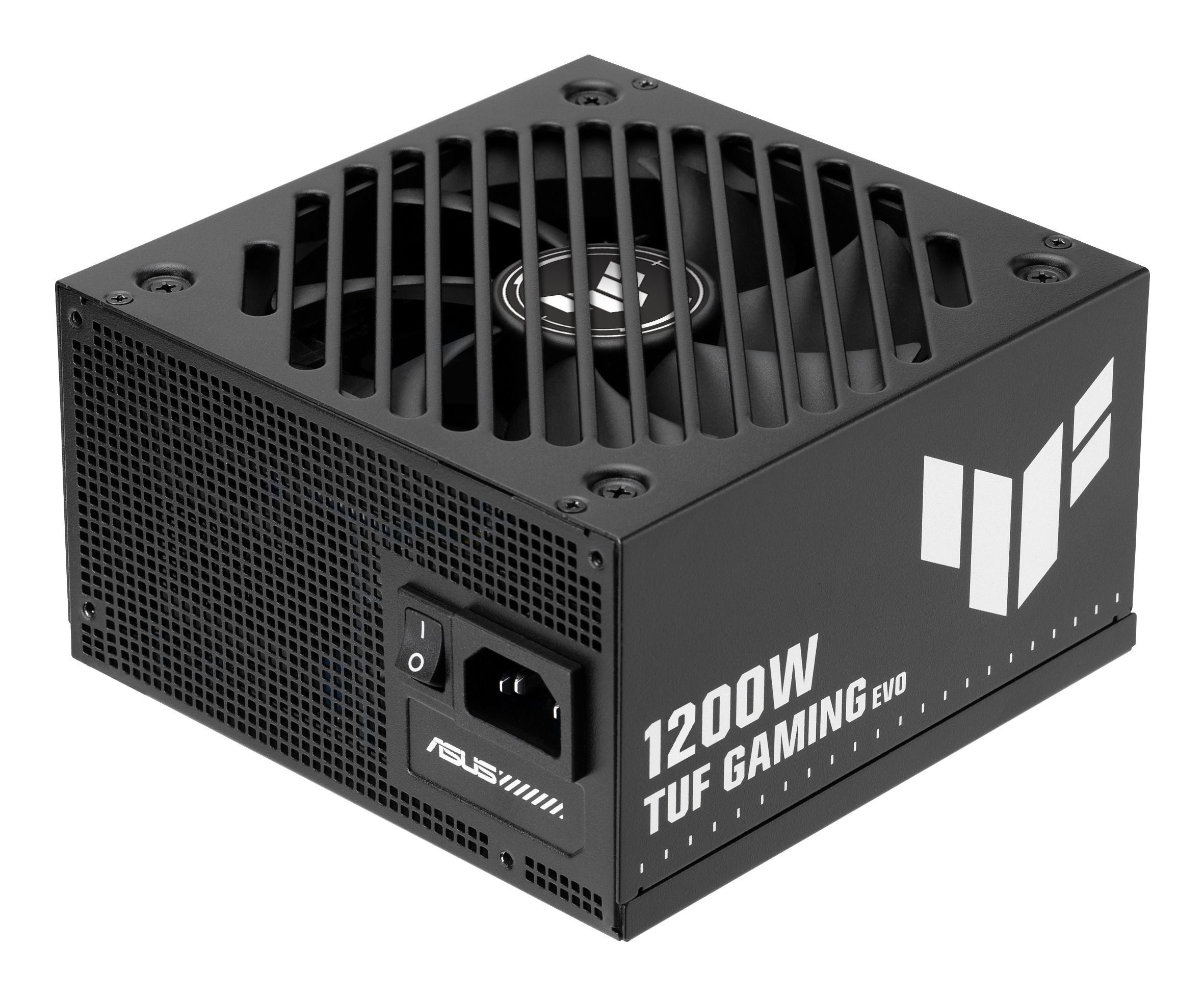

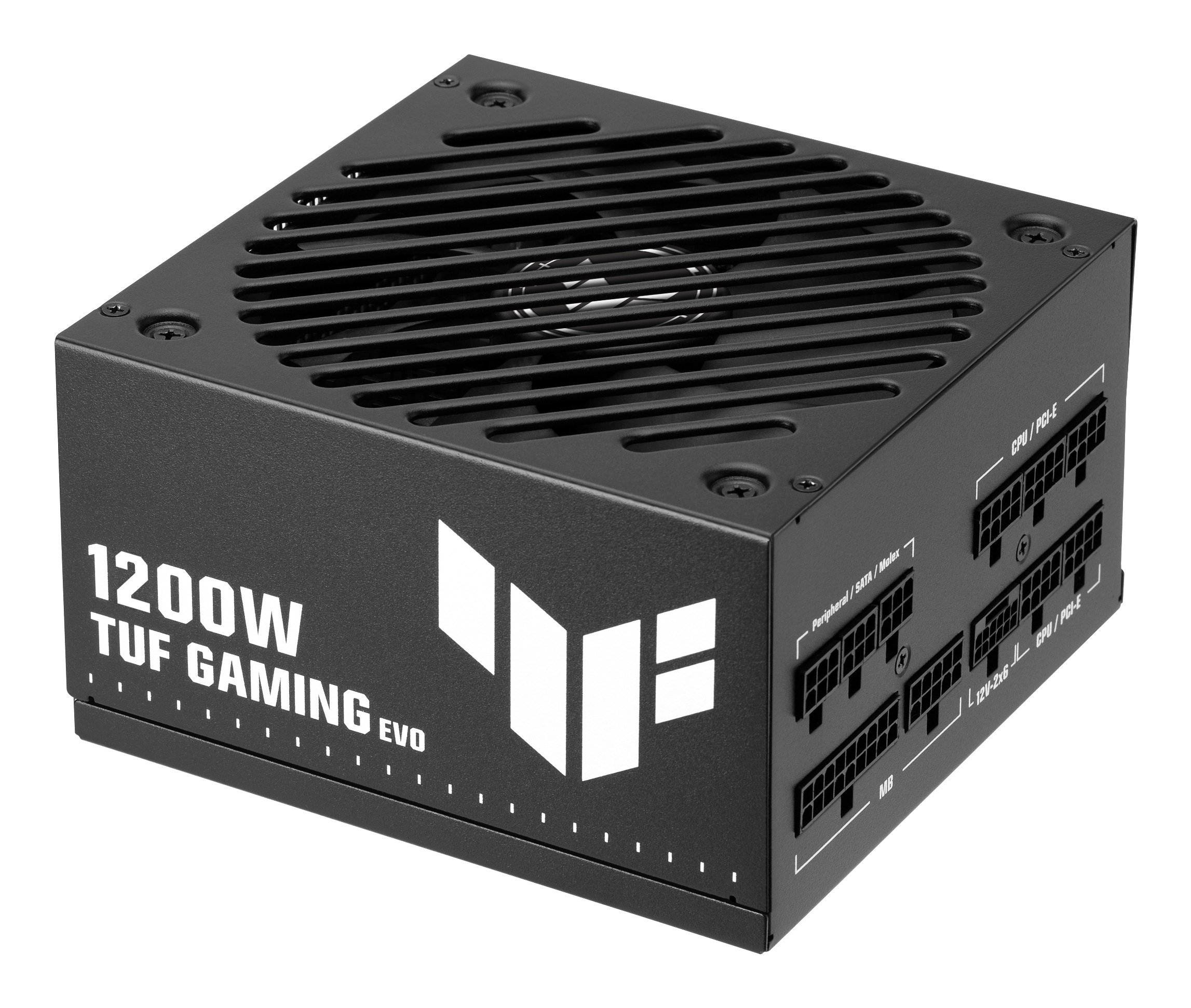

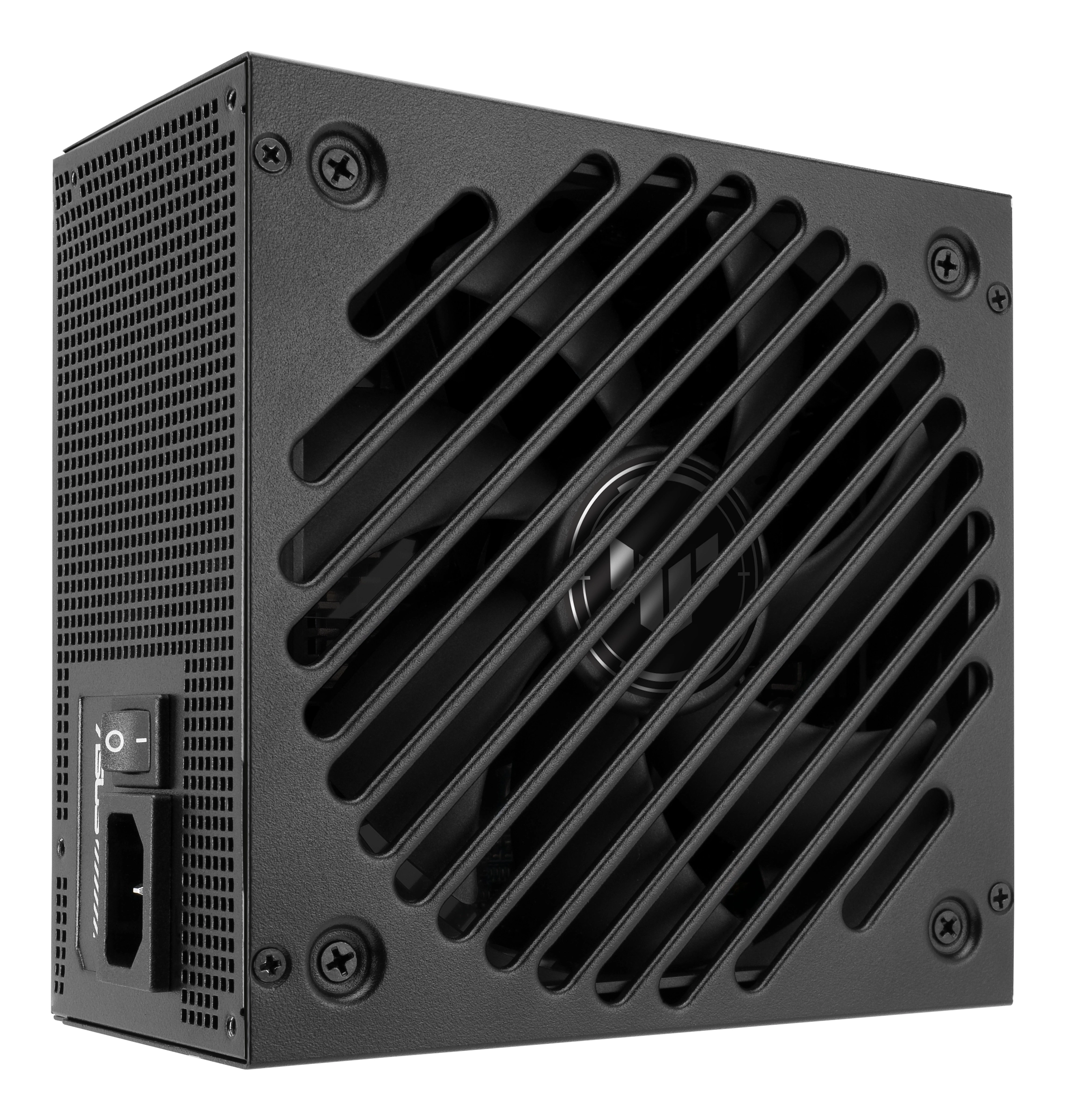

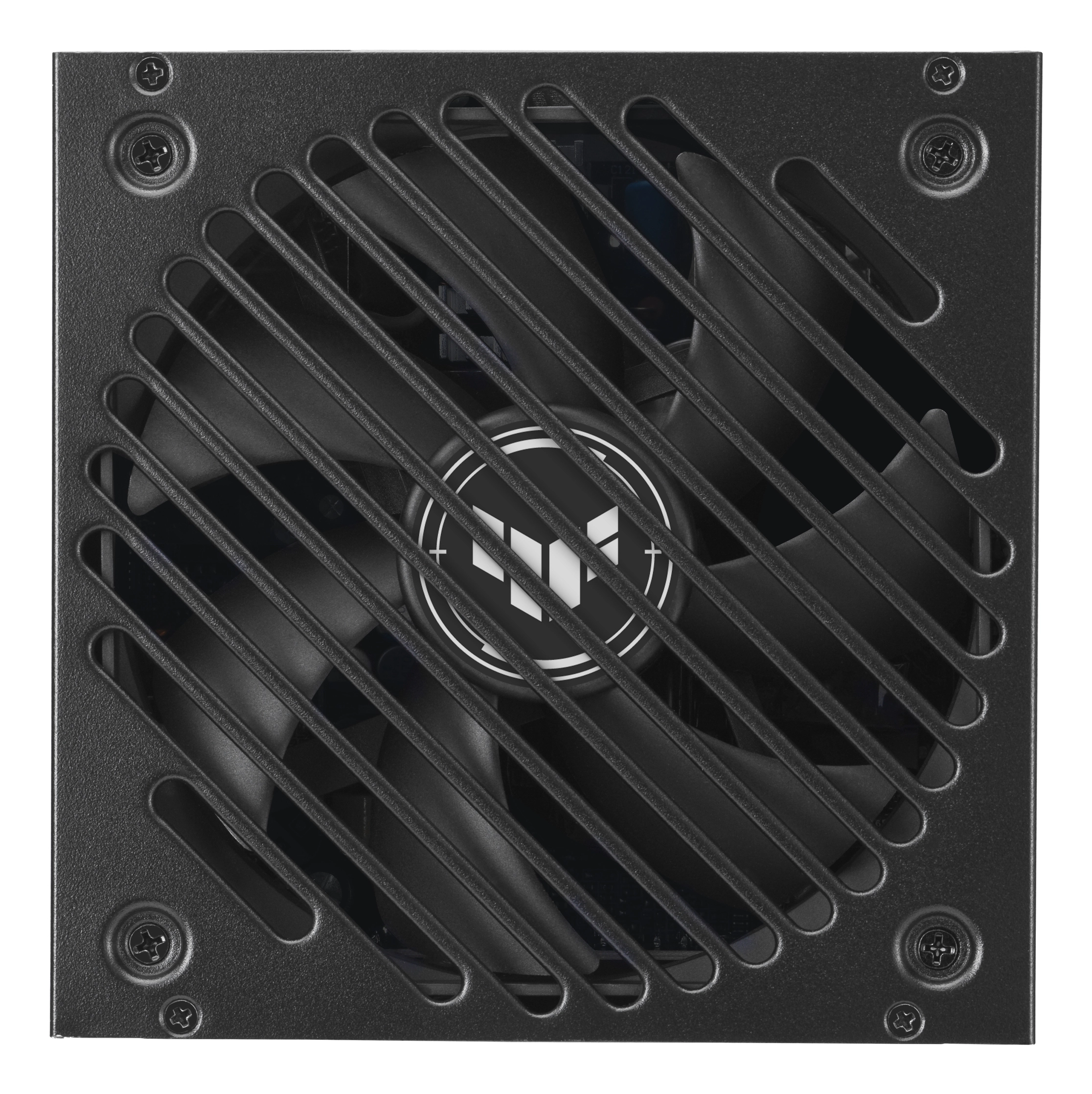

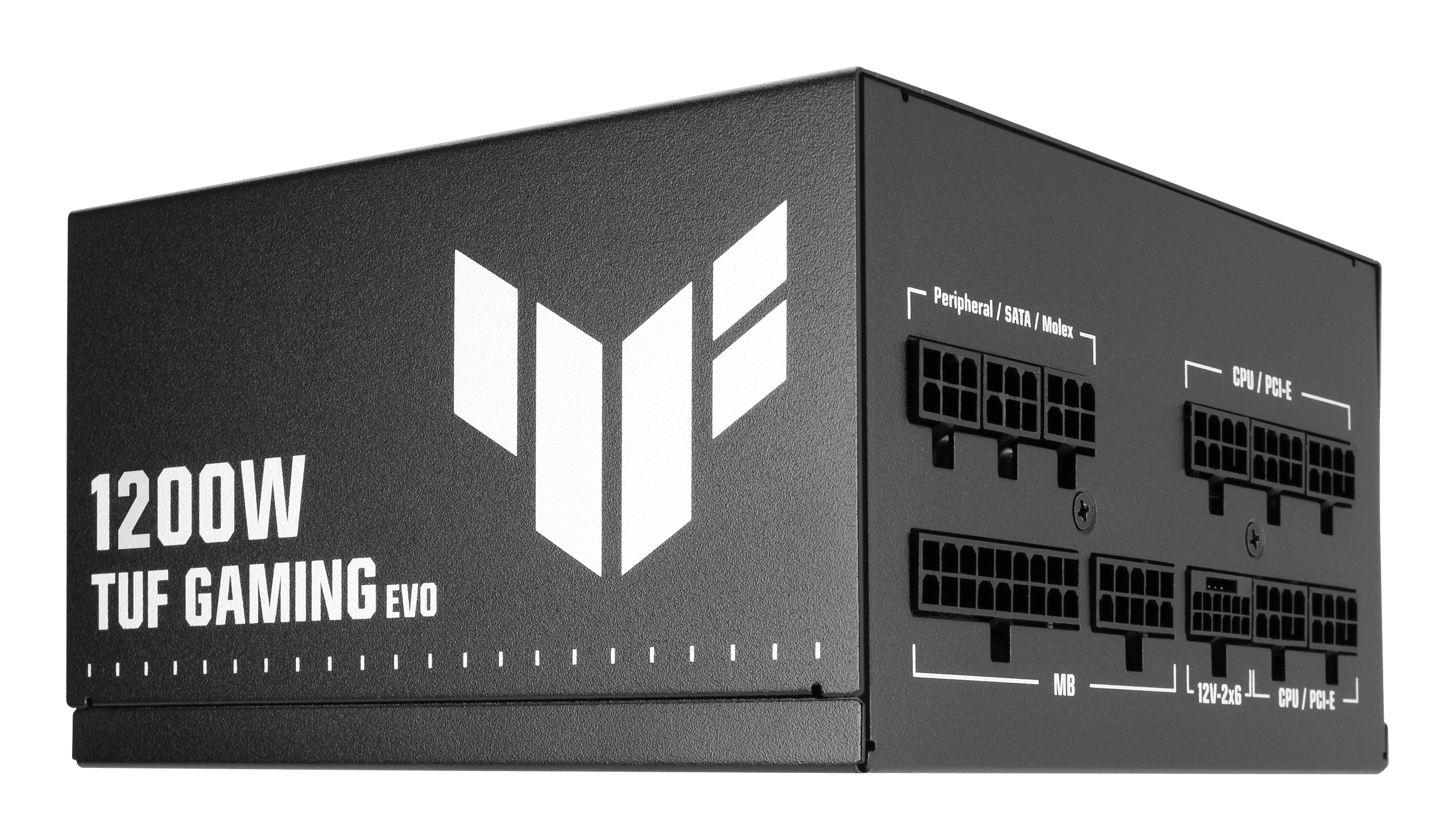

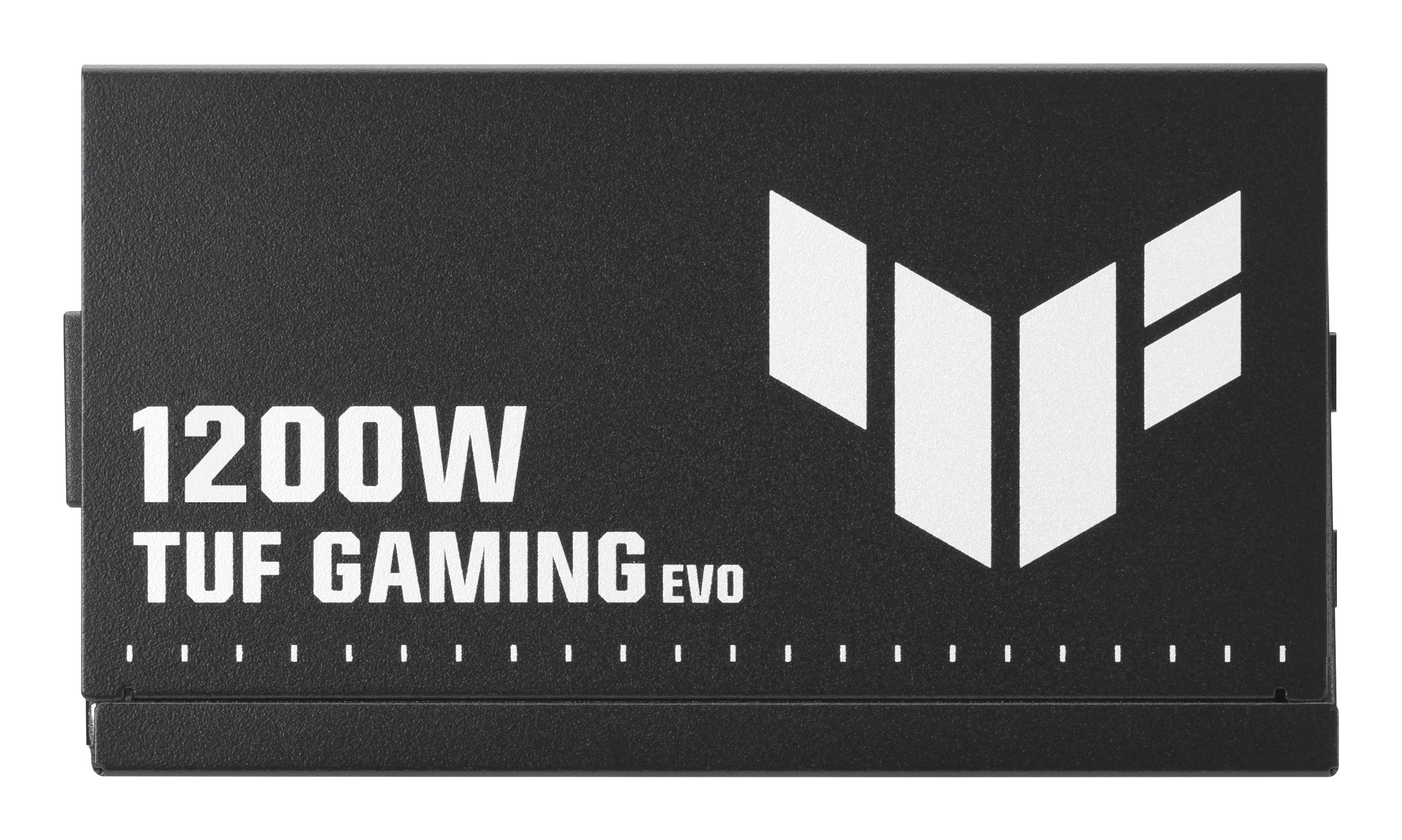

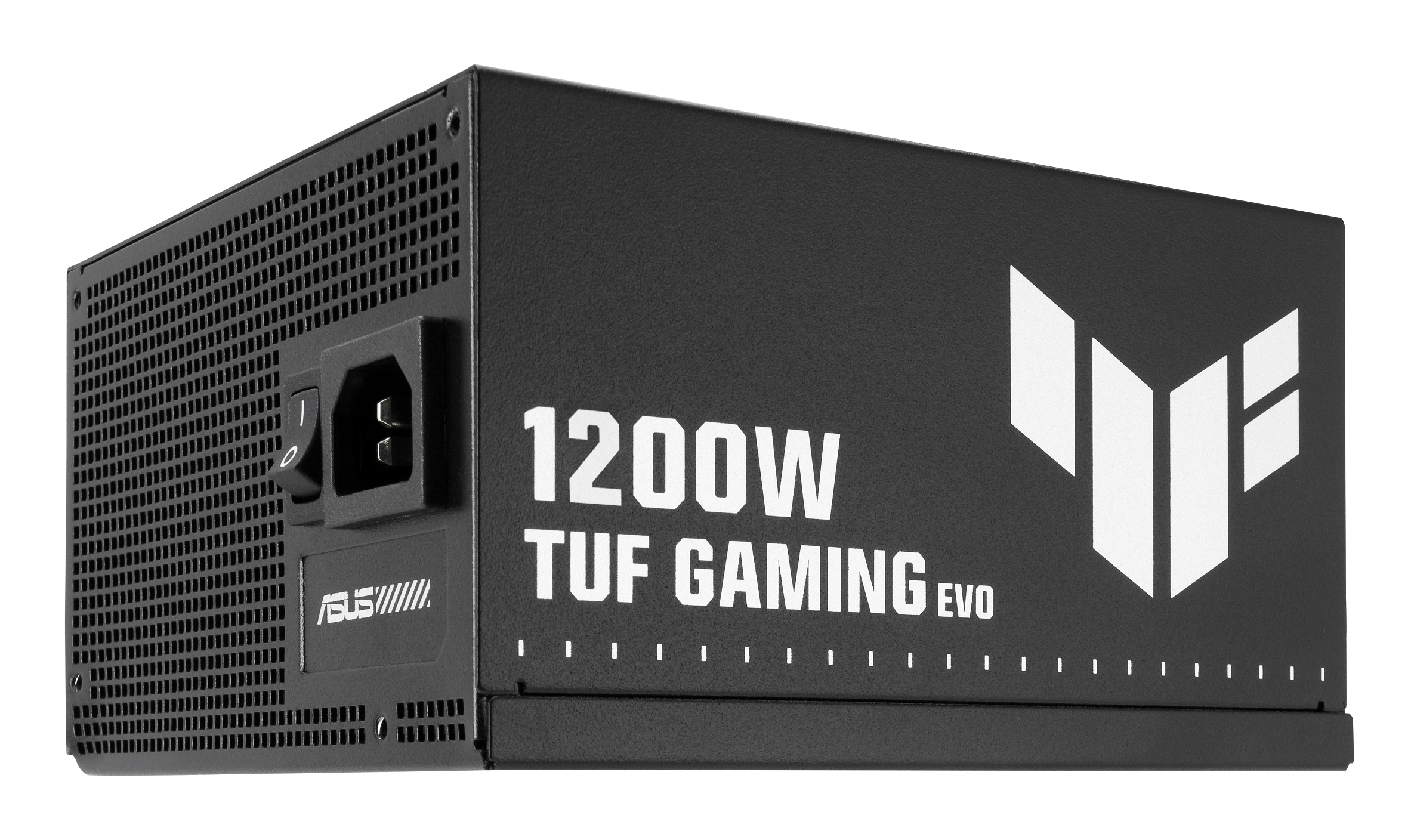

Built For The Long Haul
The ASUS TUF Gaming 1200W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.

Specification

Product
Product id	1021511
Brand	AsusTek
Partnr	90YE00SD-B0NA00
EAN/UPC code
Warranty (months)	60 months
Endurance
Mean time between failures (MTBF)	120000 uur
Power
Total power	1200 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1200 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	100 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Under voltage, Short circuit, Over current

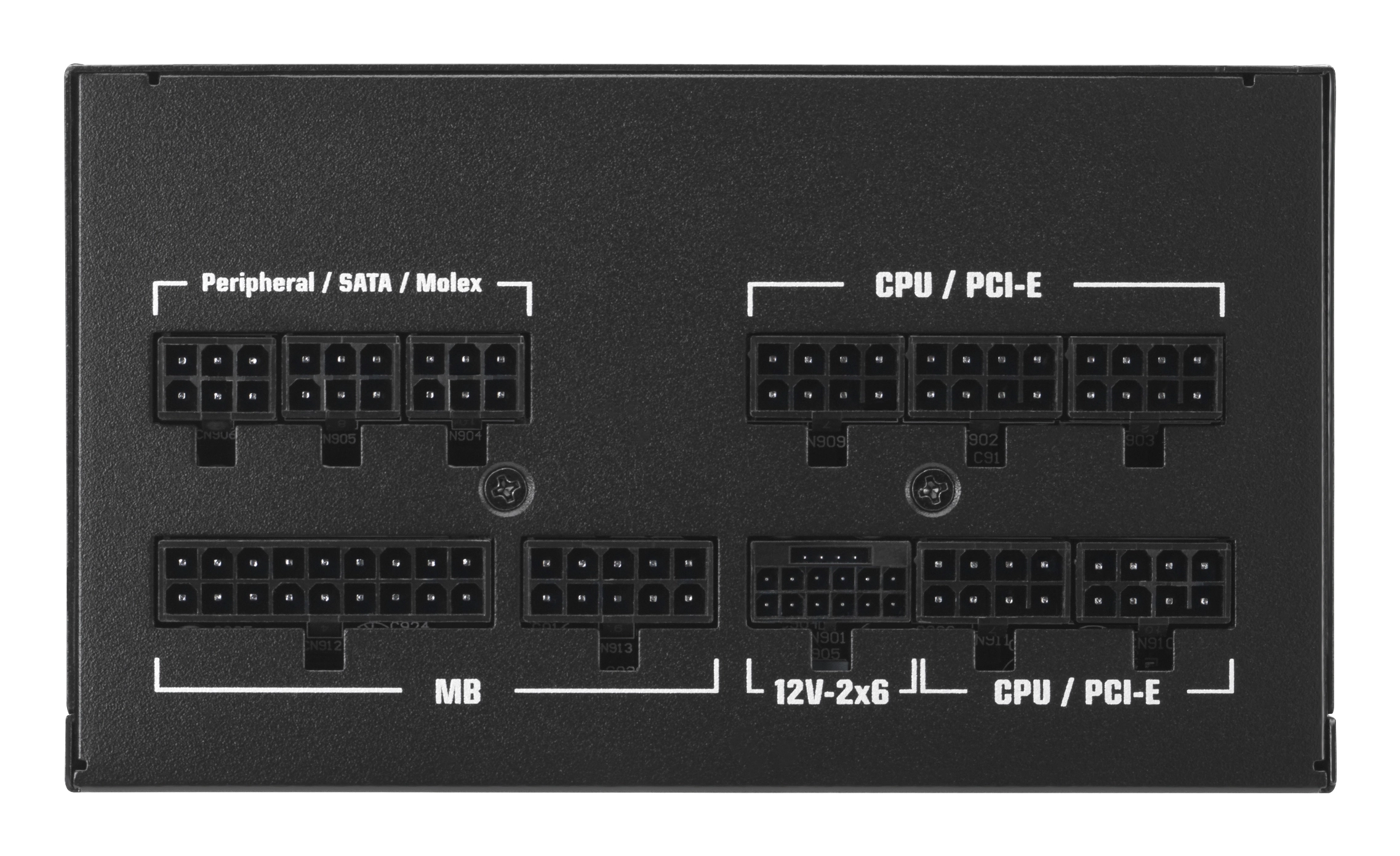

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	6
SATA power cable length	120, 400 mm
Peripheral (Molex) power connectors (4-pin)	3
Peripheral (Molex) power cable length	120, 400 mm
PCI Express power connectors (6+2 pin)	3
PCI Express power connectors (16-pin)	1
PCI Express power cable length	500 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	750 mm
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Design
Product colour	Black
Cooling type	Active
Number of fans	1 ventilator(en)

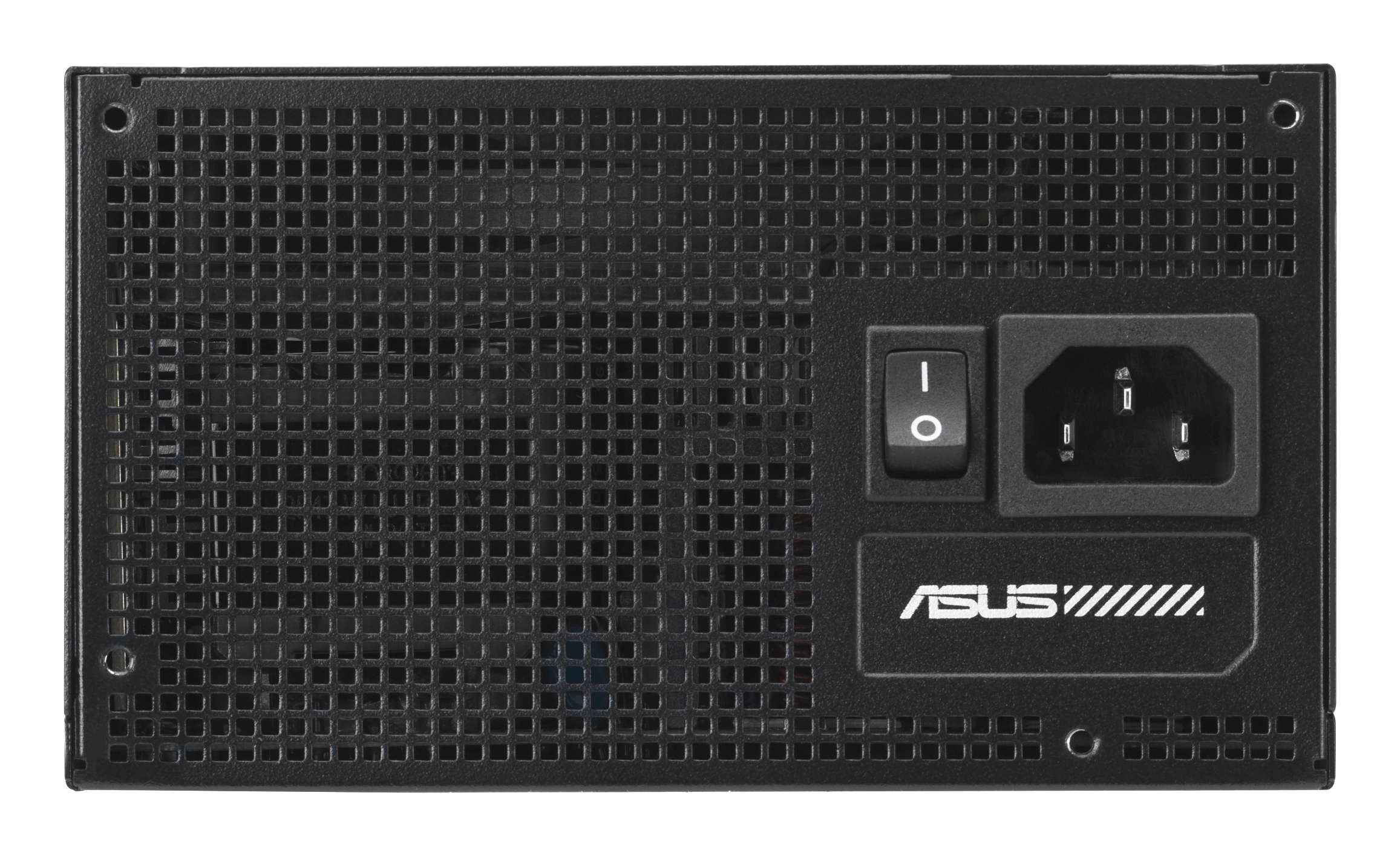

On/off switch	Y
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	1867 g
Packaging data
Package width	282 mm
Package depth	182 mm
Package height	127 mm
Package weight	3320 g

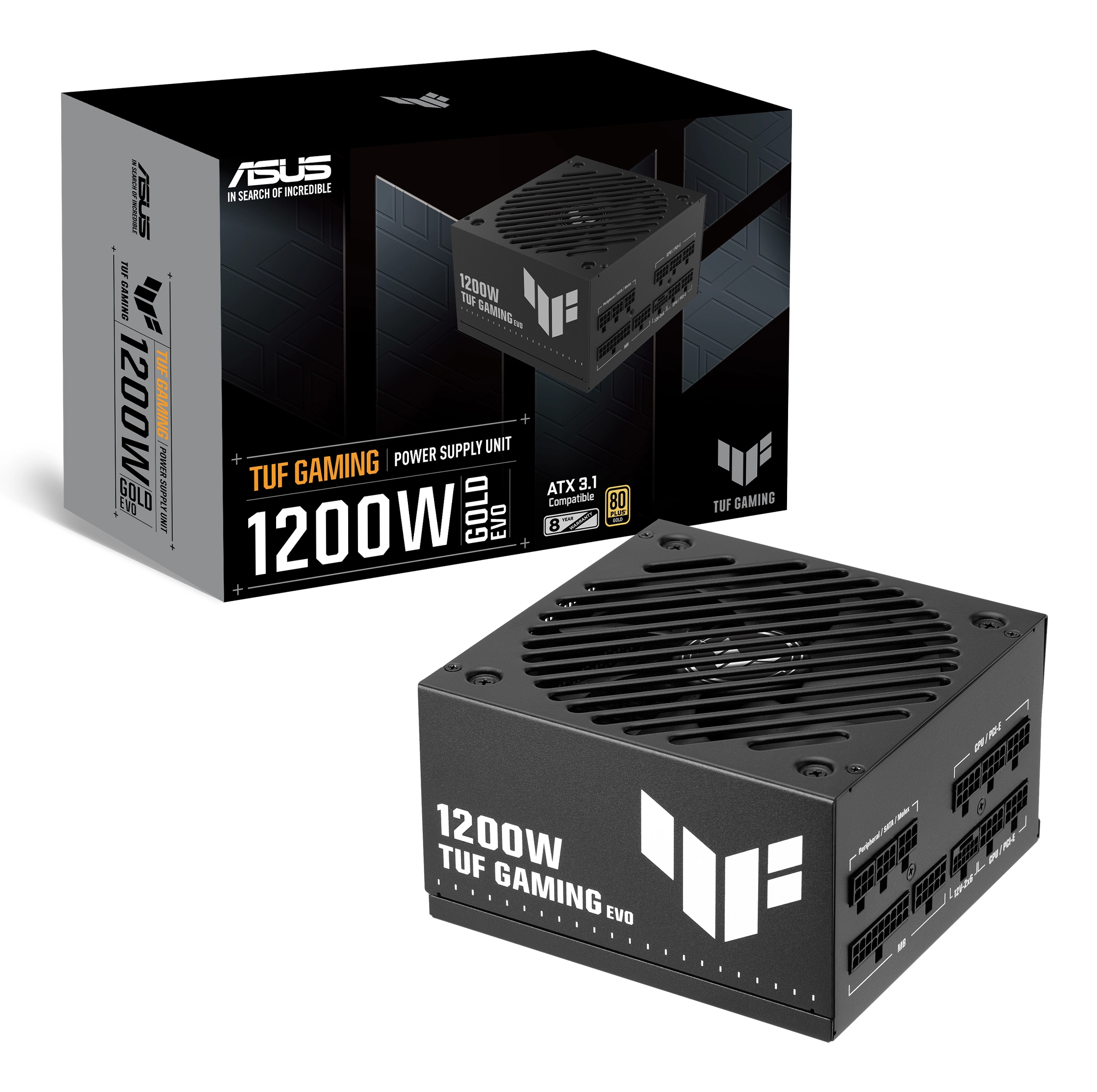

Package type	Box
