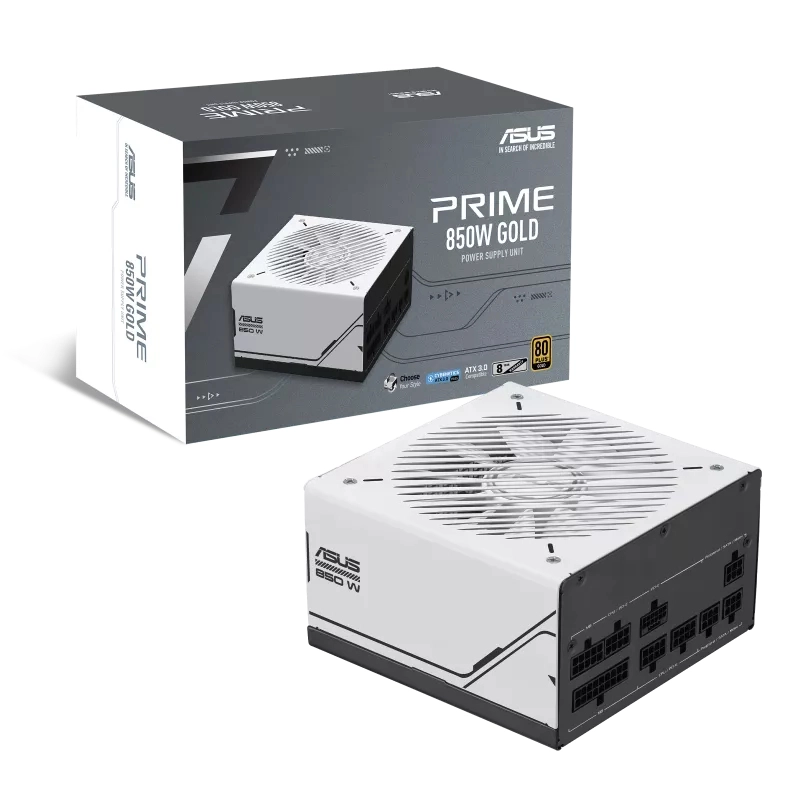

PRIME PERFORMANCE
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

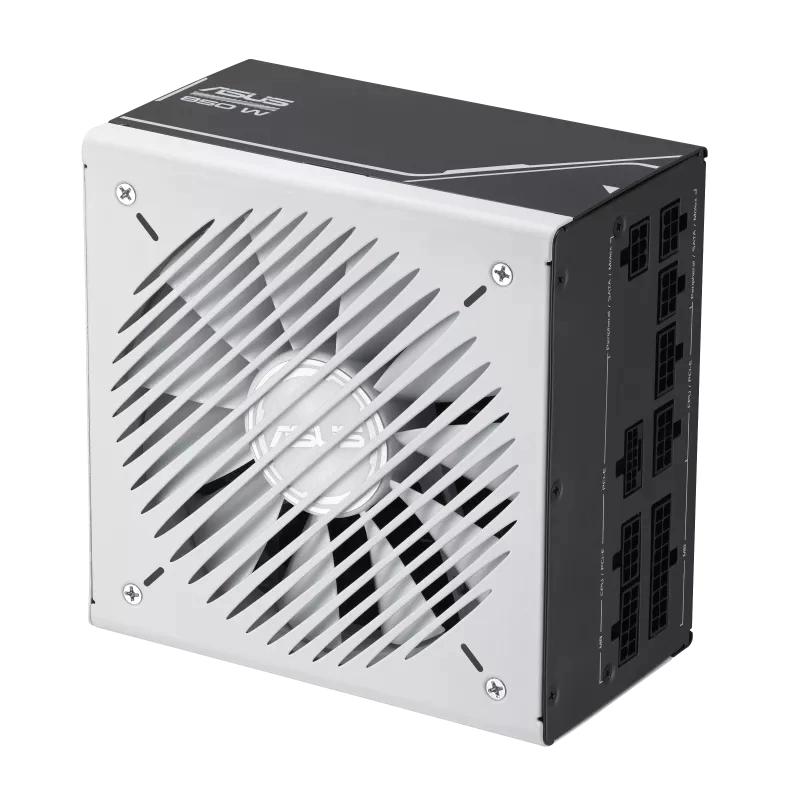

DUAL BALL FAN BEARINGS
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

80 PLUS GOLD CERTIFICATION
The ASUS Prime 850W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

ATX 3.0 COMPATIBLE
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.

Specification

Product
Product id	948744
Brand	AsusTek
Partnr	90YE00U0-B0NB00
EAN/UPC code
Warranty (months)	8-year warranty included
Power
Total power	850 W
AC input voltage	100 - 240 V
Combined power (+3.3V)	110 W
Combined power (+12V)	846 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	5
SATA power cable length	120, 400 mm
Peripheral (Molex) power connectors (4-pin)	3
Peripheral (Molex) power cable length	150, 400 mm
PCI Express power connectors (8-pin)	3
PCI Express power connectors (16-pin)	1
PCI Express power cable length	675 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	650 mm
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.0
Bearing technology	DBB
Design
Product colour	Black, White
Cooling type	Active
Number of fans	1 ventilator(en)
Fan location	Top
On/off switch	Y
Technical details
Sustainability certificates	RoHS
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	1502 g
Packaging data
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Package weight	2720 g
Package type	Box
