Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build

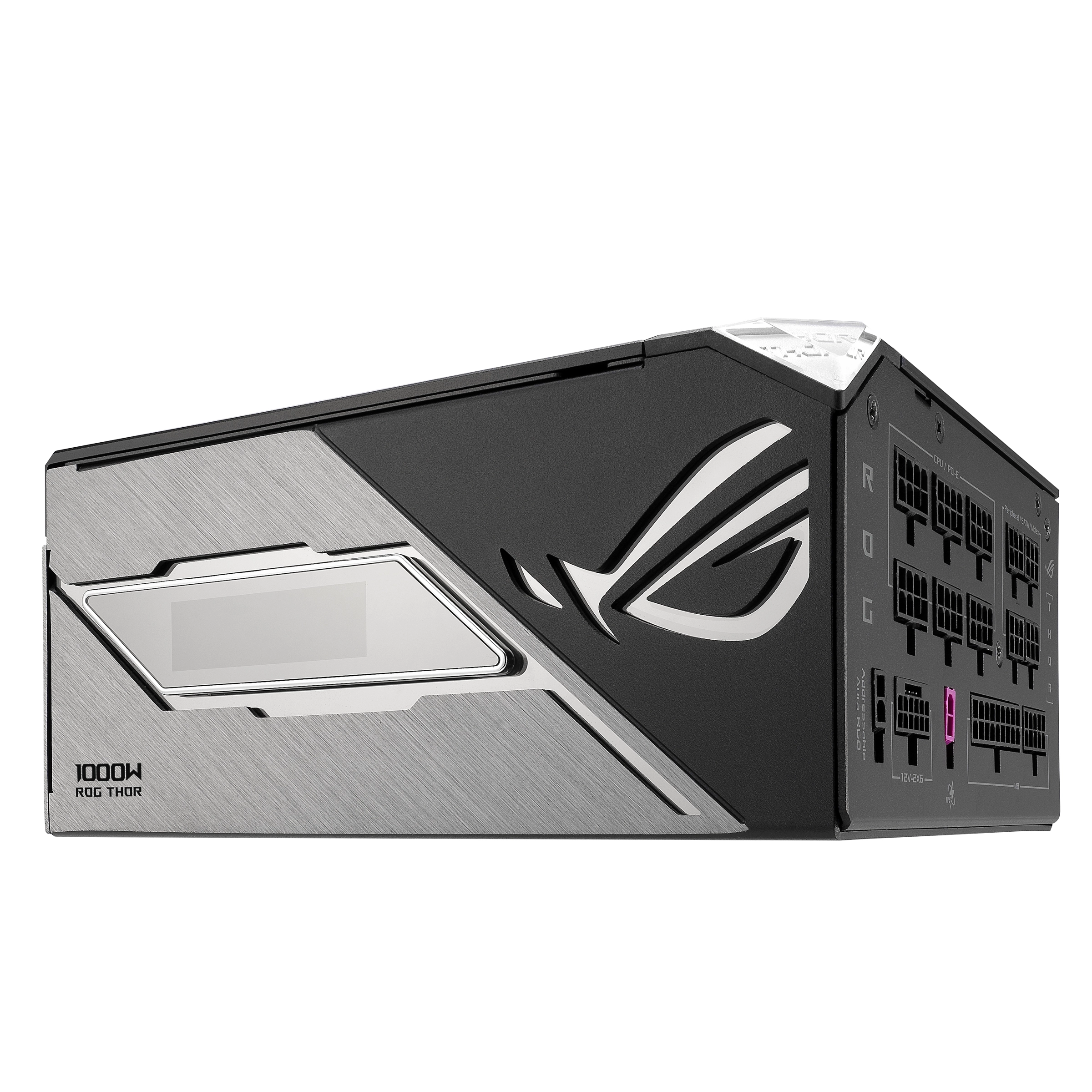

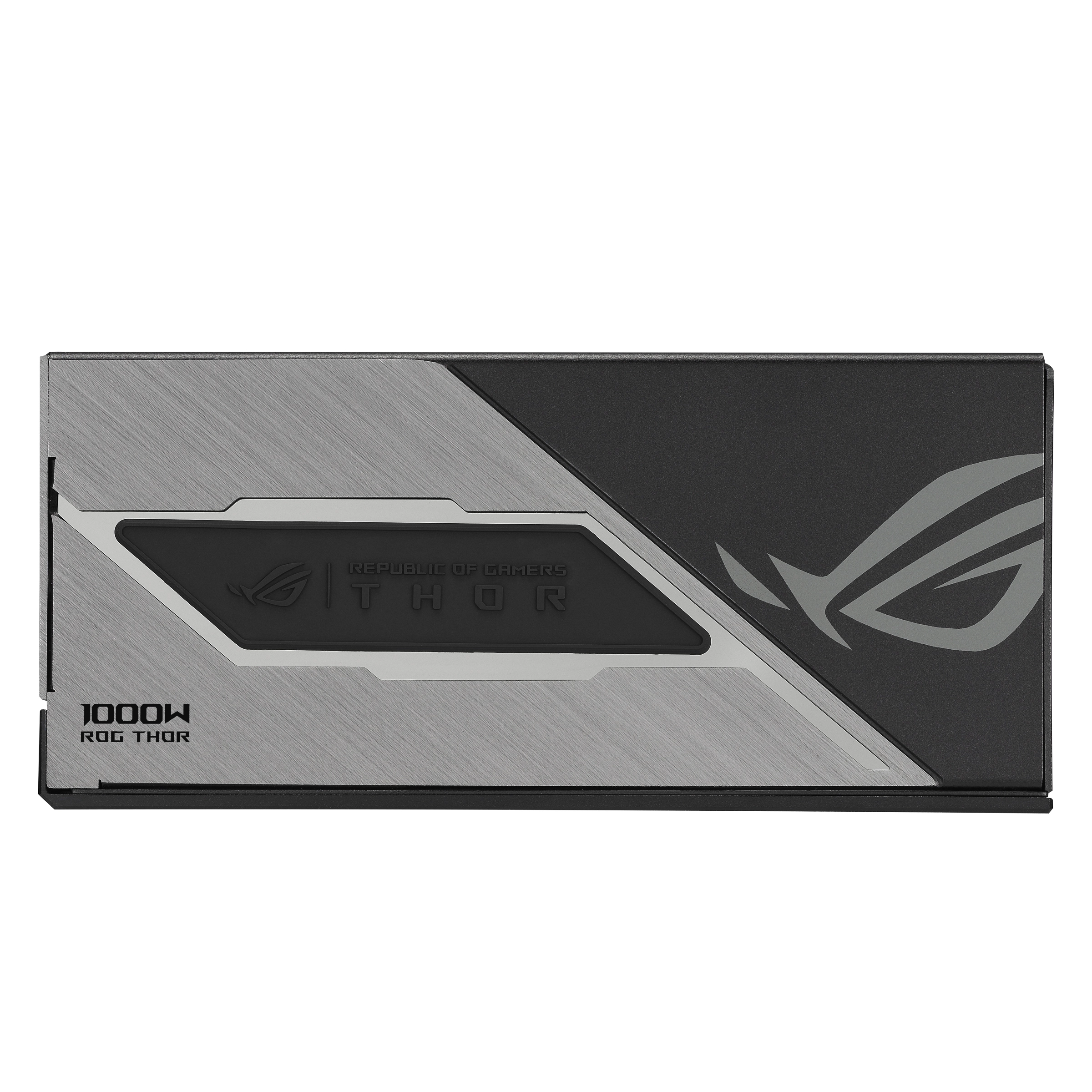

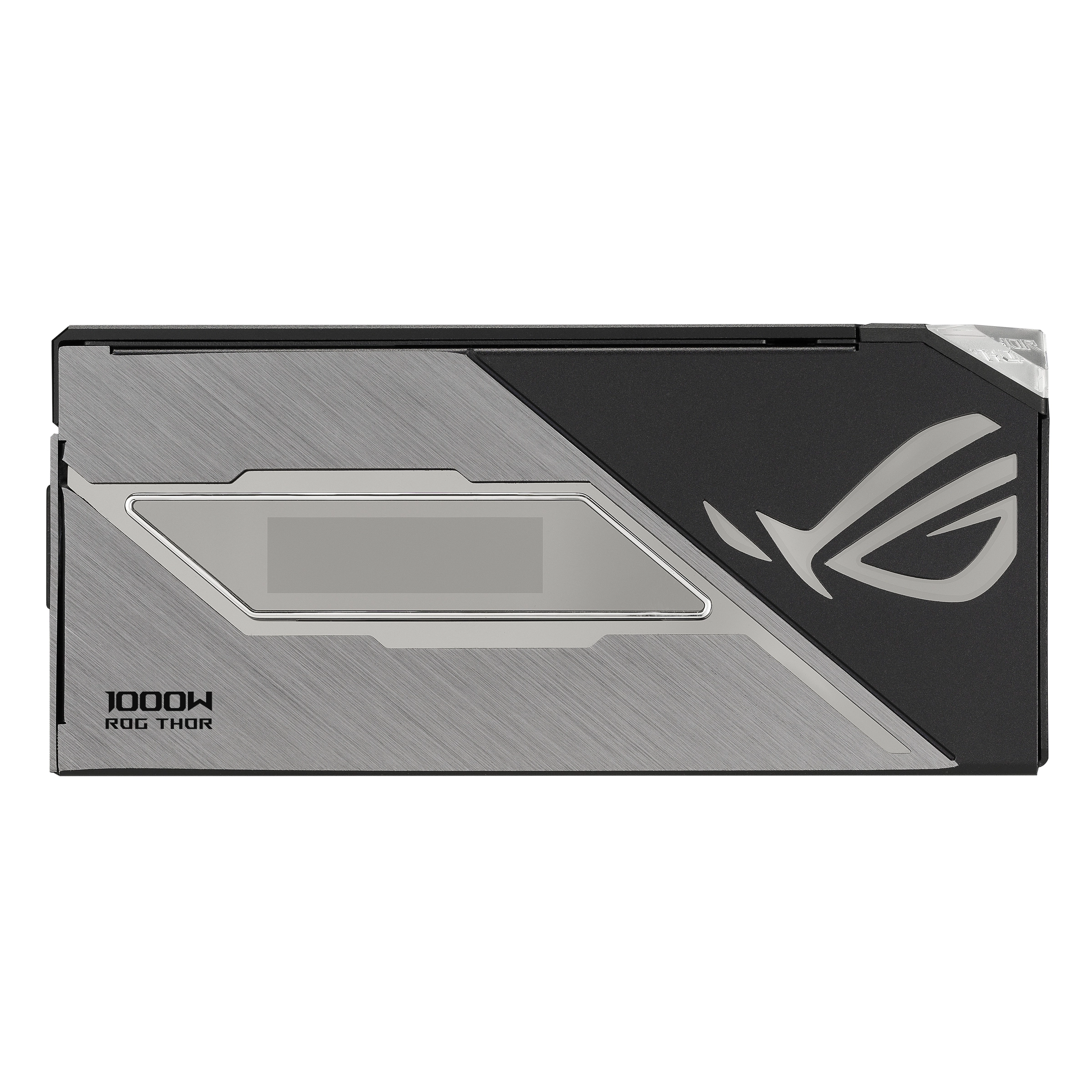

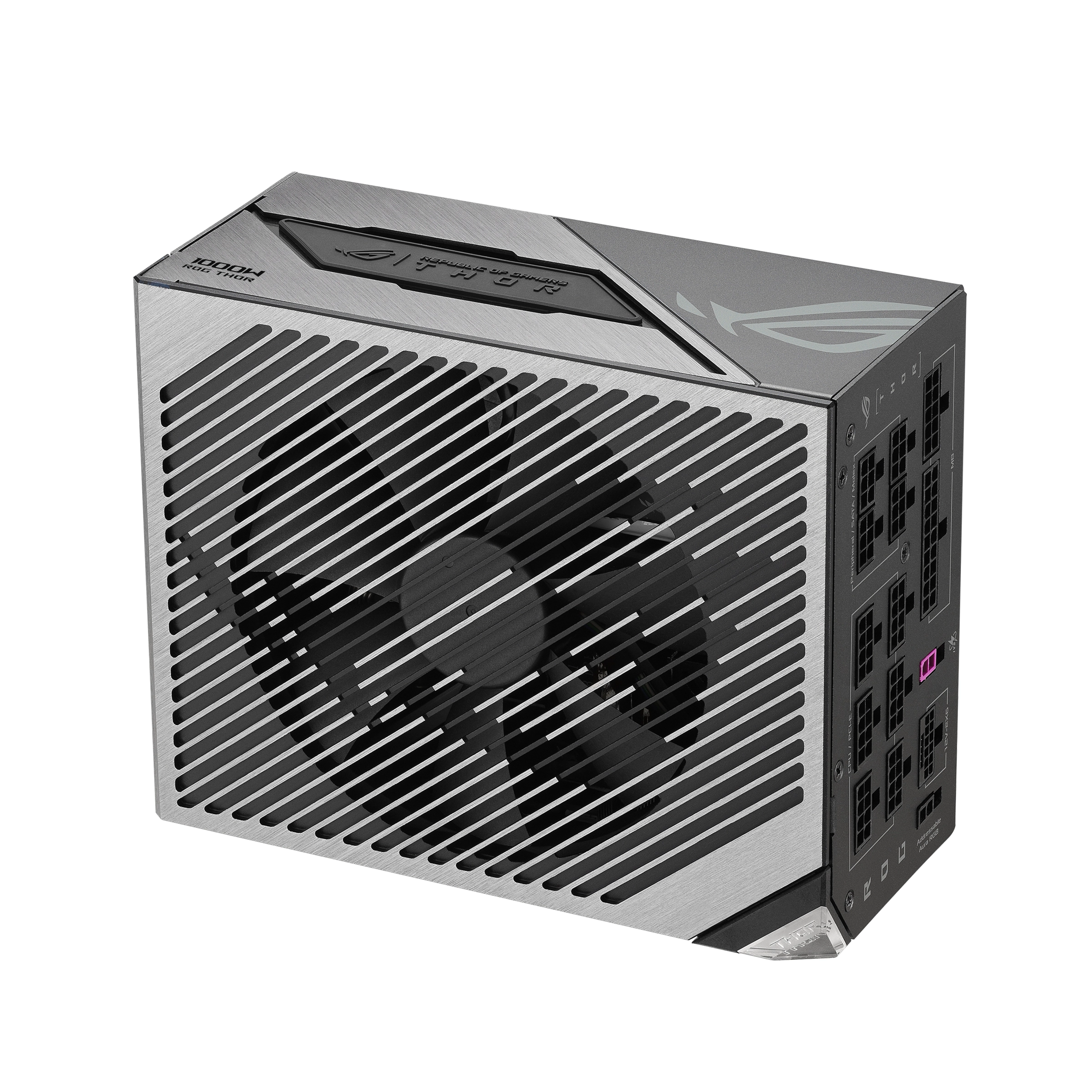

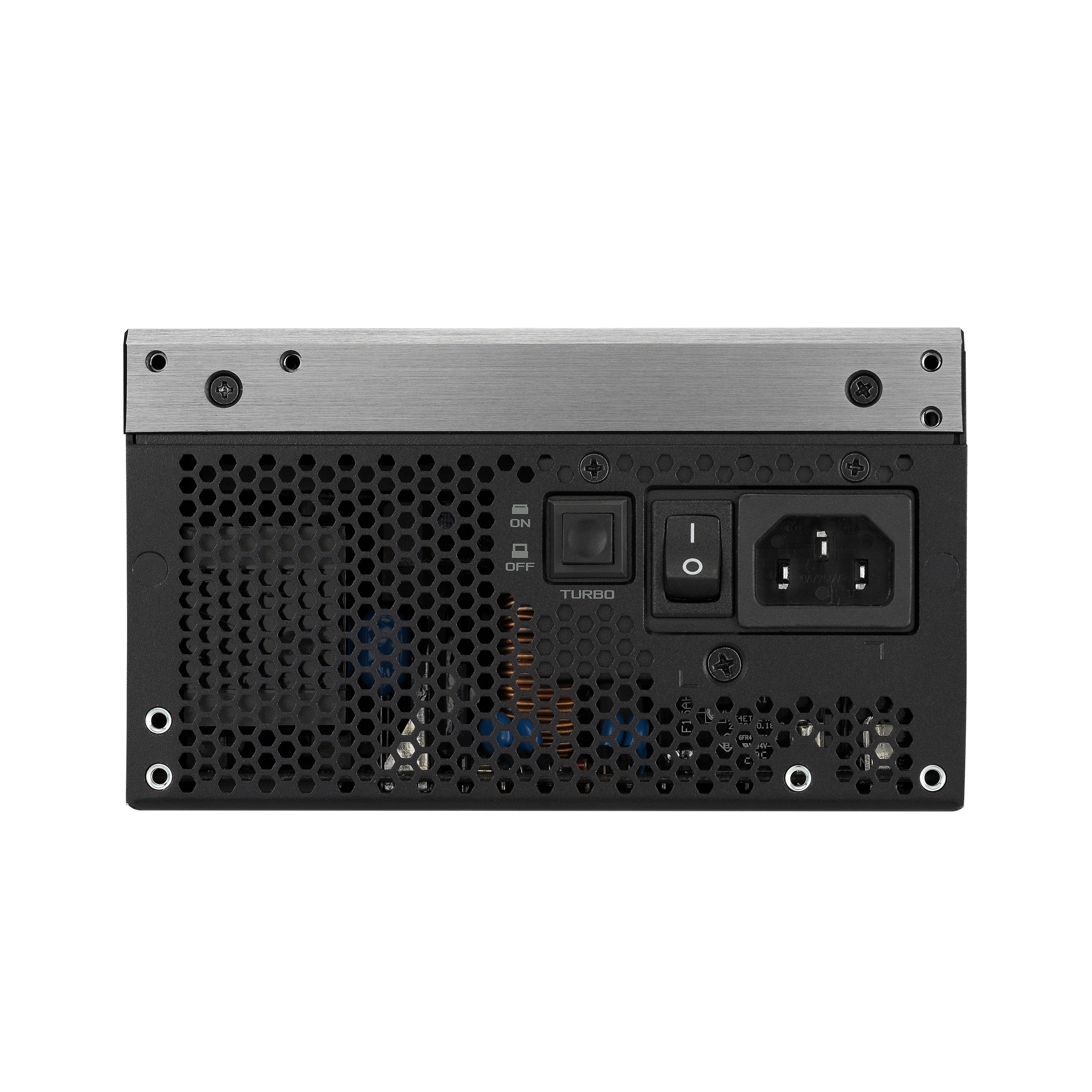

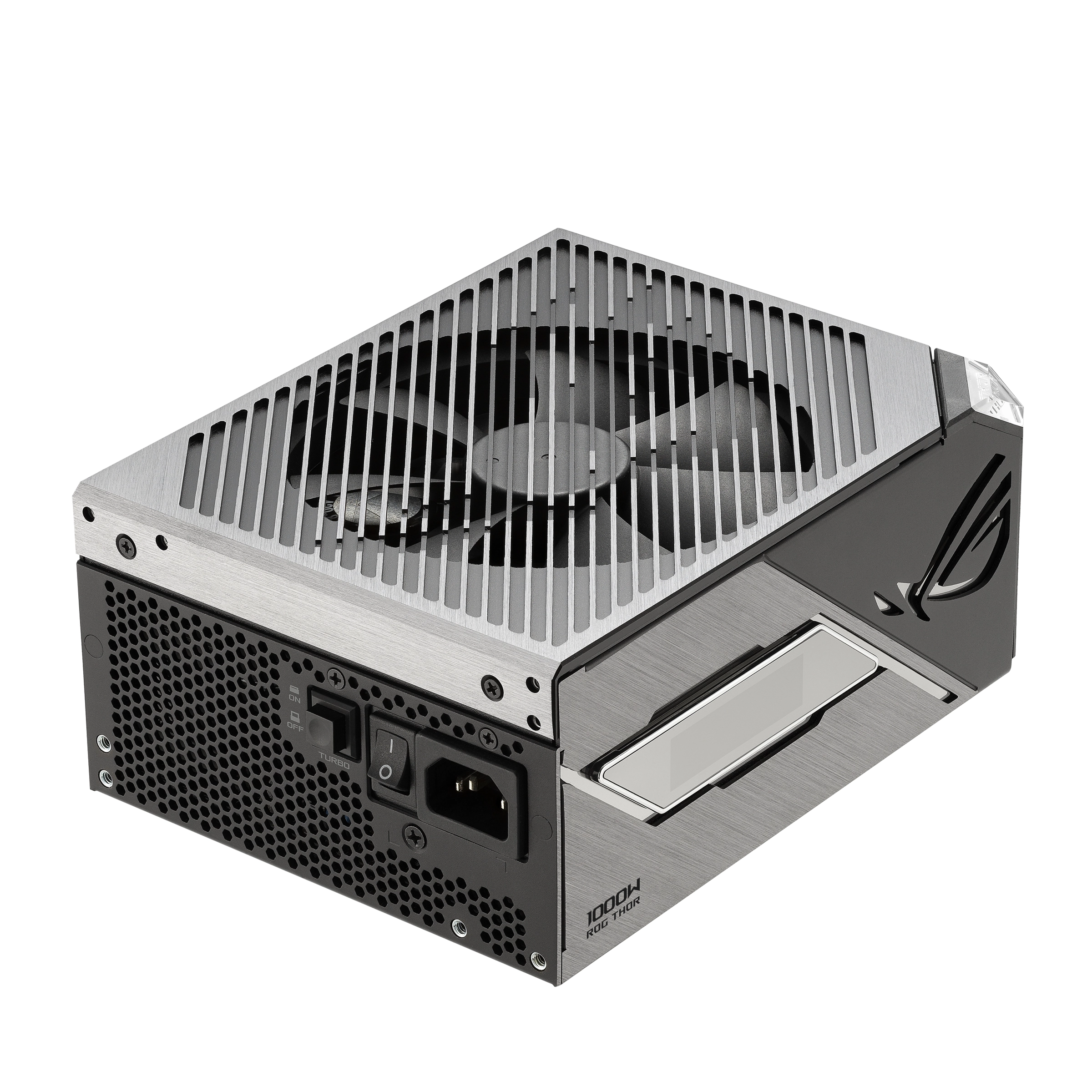

ROG THOR 1000W PLATINUM III
ULTIMATE POWER. UNMATCHED STABILITY.
The ROG Thor 1000W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

The ROG Thor 1000W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.

Specification

Product
Product id	986422
Brand	AsusTek
Partnr	90YE00V3-B0NA00
EAN/UPC code	4711387610596
Warranty (months)	10-year warranty included
Endurance
Mean time between failures (MTBF)	120000 uur
Power
Total power	1000 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1000 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	30 A
Max output current (+12V)	83.33 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under power
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	7
SATA power cable length	400, 120 mm
Peripheral (Molex) power connectors (4-pin)	6
Peripheral (Molex) power cable length	400, 150 mm
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (16-pin)	1
PCI Express power cable length	750 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	1000 mm
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Bearing technology	DBB
Design
Product colour	Black
Cooling type	Active
Number of fans	1 ventilator(en)
Fan location	Top
Illumination	Y
Weight & dimensions
Width	190 mm
Depth	150 mm
Height	86 mm
Weight	2370 g
Packaging data
Cables included	CPU, PCIe, SATA, Peripheral (Molex)
Package width	379 mm
Package depth	241 mm
Package height	127 mm
Package weight	5080 g
Package type	Box
