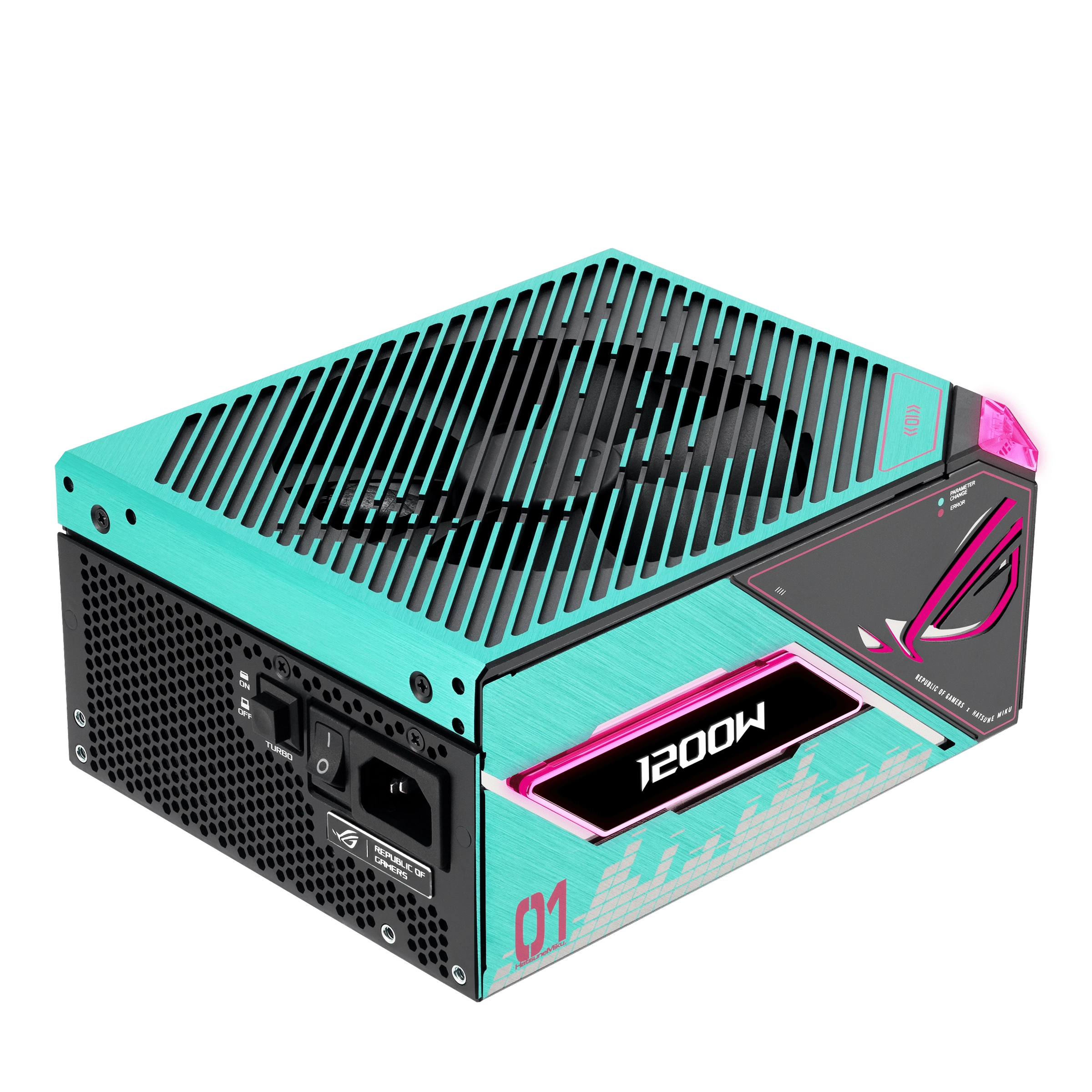

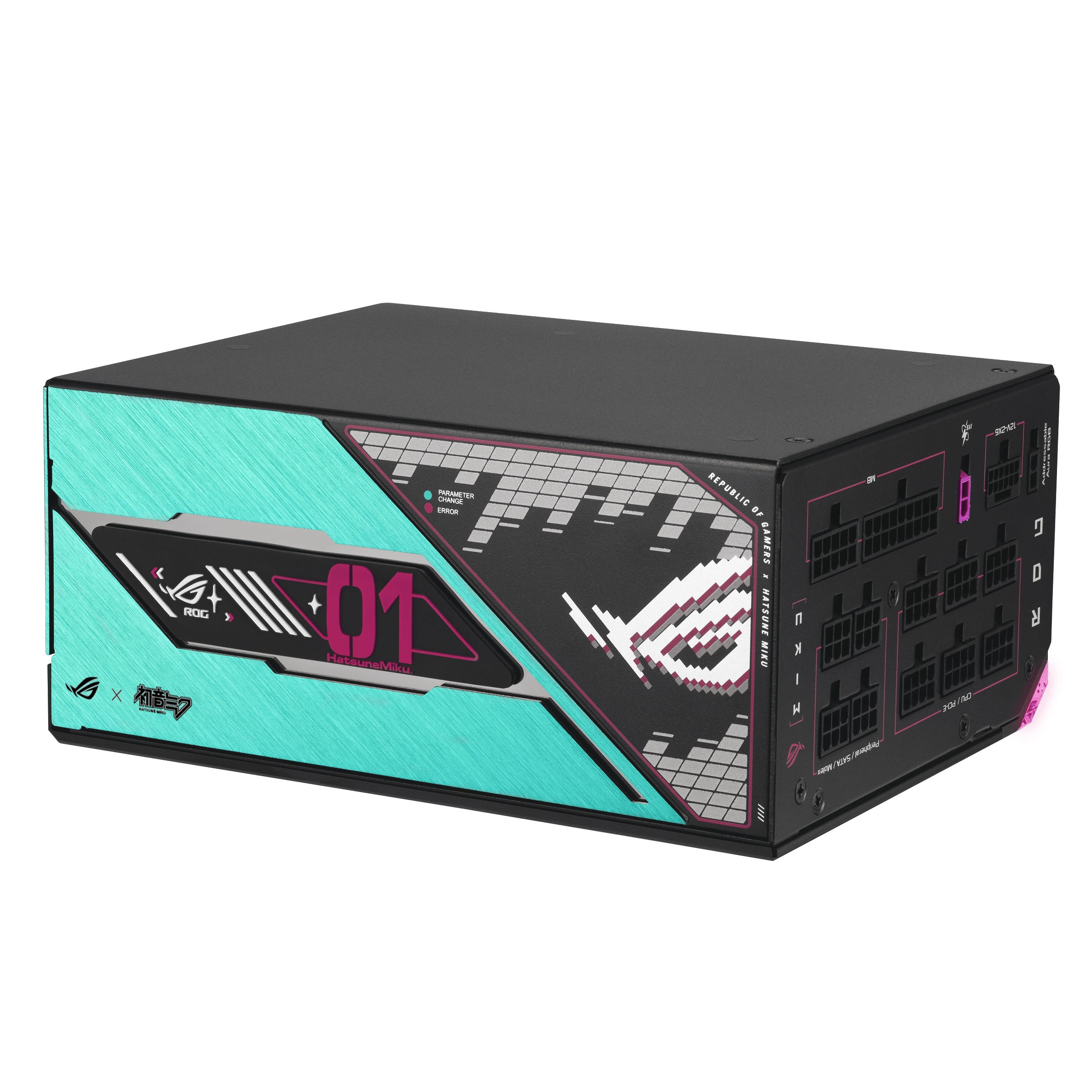

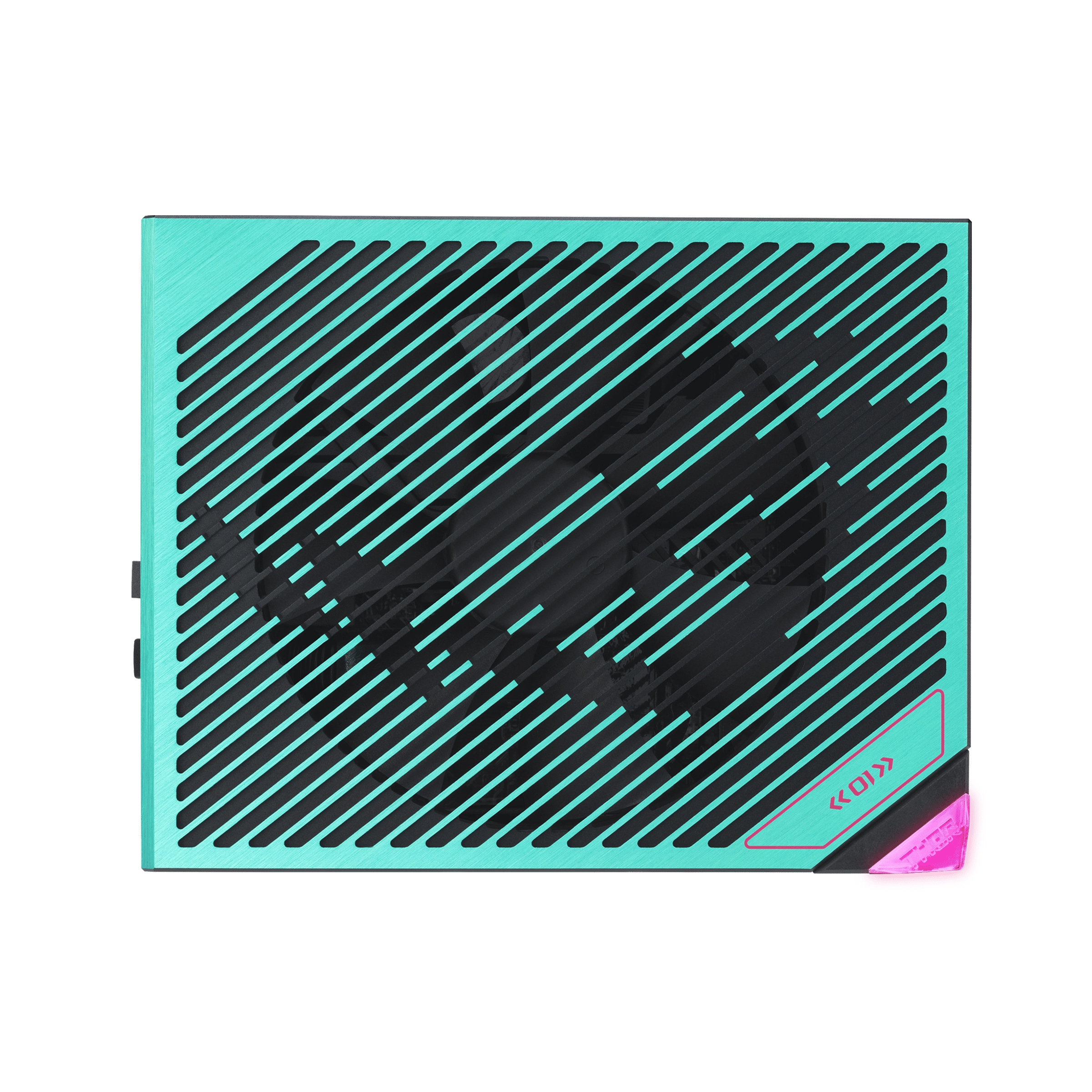

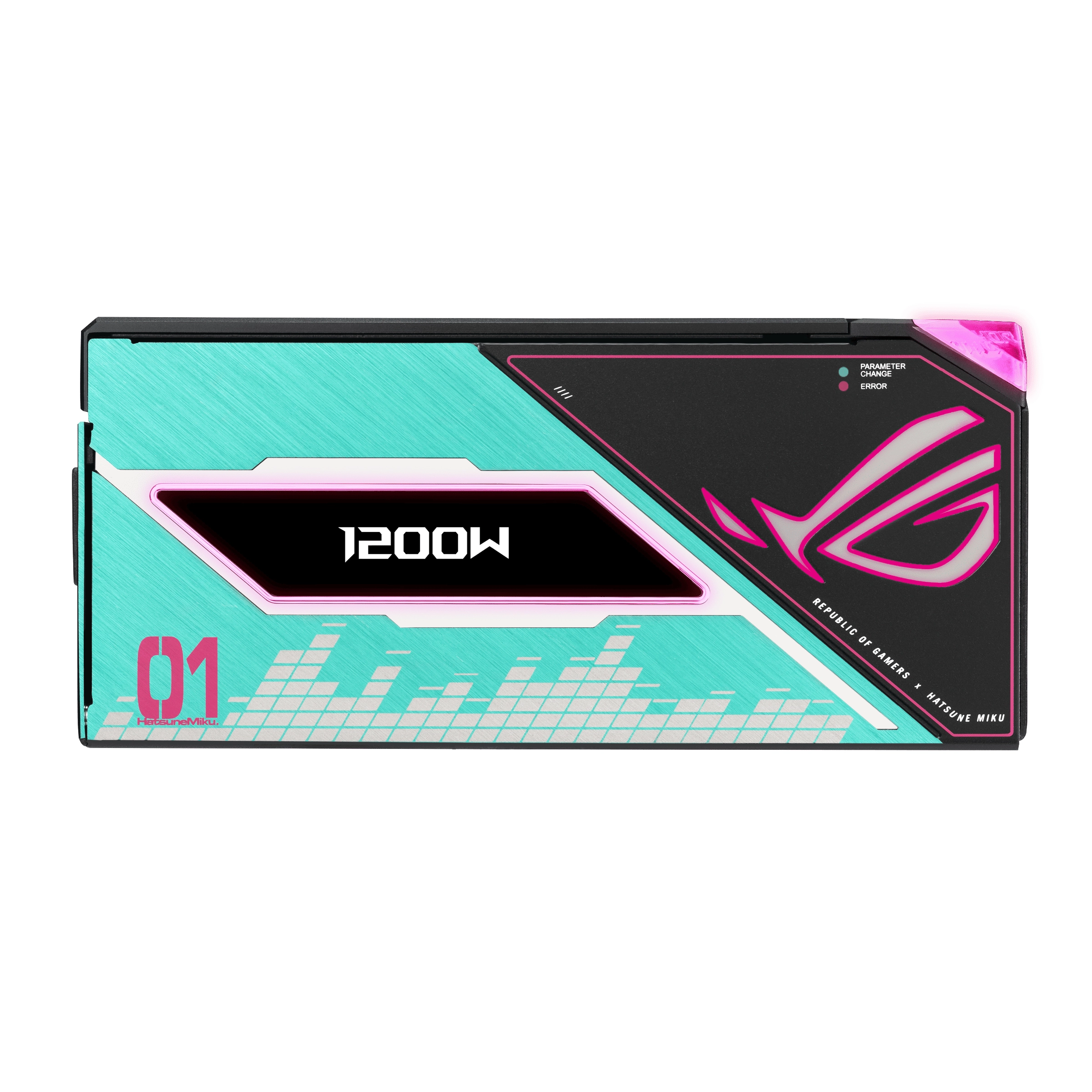

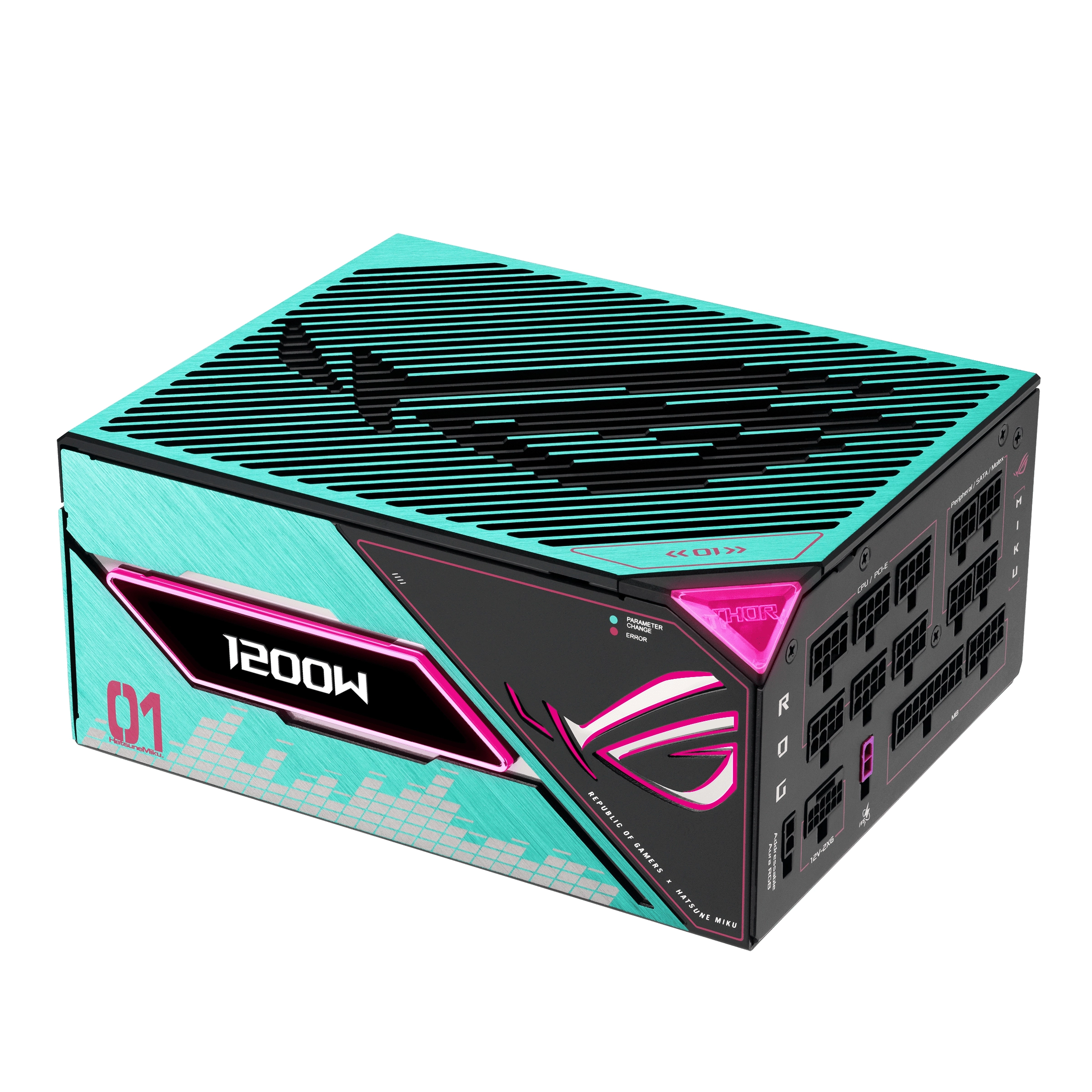

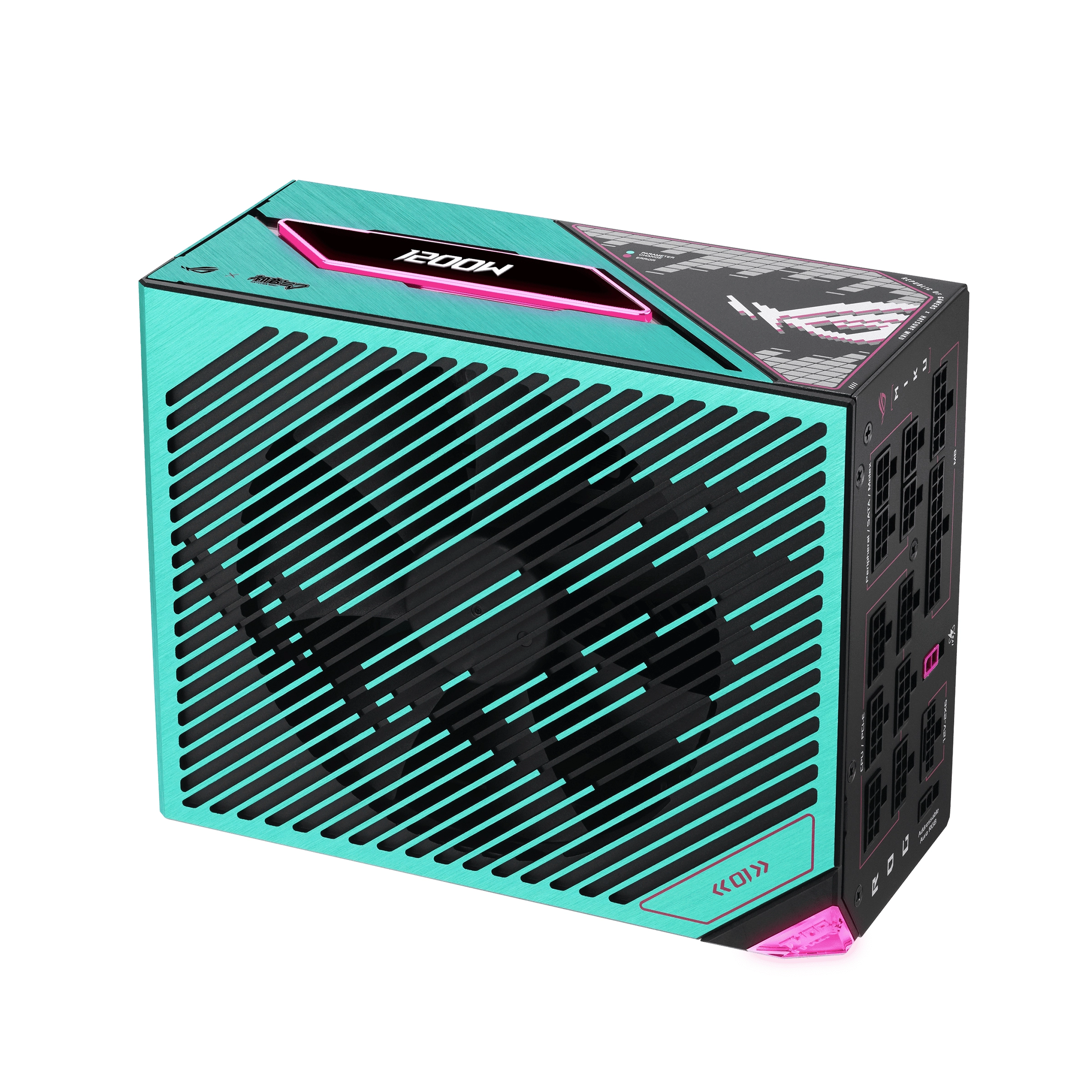

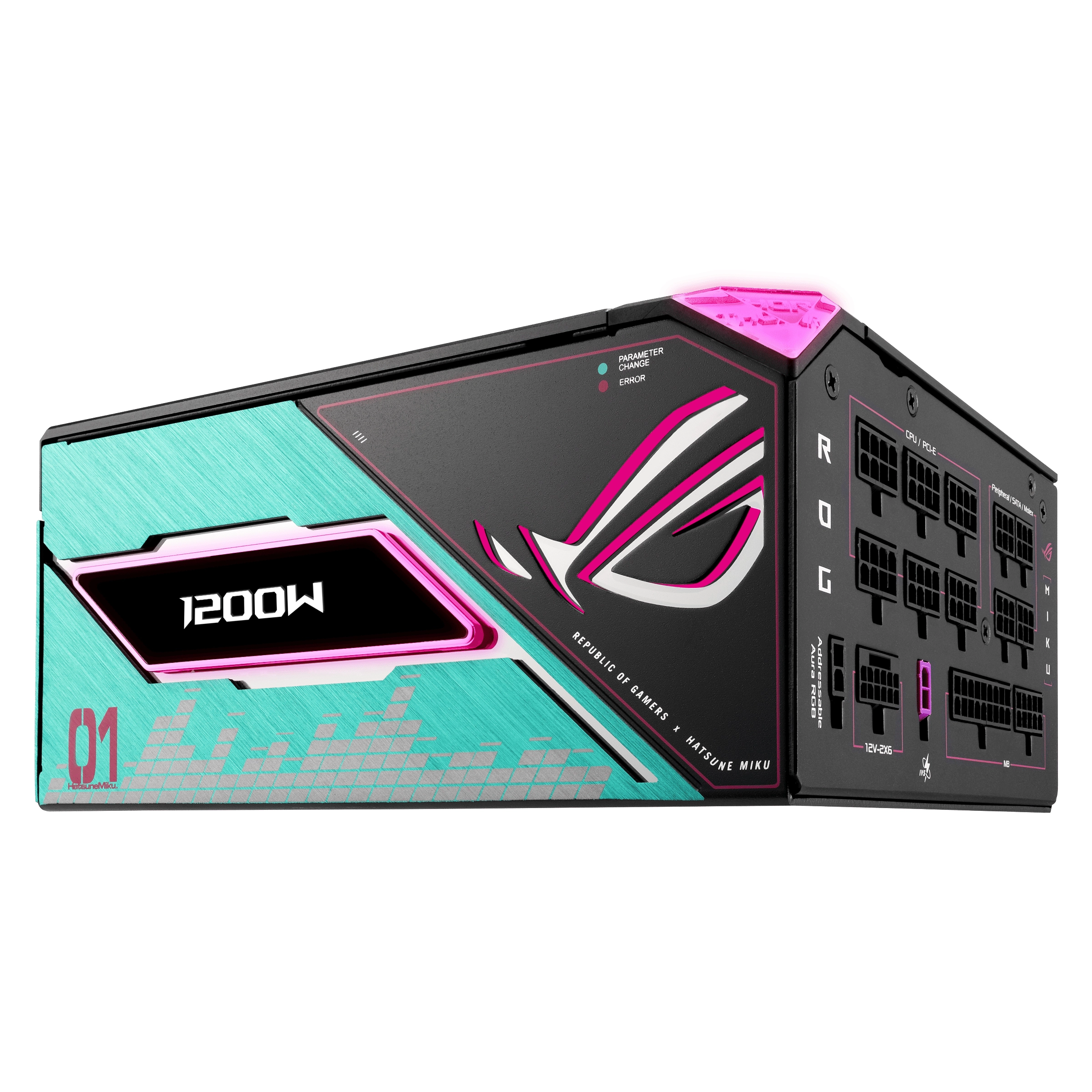

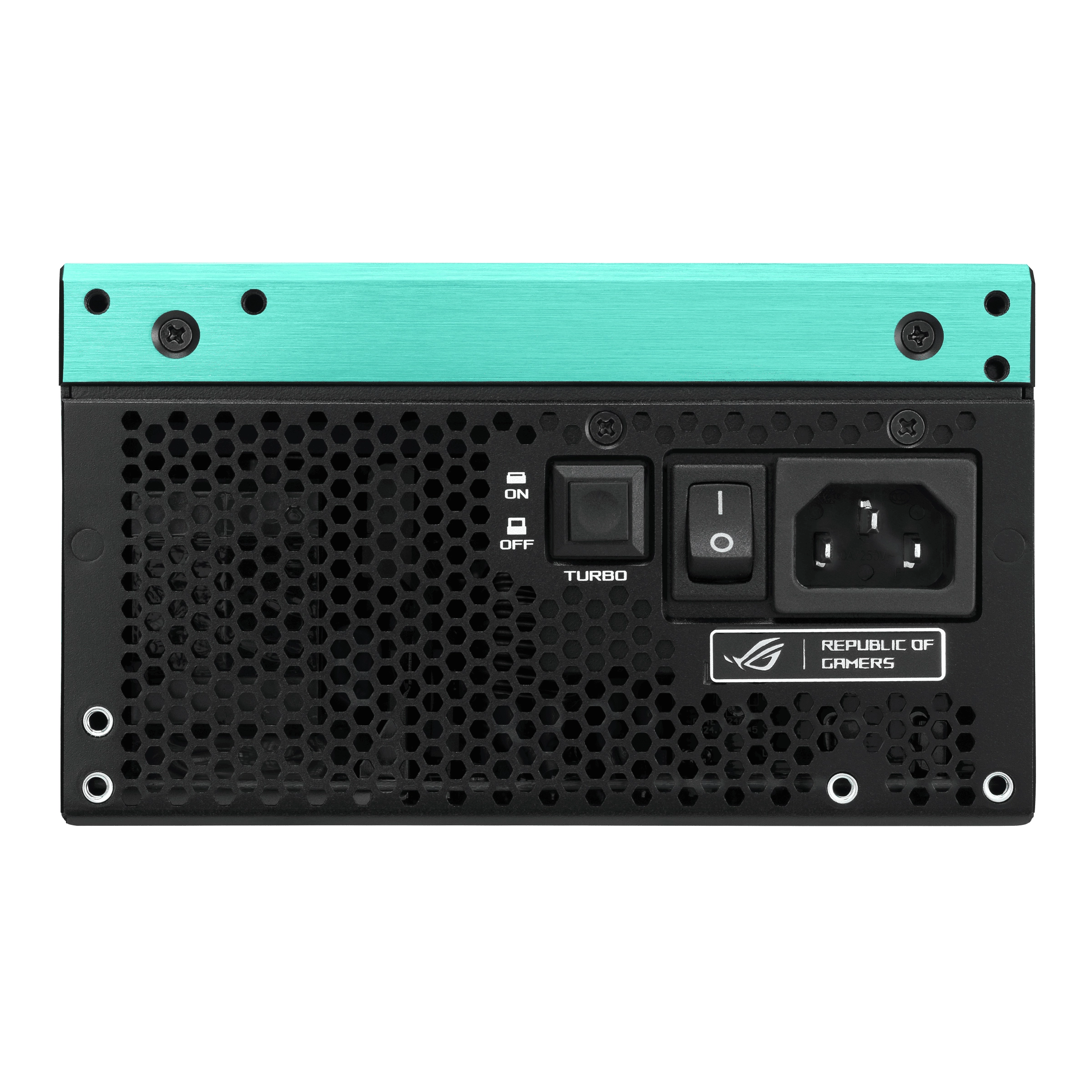

Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III Hatsune Miku Edition delivers unmatched performance and rock-solid stability for your ultimate PC build

Feel the Beat,
In-Game Feats
ROG continues its collaboration with virtual pop star Hatsune Miku with a complete gaming system centered around ROG's sci-fi aesthetics and Miku's signature blue-green, pink-color scheme. The collection combines Hatsune Miku’s signature style with superior ROG performance, premium quality, and versatile functionality for competitive gameplay or daily tasks. Products include a motherboard, graphics card, PC case, all-in-one cooler, SSD enclosure, power supply, monitor, and apparels, enabling gamers to create an entire gaming setup that exudes the vibrant Miku aesthetic.

Specification

Product
Product id	1005342
Brand	AsusTek
Partnr	90YE00V6-B0NA00
EAN/UPC code	4711636125581
Warranty (months)	10-year warranty included.
Endurance
Mean time between failures (MTBF)	120000 uur
Power
Total power	1200 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1200 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	30 A
Max output current (+12V)	100 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Overheating, Over current, Over power, Over voltage, Short circuit, Under power

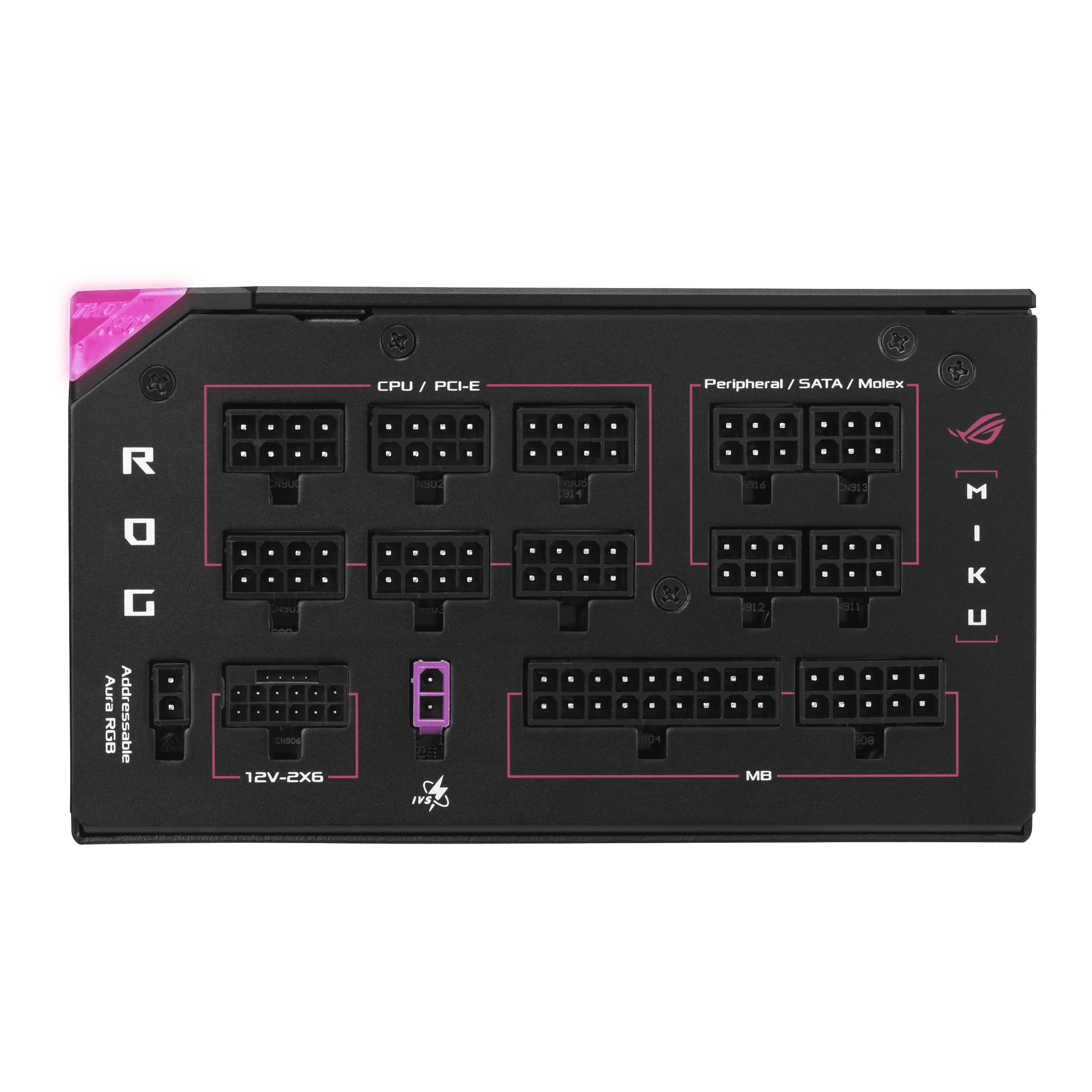

Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	610 mm
Number of SATA power connectors	7
SATA power cable length	400, 120 mm
Peripheral (Molex) power connectors (4-pin)	6
Peripheral (Molex) power cable length	400, 150 mm
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (16-pin)	1
PCI Express power cable length	750 mm
CPU power connector (4+4 pin)	Y
CPU power cable length	1000 mm
Cabling type	Fully-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Bearing technology	DBB
Design
Product colour	Multicolour
Cooling type	Active
Illumination	Y
Packaging content
Packaging content	Power cord x 1 Motherboard power cable x 1 (610mm) CPU cable x 2 (1000mm) PCI-E Gen 5 16-pin cable x 1 (750mm) PCI-E cable 1-to-1 x 4 (750mm) SATA cable 1-to-4 x 1 (400+120+120+120mm) SATA cable 1-to-3 x 1 (400+120+120mm) Peripheral cable 1-to-3 x 2 (400+150+150mm) Addressable RGB cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis screws package x 1 Cable tie x 12 Thank you card x 1 User manual x 1
Weight & dimensions
Width	190 mm
Depth	150 mm
Height	86 mm
Weight	2370 g
Packaging data
Cables included	CPU, PCIe, SATA, Peripheral (Molex)
Package width	379 mm
Package depth	241 mm
Package height	127 mm
Package weight	5210 g
Package type	Box
