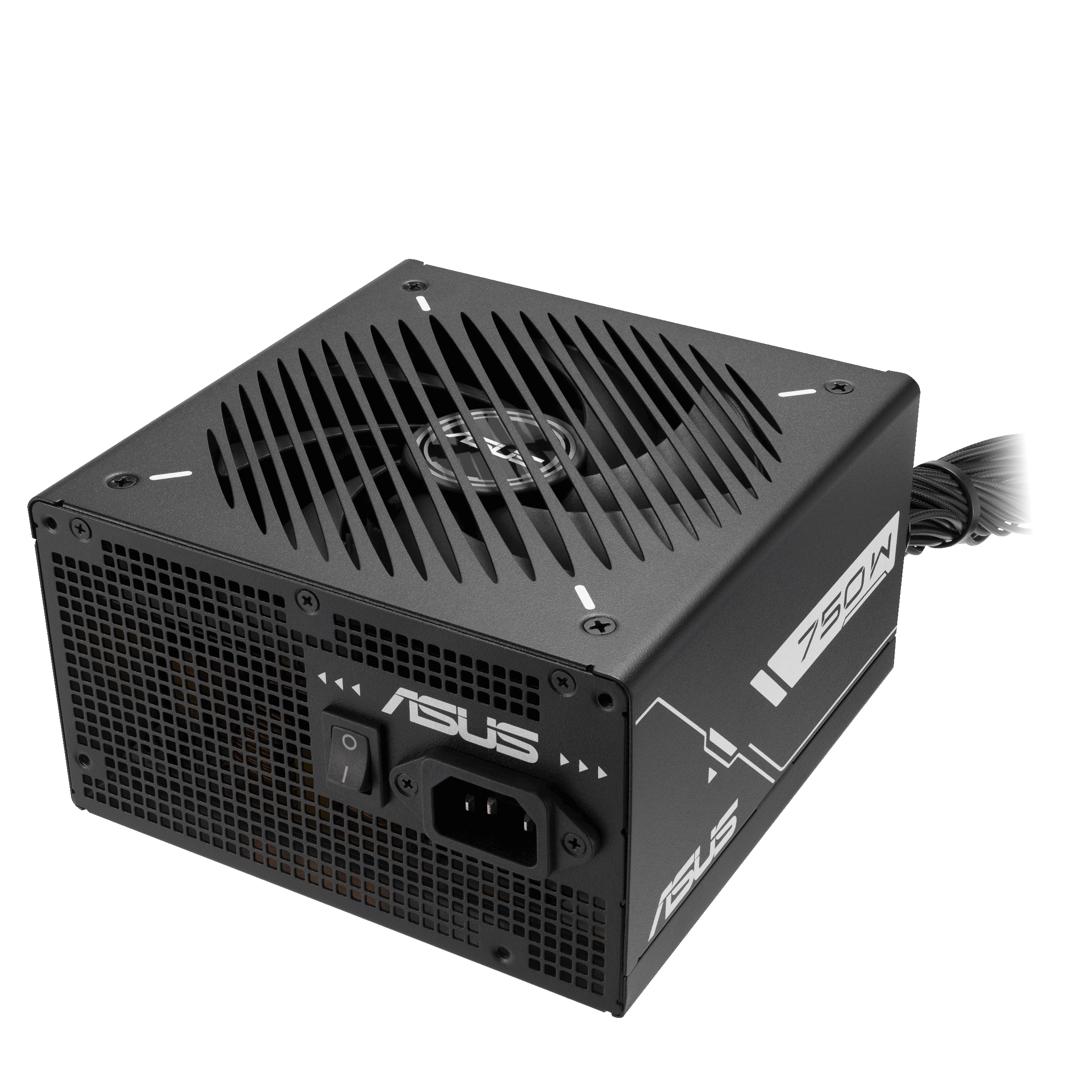

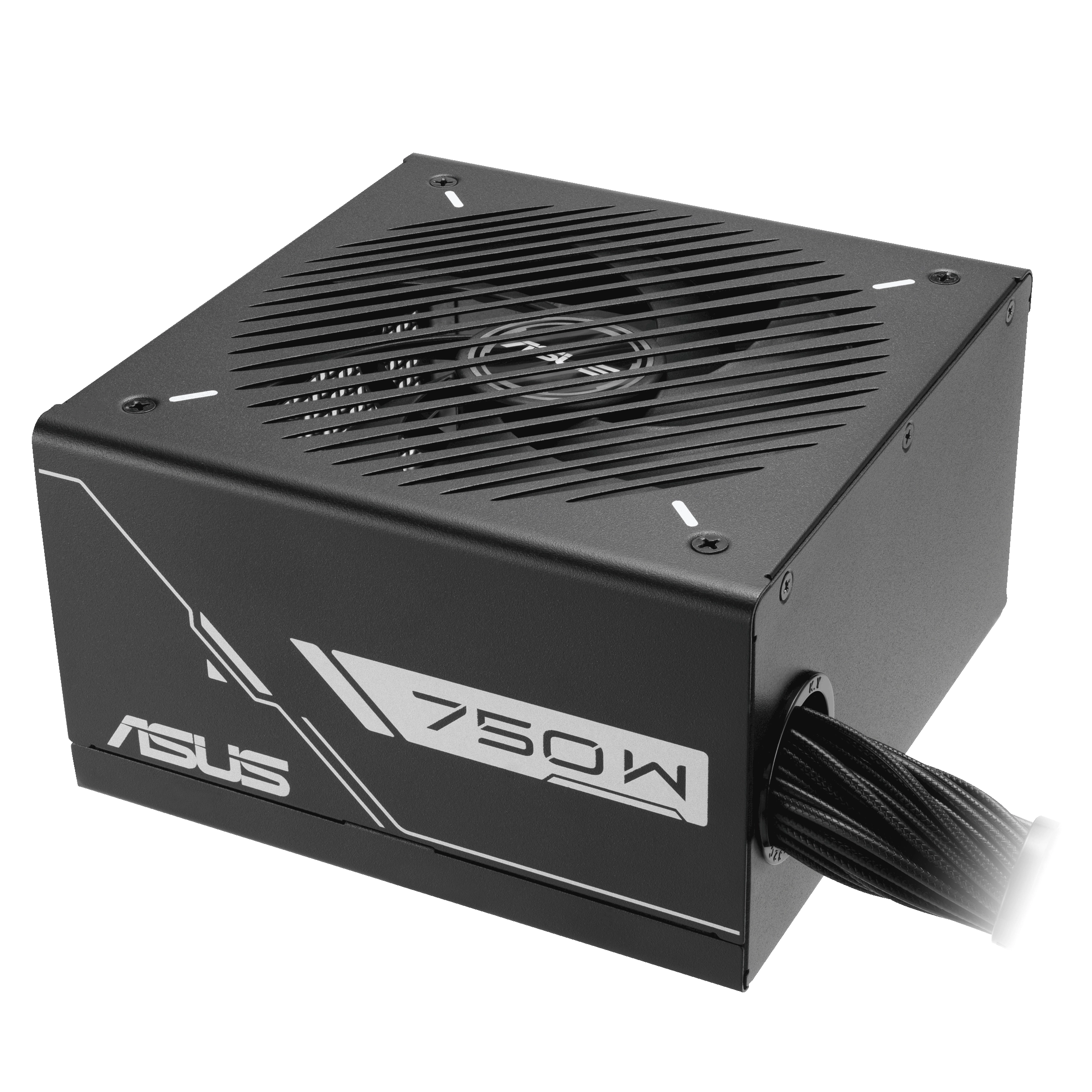

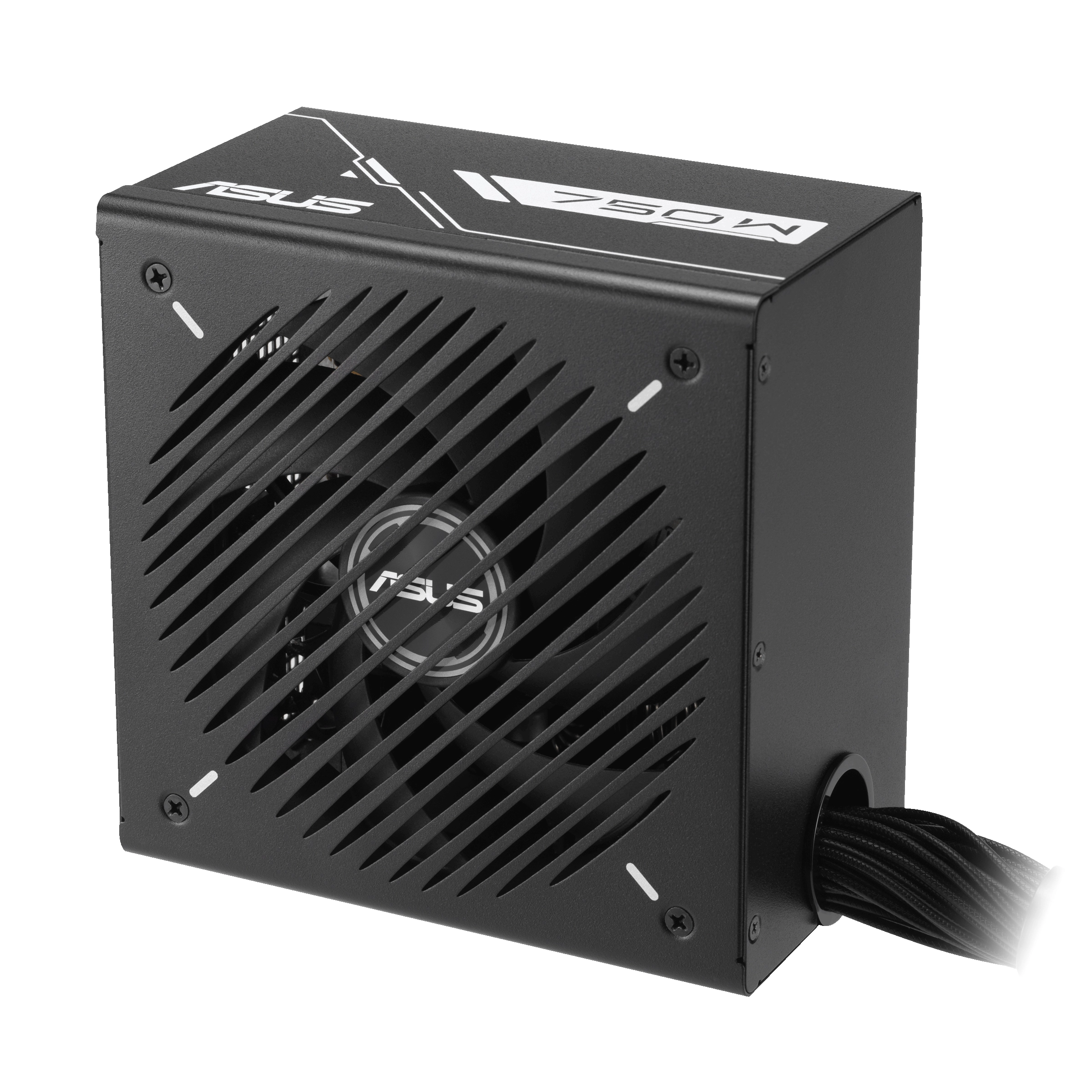

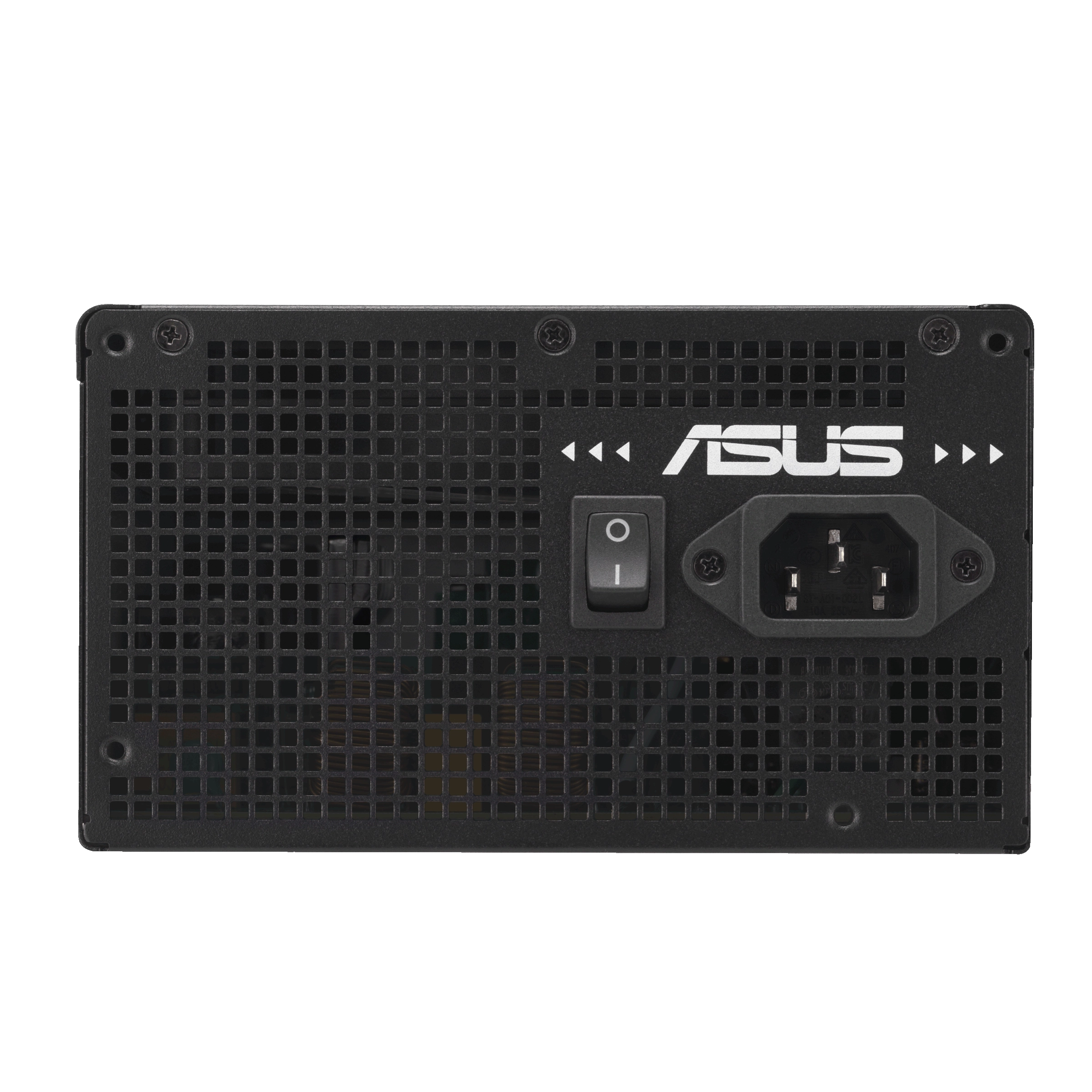

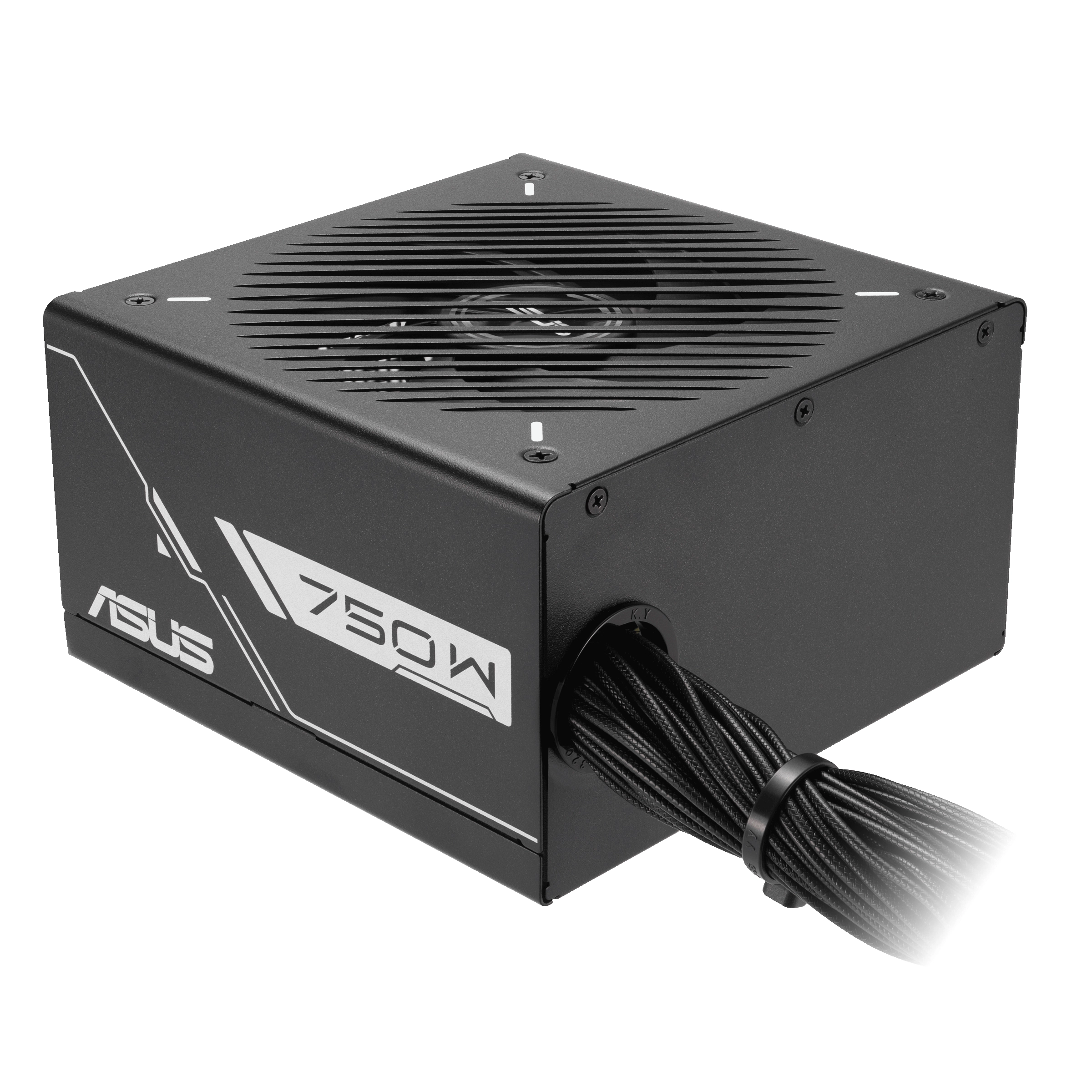

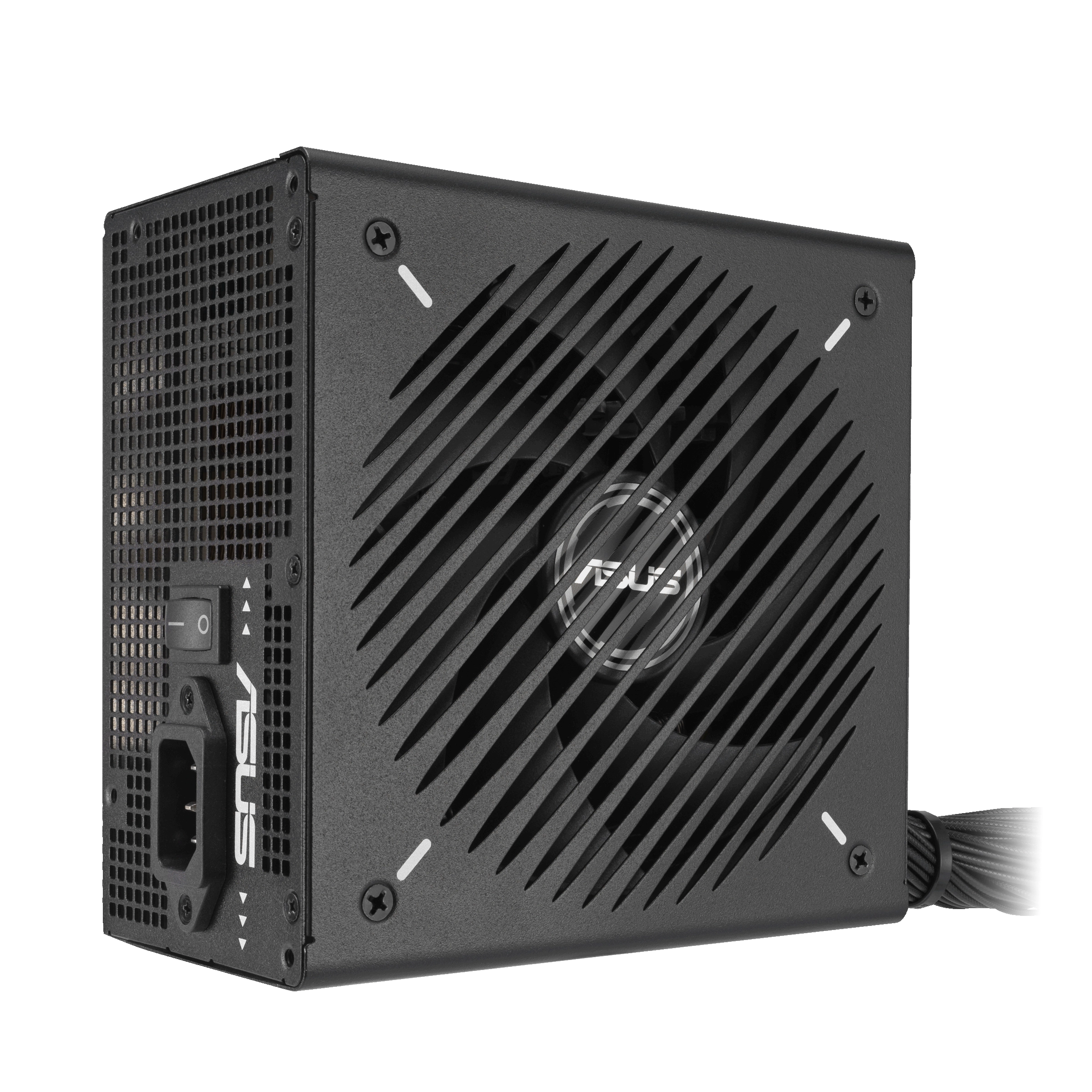

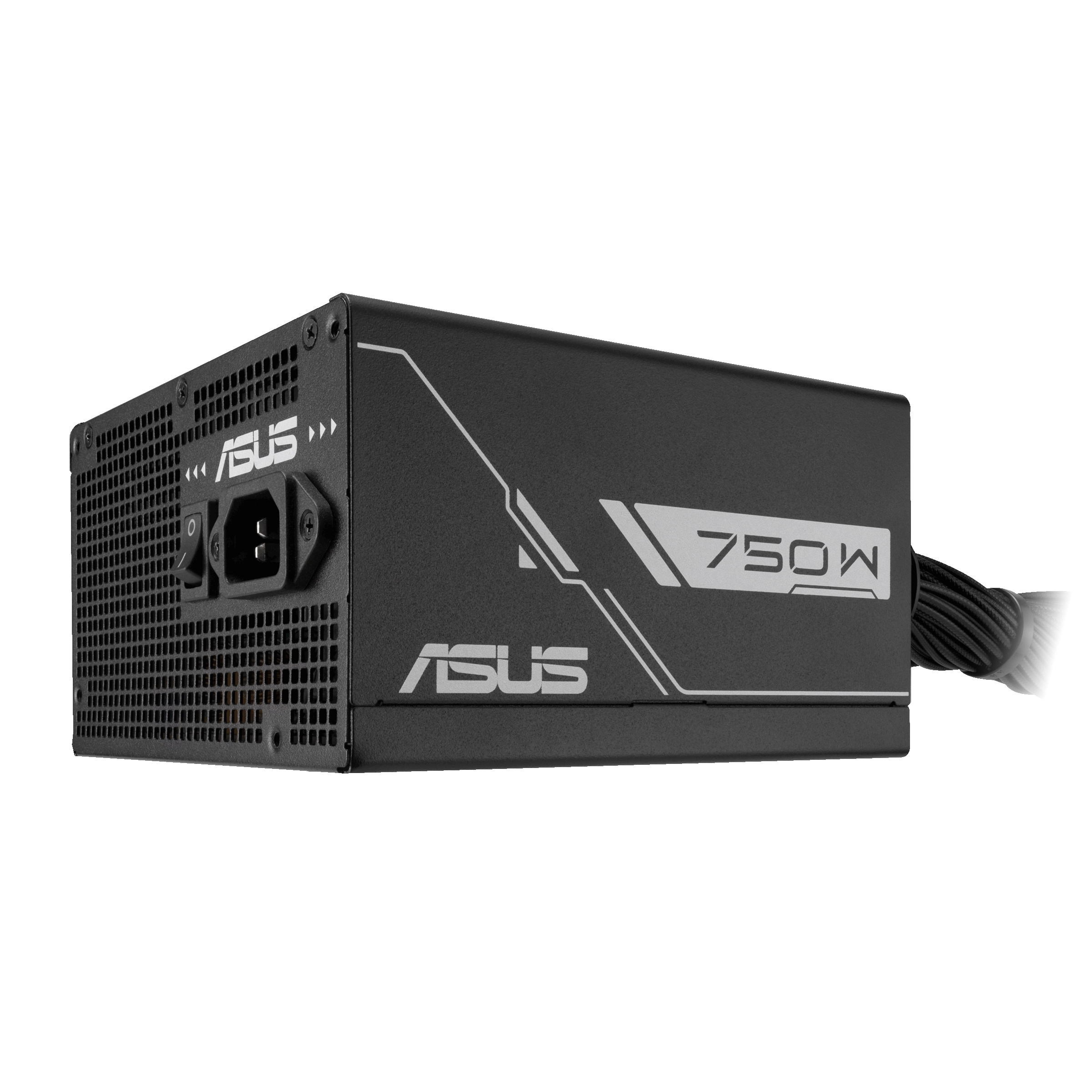

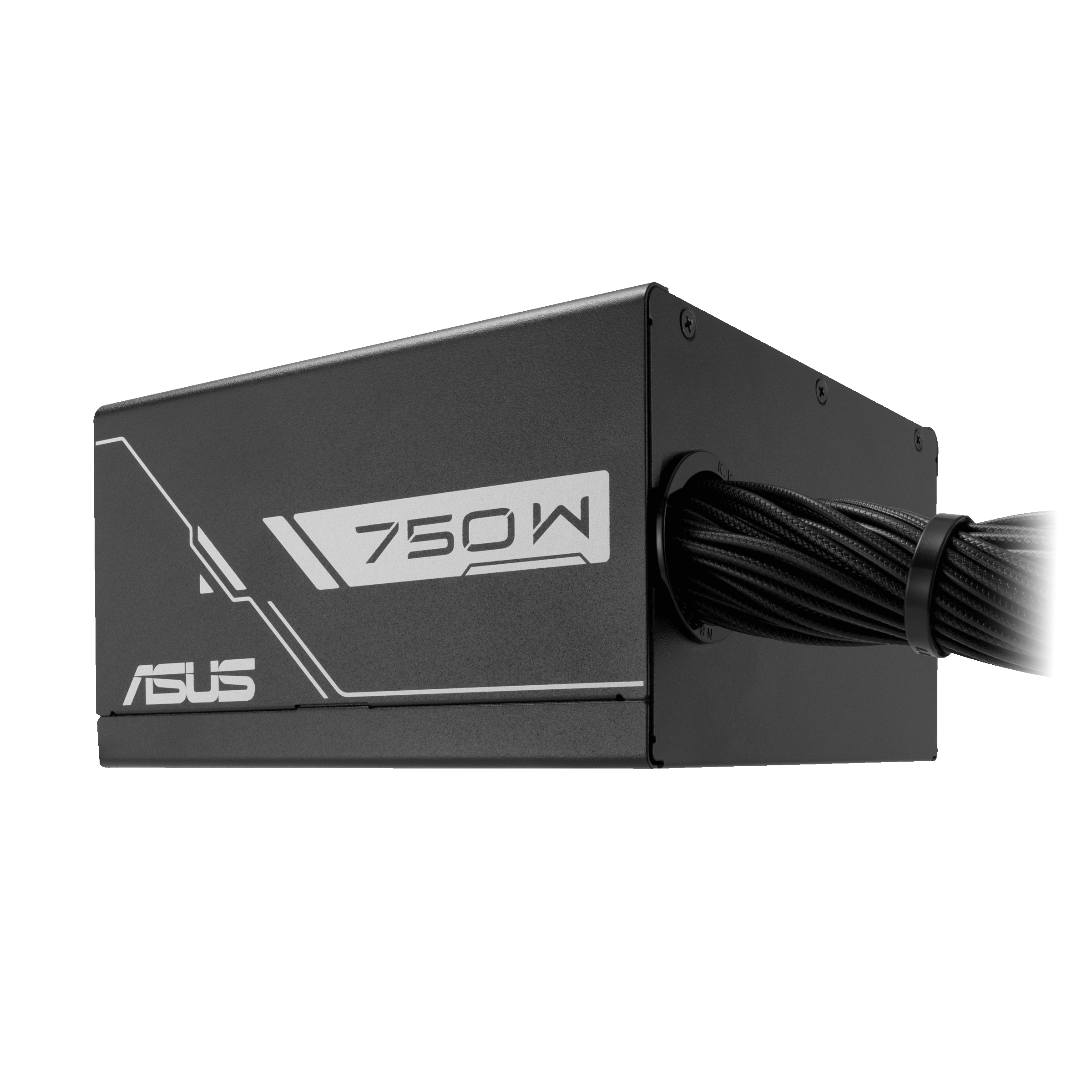

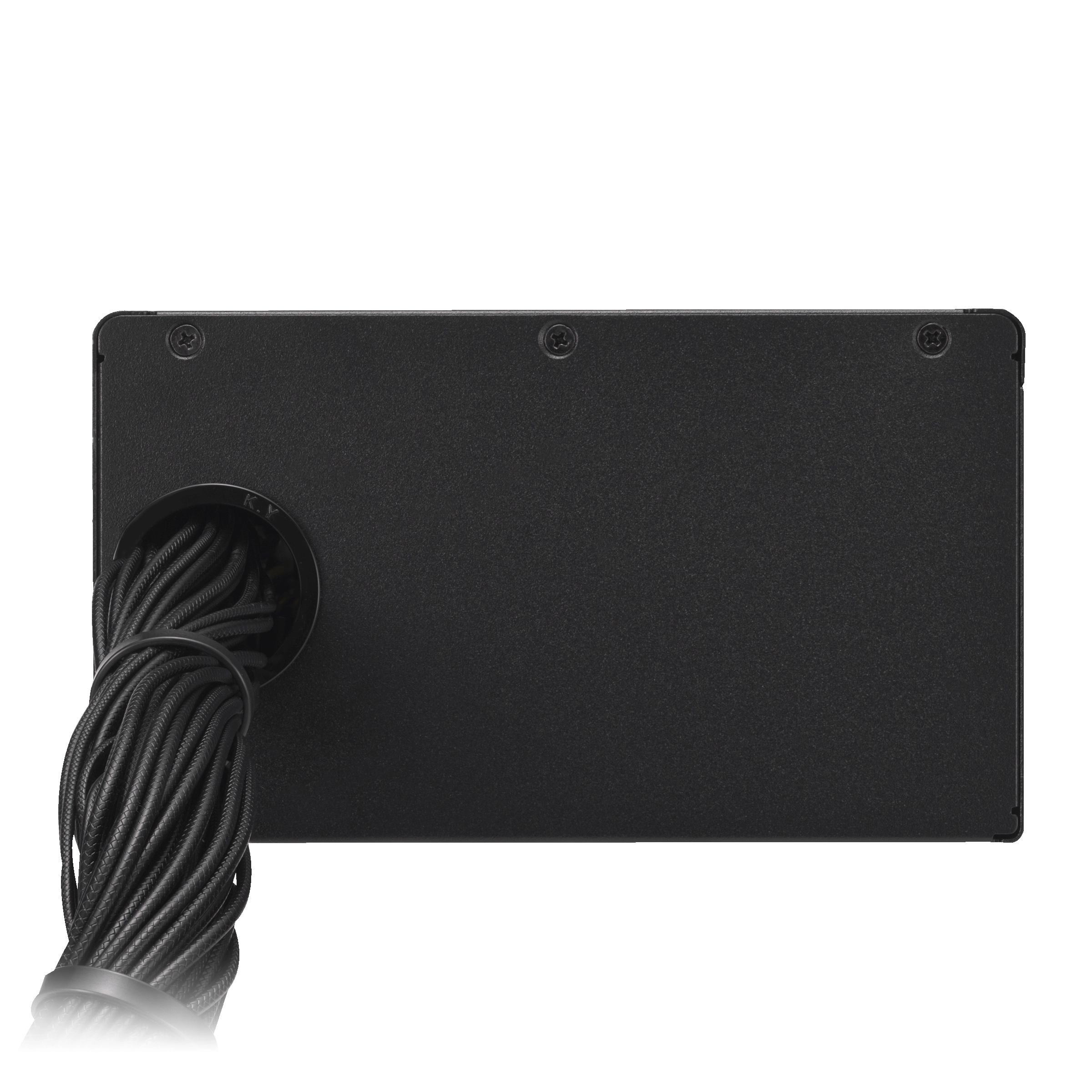

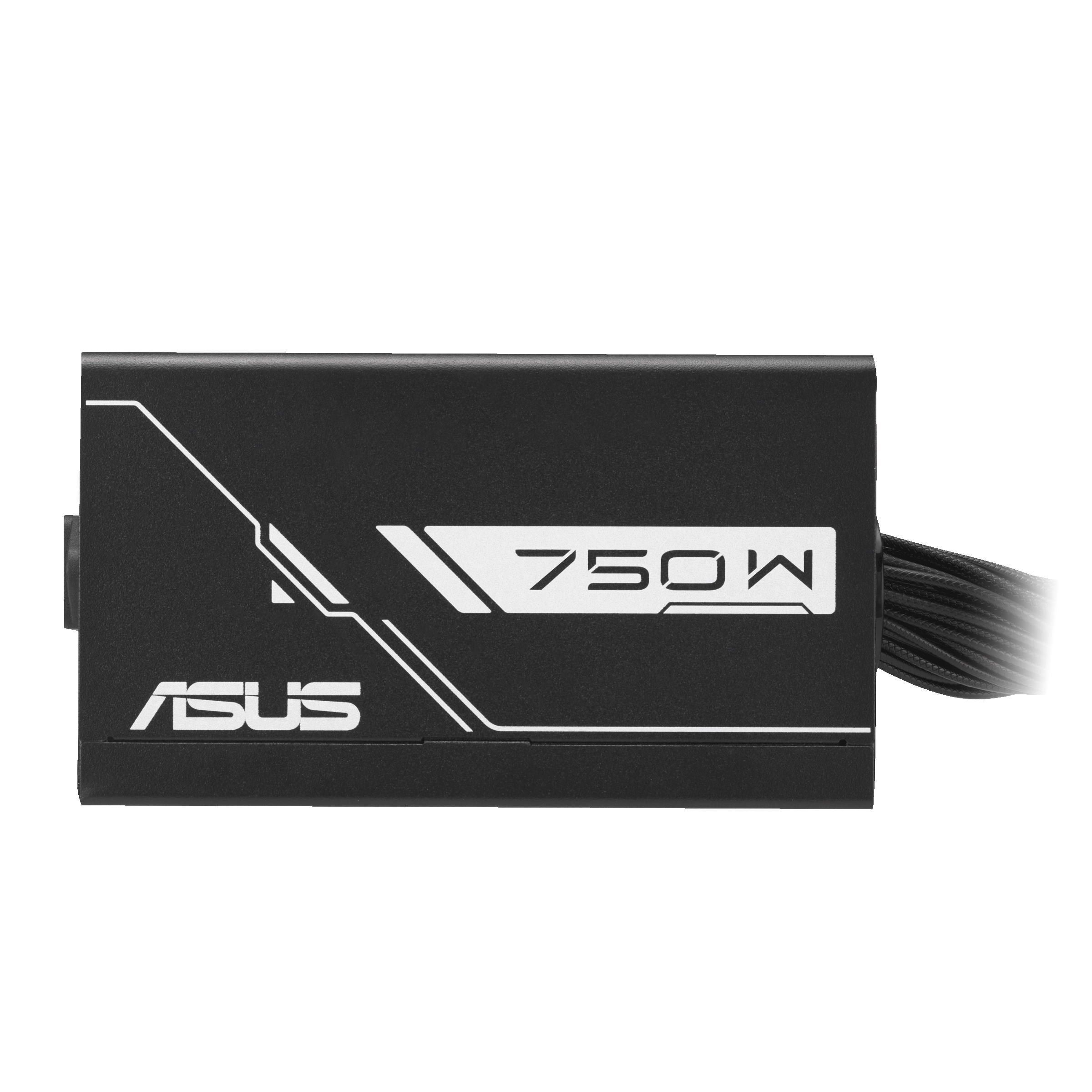

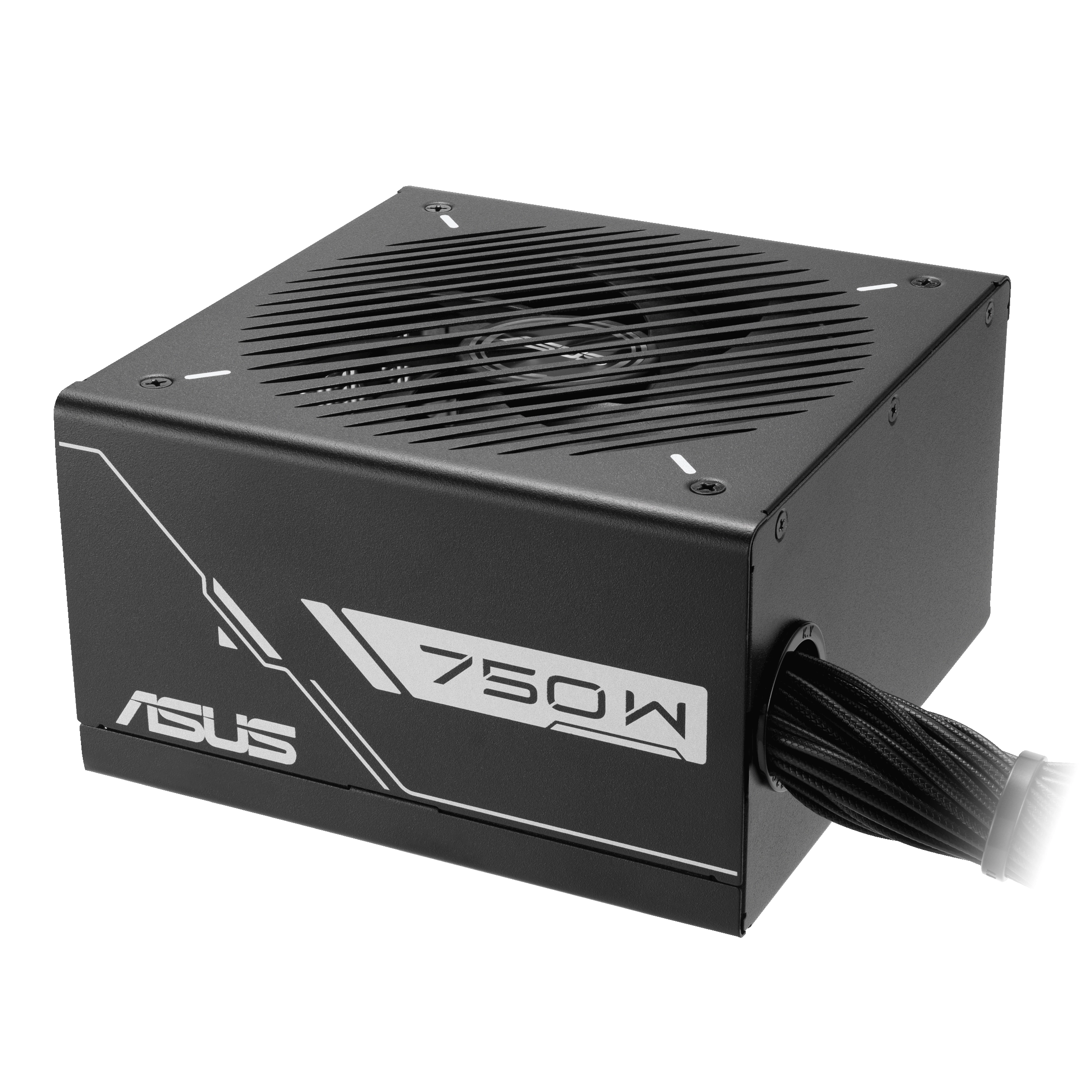

ASUS Prime 750W Bronze PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.

Prime Performance
With 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.

Specification

Product
Product id	996355
Brand	AsusTek
Partnr	90YE00Y0-B0NA00
EAN/UPC code	4711387635124
Warranty (months)	60 months
Endurance
Mean time between failures (MTBF)	120000 uur
Power
Total power	750 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120 W
Combined power (+12V)	750 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	600 mm
Number of SATA power connectors	6
SATA power cable length	120, 400 mm
Peripheral (Molex) power connectors (4-pin)	3
Peripheral (Molex) power cable length	120, 400 mm
PCI Express power connectors (8-pin)	3
CPU power connector (4+4 pin)	Y
CPU power cable length	800 mm
Cabling type	Non-Modular
Performance
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Bearing technology	Ball bearing
Design
Product colour	Black
Cooling type	Active

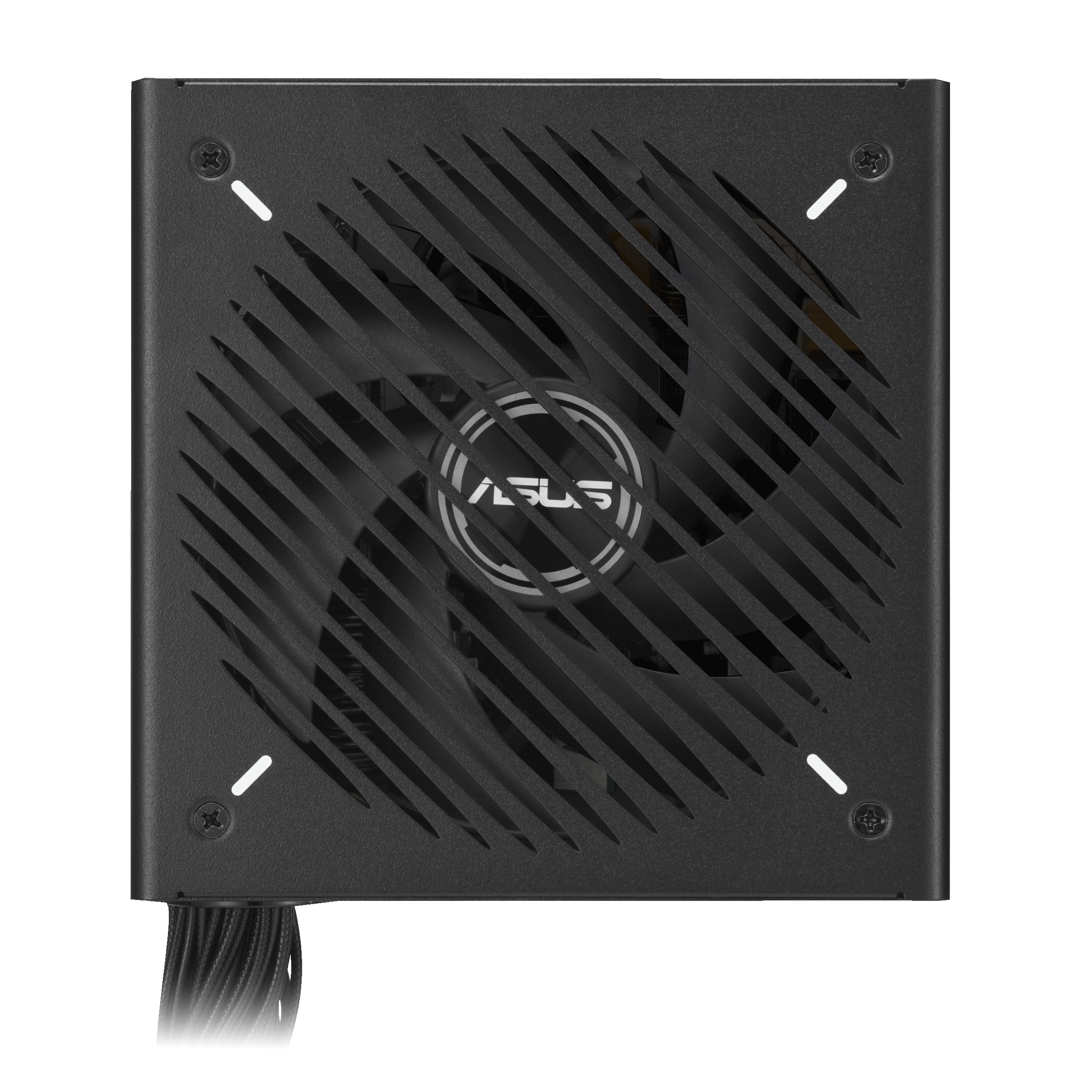

Fan diameter	135 mm
Number of fans	1 ventilator(en)
Fan location	Top
On/off switch	Y
Weight & dimensions
Width	150 mm
Depth	150 mm
Height	86 mm
Weight	1920 g
Packaging data
Package width	340 mm
Package depth	196 mm
Package height	115 mm
Package weight	3000 g
Package type	Box
