FLYIN’ TUF
The AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.

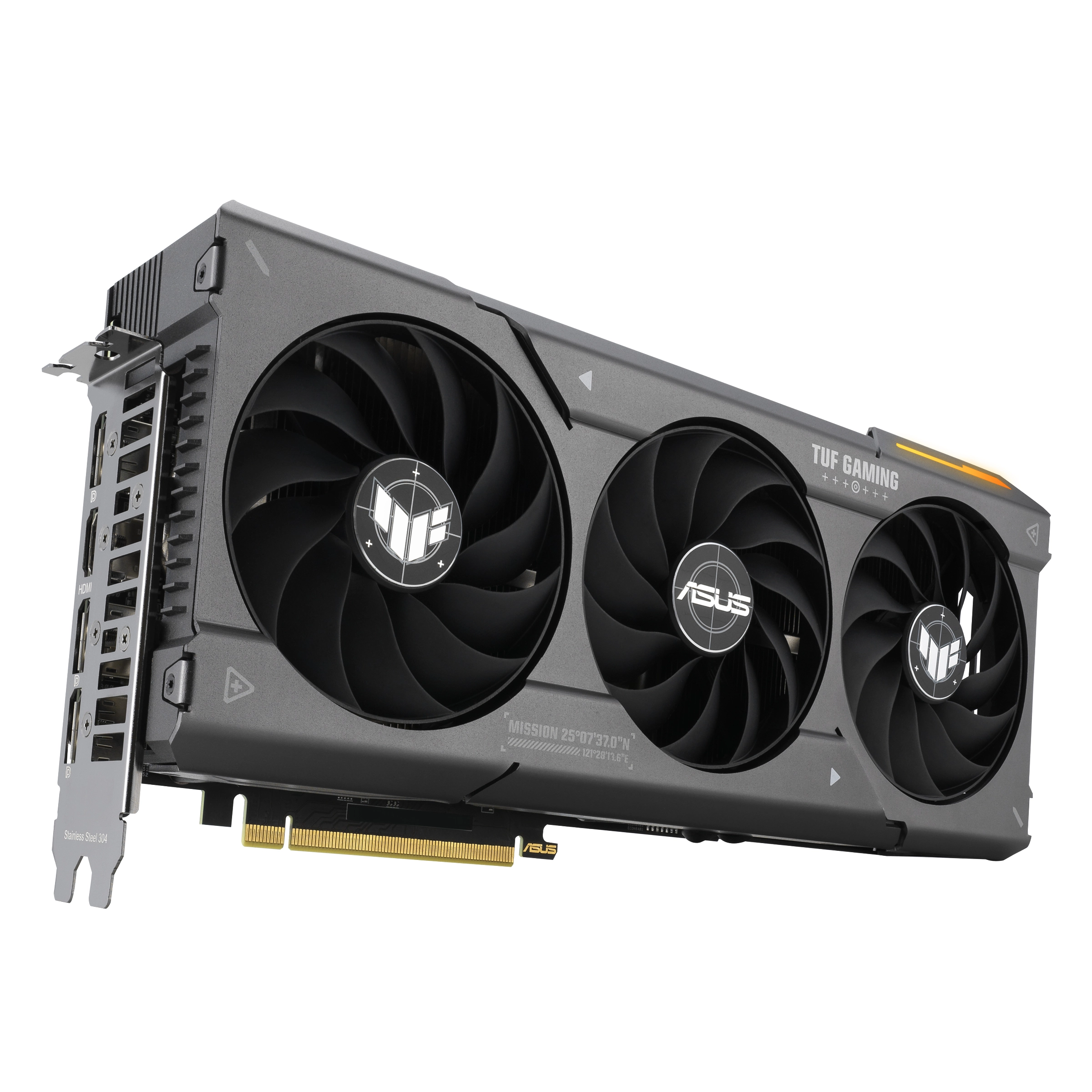

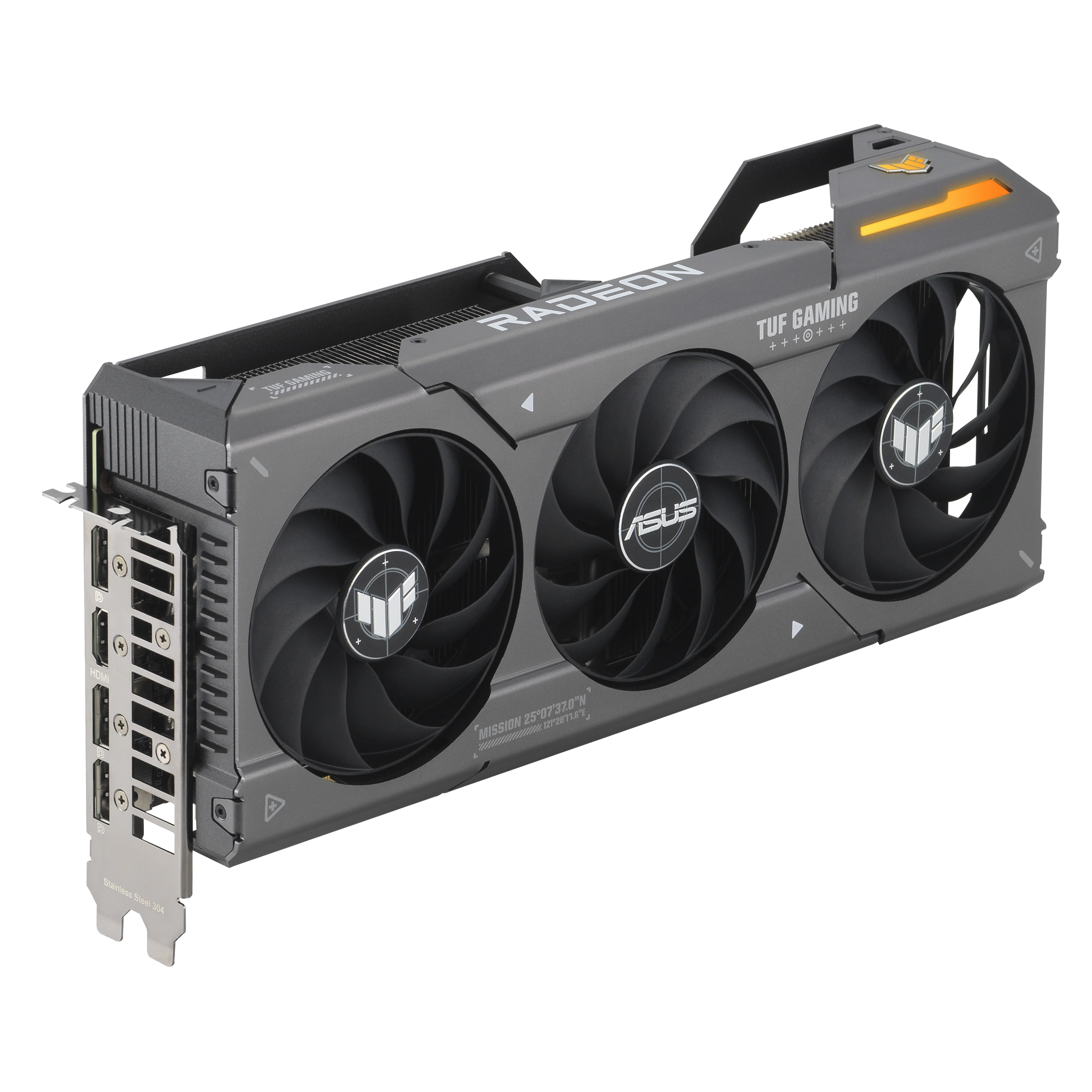

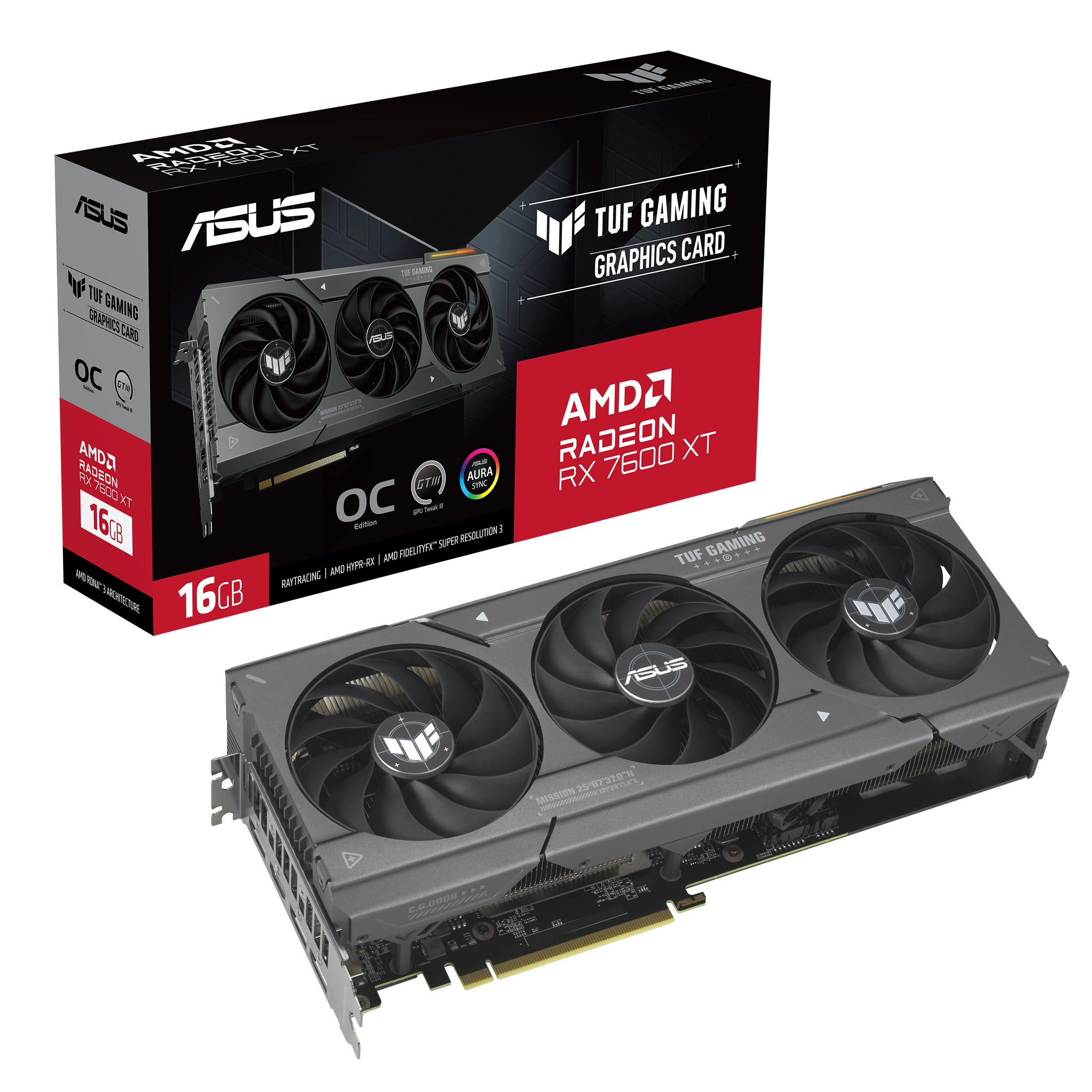

Lock, load, and dominate with the TUF Gaming Radeon™ RX 7600 XT.

AXIAL-TECH UPGRADES
Air Superiority
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure

NEW DIRECTION
Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

2.96-SLOT DESIGN
Phase That Blaze

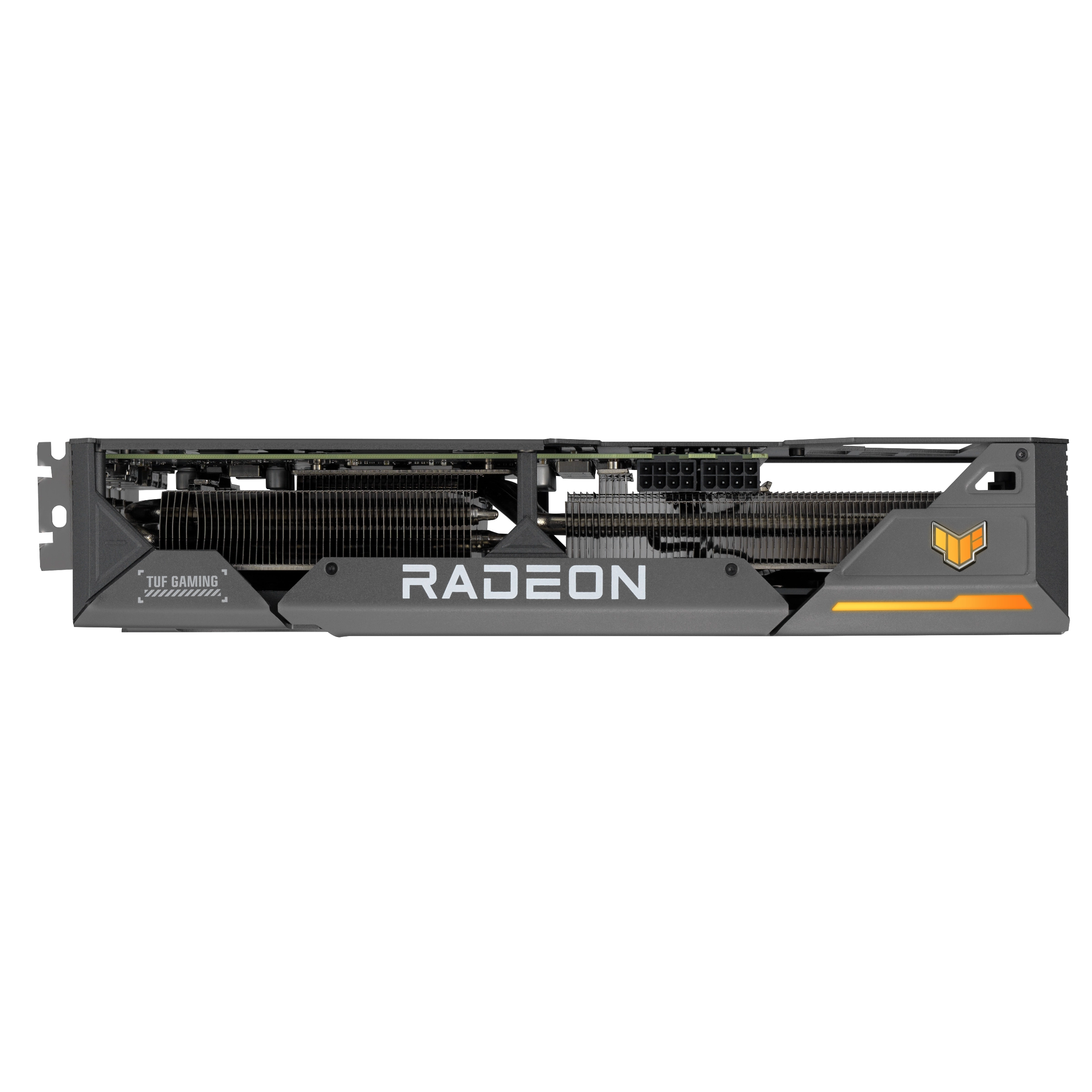

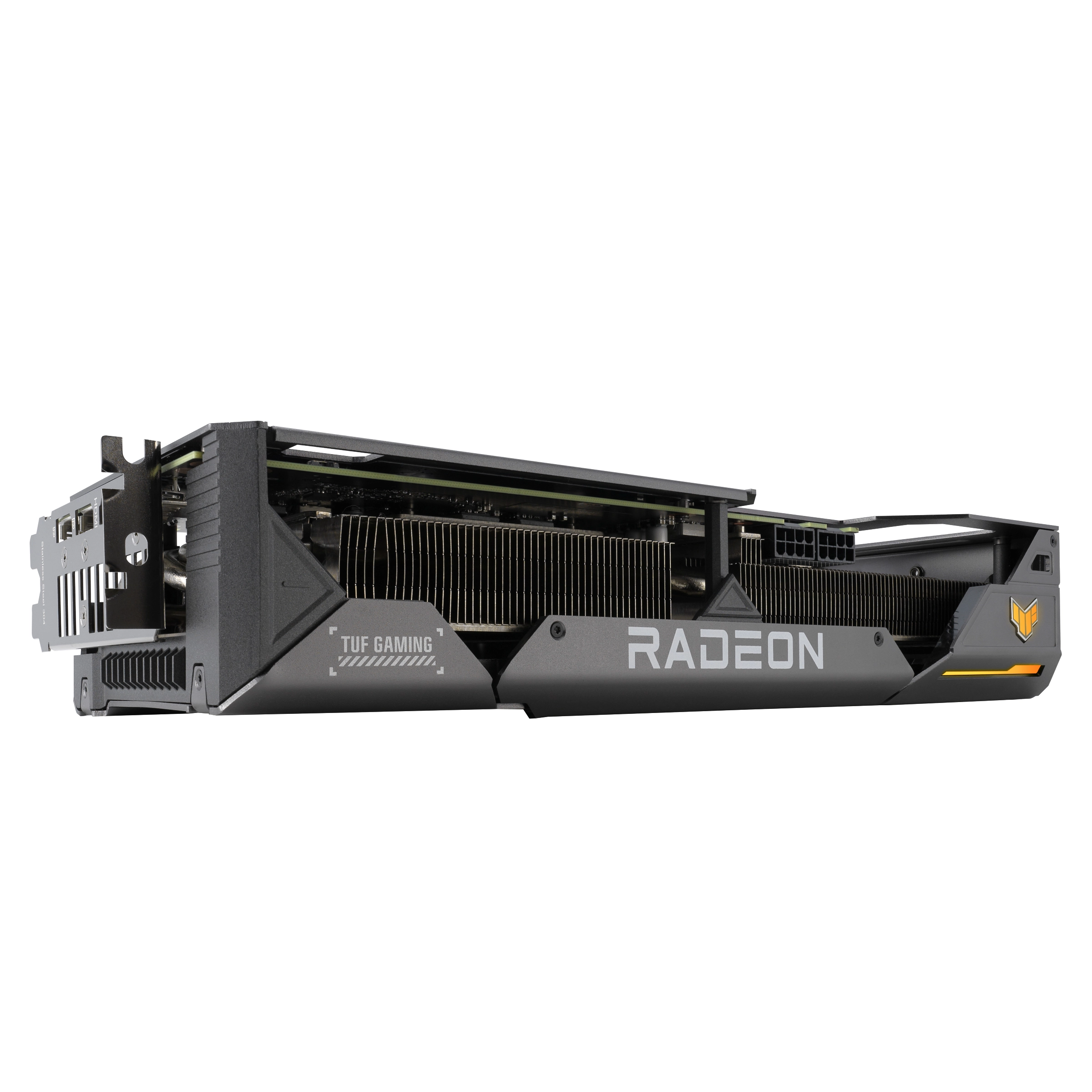

A generously sized heatsink efficiently soaks up heat from the AMD Radeon™ RX 7600 XT GPU, allowing it to be whisked away by the three Axial-tech fans.

MILITARY-GRADE 20K CAPACITORS
Resilient Squadron
A lineup of capacitors rated to last 20, 000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

METAL EXOSKELETON
Suit Up

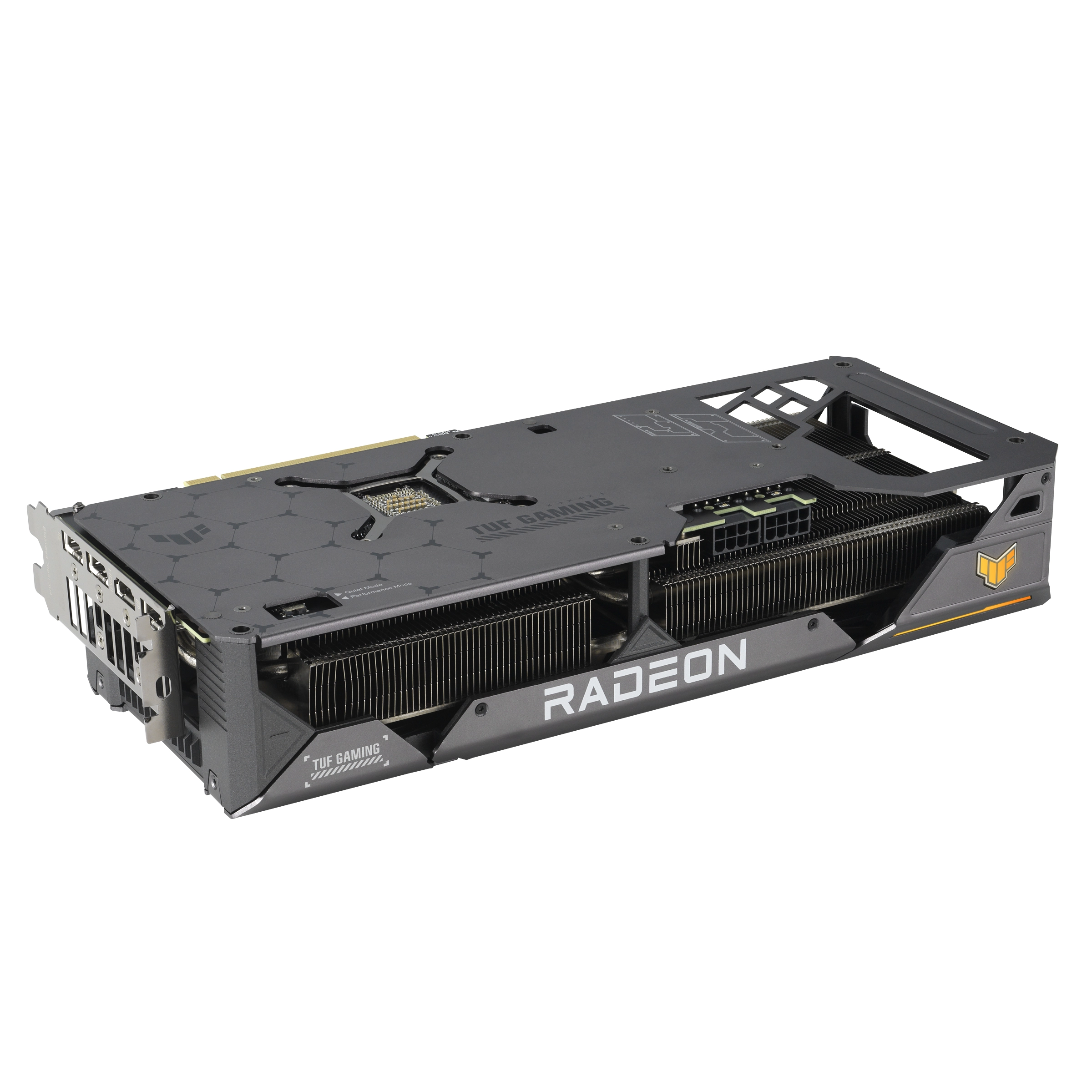

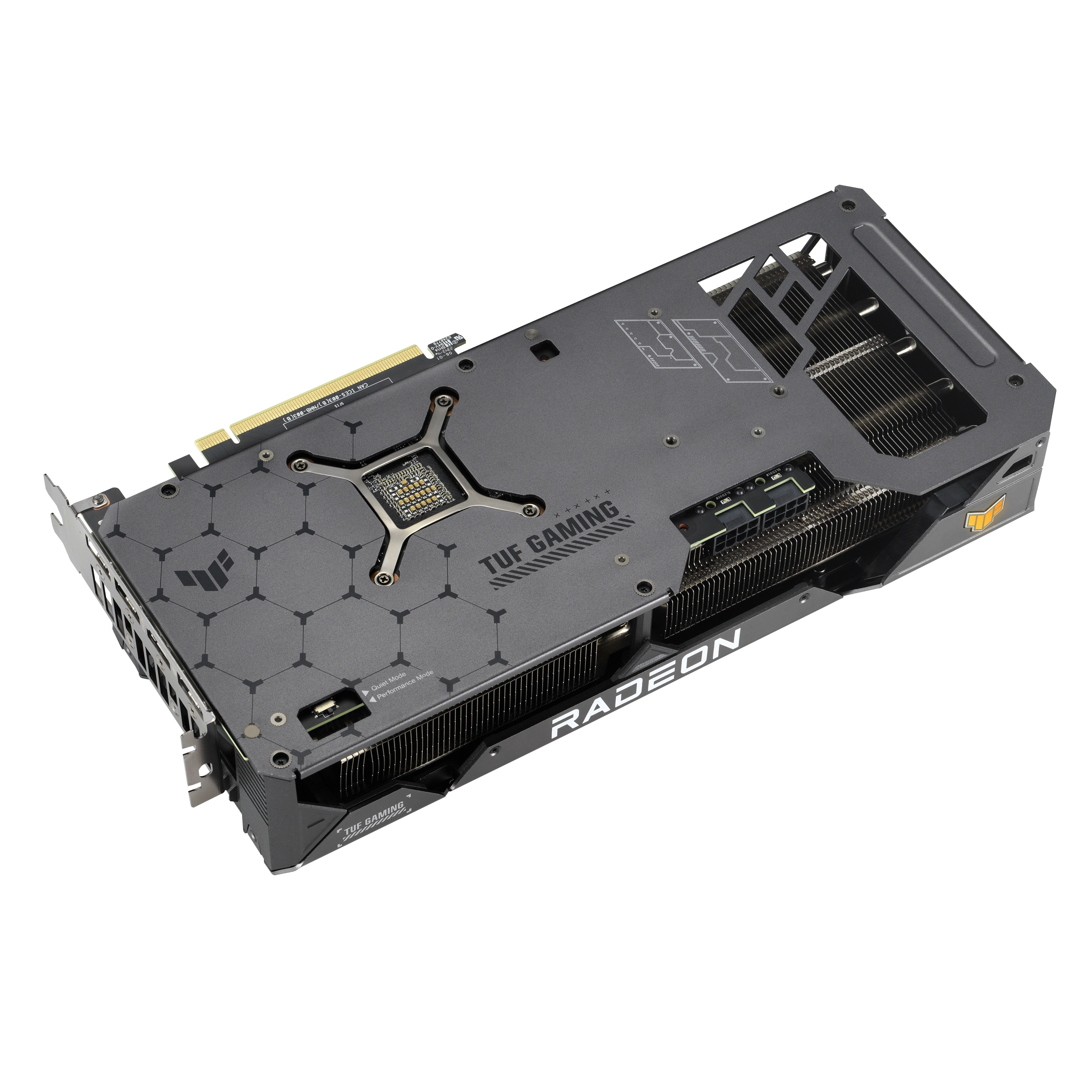

An aluminum shroud and backplate prevent PCB flex and feature large vents to further increase heat dissipation.

LOCK, LOAD, AND LET THE PERFORMANCE FLOW
The Radeon™ RX 7600 XT gloriously presented on a backdrop of low noise and rugged durability.

AUTO-EXTREME TECHNOLOGY
RELIABILITY BOOST
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

AURA SYNC
Light ‘em Up!

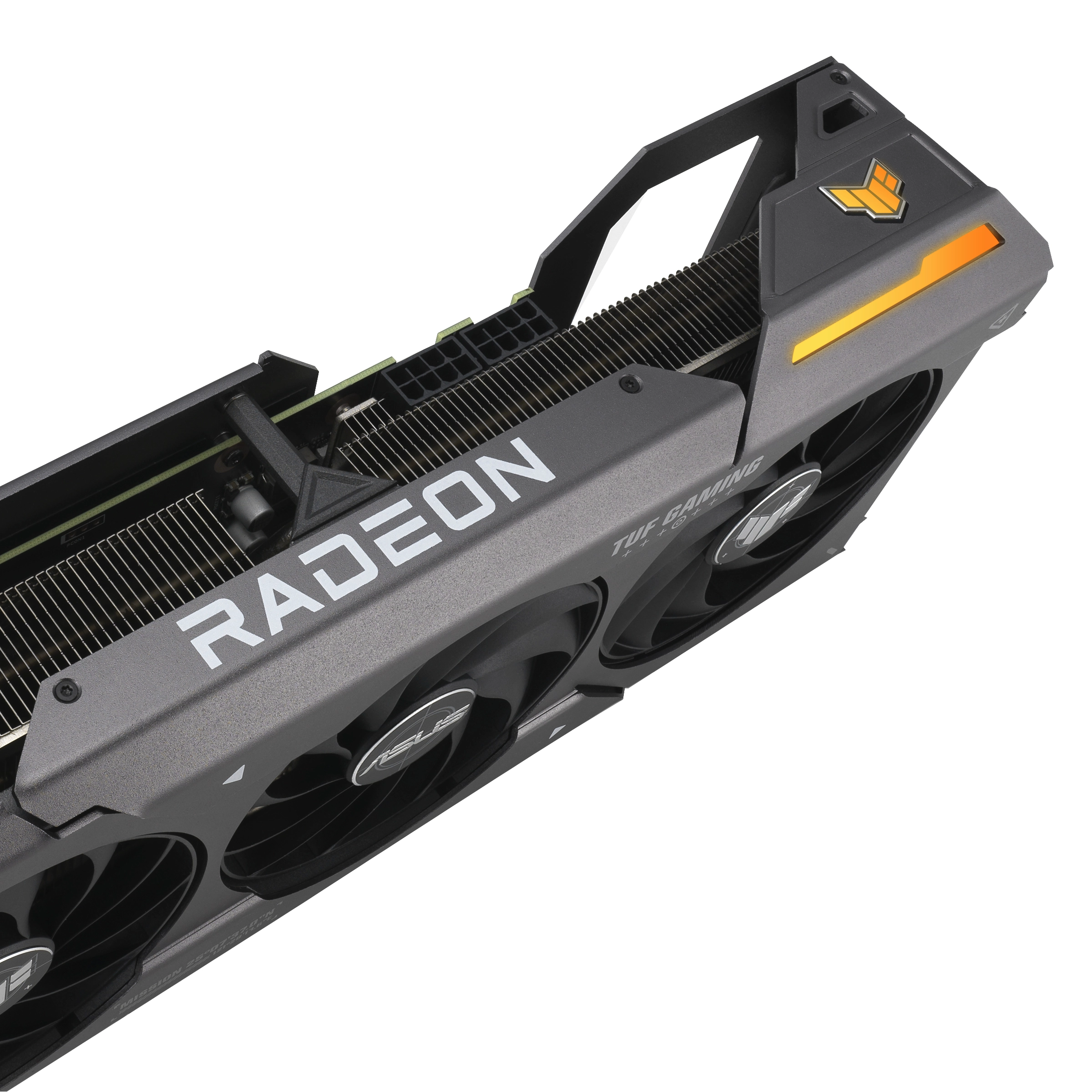

Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.

GRAPHICS CARD HOLDER
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.

SOFTWARE

GPU Tweak III
Monitor, tweak, and tune
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.

QuantumCloud
Profit from GPU power
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!

AMD Software
Change the way you game
The latest AMD Software unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.

Specification

Product
Product id	948493
Brand	AsusTek
Partnr	90YV0K20-M0NA00
EAN/UPC code	4711387452295
Warranty (months)	36 months
Processor
Graphics processor family	AMD
Graphics processor	Radeon RX 7600 XT
Maximum resolution	7680 x 4320 Pixels
CUDA	N
Processor boost clock speed (OC mode)	2830 MHz
Maximum displays per videocard	4
Processor boost clock speed (Gaming mode)	2559 MHz
Stream processors	2048
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	16 GB
Graphics adapter memory type	GDDR6
Memory bus	128 Bit
Data transfer rate	18 Gbit/s

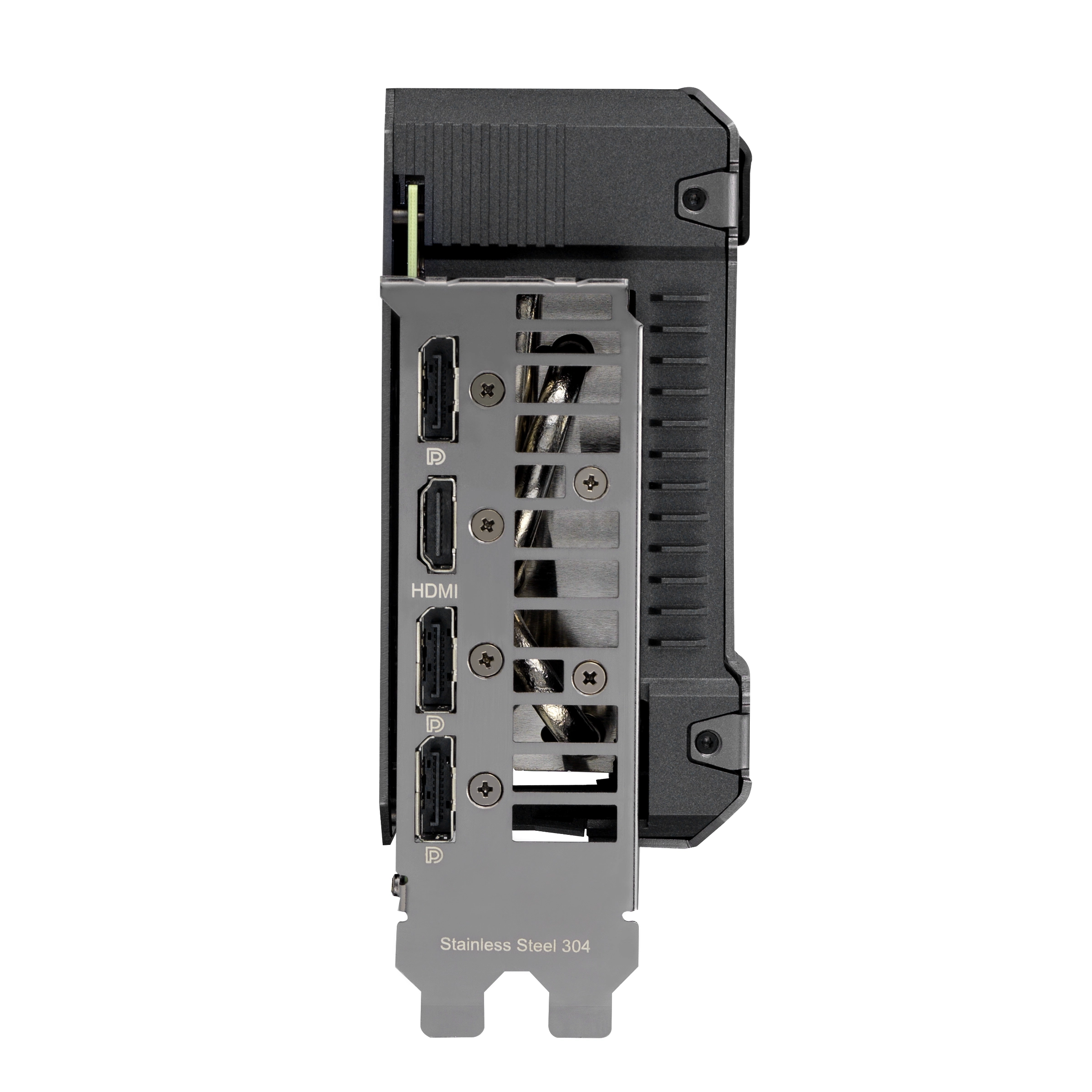

Ports & interfaces
Interface type	PCI Express 4.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.1
DisplayPort version	2.1
Performance
TV tuner integrated	N
DirectX version	N
OpenGL version	4.6
HDCP	Y
HDCP version	2.3
Dual Link DVI	N
AMD FreeSync	Y
Design
Cooling type	Active
Cooling technology	ASUS Axial-tech
Number of fans	3 ventilator(en)
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	2.96
Illumination	Y
Illumination colour	Multi
Product colour	Black
Power
Minimum system power supply	600 W
Supplementary power connectors	2x 8-pin
Weight & dimensions
Weight	1156 g
Depth	300.2 mm
Height	59.2 mm
Width	142.75 mm
Packaging data
Manual	Y
Package width	421 mm
Package depth	227 mm
Package height	88 mm
Package weight	1916 g
Package type	Box
