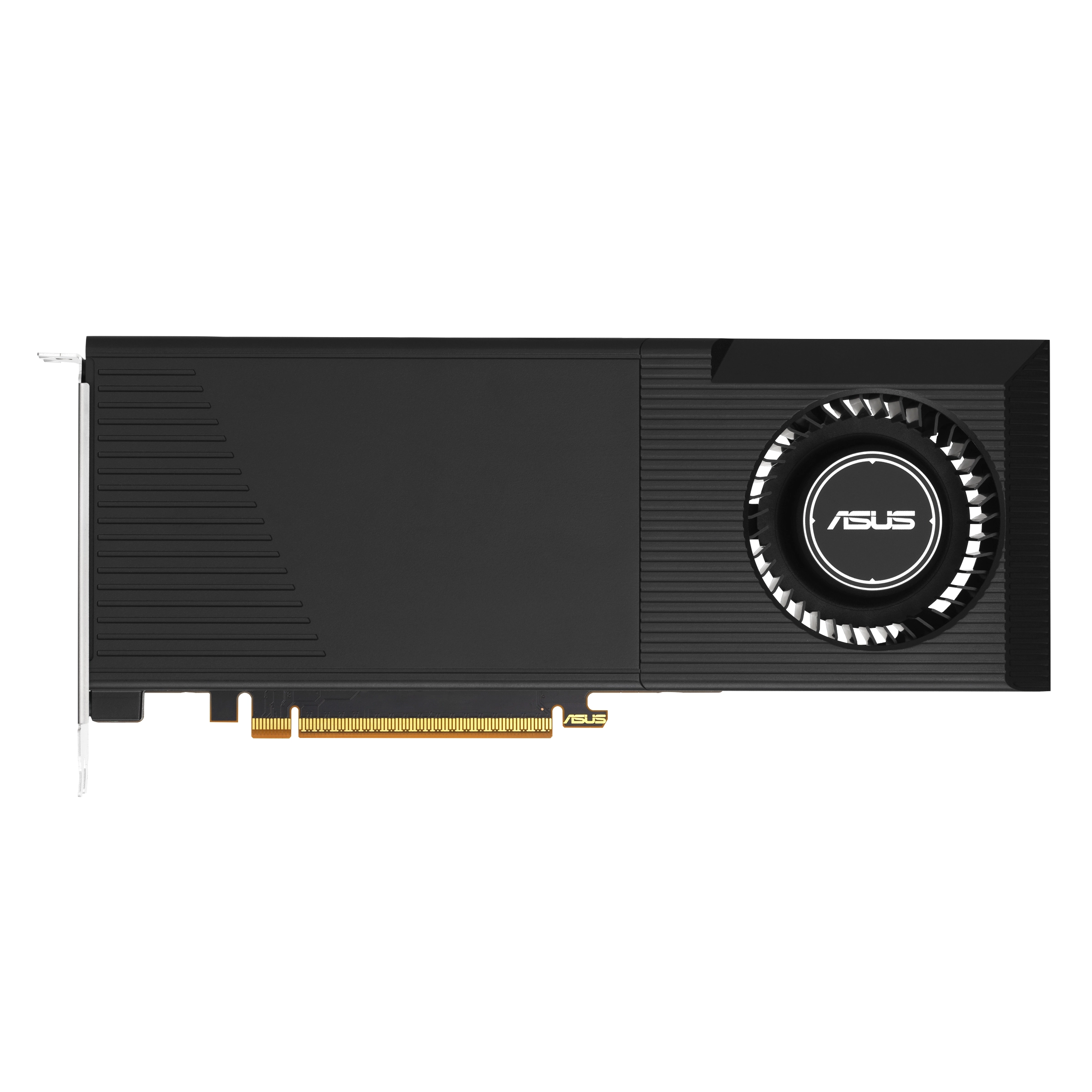

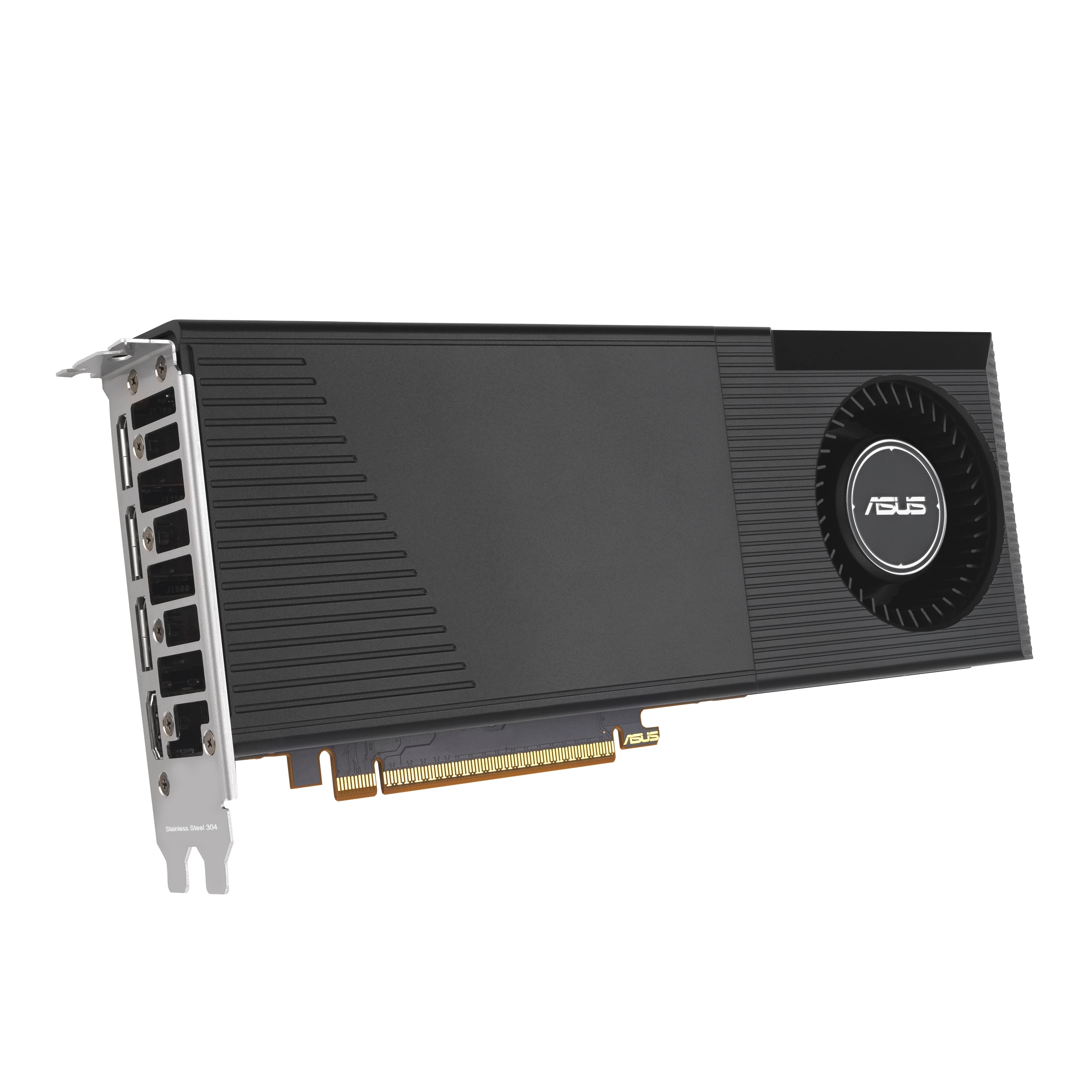

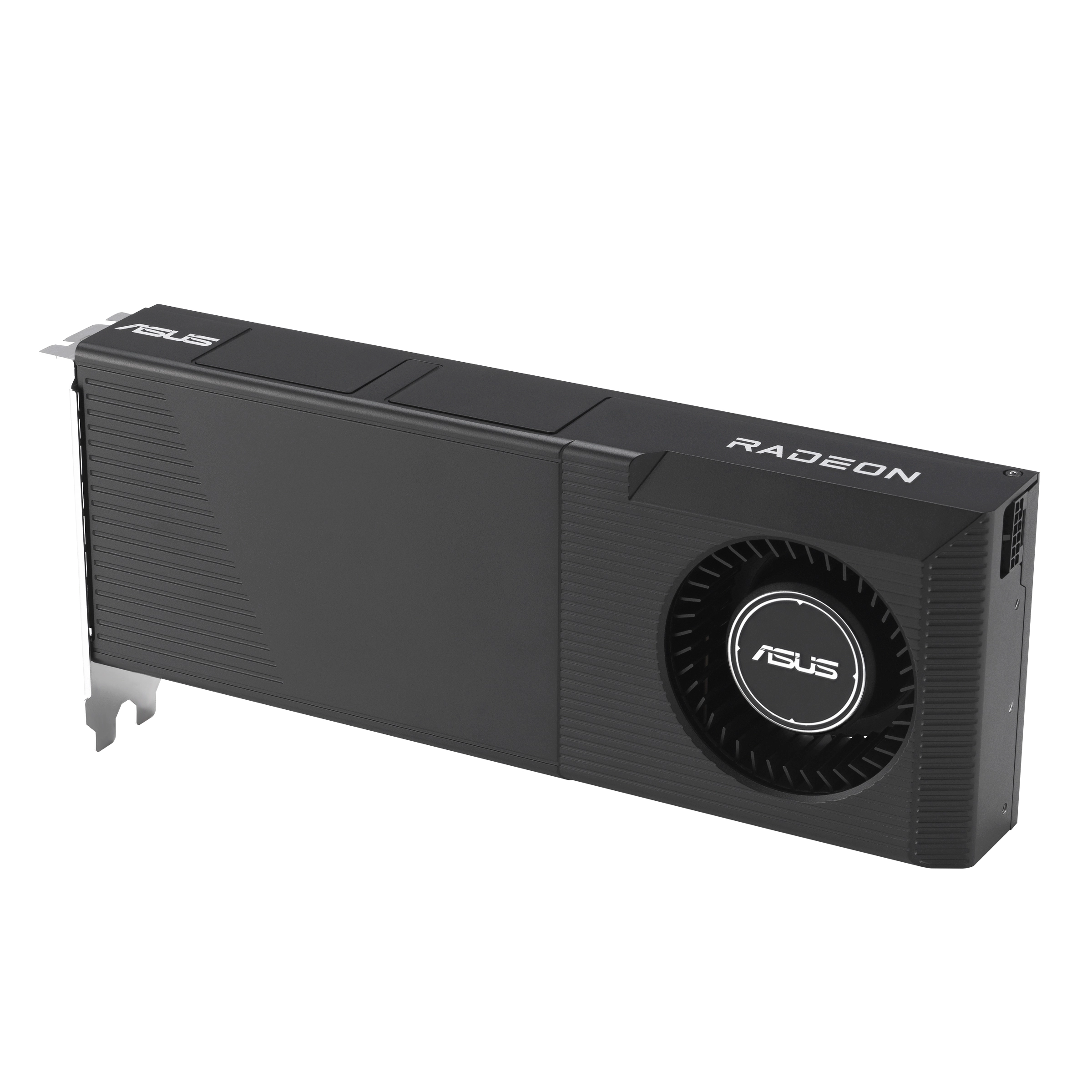

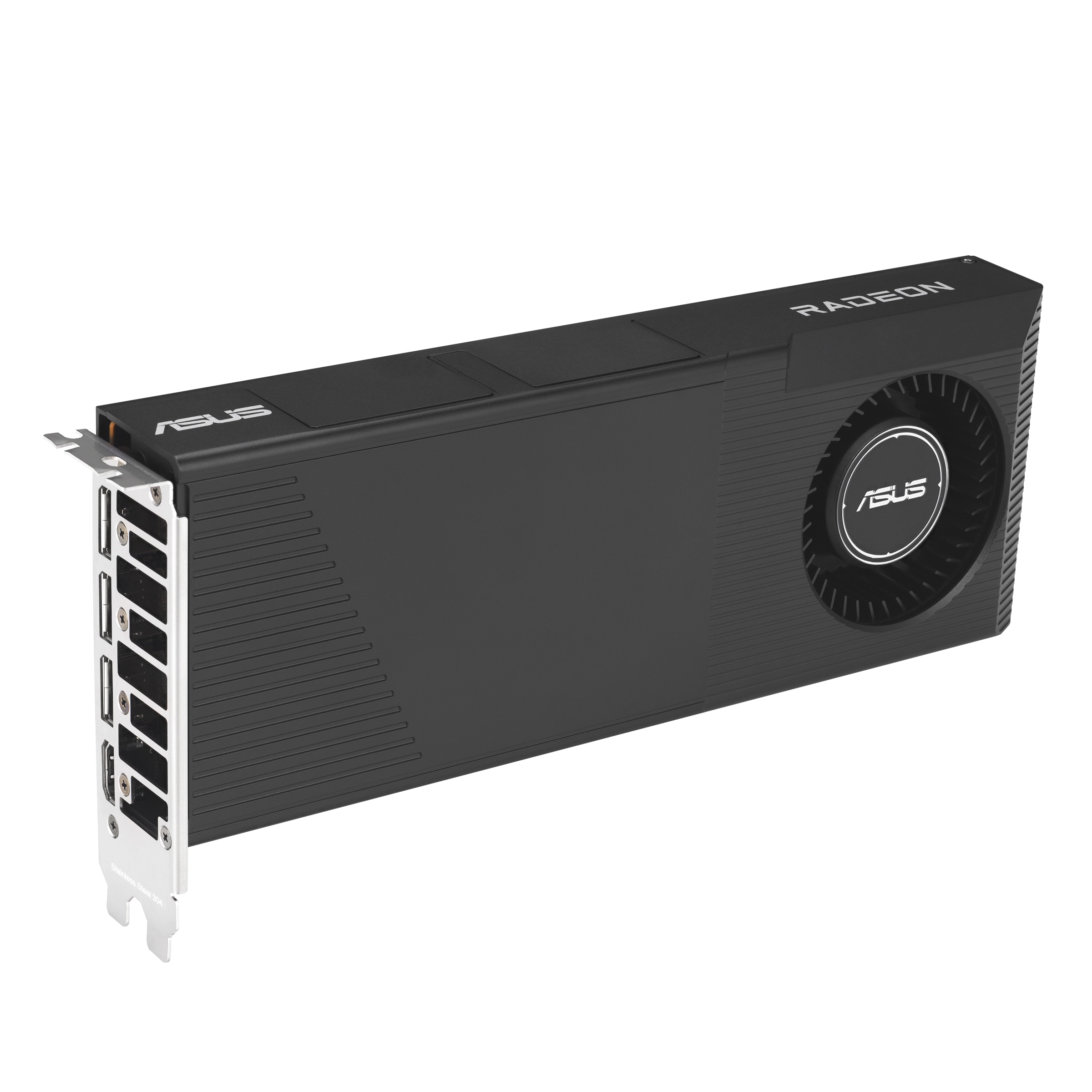

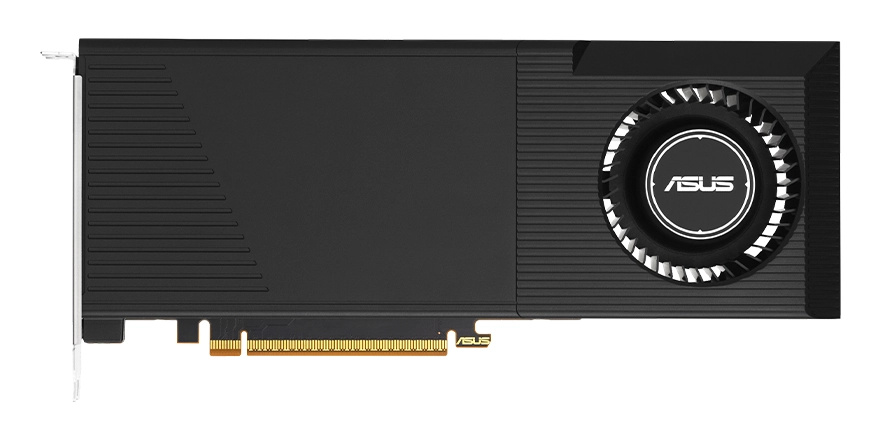

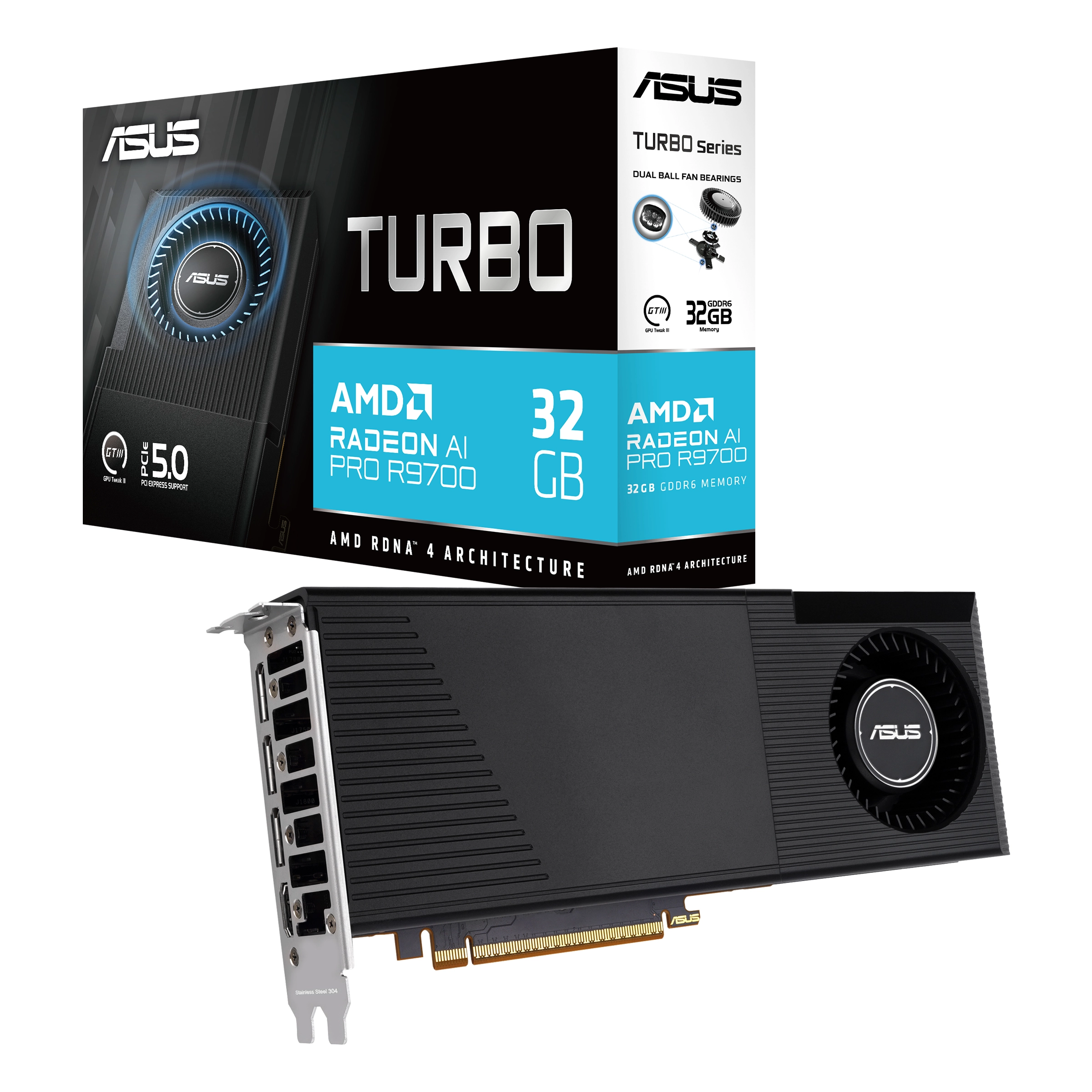

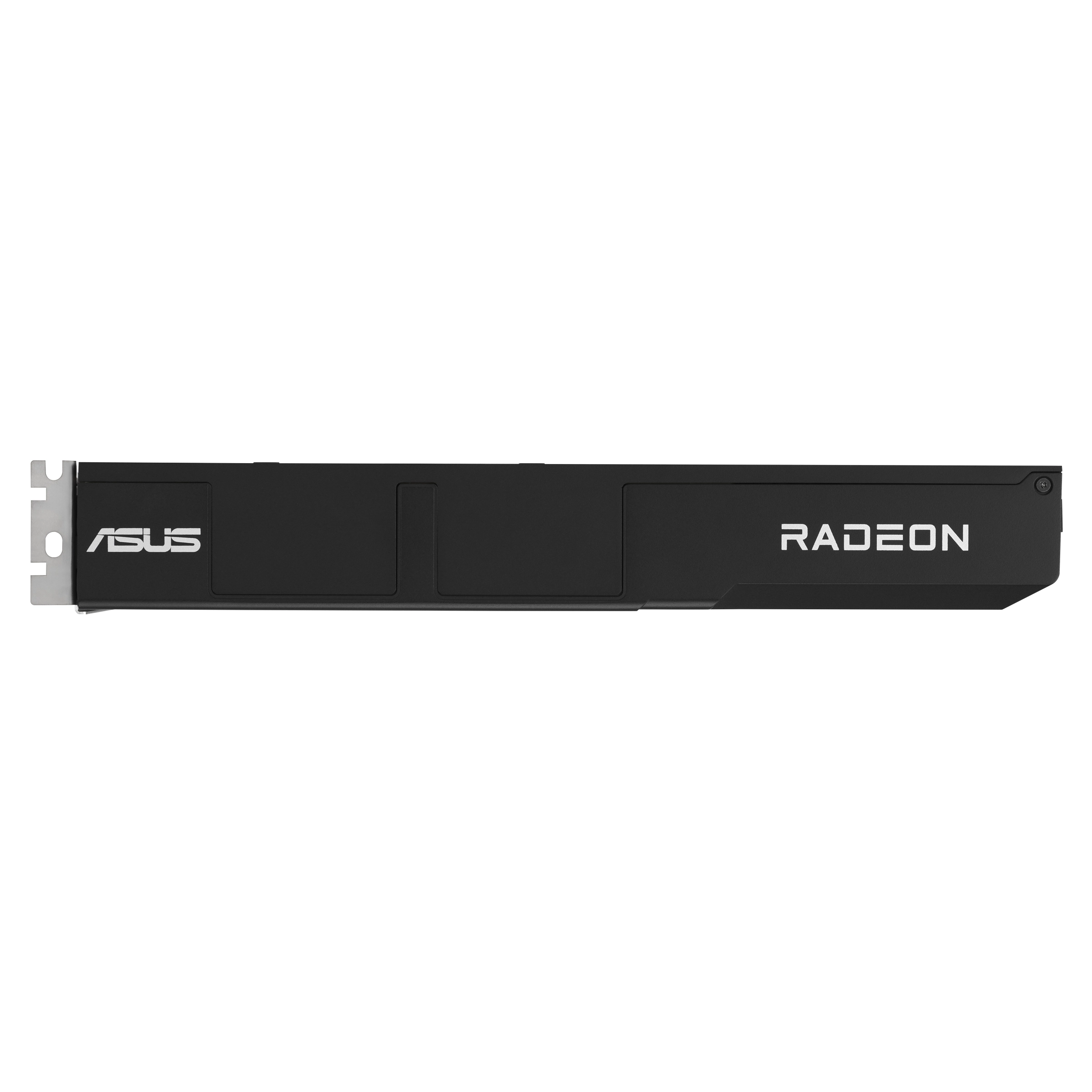

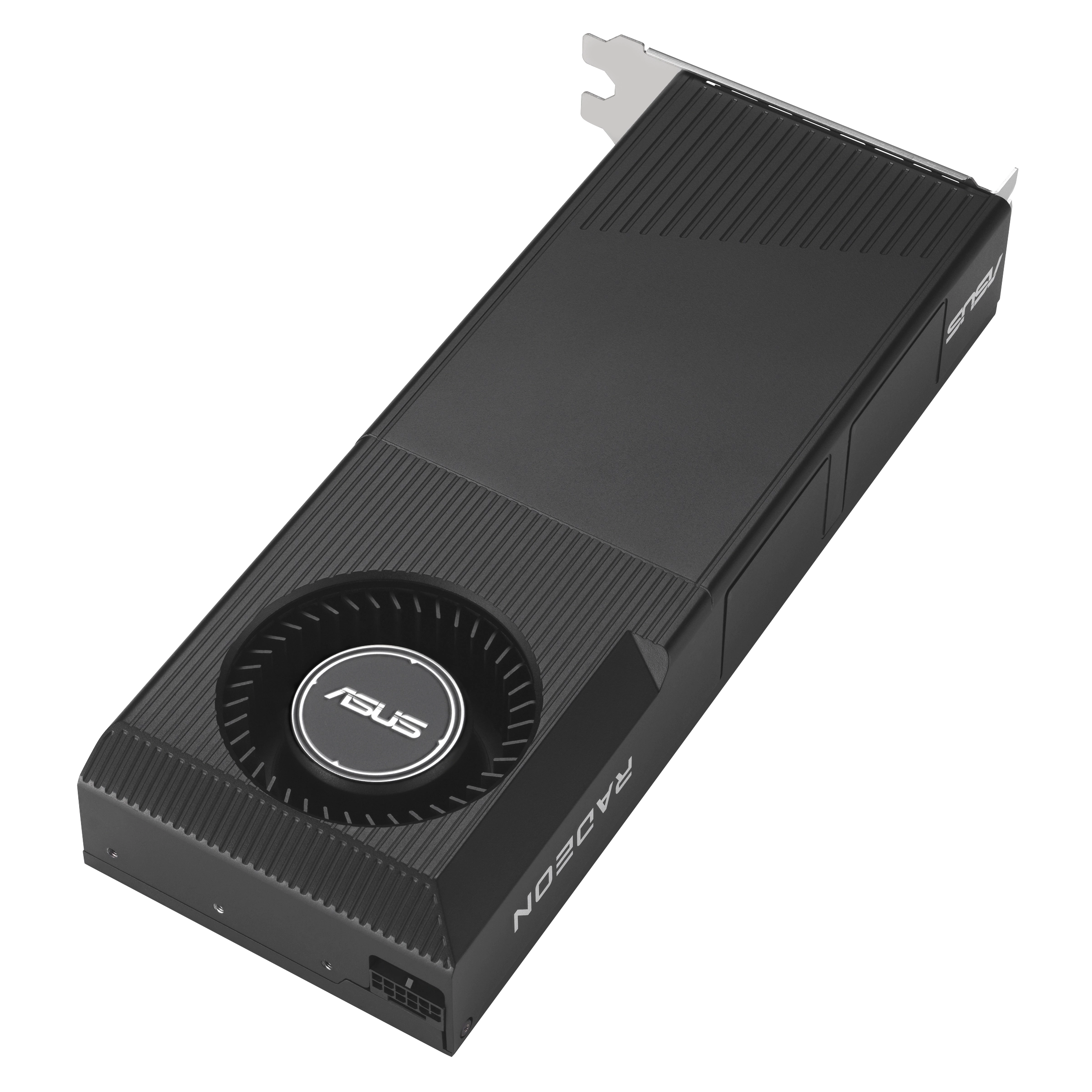

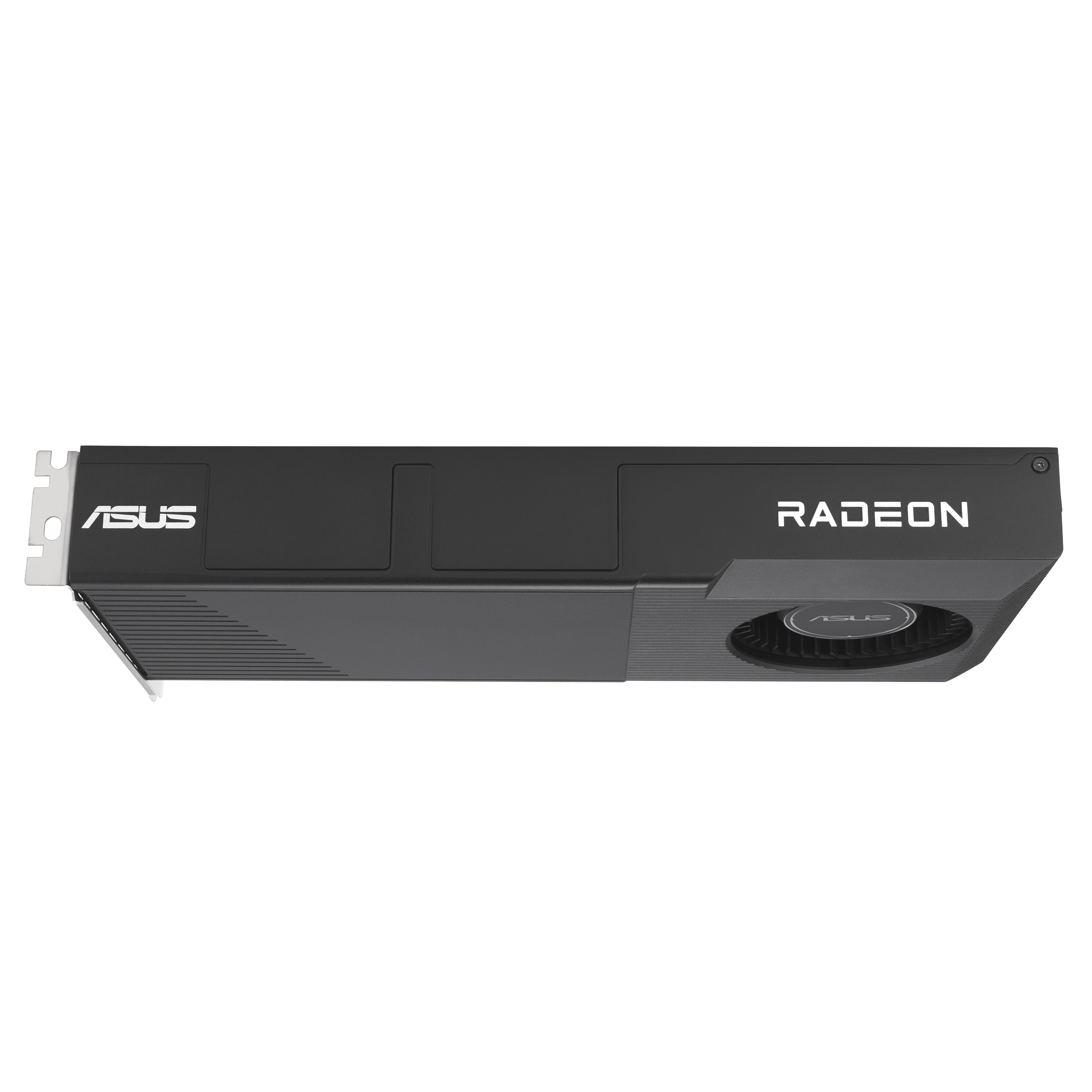

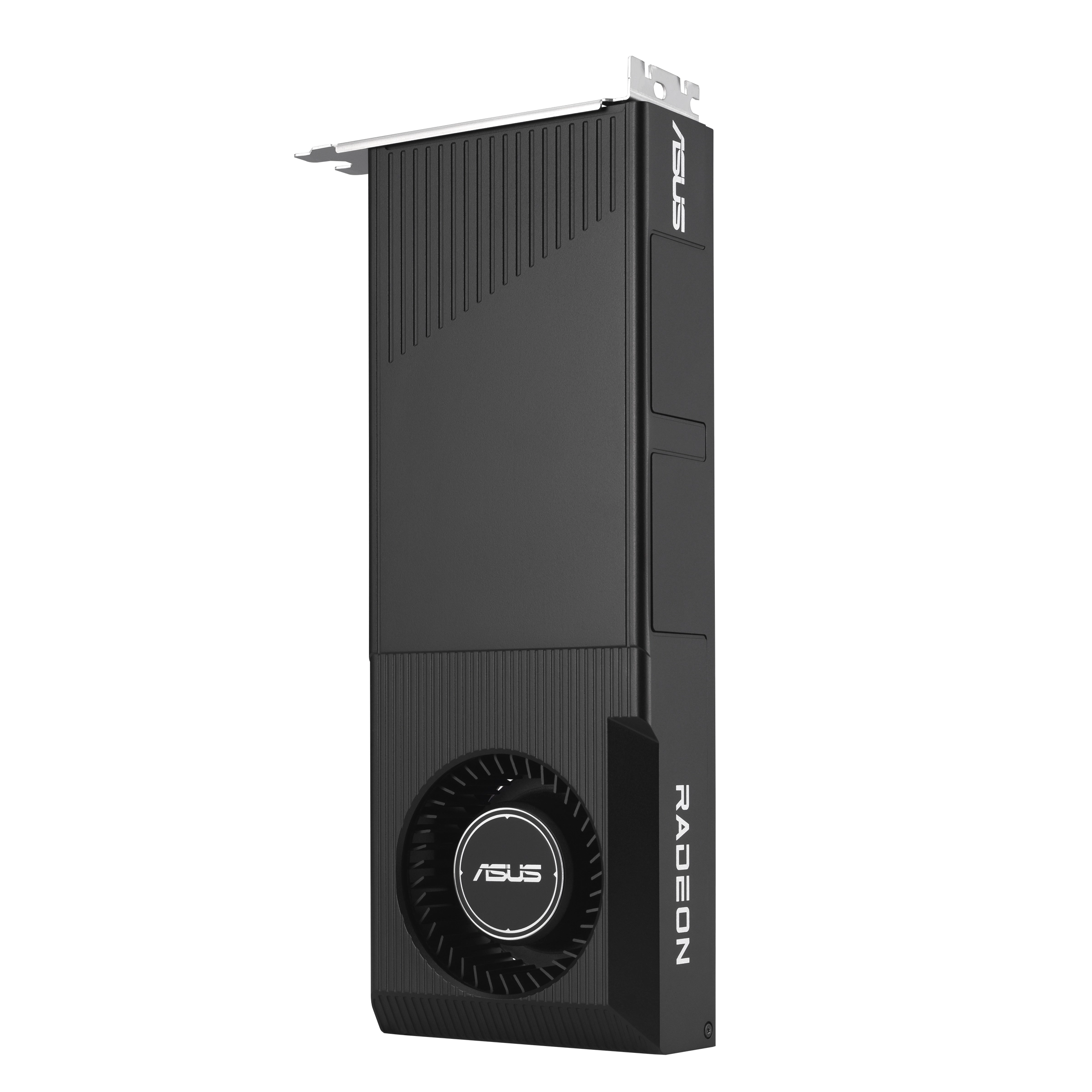

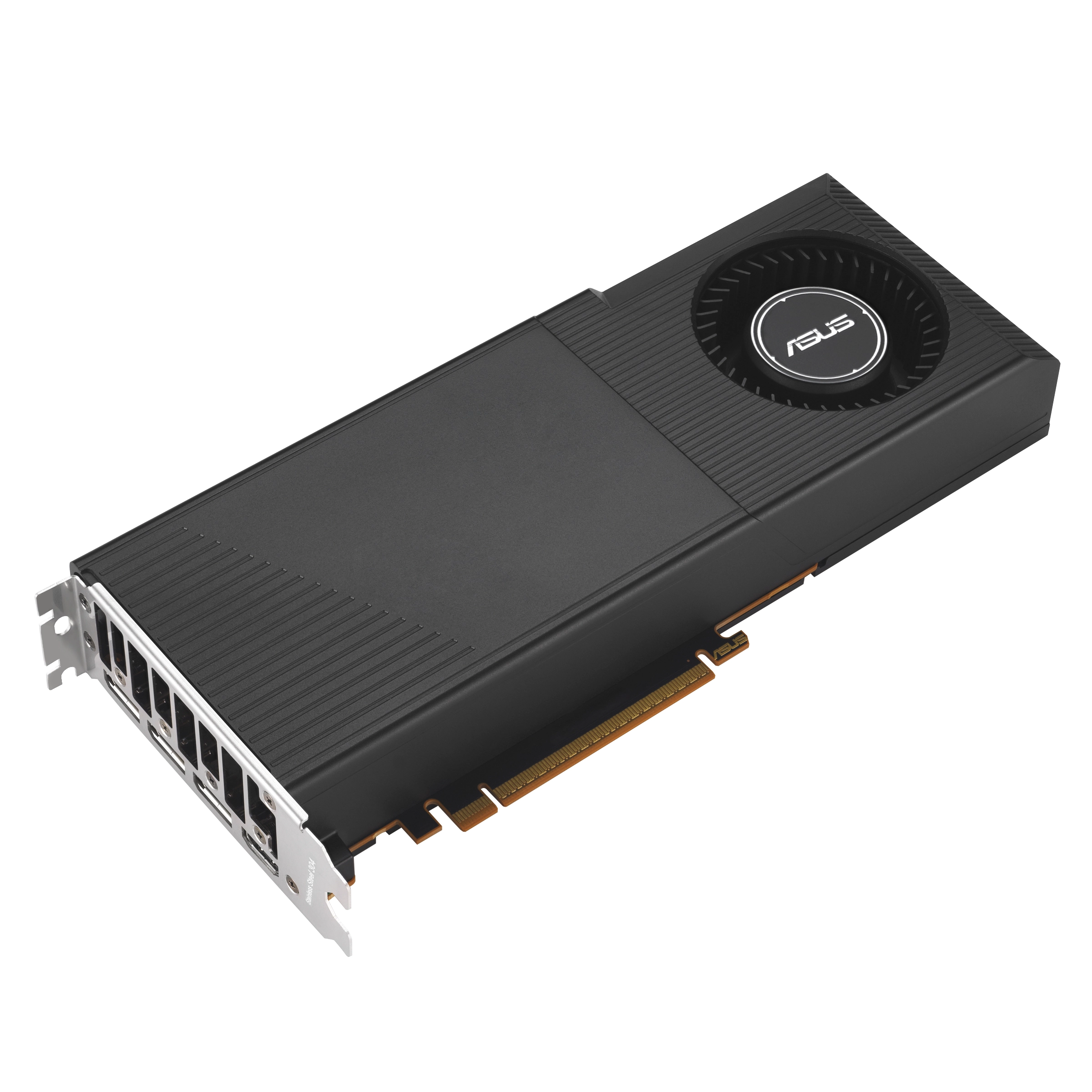

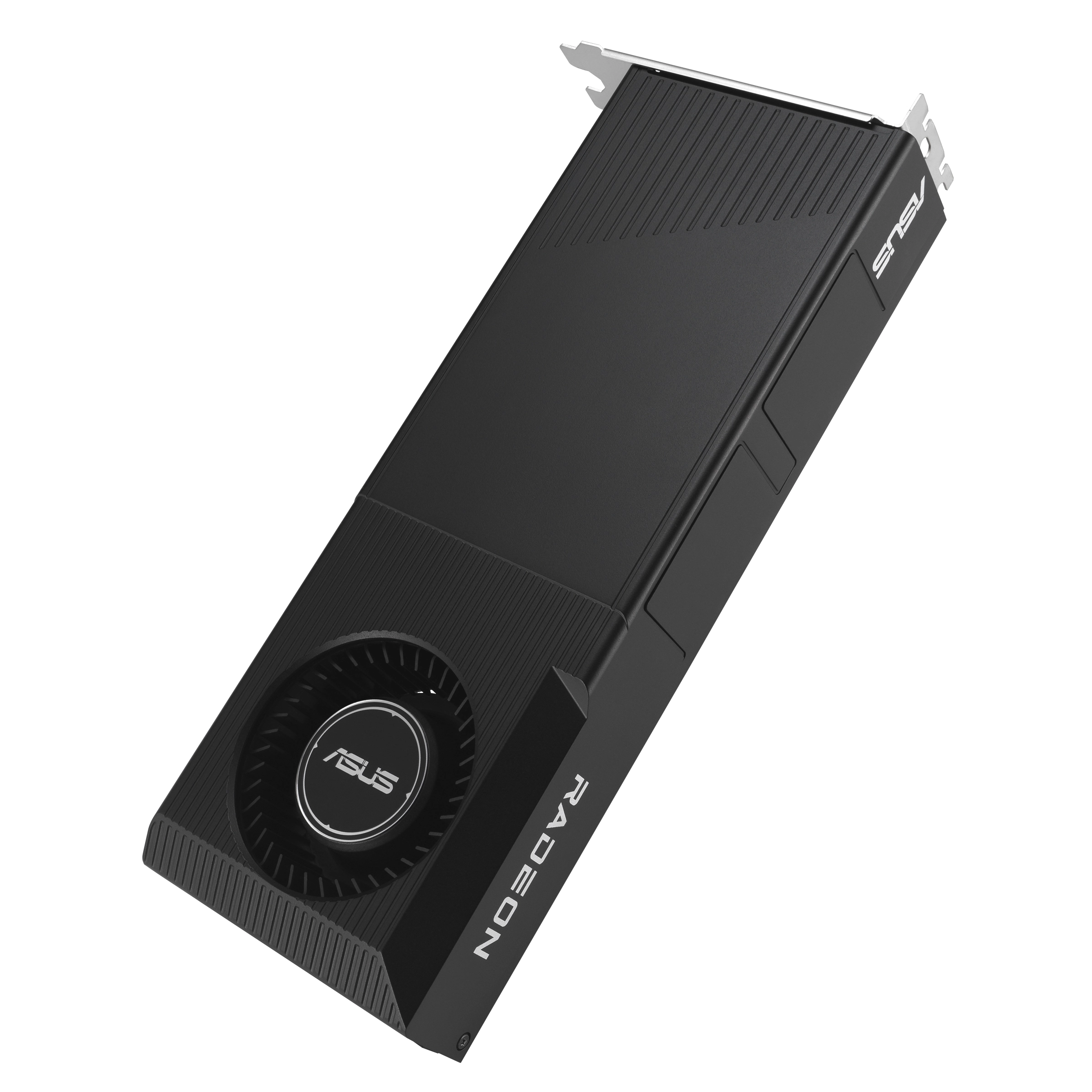

ASUS Turbo Radeon™ AI Pro R9700
TURBOCHARGED FOR AI
The ASUS Turbo Radeon™ AI Pro R9700 32GB is built for compact workstations tackling AI and professional workloads. Its blower-style cooler, die-cast shroud, and reinforced backplate ensure efficient heat dissipation and long-term reliability—even in the tightest spaces.

Cooling

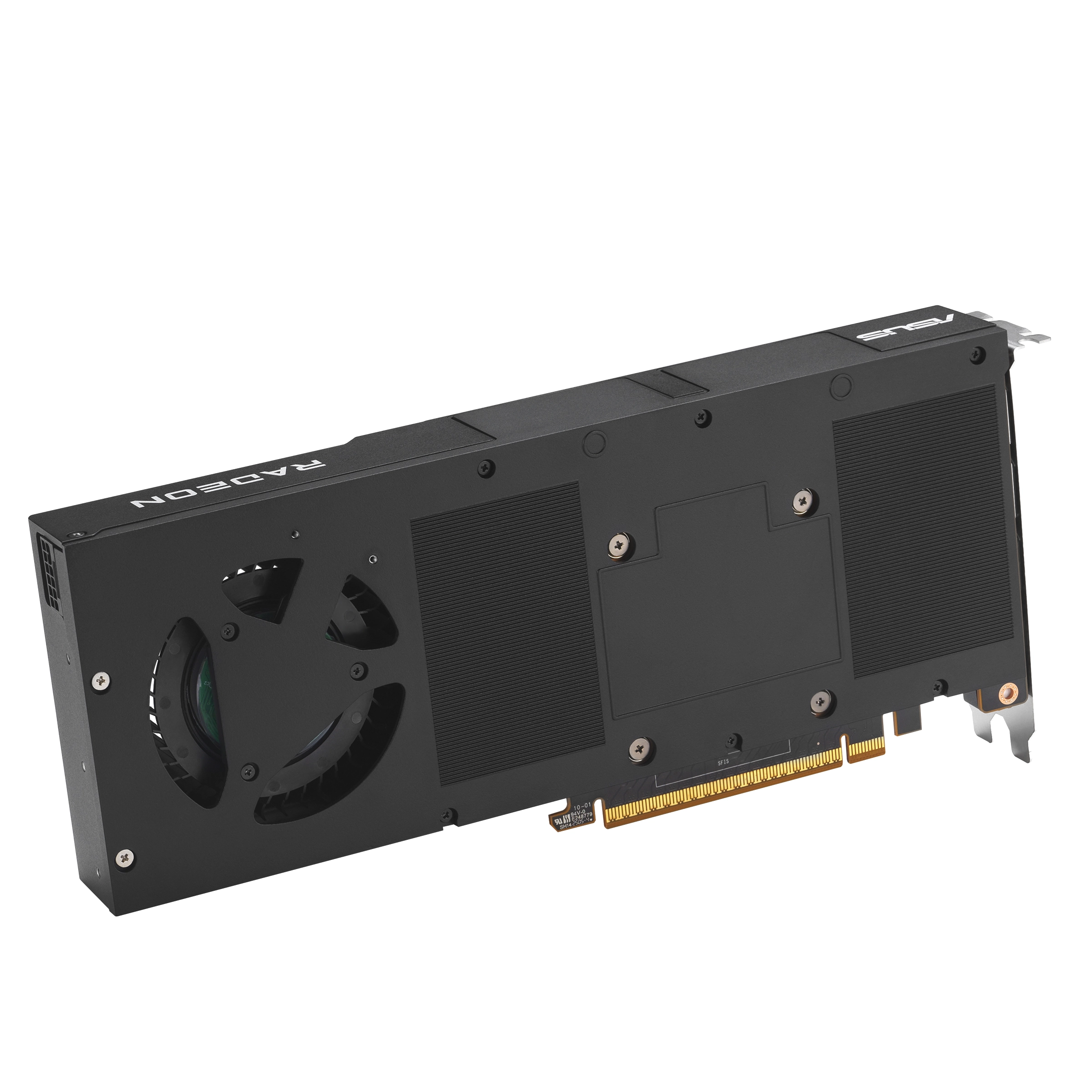

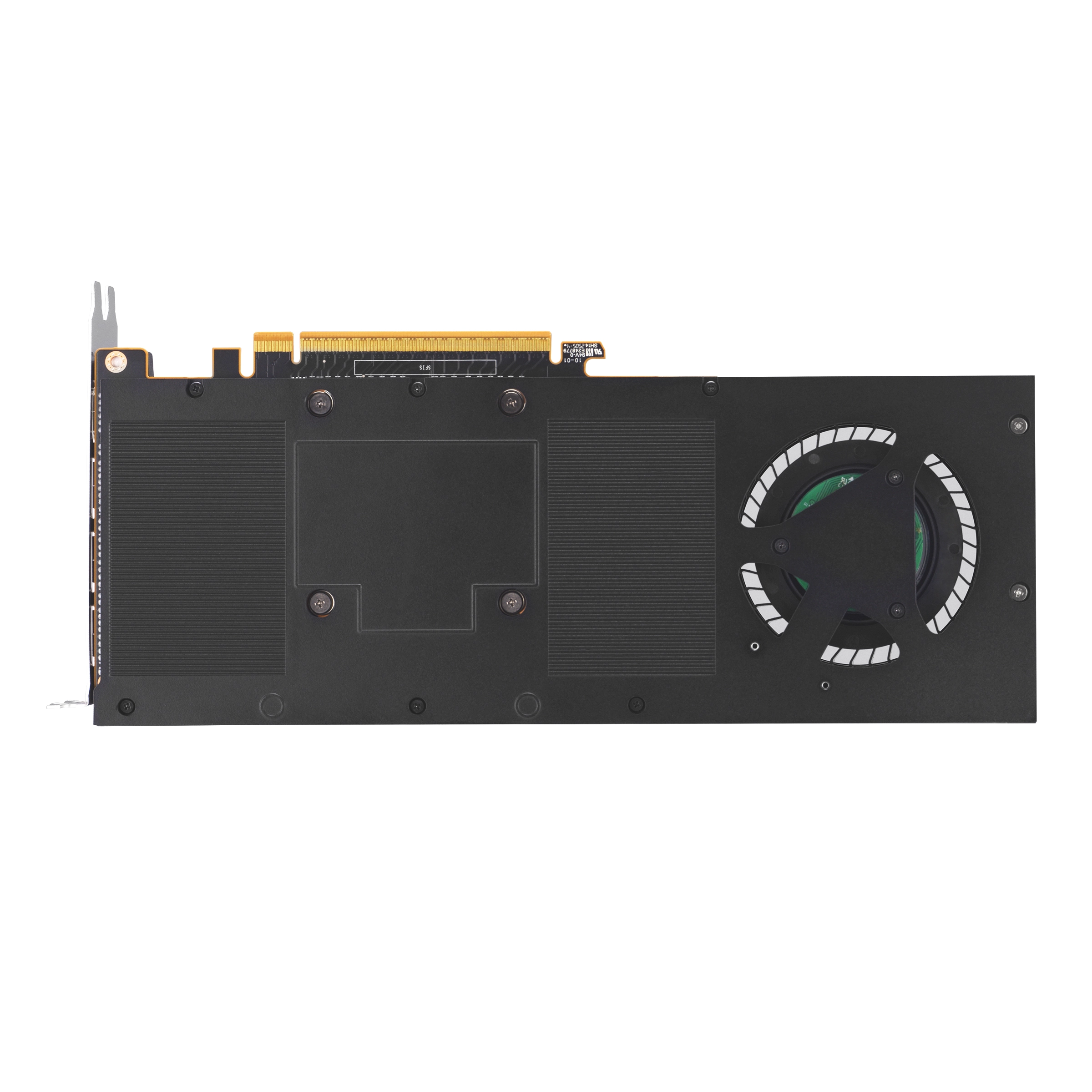

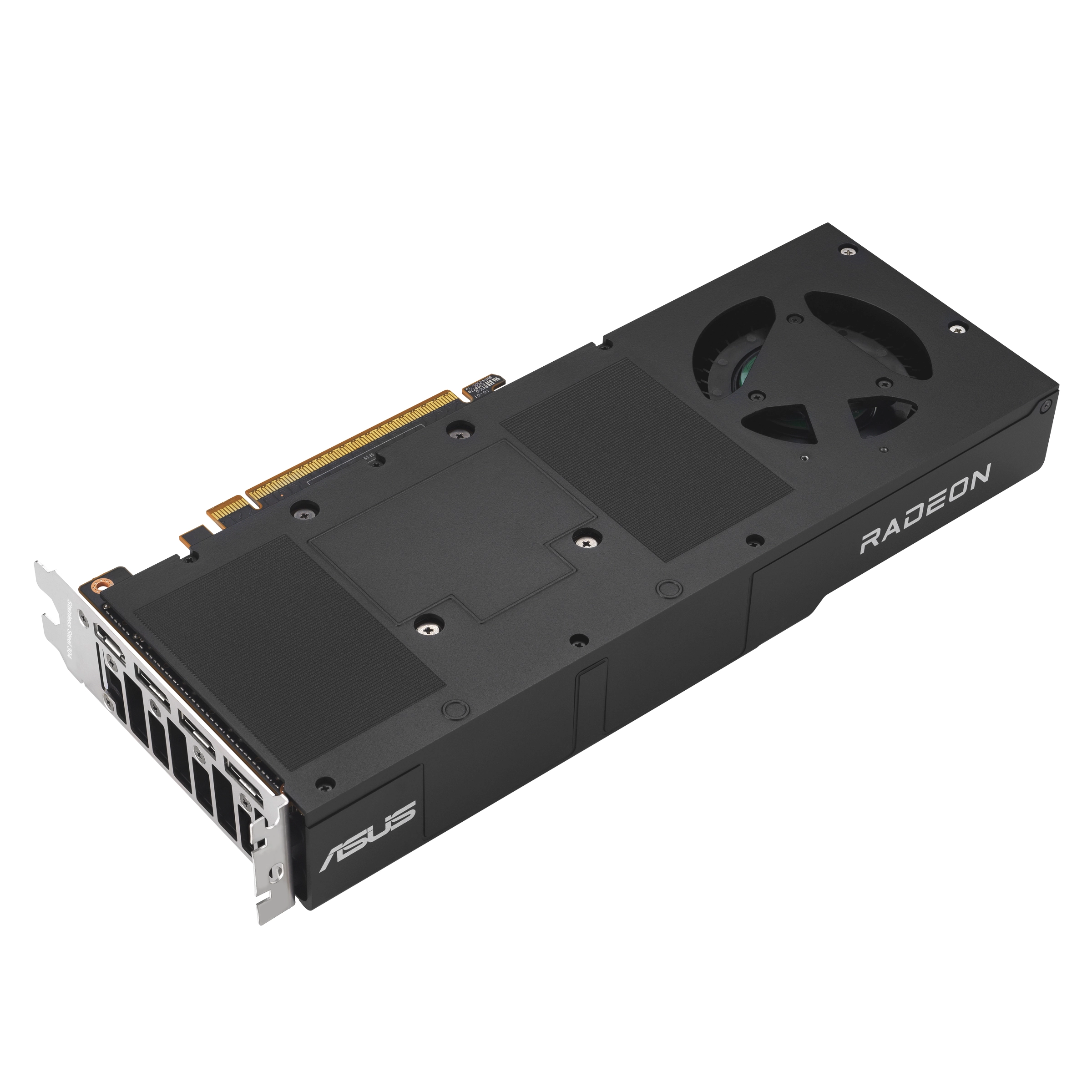

Diecast Shroud and Backplate
Engineered to boost heat dissipation and strengthen the card's structure. Its special wave design maximizes the thermal surface, reducing memory temps by up to 16%.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

Specification

Product
Product id	997316
Brand	AsusTek
Partnr	90YV0MN0-M0NA00
EAN/UPC code	4711636210089
Warranty (months)	36 months
Processor
Graphics processor family	AMD
Graphics processor	Radeon AI PRO R9700
Maximum resolution	7680 x 4320 Pixels
Compute units	64
Processor boost clock speed	2920 MHz
Render Output Units (ROPs)	128
Processor boost clock speed (OC mode)	2940 MHz
Maximum displays per videocard	4
Processor boost clock speed (Gaming mode)	2350 MHz
Ray accelerators	64
AI accelerators	128
Stream processors	4096
Parallel processing technology support	Not supported
Memory
Discrete graphics adapter memory	32 GB
Graphics adapter memory type	GDDR6
Memory bus	256 Bit
Data transfer rate	20 Gbit/s

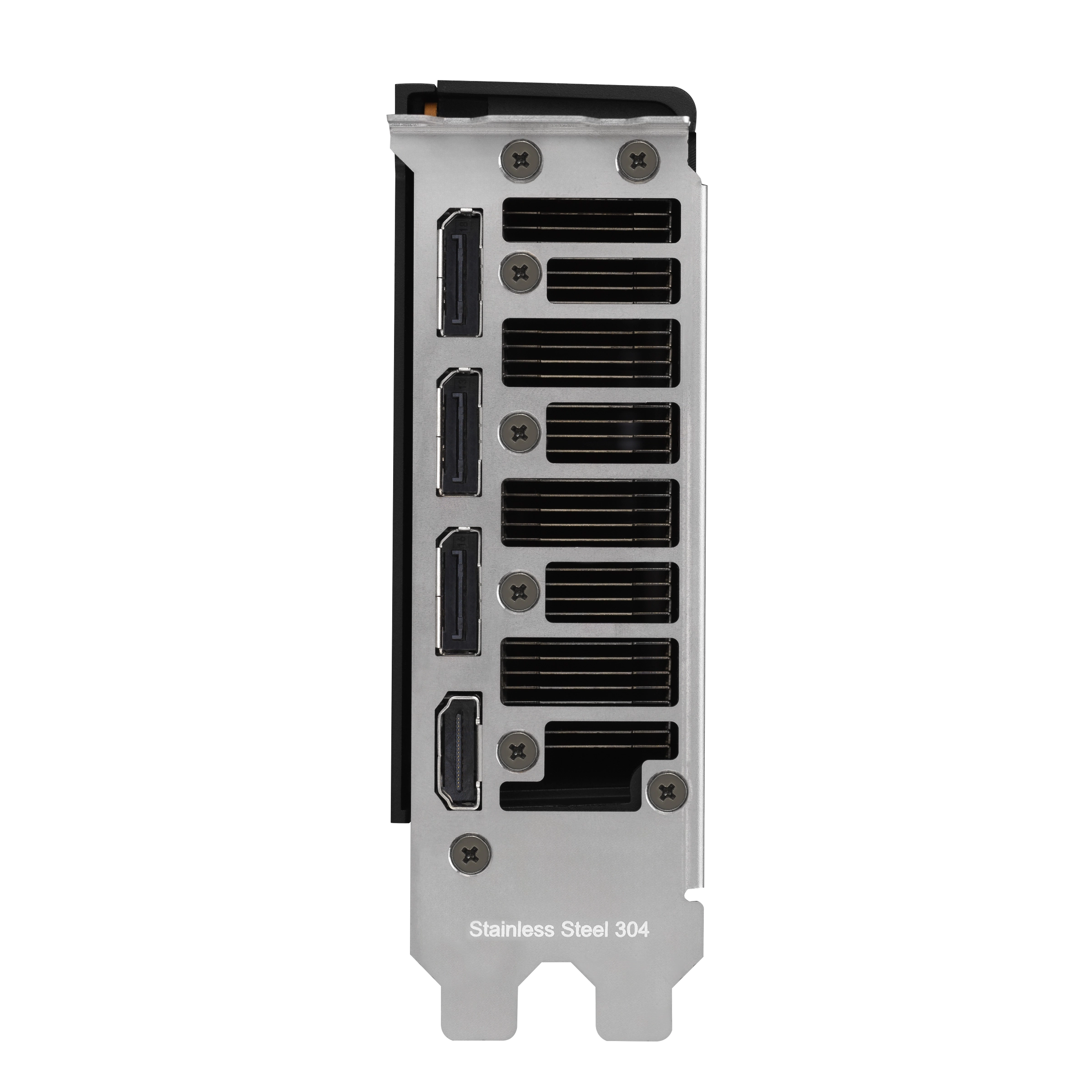

Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	1
DisplayPorts quantity	3
HDMI version	2.1b
DisplayPort version	2.1a
Performance
Peak Single Precision Matrix (FP32) performance	47.8 TFLOPS
TV tuner integrated	N
Peak Half Precision (FP16) performance	95.7 TFLOPS
Peak INT4 performance	1531 TOPs
Peak INT8 Performance	766 TOPs
OpenGL version	4.6
HDCP	Y
HDCP version	2.3
Dual Link DVI	N
Design
Cooling type	Active
Number of fans	1 ventilator(en)
Number of slots	2
Product colour	Grey
Power
Minimum system power supply	750 W
Supplementary power connectors	1x 16-pin
Weight & dimensions
Weight	1040 g
Depth	40 mm
Length	266.7 mm
Height	111.1 mm
Packaging data
Manual	Y
Package width	368 mm
Package depth	220.5 mm
Package height	68 mm
Package weight	1500 g
Package type	Box
