2900 Series - Gigabit Fiber & RJ45 Adapter Cards - PCI-Express Dual Port Adapter: 2x 1G SFP slot



Allied Telesis
Not in stock
€ 237,28
€ 287,10 incl 21% VAT

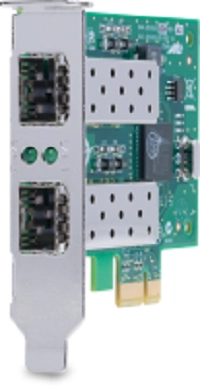

Part of the comprehensive Allied Telesis 2911 Series, the AT-2911SFP/2 Network Interface Card continues the Allied Telesis tradition of providing reliable fiber adapter cards. Gigabit cards boost the speed of the network up to ten times over a standard Fast Ethernet card to 1000MB per second. The PCIe x1 bus provides the latest technology, enabling the maximum throughput in the smallest form factor possible.

Specification

Product
Product id 787078
Brand Allied Telesis
Partnr AT-2911SFP/2-901
EAN/UPC code 767035197579
Technical details
Sustainability certificates RoHS
Ports & interfaces
Connectivity technology Wired
Host interface PCI Express
Interface Fiber
Fiber optic connector SFP
Fiber ports quantity 2
PCI version 2.0
Network
Maximum data transfer rate 1000 Mbit/s
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
Jumbo frames support Y
Design
Internal Y
LED indicators Y
Certification UL, FCC, TUV, CE, VCCI, C-TICK
Power
Output voltage 3.3 V
Power consumption (typical) 2.42 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -25 - 70 °C
Operating relative humidity (H-H) 5 - 90 procent
Packaging data
Quantity 1
System requirements
Windows operating systems supported Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported Y
Server operating systems supported Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64
Weight & dimensions
Width 88 mm
Height 69 mm
Weight 68 g
Other features
Flow control support Y
Receive Side Scaling (RSS) Y
Management protocols WMI, PXE 2.1, SNMP
