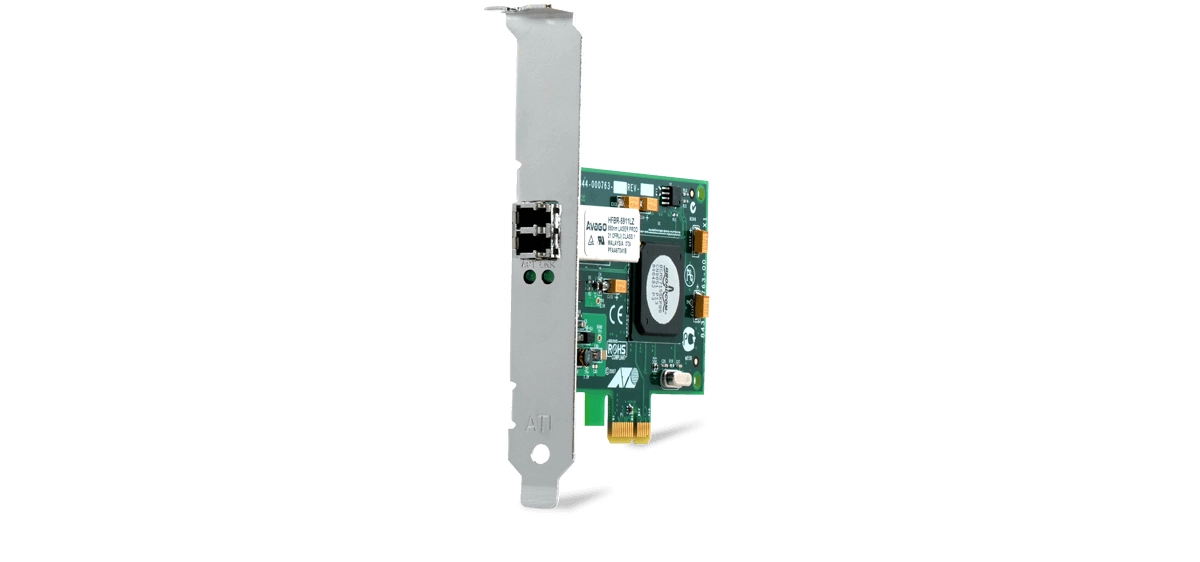

The Allied Telesis 2914SP is a gigabit PCIe x1 network adapter with an open SFP port. This port supports both Fast Ethernet and Gigabit SFP’s. This adapter supports Wake-on-LAN without the use of an external power supply.

Specification

Product
Product id	694947
Brand	Allied Telesis
Partnr	AT-2914SP-901
EAN/UPC code	767035210384
Technical details
Sustainability certificates	RoHS
Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber optic connector	SFP
Fiber ports quantity	1
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	100, 1000 Mbit/s
Wake-on-LAN ready	Y
Auto-negotiation	Y
Jumbo frames support	Y
Quality of Service (QoS) support	Y
Load balancing system	Y
Design
Internal	Y
LED indicators	Y
Certification	UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Power
Output voltage	3.3 V
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90 procent
Packaging data
Quantity	1
Low-profile bracket	Y
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Weight & dimensions
Width	88 mm
Height	69 mm
Weight	68 g
Other features
Flow control support	Y
Jumbo frames	9600
Priority queuing supported	Y
