PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) Support

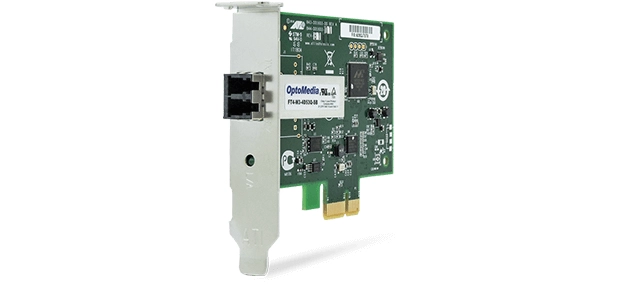

The Allied Telesis 2914SX/LC is a gigabit PCIe x1 network adapter with a fixed LC connector. It supports Wake-on-LAN without the use of an external power supply.

Specification

Product
Product id	790232
Brand	Allied Telesis
Partnr	AT-2914SX/LC-901
EAN/UPC code	767035210629
Technical details
Sustainability certificates	RoHS
Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber optic connector	LC
Fiber ports quantity	2
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Security algorithms	SNMP
Wake-on-LAN ready	Y
Auto-negotiation	Y
Jumbo frames support	Y
Quality of Service (QoS) support	Y
Load balancing system	Y
Design
Internal	Y
LED indicators	Y
Certification	UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Power
Power consumption (typical)	1.5 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90 procent
System requirements
Windows operating systems supported	Windows 10, Windows 7
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	88 mm
Height	69 mm
Weight	68 g
Other features
Flow control support	Y
Jumbo frames	9600
