24 PORT MANAGED STACKABLE FAST ETHERNET SWITCH DUAL AC

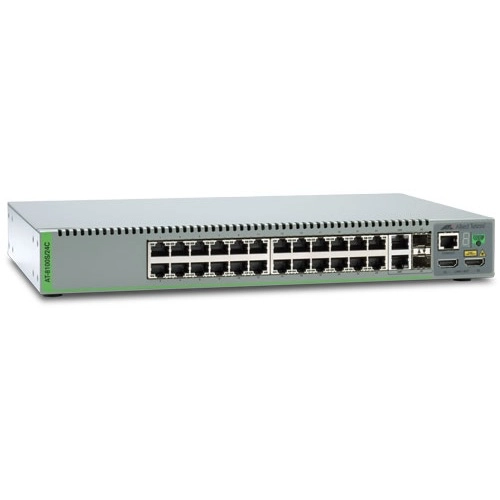

The Allied Telesis AT-8100S/24C is the compact version of the 8100S/24, offering 24 x 10/100TX ports, 2 x Gigabit-SFP combo (10/100/1000T-100/1000 SFP) uplink ports and 2 HDMI stacking ports — all in a smaller size. The AT-8100S/24C is a reliable and easy to manage Layer 2-4 solution for businesses that require a smaller physical switch.

Features
- Layer 3 Static Routing
- Compact size
- Low power consumption
- Internal Power Supply
- Silent (fanless) operation
- Hardware Stacking of selected models up to 208 ports
- Multiple Supplicant Authentication
- Dynamic VLAN
- Guest VLAN
- sFlow Management
- Radius
- TACACS+
- LLDP-MED
- ACLs
- Priority Queuing and Auto QoS

Specification

Product
Product id 328187
Brand Allied Telesis
Partnr AT-8100S/24POE-50
EAN/UPC code 767035194974
Data transmission
MAC address table 16000 entries
Switching capacity 18.8 Gbit/s
Throughput 27.9 Mpps
Latency (10-100 Mbps) 12 µs
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support N
IP routing Y
Auto MDI/MDI-X Y
VLAN support Y
Management features
Switch type Managed
Switch layer L3+
Quality of Service (QoS) support Y
Web-based management Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity 2
Fiber optic connector SFP
Console port RJ-45
HDMI stacking ports 2
Power connector DC-in jack
Security
DHCP features DHCP server, DHCP client
Access Control List (ACL) Y
IGMP snooping Y
Security algorithms LEAP, PEAP, SSH, SSL/TLS, WPA2-RADIUS
SSH/SSL support Y
Weight & dimensions
Width 440 mm
Depth 330 mm
Height 203 mm
Weight 2200 g
Power
AC input voltage 100 - 240 V
AC input frequency 47/63 Hz
Power consumption (typical) 18.3 W
Multicast features
Multicast support Y
Design
Rack mounting Y
Form factor 1U
Product colour Grey
LED indicators Y
Operational conditions
Operating altitude 0 - 3048 m
Storage temperature (T-T) -25 - 70 °C
Storage relative humidity (H-H) 5 - 95 procent
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 90 procent
Power over Ethernet (PoE)
Power over Ethernet (PoE) N
