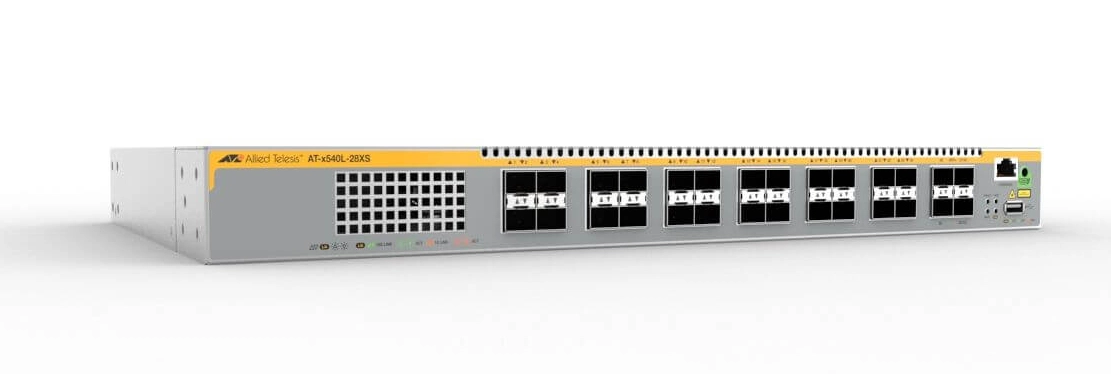

Allied Telesis x540L Series 10 Gigabit Layer 3 stackable switches provide a resilient high-speed distribution solution. All ports support up to 10G speed enabling seamless communication for modern applications, and multi-gigabit or fiber connectivity ensures flexible deployment.

Enable resilient distribution switching, with superior performance and simplified management, using Virtual Chassis Stacking (VCStack™)
Enjoy flexible deployment with multi-gigabit speeds of 1/2.5/5/10G, and 1/10G (SFP/SFP+) uplinks to maximize performance on copper x540L models
Support distributed environments with secure long-distance 1/10G (SFP/SFP+) connectivity on fiber x540L models
Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
Prevent eavesdropping of sensitive data on fiber links with Active Fiber Monitoring
Support resilient high-speed ring-based networks with Ethernet Protection Switched Ring (EPSRing™) and standards-based G.8032 ERPS

Specification

Product
Product id	1007003
Brand	Allied Telesis
Partnr	990-008010-50
EAN/UPC code	767035232034
Warranty (months)	Limited Lifetime Warranty
Data transmission
MAC address table	32000 entries
Switching capacity	560 Gbit/s
Forwarding rate	416.7 Mpps
Static route	Y
Number of static routes	1000
Jumbo frames support	Y
Jumbo frames	9000
Packet buffer memory	8 MB
Network
Networking standards	IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support	Y
Port mirroring	Y
Policy-based routing	Y
Full duplex	Y
Flow control support	Y
Spanning tree protocol	Y
Broadcast storm control	Y
Link aggregation	Y
VLAN support	Y
Number of VLANs	4094
Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Y
Web-based management	Y
ARP inspection	Y
MIB support	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	N
SFP+ module slots quantity	28
Fiber ports quantity	28
Security
DHCP features	DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)	Y
IGMP snooping	Y
Authentication type	RADIUS, TACACS+
Security algorithms	SHA-1, SHA-256, SHA-384, SHA-512, SSH, SSL/TLS
MAC address filtering	Y
SSH/SSL support	Y
Loop protection	Y
BPDU filtering/protection	Y
Authentication	MAC-based authentication, Web-based authentication
Weight & dimensions
Width	440 mm
Depth	290 mm
Height	44 mm
Weight	3800 g
Power
Power supply included	Y
Power consumption (max)	86 W
Multicast features
Multicast support	Y
Design
Rack mounting	Y
Stackable	Y
Form factor	1U
Product colour	Grey
LED indicators	Y
Operational conditions
Heat dissipation	293 BTU/h
Performance
Memory type	SDRAM
Internal memory	2048 MB
Flash memory	256 MB
