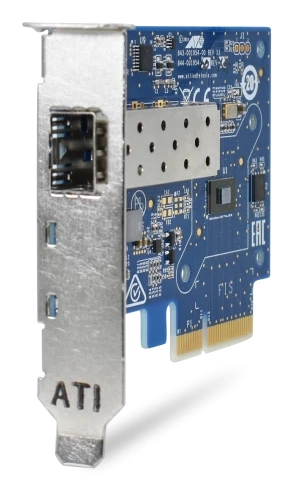

The Allied Telesis DNC10SP fiber network adaptor card provides an entry-level option to upgrade your network capacity for high-demand 10G applications. Supporting 1G or 10G SFPs, the DNC10SP enables a clear upgrade path to support future high-speed connectivity.

Specification

Product
Product id	818244
Brand	Allied Telesis
Partnr	AT-DNC10SP-901
EAN/UPC code	767035221403
Technical details
Compliance certificates	RoHS, UL, Federal Communications Commission (FCC), CE, VCCI
Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber optic connector	SFP+
Fiber ports quantity	1
Network
Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Qaz, IEEE 802.1Qbb
Wake-on-LAN ready	Y
Jumbo frames support	Y
VLAN support	Y
Link aggregation	Y
Design
Internal	Y
Component for	PC/Server
Product colour	Blue, Silver
LED indicators	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	5 - 90 procent
Packaging content
Manual	Y
System requirements
Windows operating systems supported	Windows 11, Windows 10
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2022, Windows Server 2019
Weight & dimensions
Width	91.4 mm
Depth	68.6 mm
Height	12.7 mm
Weight	78 g
Other features
Jumbo frames	16348
