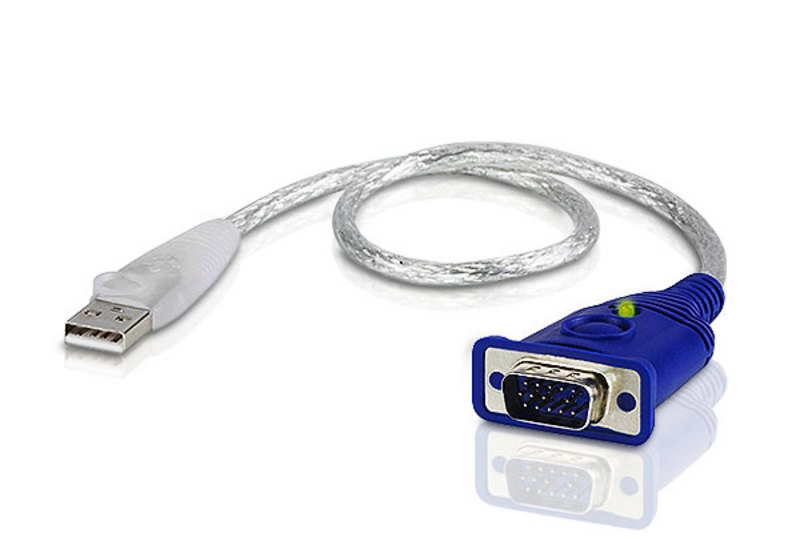

The 2A-130G VGA EDID Emulator is designed for ATEN KVM extender or video extender installations that do not utilize a local monitor at the site where the computer/video source is located. The 2A-130G emulates and stores a default ATEN EDID (Extended Display Identification Information) setting in a non-volatile memory. This means the computer/video source can still "see" the display, even though it is not directly connected.

1x 2A-130G VGA EDID Emulator

Specification

Product
Product id	795055
Brand	Aten
Partnr	2A-130G
EAN/UPC code	4710423777248
Warranty (months)
Features
Cable length	0.35 m
Connector 1	USB Type-A
Connector 2	VGA (D-Sub)
Connector 1 gender	Male connector
Connector 2 gender	Male connector
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum resolution	1920 x 1200 Pixels
Supported graphics resolutions	1366 x 768, 1920 x 1200 (WUXGA)
Maximum refresh rate	60 Hz
Product colour	Blue, Silver
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Packaging data
Package width	205 mm
Package depth	245 mm
Package height	20 mm
Package weight	52 g
Weight & dimensions
Weight	40 g
Width	34 mm
Depth	65.9 mm
Height	16 mm
Logistics data
Master (outer) case net weight	1600 g
Master (outer) case width	212 mm
Master (outer) case length	235 mm
Master (outer) case height	350 mm
Quantity per master (outer) case	40 stuk(s)
Master (outer) case weight	2610 g
