Delivers 120W per channel and receives balanced/unbalanced mic/line-level signals to drive 4/8-ohm low impedance or 70/100V line loudspeaker systems

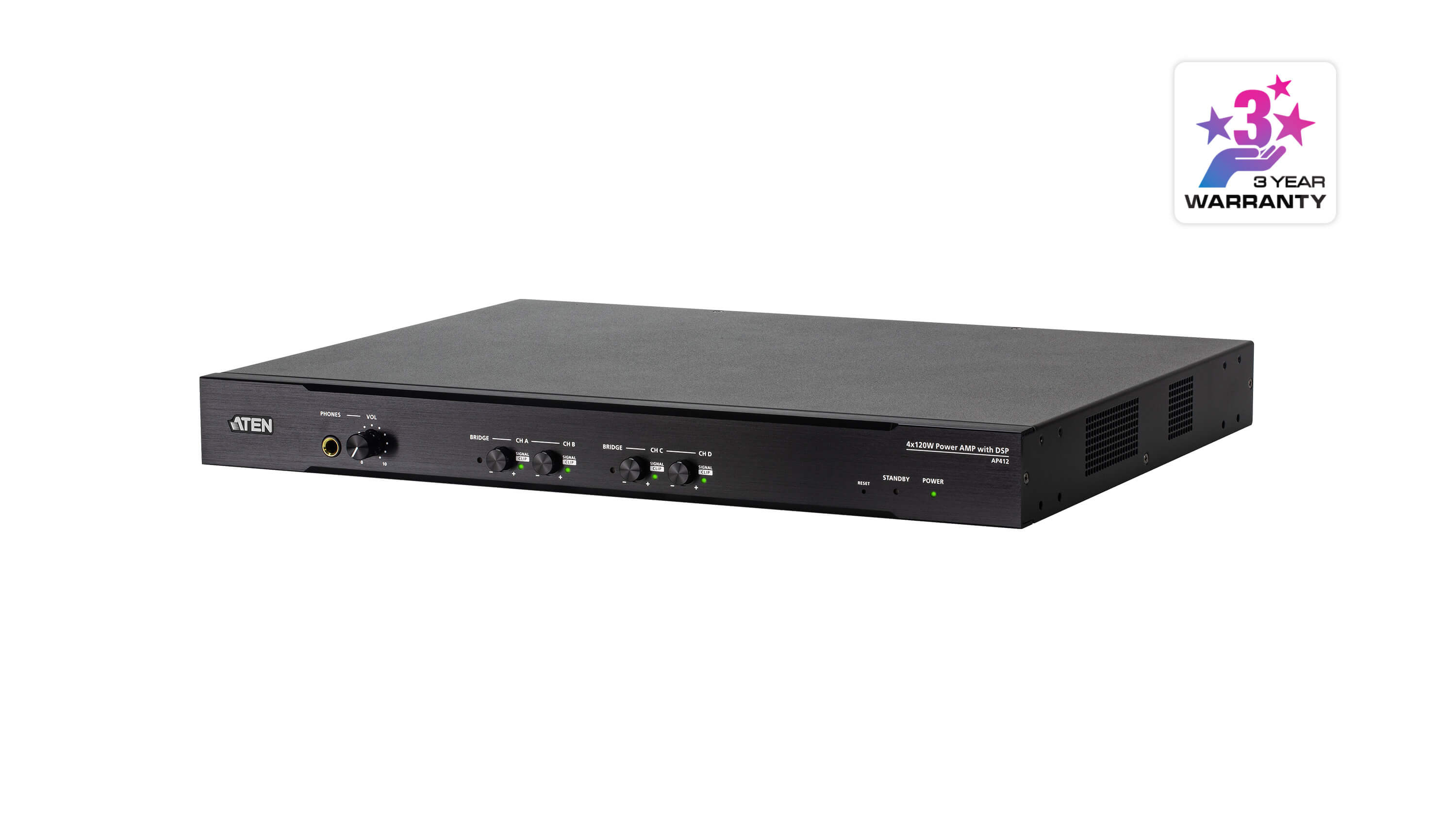

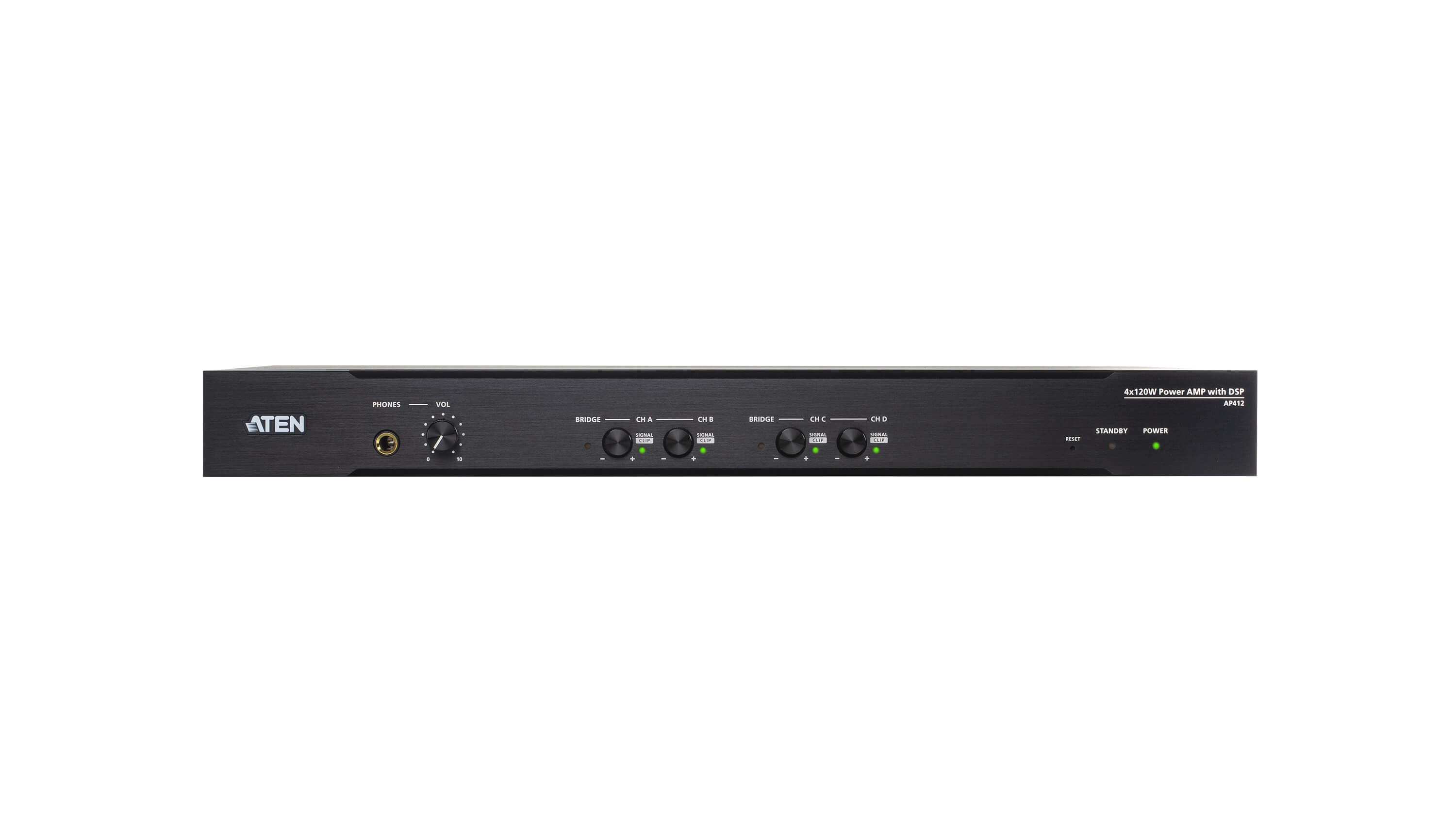

AP412 is a 4-channel DSP-equipped amplifier that delivers 120W per channel and receives balanced / unbalanced mic / line-level signals to drive 4 / 8-ohm low impedance or 70 / 100V line loudspeaker systems. It also supports Lo-Z / Hi-Z in Bridge mode to deliver higher power.

Configurable via intuitive WebGUI / ATEN Audio Wizard, the built-in DSP allows Speaker EQ, 5-band EQ, compressor, delay, limiter, and up to 20 presets for precise tuning and extensive audio system protection. The ground-lift switch helps eliminate unwanted hum noises from power circuit. Immersive sound experience is delivered without compromise on power efficiency with the Class D design. Customizable Auto Standby mode enables AP412 to automatically switch to “sleep” when the signal level falls lower than -40 / -50 dBu for 10 / 15 / 25 minutes.

With the system protection circuit, the amplifier is prevented from damages led by shorted outputs, over / under-voltage, high-frequency overload, and overtemperature. Plus, AP412 will be muted when the heat sink temperature exceeds the limit. The fanless design avoids fan noise and prevents dust from building up inside the chassis.

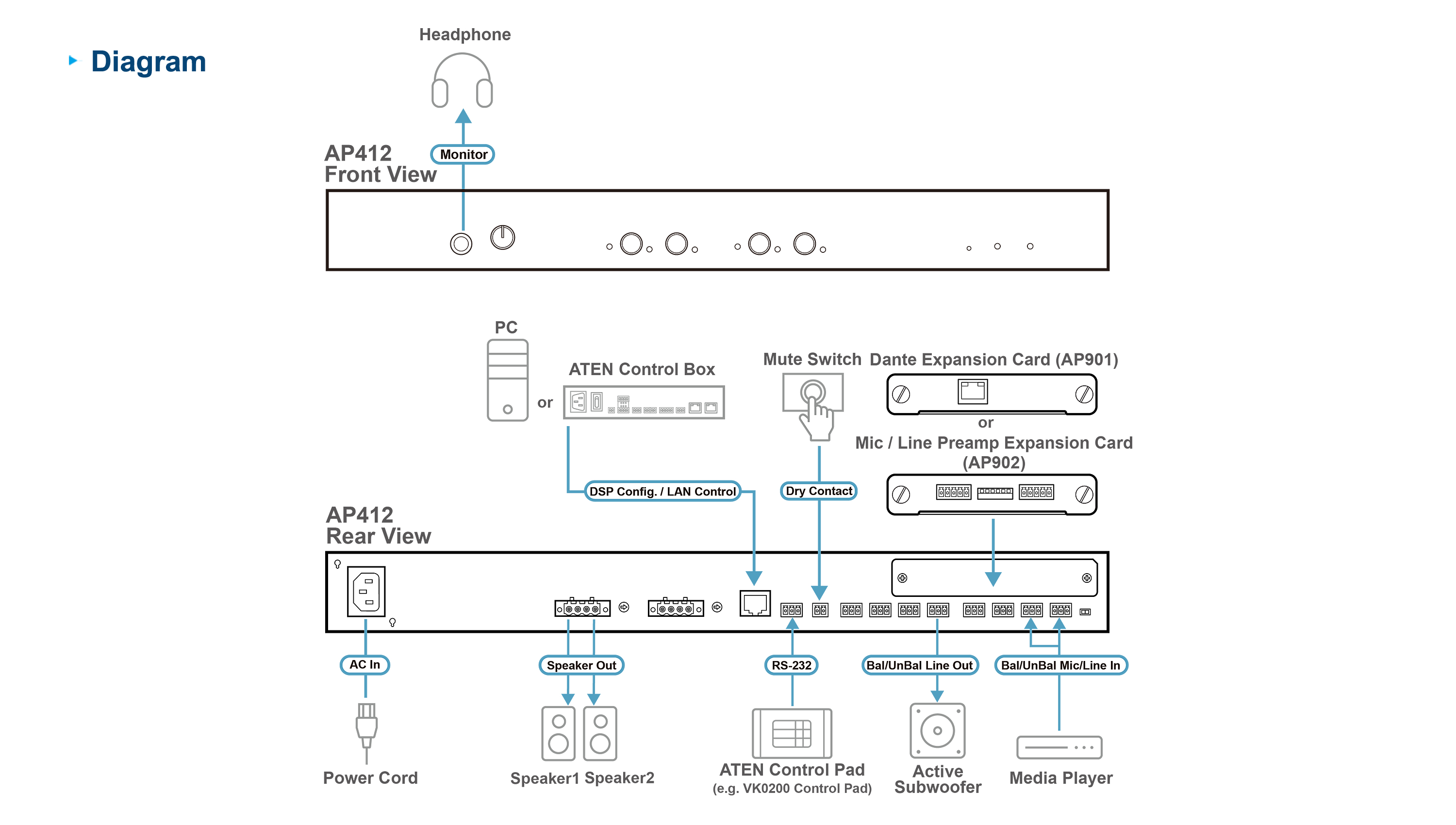

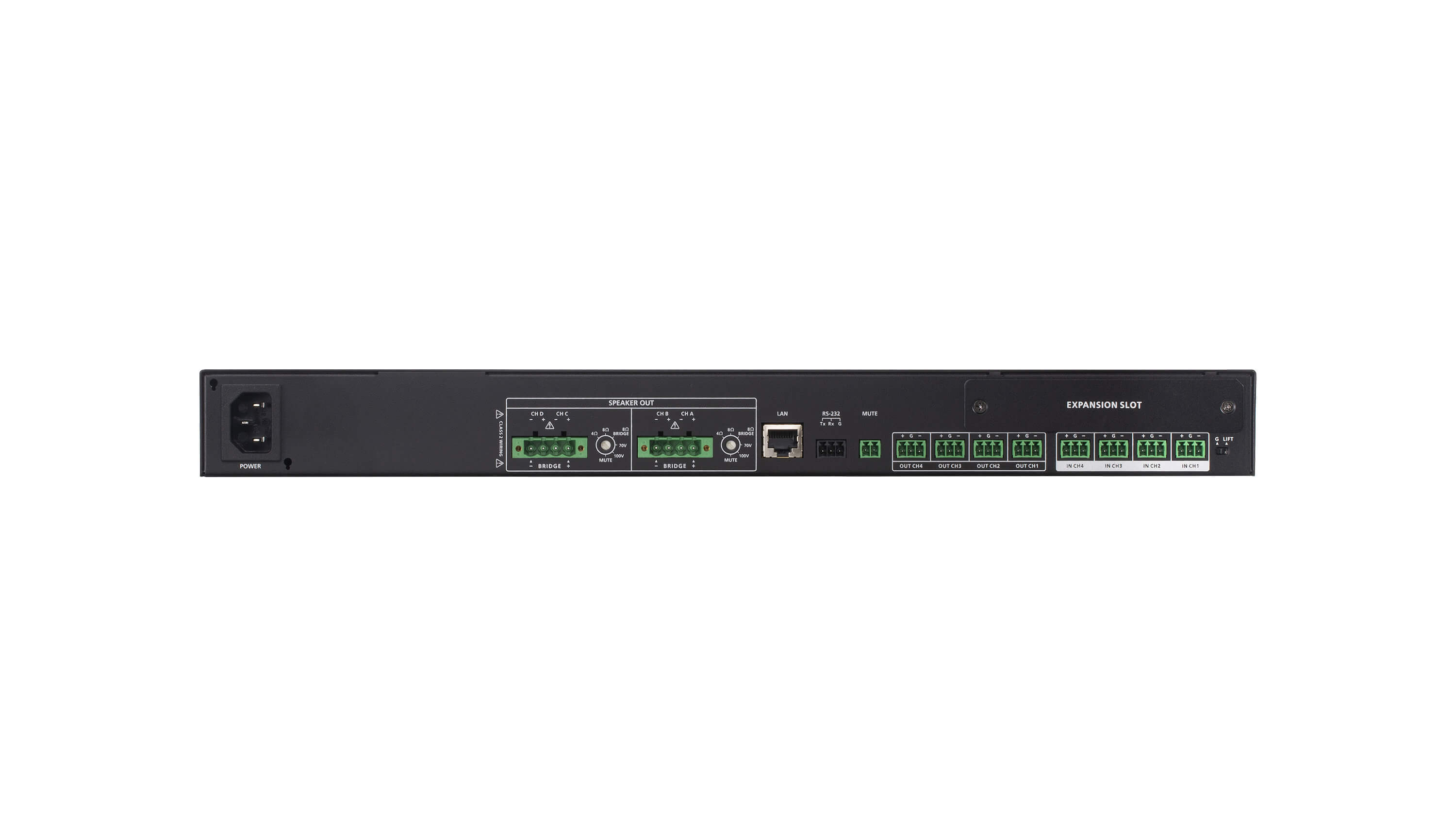

AP412 becomes compatible with Dante audio when working with AP901 expansion card or receives two more channels of mic / line signals with AP902 expansion card. It can be integrated with ATEN VK Control System via RS-232 / Ethernet for comprehensive control from a distance. The 1U casing is available for rack mounting. AP412 assures reliable amplification with professional audio quality and higher power delivery for larger commercial spaces.

Specification

Product
Product id	1029205
Brand	Aten
Partnr	AP412-AT-G
EAN/UPC code	4710469349683
Audio
Audio output channels	4.0 kanalen
Peak power per channel	120 W
Frequency range	50 - 20000 Hz
Amplifier class	D
Gain	3 dB
Output impedance	200 Ohm
Output level	30 mV
Ports & interfaces
Speakers connectivity type	Euroblock
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
RS-232 connector type	3-pin Euroblock
Technical details
Connectivity technology	Wired
Product colour	Black
Volume control	Rotary
Bridge function	Y
Country of origin	Taiwan
Power
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Maximum current	4 A
Weight & dimensions
Width	339.7 mm
Depth	432.4 mm
Height	44 mm
Weight	5210 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 80 procent
Logistics data
Harmonized System (HS) code	85184000
