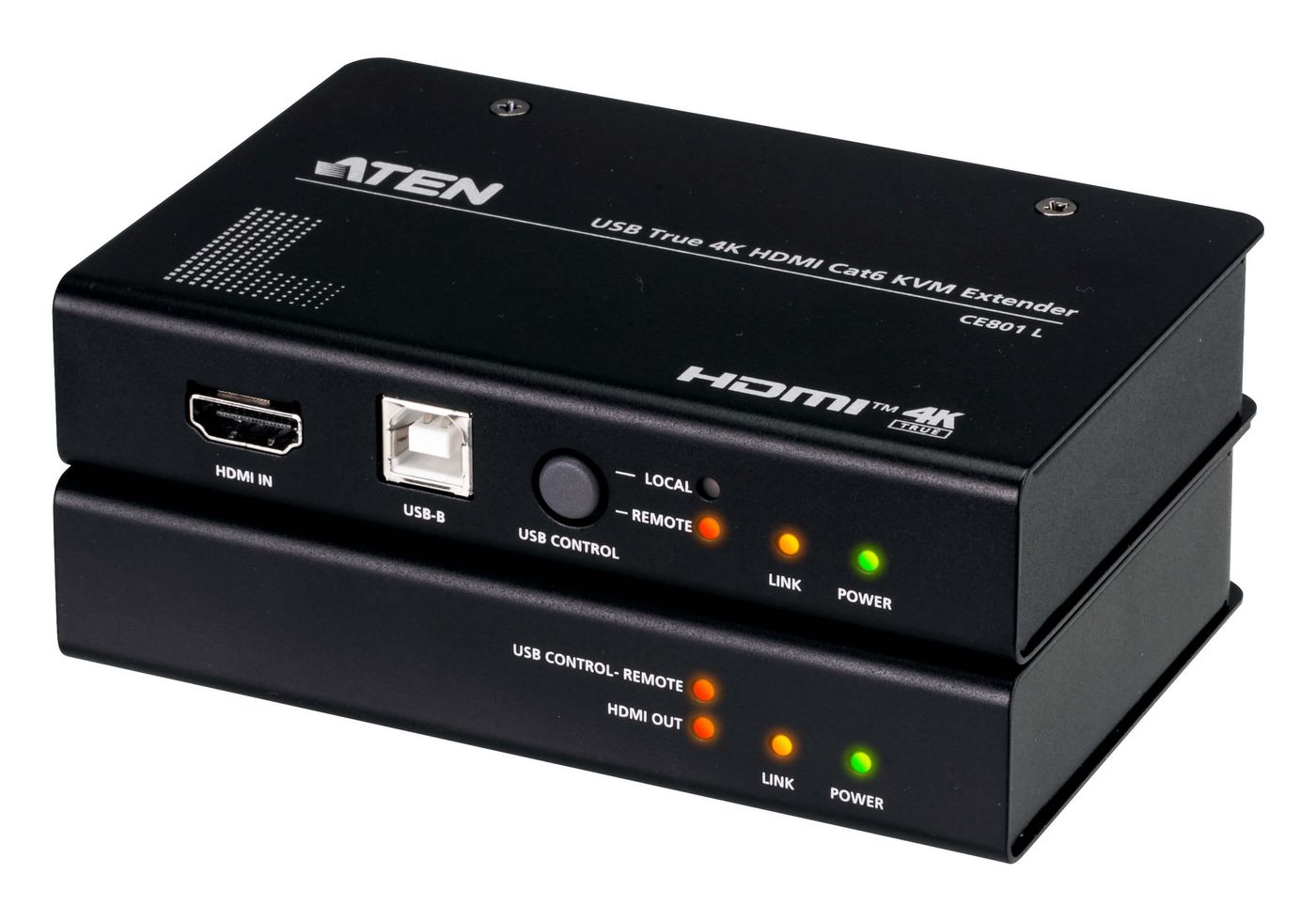

The CE801L and CE801R are USB HDMI Cat 6 KVM extenders designed to bridge the gap between local and remote consoles with smooth, efficient KVM operations. With the source computer connected to the CE801L, you can benefit from instantly responsive KVM control at the CE801R remote console – featuring uncompromising True 4K video, crystal-clear digital audio, high-speed USB peripheral data, and uninterrupted serial control over distances up to 70 meters, all via a single Cat 6 connection. When it comes to simplified KVM extension and ergonomic remote access with hardware securely located away from the workspace, the CE801 speaks for itself. True 4K KVM Extension up to 70 m

The CE801 extends KVM control up to 70 meters over a Cat 6 connection – transmitting stunning True 4K video with HDR, along with USB data, digital audio, and serial control between local and remote consoles.

FHD Long-Reach KVM Extension up to 100 m
With the Long-Reach mode, the CE801 enables KVM extension up to 100 meters over a Cat 6 connection – delivering crisp 1080p video clarity with ease.

Dual Console Access with Privileged KVM Control
Pressing the pushbutton on the CE801L grants the local console priority KVM access to the source PC at any time (Local Mode). Pressing the button again releases this priority (Auto Mode), allowing KVM access from either the local or remote console – whichever gains control first.

Optimal Video with EDID Switching
To ensure optimum output quality on both the local and remote consoles, the EDID switches on the CE801L can be adjusted to configure the EDID for both HDMI outputs.

RS-232 Serial Communication for Extended Control
The CE801R is equipped with a serial port for connection to a serial device – such as a touchscreen or barcode scanner – which can be remotely communicated via RS-232 commands from a serial terminal (or PC) connected to the CE801L, facilitating real-time device interaction and data transmission between the local and remote consoles.

Secure Installation for Reliable Power Supply
The power adapter is secured with a screw lock on the DC jack, ensuring a stable power supply while preventing accidental disconnections.

Rack-Mountable Design
The KVM extenders are compact and rack mountable, making them flexible for a space-efficient installation.

Specification

Product
Product id	1007765
Brand	Aten
Partnr	CE801-AT-G
EAN/UPC code	4710469349850
Features
Type	AV transmitter & transceiver
Connectivity technology	Wired
Maximum transfer distance	100 m
Cable types supported	Cat6, Cat6a
Rack mounting	Y
HDCP	Y
Maximum digital resolution	3840 x 2160 Pixels
HDCP version	2.3
KVM port selection	Push-buttons
Maximum refresh rate	60 Hz
Product colour	Black
Supported resolutions	640 x 480, 800 x 600, 1024 x 768, 1280 x 800, 1280 x 1024, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 3840 x 2160
Material	Metal
USB 2.0 ports quantity	4
Extended display identification data (EDID)	Y
LED indicators	Link, Power, Status
Country of origin	China
Transmitter
Transmitter video port type	HDMI
Transmitter local video port	Y
Transmitter local video port type	HDMI
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Transmitter USB Type-B ports quantity	1
Receiver
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Power
AC adapter output voltage	5 V
Power consumption (transmitter) (max)	2.59 W
Power consumption (receiver) (max)	1.88 W
DC-in jack	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Transmitter width	82.1 mm
Transmitter depth	128 mm
Transmitter height	25 mm
Transmitter weight	320 g
Receiver width	81.5 mm
Receiver depth	128 mm
Receiver height	25 mm
Receiver weight	310 g
Ports & interfaces
USB port type	USB Type-A
RS-232 ports	2
Packaging content
AC adapter included	Y
Cables included	USB Type-A to USB Type-B
Manual	Y
Mounting bracket(s) included	Y
Technical details
Harmonized System (HS) code	85176200
Package volume	3029.9026 cm³
Packaging data
Package weight	1380 g
Logistics data
Master (outer) case net weight	5270 g
Master (outer) case width	300 mm
Master (outer) case volume	19566.941 cm³
Master (outer) case length	336 mm
Master (outer) case height	194 mm
Master (outer) case weight	6990 g
