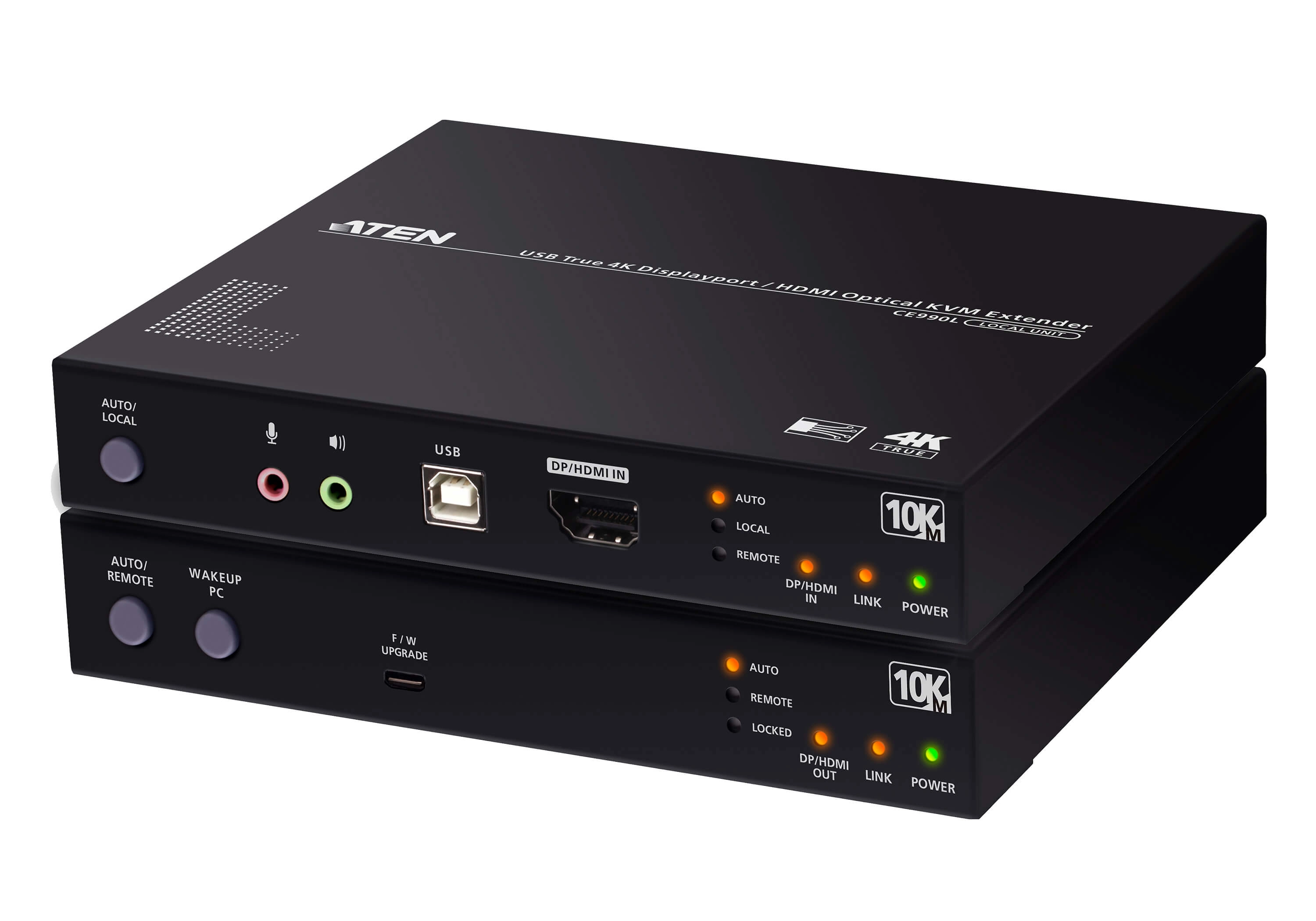

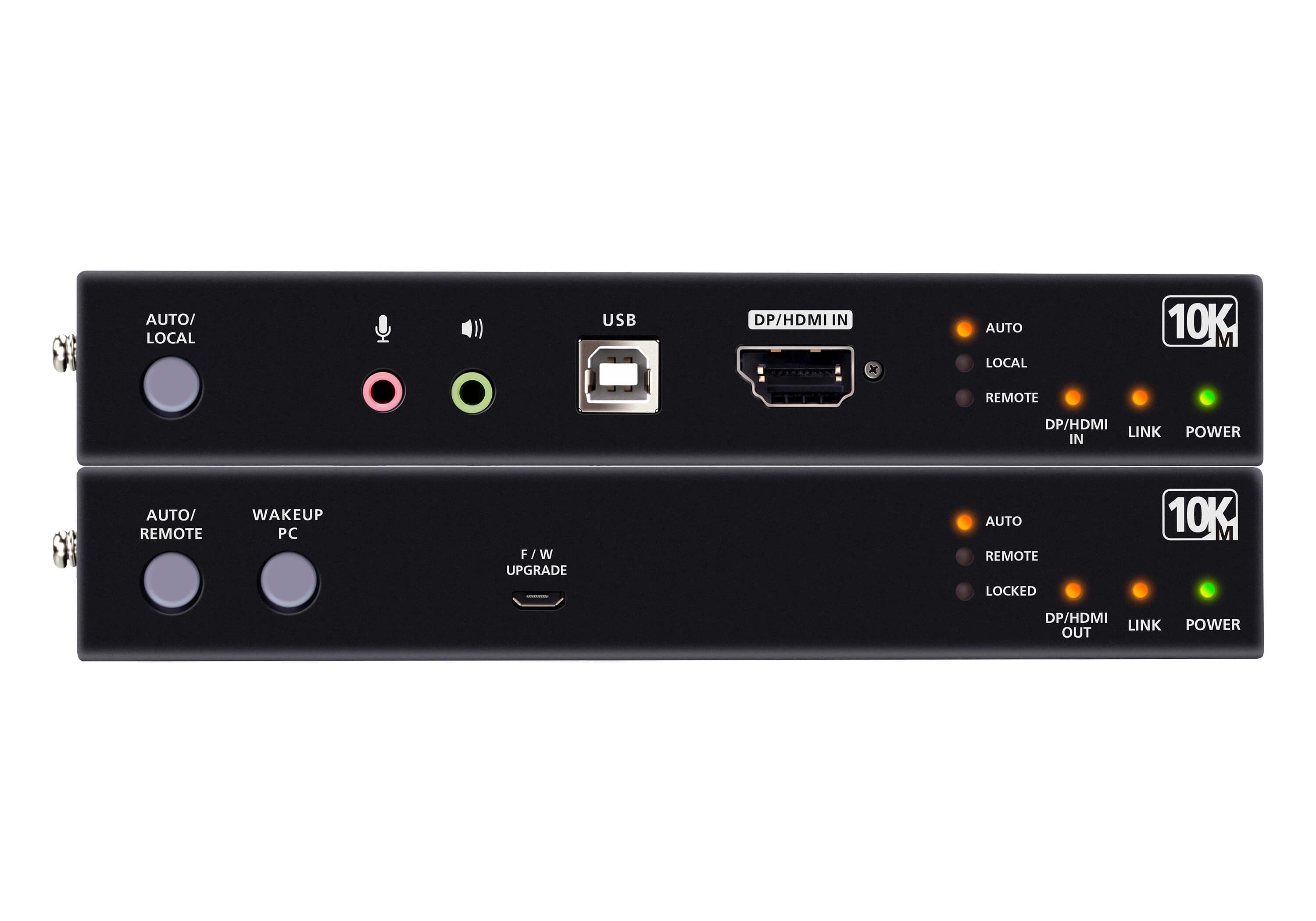

The CE990 is a USB DisplayPort/HDMI Optical KVM Extender that extends KVM signals over fiber-optic transmission up to 10 km, delivering True 4K, HDCP 2.3-compliant video quality. It features DisplayPort and HDMI connectivity via a combo connector, simplifying installation with selectable video output at both local and remote consoles. In addition to exceptional video clarity, it supports RS-232, USB 2.0 peripherals, and embedded DisplayPort/HDMI digital audio, including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, enabling versatile signal extension over a single fiber optic connection. The CE990 is ideal for critical control environments such as transportation, manufacturing, utilities, and more.

2-in-1 DisplayPort/HDMI Combo Connector
Featuring a combo connector, the CE990 supports connection to either a DisplayPort or HDMI display for both local and remote KVM installations. This versatile design supports flexible display configurations at each end, allowing mixed or matched output types between the local and remote consoles.

Pristine True 4K Clarity with HDR10
Experience unparalleled True 4K clarity (3840 x 2160 and 4096 x 2160 @60 Hz, 4:4:4) and HDR10 support, delivering optimal image accuracy, enhanced contrast, and rich colors for razor-sharp video content.

Reliable Fiber Optic KVM Extension over Long Distances
Deploying the CE990 enables long-distance KVM extension of up to 10 kilometers via a fiber optic connection, ensuring stable, interference-free transmission with inherent EMI resistance for reliable performance

Dual Console Access with Privileged Control
The CE990 enables KVM access to a computer from both local and remote consoles, facilitating efficient operational collaboration. Using the Auto/Local or Auto/Remote pushbutton, you can toggle between Auto mode (access from both consoles) and Local/Remote mode (exclusive access from either local or remote console), determining which console has privileged control over the computer.

Applications
Designed for critical control environments such as transportation, manufacturing, and utilities, the CE990 delivers stable long-distance KVM signal transmission and pristine video quality.

Specification

Product
Product id	1029208
Brand	Aten
Partnr	CE990-AT-G
EAN/UPC code	4710469349638
Warranty (months)	2 years
Features
Type	Transmitter & Receiver
Connectivity technology	Wired
Maximum transfer distance	10000 m
Rack mounting	Y
Maximum digital resolution	4096 x 2160 Pixels
Product colour	Black
Material	Metal
USB 2.0 ports quantity	4
USB data transfer rates	480 Mbit/s
LED indicators	Y
Country of origin	Taiwan
Transmitter
Transmitter video port type	DisplayPort
Transmitter local video port	Y
Transmitter local video port type	HDMI
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Receiver
Receiver local video port type	DisplayPort
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Power
AC adapter output voltage	12 DC V
Power consumption (transmitter) (max)	11.89 W
Power consumption (receiver) (max)	9.49 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Transmitter width	156.2 mm
Transmitter depth	178.2 mm
Transmitter height	28.8 mm
Transmitter weight	850 g
Receiver width	156.2 mm
Receiver depth	178.2 mm
Receiver height	28.8 mm
Receiver weight	840 g
Ports & interfaces
PC Audio in	Y
PC Audio out	Y
Packaging content
AC adapter included	Y
Cables included	DisplayPort
Manual	Y
Mounting bracket(s) included	Y
Packaging data
Package width	131 mm
Package depth	540 mm
Package height	233 mm
Package weight	3560 g
Logistics data
Master (outer) case width	247 mm
Master (outer) case length	556 mm
Master (outer) case height	153 mm
Master (outer) case weight	4130 g
