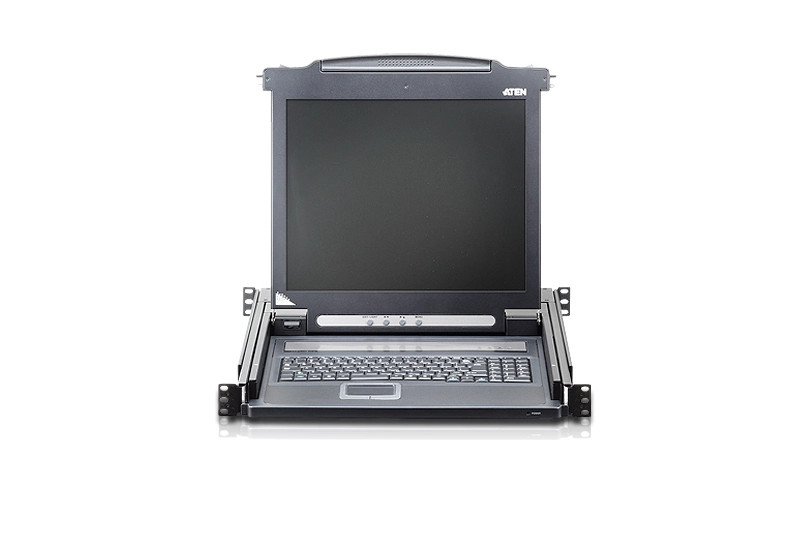

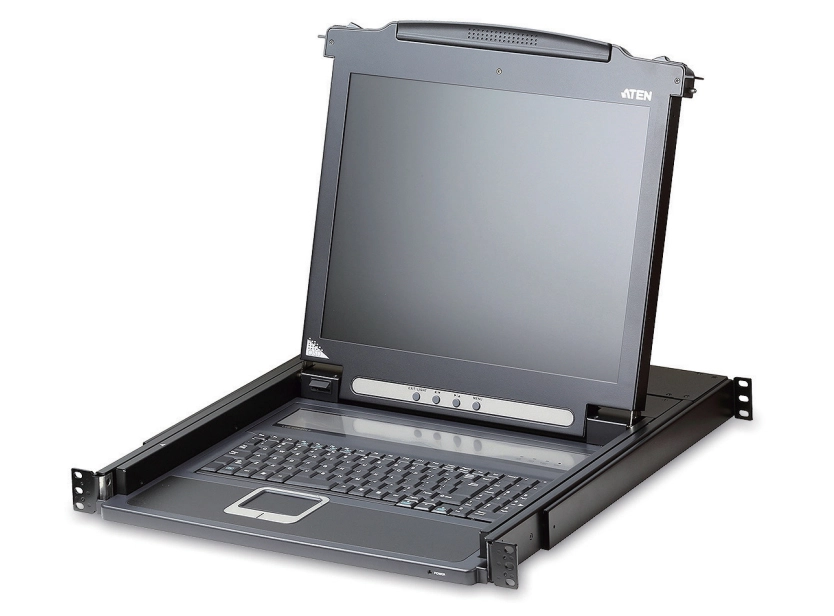

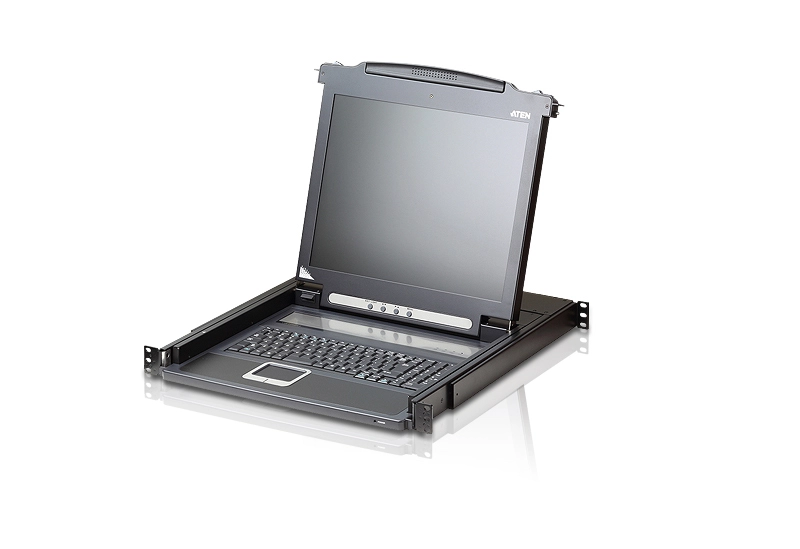

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway housing.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.

Specification

Product
Product id	987558
Brand	Aten
Partnr	CL1000M-ATA-FG
EAN/UPC code	4710469343643
Display
Display diagonal	17 inch
Display resolution	1280 x 1024 Pixels
Display	LCD
Display number of colours	16.78 million colours
Display type	TFT
Pixel pitch	0.264 x 0.264 mm
Viewing angle, vertical	160 °
Viewing angle, horizontal	170 °
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Technical details
Material	Metal, Plastic
LED indicators	Y
Number of computers controlled	1
Rack mounting	Y
Product colour	Black
Operating relative humidity (H-H)	0 - 80 procent
Rack capacity	1U
Maximum resolution	1280 x 1024 Pixels
Ports & interfaces
VGA (D-Sub) ports quantity	1
Keyboard
Keyboard language	French
Keyboard layout	AZERTY
System requirements
Windows operating systems supported	Y
Linux operating systems supported	Y
Other operating systems supported	FreeBSD
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Power
Power consumption (typical)	16 W
AC adapter input voltage	100-240 V
AC adapter frequency	50-60 Hz
Input current	1 A
Weight & dimensions
Width	480 mm
Height	538.3 mm
Depth	44 mm
Weight	12020 g
Packaging content
Manual	Y
