With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.

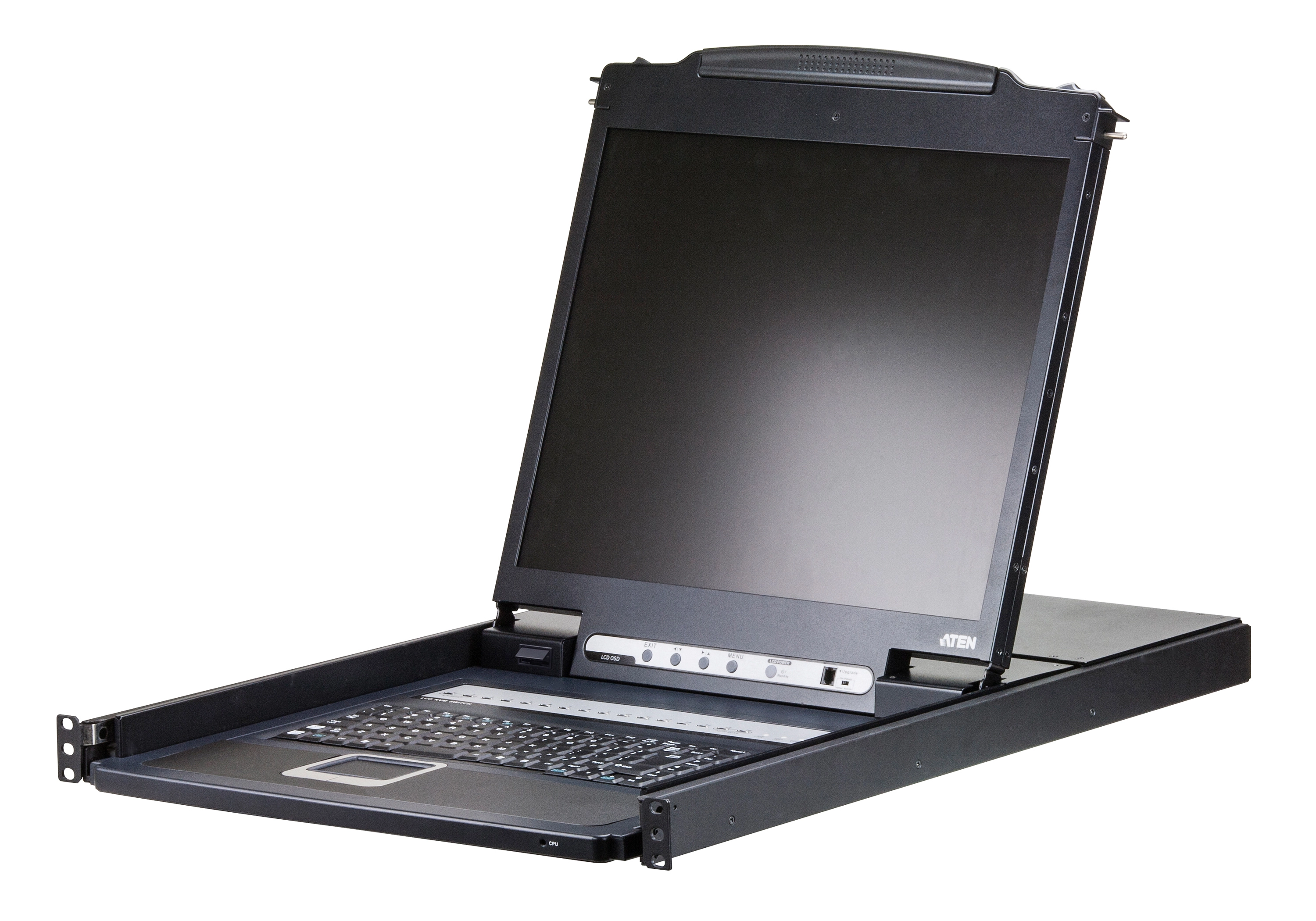

The CL1316 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console.

Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1316 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Specification

Product
Product id	987580
Brand	Aten
Partnr	CL1316N-ATA-DNG
EAN/UPC code	4710469343230
Display
Display diagonal	19 inch
Display resolution	1280 x 1024 Pixels
Display	LCD
Display type	LCD
On Screen Display (OSD)	Y
Technical details
Material	Metal, Plastic
LED indicators	Y
Number of computers controlled	256
Rack mounting	Y
On/off switch	Y
KVM switch ports quantity	8
Push button	Y
Product colour	Black
Auto scan delay (min)	1 s
Operating relative humidity (H-H)	0 - 80 procent
Auto scan delay (max)	255 s
Built-in KVM switch	Y
Hot-Plug support	Y
Rack capacity	1U
Maximum resolution	1280 x 1024 Pixels
Compliance certificates	RoHS
Ports & interfaces
Video port type	VGA
Mouse port type	USB
Keyboard port type	PS/2
USB 2.0 Type-A ports quantity	1

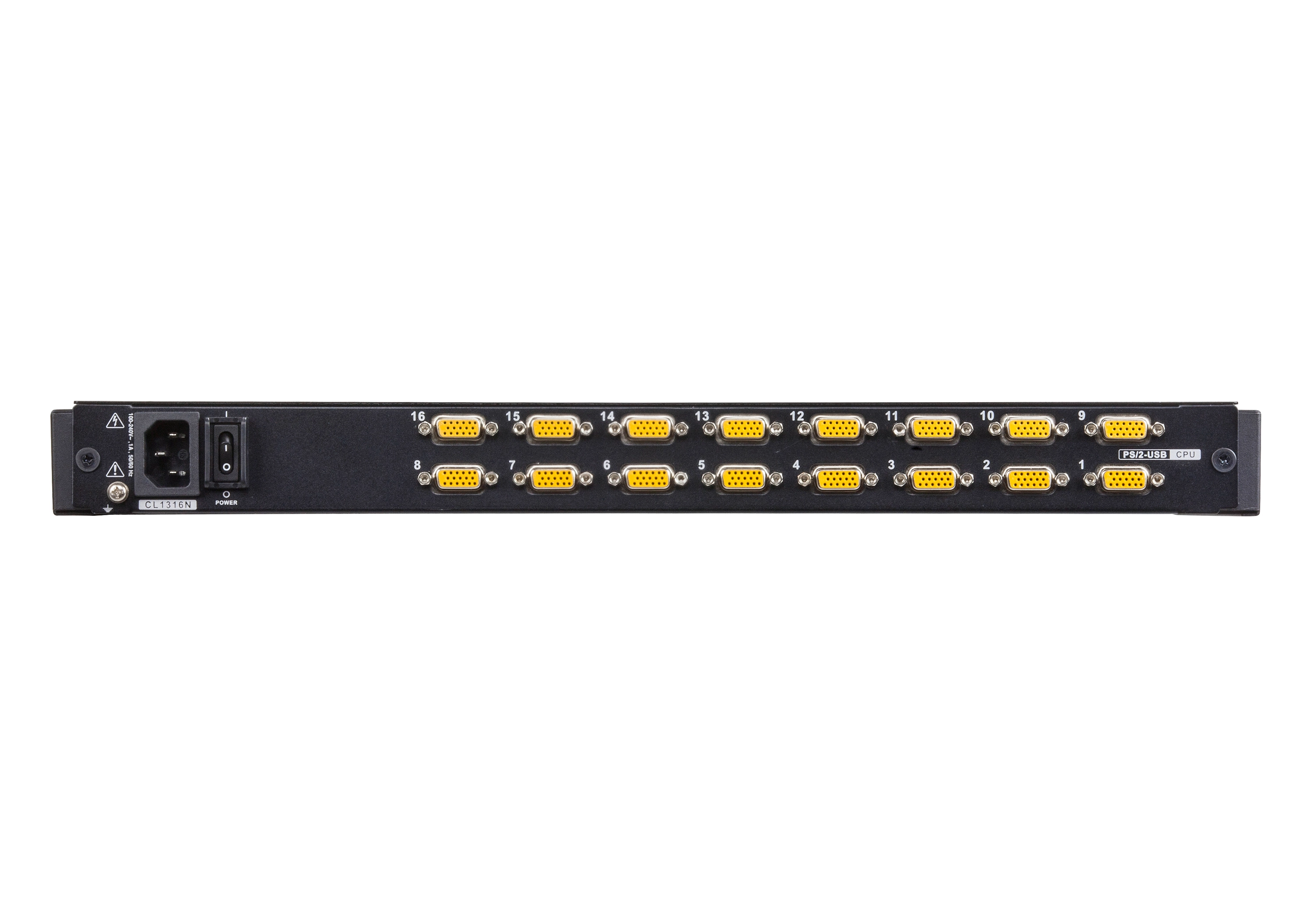

I/O ports	16x SPHD-17
Keyboard
Hot keys	Y
System requirements
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in	Y
Weight & dimensions
Width	689.2 mm
Height	44 mm
Depth	483 mm
Weight	12770 g
Packaging content
Cables included	AC, KVM
Quick installation guide	Y
Manual	Y
Rack mount kit	Y
