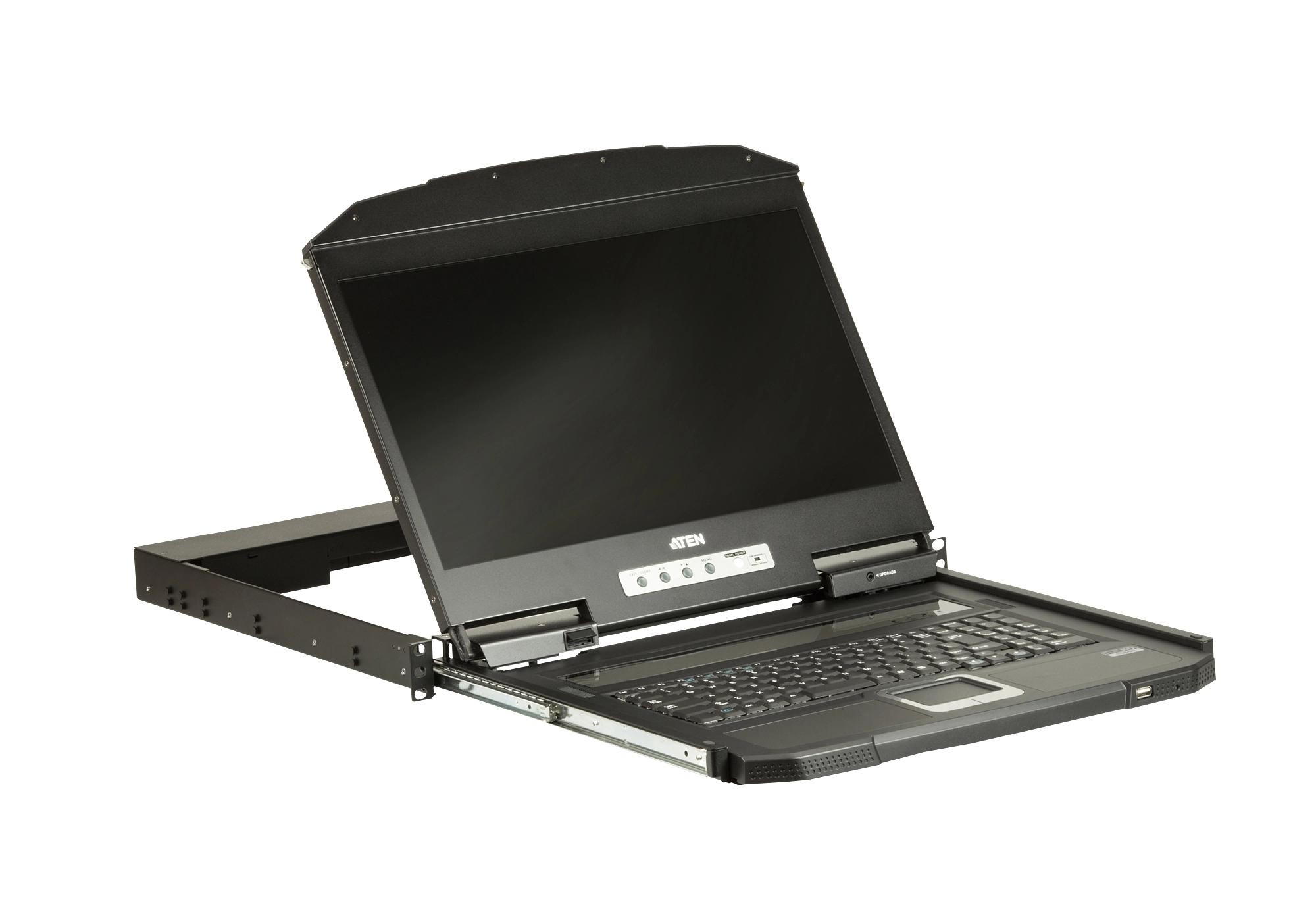

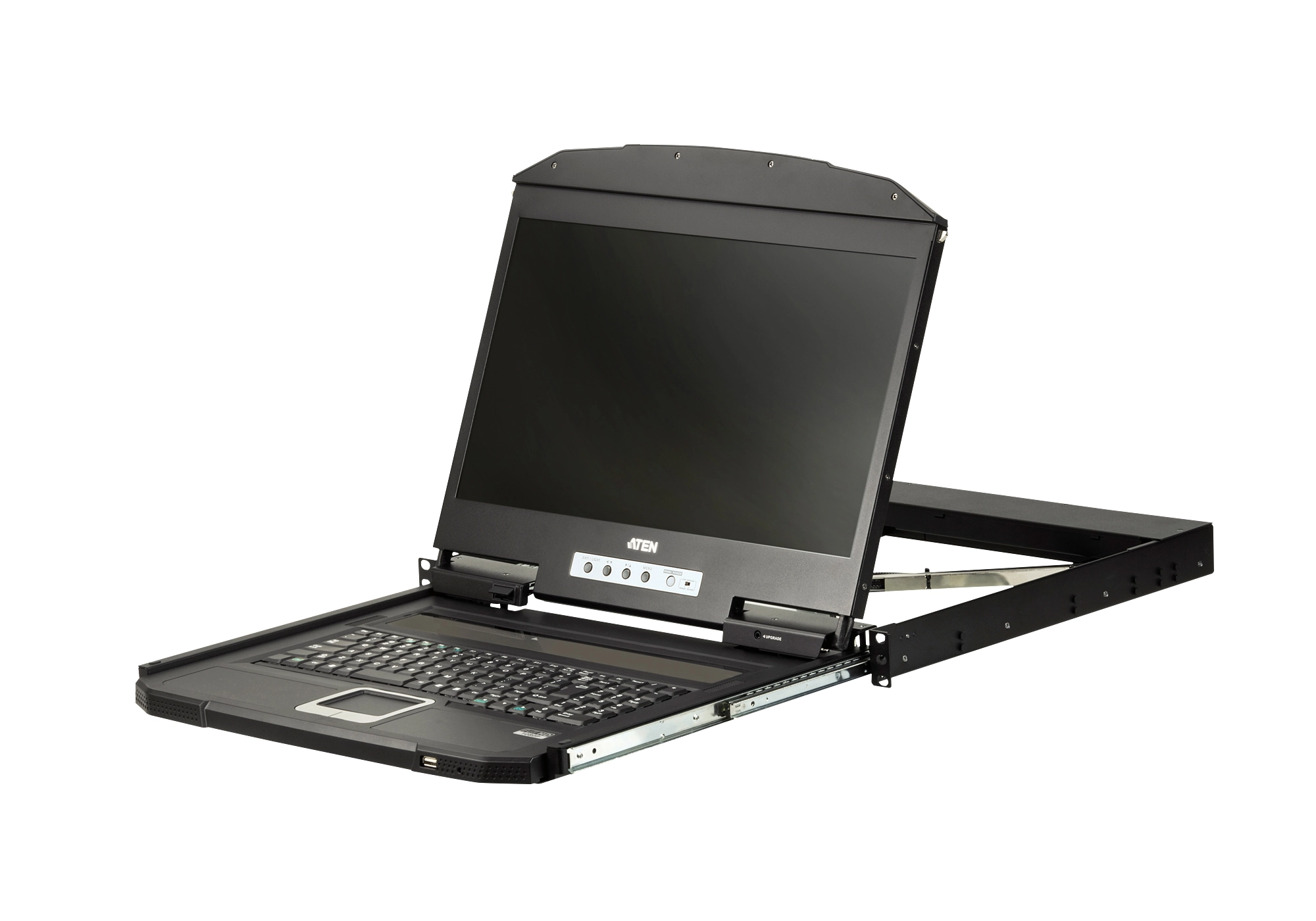

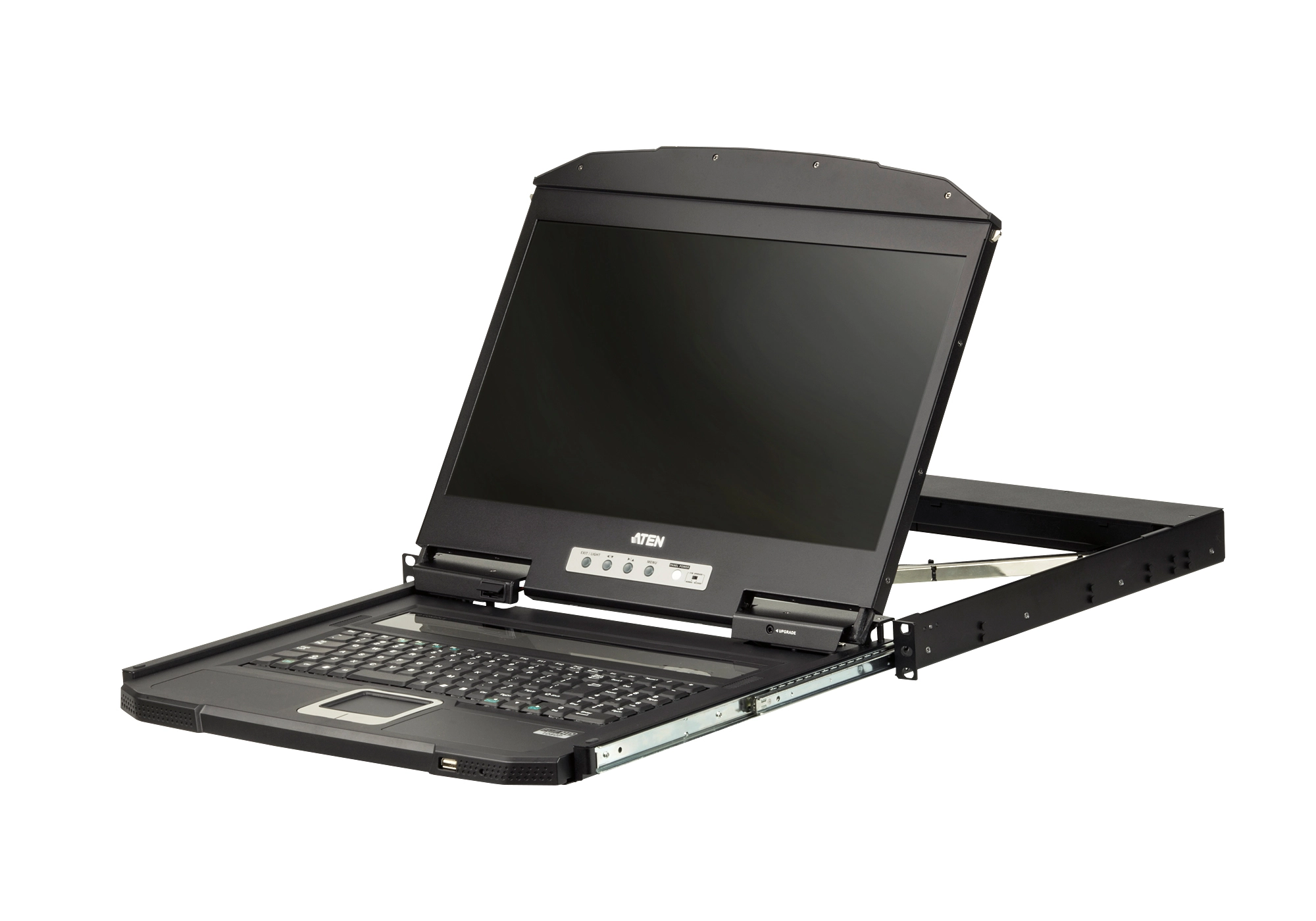

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

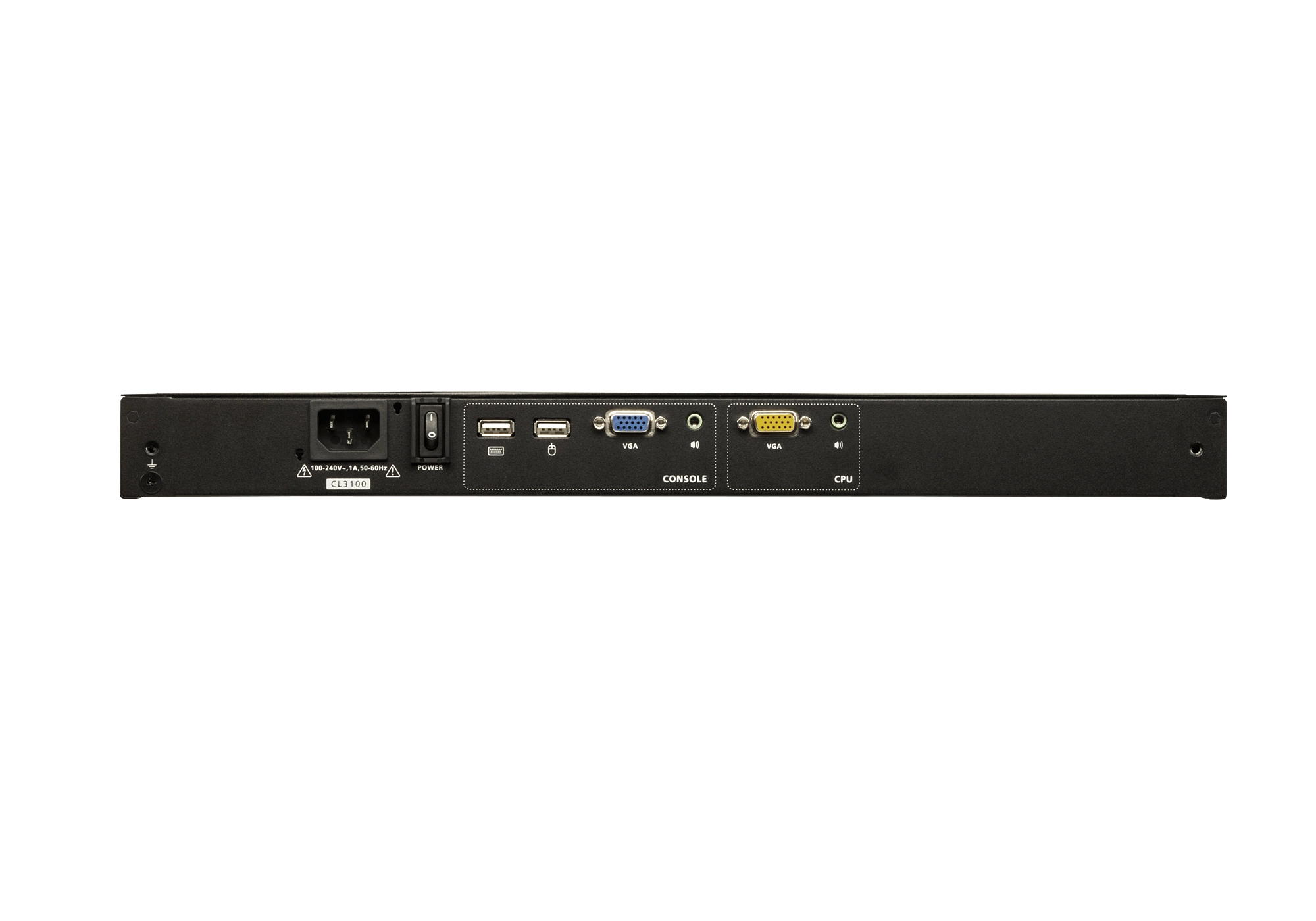

The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers.

With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

Specification

Product
Product id	987595
Brand	Aten
Partnr	CL3100NX-ATA-AG
EAN/UPC code	4710469345401
Display
Display diagonal	18.5 inch
Display resolution	1366 x 768 Pixels
Display number of colours	16.78 million colours
Response time	5 ms
Display type	LCD
Pixel pitch	0.3 x 0.3 mm
Viewing angle, vertical	160 °
Viewing angle, horizontal	170 °
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Technical details
Material	Metal, Plastic
LED indicators	Y
Number of computers controlled	1
Key lock	Y
On/off switch	Y
Product colour	Black
Operating relative humidity (H-H)	0 - 80 procent
Built-in KVM switch	Y
Hot-Plug support	Y
Rack capacity	1U
Compliance certificates	RoHS
Ports & interfaces
Video port type	VGA
Mouse port type	USB
Keyboard port type	USB
Keyboard
Keyboard number of keys	105
Built-in touchpad	Y
Hot keys	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Power
Power supply type	AC
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
Certificates
Certification	UL 60950-1, CAN/CSA
Weight & dimensions
Width	477 mm
Height	480.6 mm
Depth	42.8 mm
Weight	9070 g
Packaging content
Cables included	AC, Audio (3.5mm), USB, VGA
Manual	Y
Rack mount kit	Y
