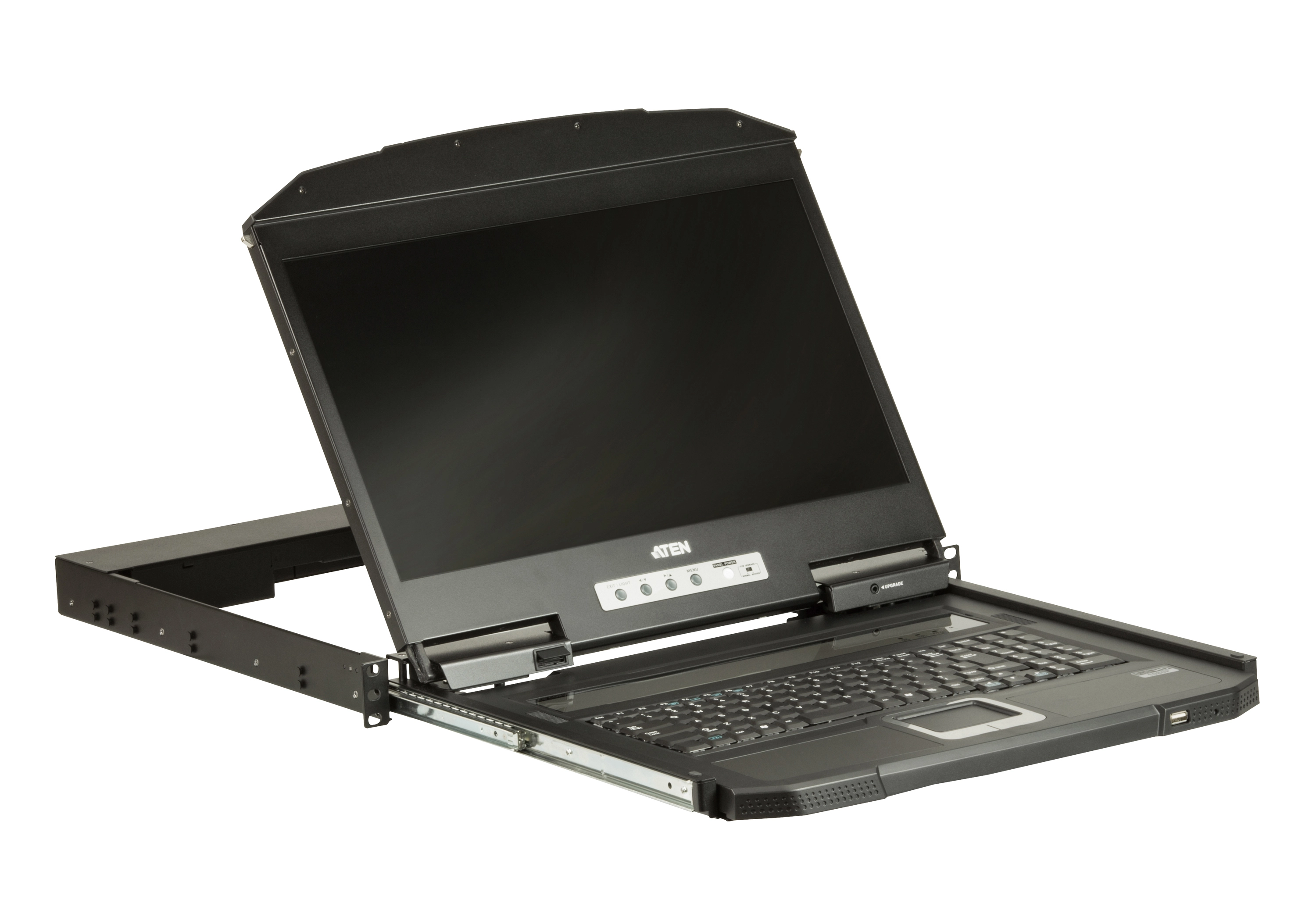

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

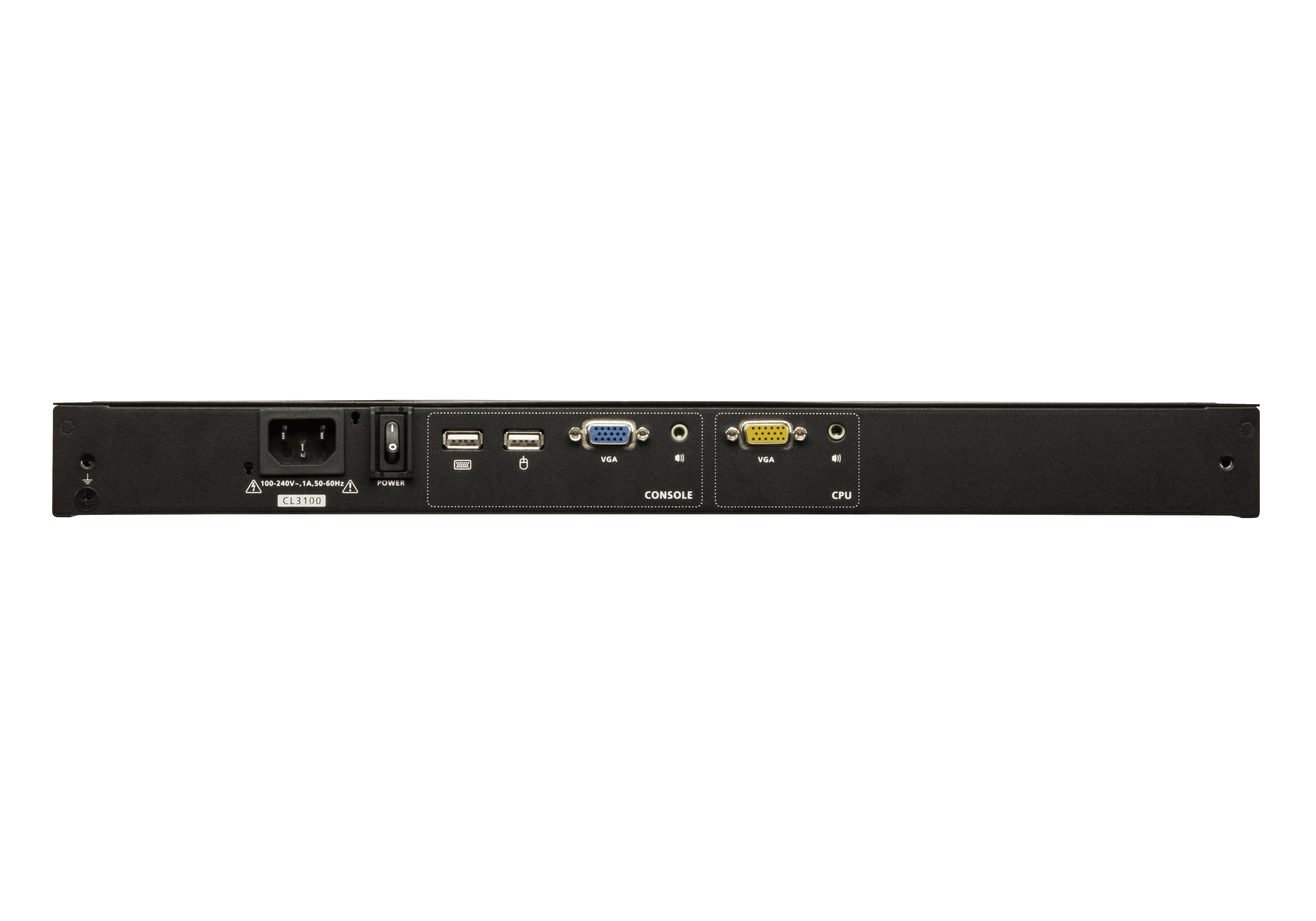

The CL3100 is a dedicated front end sliding console for compatible VGA KVM switches. For added convenience, users can choose to manage the computer from an external console. The CL3100 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and VGA monitor) are provided on the rear panel. The CL3100 also includes two mini stereo ports for connecting audio speakers.

With a rich feature set, the CL3100 is designed to exceed the requirements for space utility optimization, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Specification

Product
Product id	987598
Brand	Aten
Partnr	CL3100NX-ATA-FG
EAN/UPC code	4710469343711
Display
Display diagonal	18.5 inch
Display resolution	1366 x 768 Pixels
Display	LCD
Response time	5 ms
Display type	TFT
Pixel pitch	0.3 x 0.3 mm
Viewing angle, vertical	160 °
Viewing angle, horizontal	170 °
Contrast ratio (typical)	1000:1
Display brightness	450 cd/m²
Supported resolutions	up to 1920 x 1200 @ 60 Hz; 1366 x 768 @ 60 Hz, DDC2B
Technical details
Material	Metal, Plastic
LED indicators	Y
Number of computers controlled	1
Rack mounting	Y
On/off switch	Y
KVM switch ports quantity	1
Push button	Y
Product colour	Black
Operating relative humidity (H-H)	0 - 80 procent
Built-in KVM switch	Y
Rack capacity	1U
Maximum resolution	1920 x 1200 Pixels
Compliance certificates	RoHS
Ports & interfaces
3.5 mm (1/8-inch) out	Y
3.5 mm (1/8-inch) in	Y
VGA (D-Sub) ports quantity	1
Video port type	VGA
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-A ports quantity	3
I/O ports	1x SPHD
Keyboard
Built-in touchpad	Y
Keyboard language	French
Keyboard layout	AZERTY
Hot keys	Y
System requirements
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Other operating systems supported	SunOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in	Y
Weight & dimensions
Width	477 mm
Height	42.8 mm
Depth	480.6 mm
Weight	9070 g
Packaging content
Cables included	AC, KVM
Quick installation guide	Y
Manual	Y
Rack mount kit	Y
AC adapter included	Y
Package type	Box
