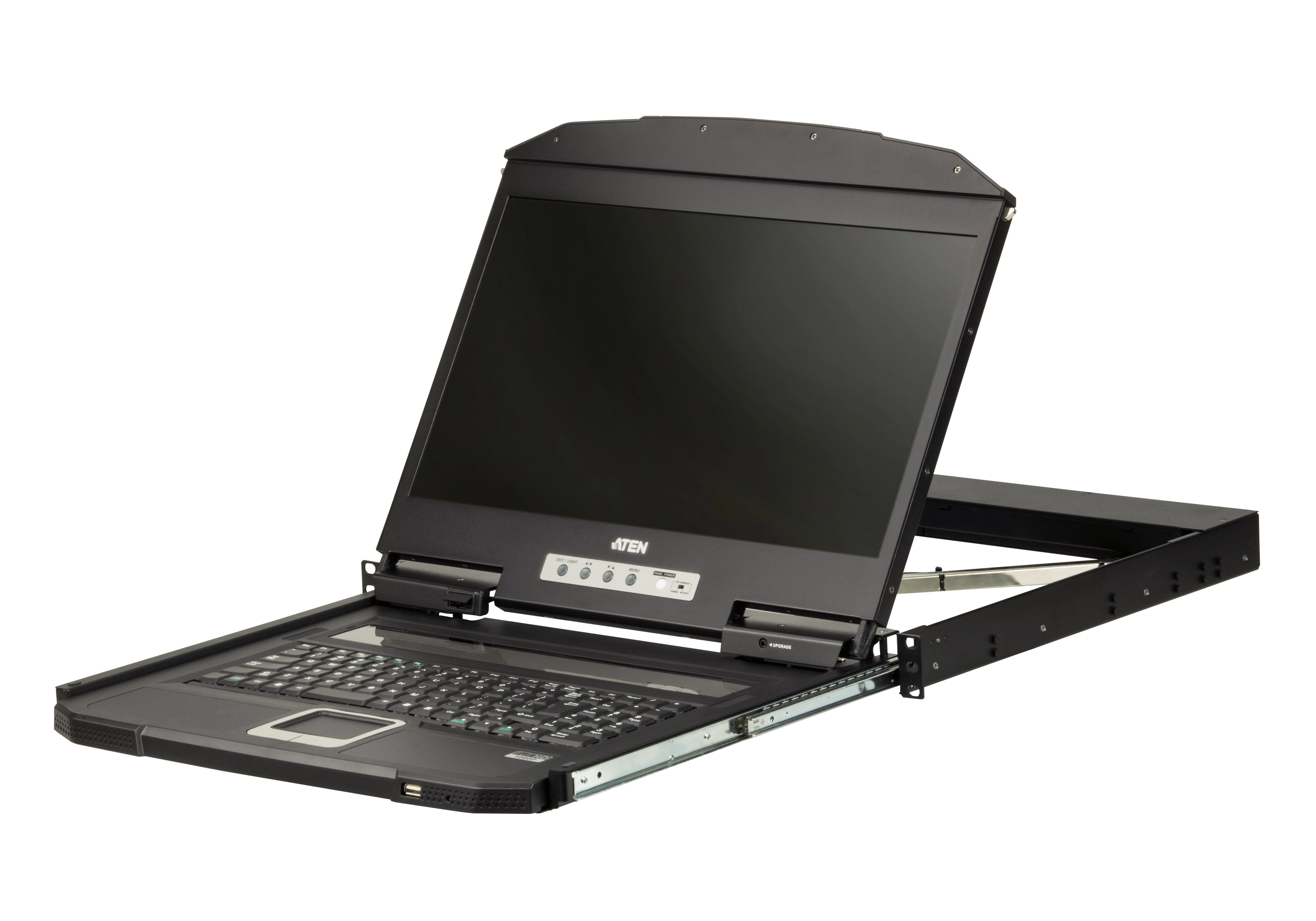

The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

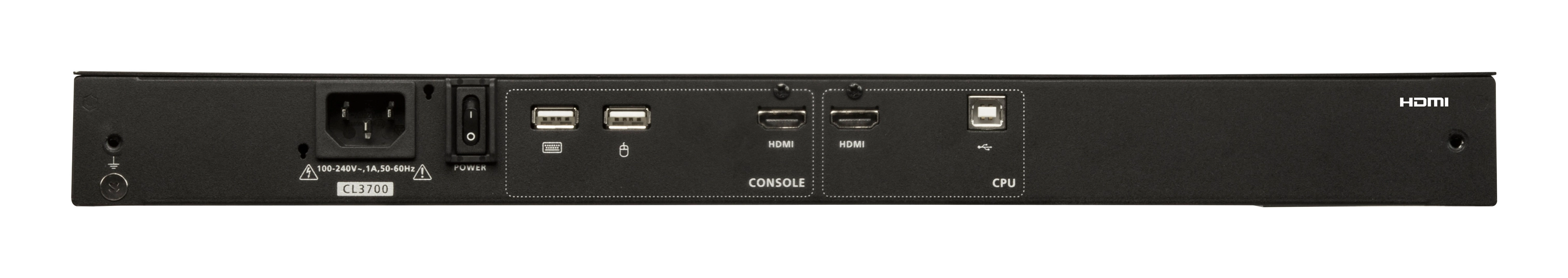

The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.

With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

Specification

Product
Product id	987623
Brand	Aten
Partnr	CL3700NW-ATA-ITG
EAN/UPC code	4710469344367
Display
Display diagonal	18.5 inch
Display resolution	1920 x 1080 Pixels
Display	LCD
Display number of colours	16.78 million colours
Response time	20 ms
Display type	TFT
Aspect ratio	16:9
Pixel pitch	0.213 x 0.213 mm
Viewing angle, vertical	178 °
Viewing angle, horizontal	178 °
Contrast ratio (typical)	1000:1
Display brightness	350 cd/m²
Technical details
Material	Metal, Plastic
LED indicators	Status
Number of computers controlled	1
Key lock	Y
Rack mounting	Y
On/off switch	Y
Sustainability compliance	Y
Push button	Y
Product colour	Black
Operating relative humidity (H-H)	0 - 80 procent
Built-in KVM switch	Y
Hot-Plug support	Y
Rack capacity	1U
Maximum resolution	1920 x 1080 Pixels
Compliance certificates	RoHS
Ports & interfaces
Video port type	HDMI
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-B ports quantity	1
I/O ports	1x USB Type-A
Keyboard
Built-in touchpad	Y
Keyboard language	Italian
Keyboard layout	QWERTY
Hot keys	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Power
Power supply type	AC
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
Weight & dimensions
Width	477 mm
Height	42.8 mm
Depth	480.6 mm
Weight	9010 g
Packaging content
Cables included	AC, HDMI, USB
Quick installation guide	Y
Manual	Y
Rack mount kit	Y
AC adapter included	Y
Package type	Box
