4-port USD HDMI Multi-View Dual Rail WideScreen LCD KVM Switch


Not in stock
€ 3.950,75
€ 4.780,40 incl 21% VAT

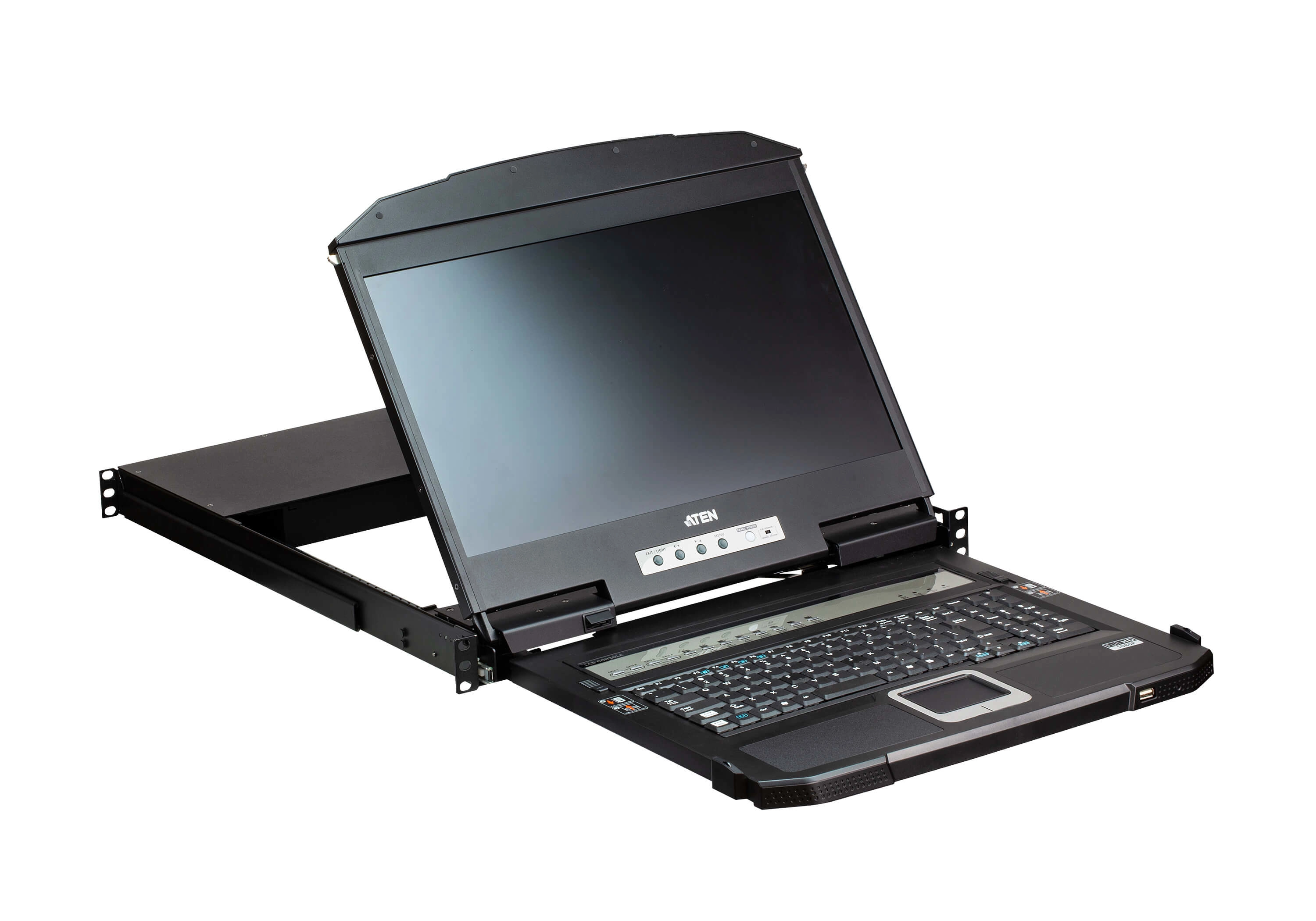

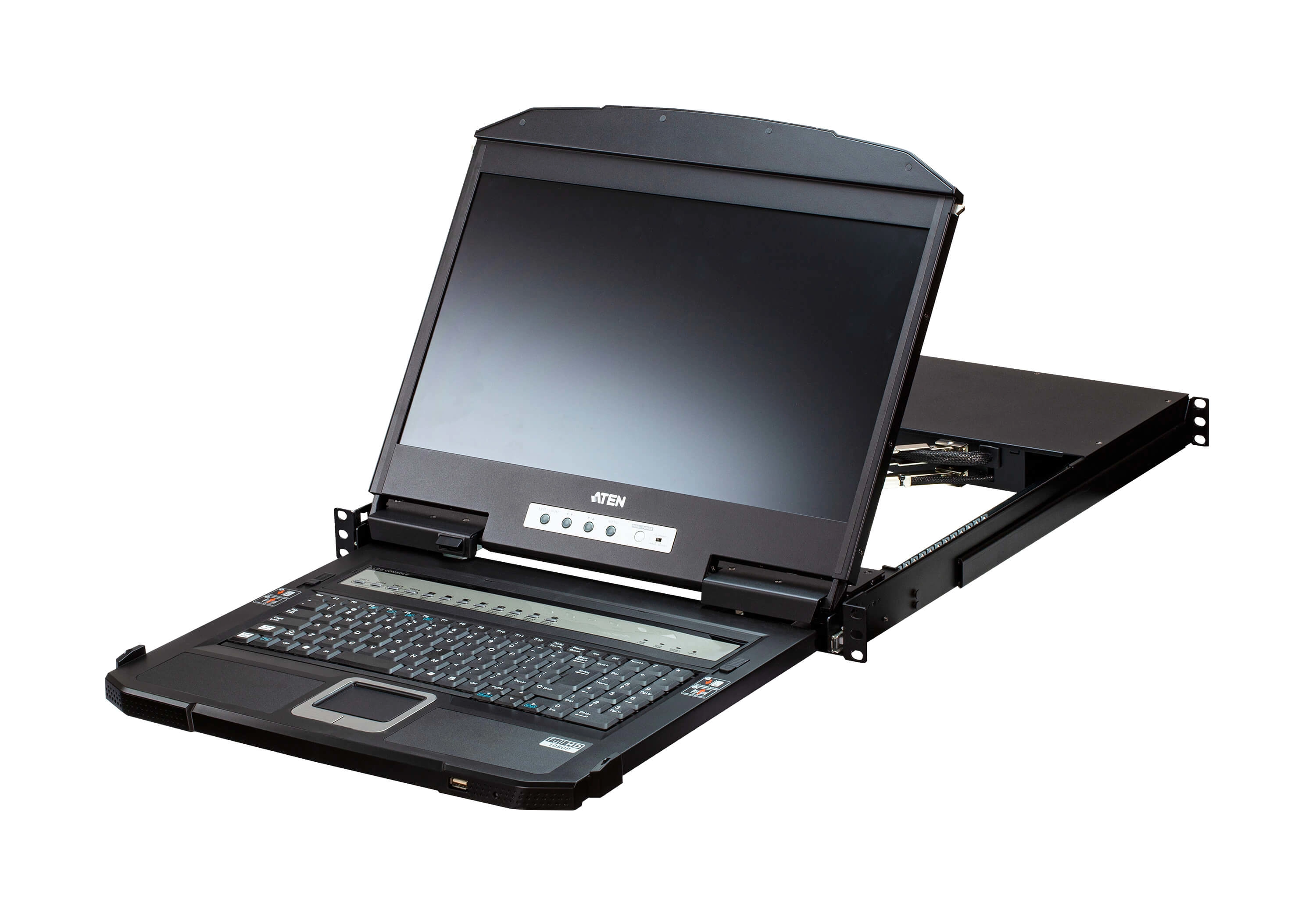

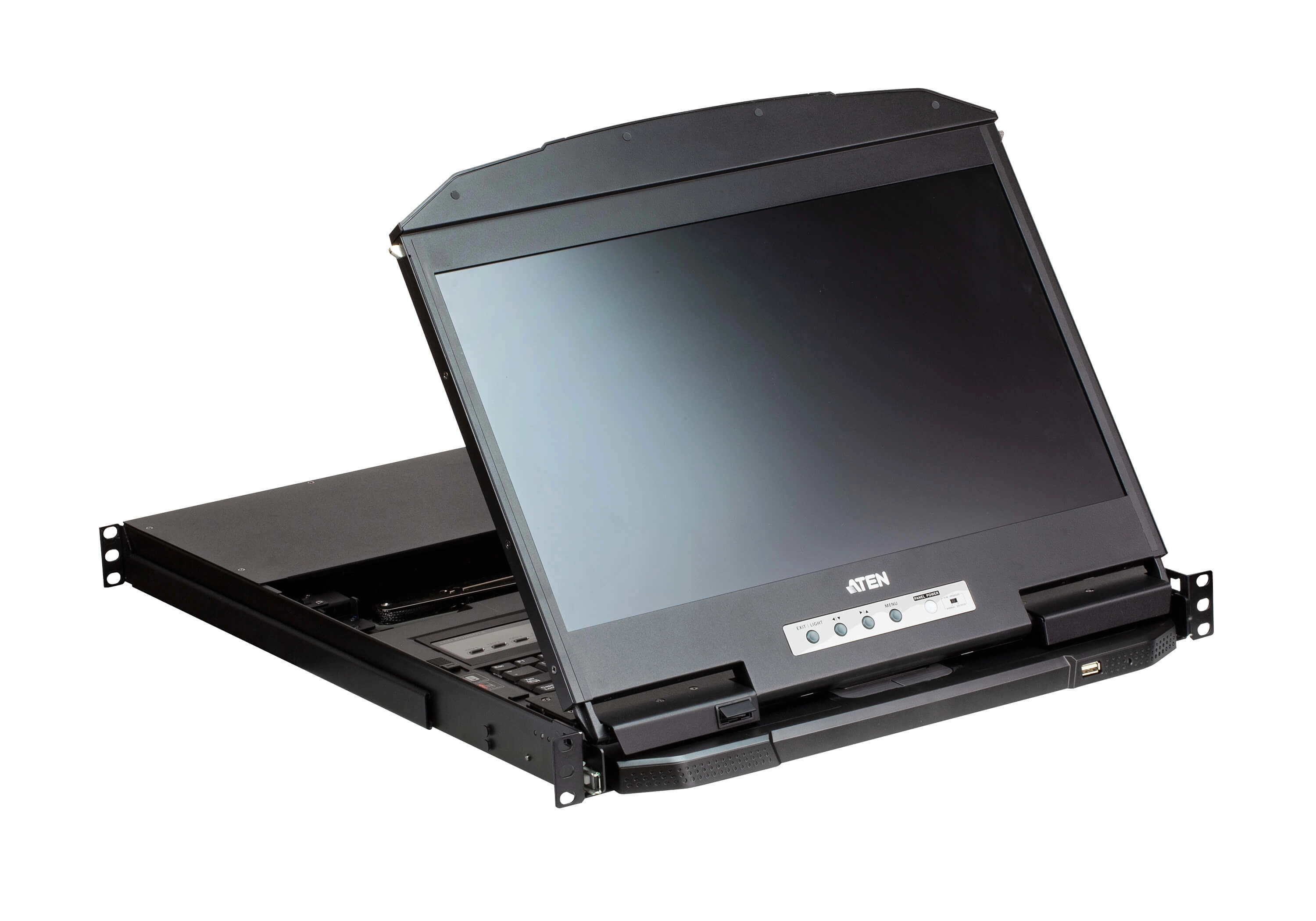

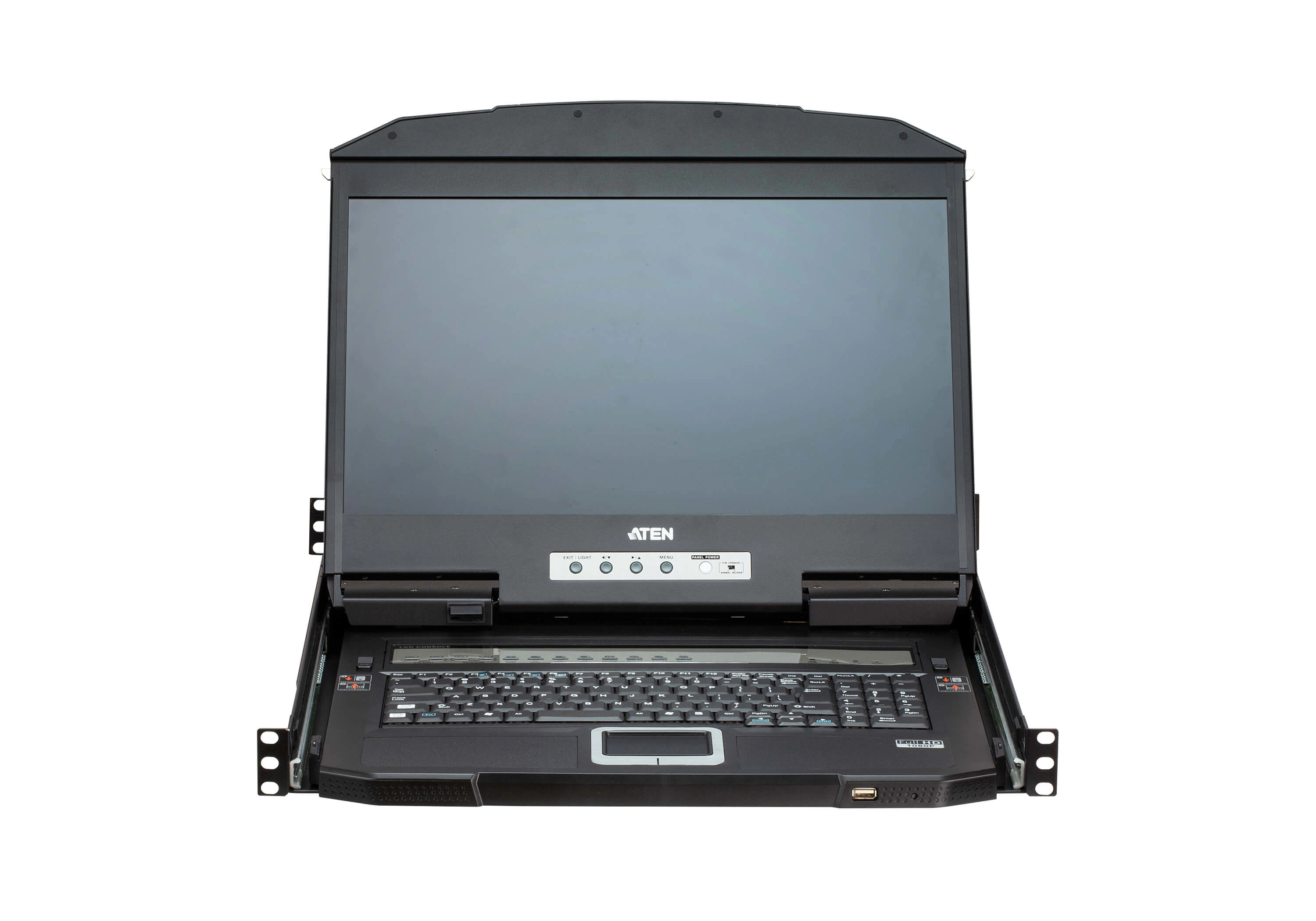

The ATEN CL3884NW LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable slide housing. The dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the LCD monitor rotates back, flush against the rack, to allow convenient monitoring of computer activity.
1x CL3884NW LCD KVM Switch with Standard Rack Mounting Kit
2x LIN5-28V1-V11G KVM Cable Sets (USB, HDMI, Audio; 1.8m)
2x KC06-0024-100G/200G L Brackets
1x LIN2-418K-E12G Power Cord
1x User Instructions


Product id 757561
Brand Aten
Partnr CL3884NW-ATA-XG
EAN/UPC code 4719264649240

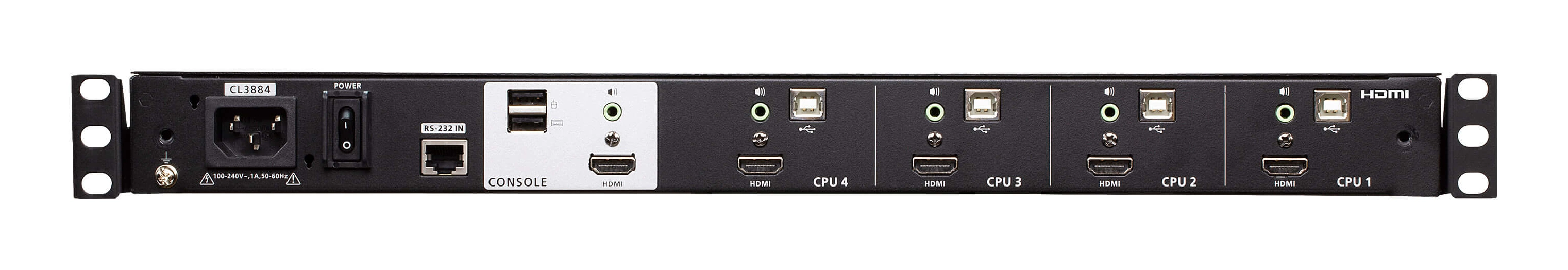

Ports & interfaces
Number of computers controlled 16
Keyboard port type USB
Mouse port type USB
Video port type HDMI
HDMI ports quantity 4
USB 2.0 Type-B ports quantity 4
Console ports 3.5mm headphone, HDMI, USB A
Console USB ports quantity 2
USB connector type USB Type-A, USB Type-B
Audio connections Y
Headphone outputs 4
Serial port type RJ-45
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
HD type Full HD+
Maximum resolution 1920 x 1200 Pixels
Video bandwidth 60 Hz
Scan interval 5, 10, 15, 30, 60, 90 s
Rack mounting Y
Product colour Black
LED indicators Y
Push button Y
Built-in display Y
Display LCD
Display diagonal 18.5 inch
Power source DC
AC input voltage 100 - 240 V
AC input frequency 50-60 Hz
Packaging data
Package width 668 mm
Package depth 718 mm
Package height 135 mm
Package weight 14635 g
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 85 procent
Storage relative humidity (H-H) 0 - 85 procent
Weight & dimensions
Width 631 mm
Depth 480.6 mm
Height 42.8 mm
Weight 11800 g
Packaging content
Quick installation guide Y
Manual Y
Logistics data
Master (outer) case net weight 11800 g
Master (outer) case width 668 mm
Master (outer) case length 718 mm
Master (outer) case height 135 mm
Master (outer) case weight 14635 g
Quantity per master (outer) case 1 stuk(s)
