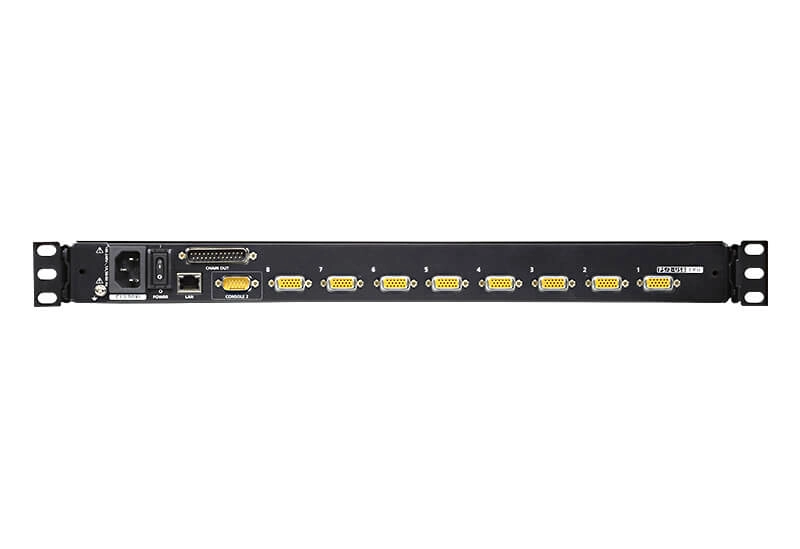

The CL5708I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708I can control up to 8 computers. As many as 15 additional KVM switches can be daisychained to the CL5708I, so that up to 128 computers can all be controlled from a single KVM console.

1x CL5708I LCD KVM over IP Switch with standard Rack Mount Kit
2x 2L-5202U Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
1x LIN5-27X6-U22G Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions

Specification

Product
Product id	987650
Brand	Aten
Partnr	CL5708IN-ATA-AG
EAN/UPC code	4710469345470
Ports & interfaces
Number of computers controlled	1
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
VGA (D-Sub) ports quantity	8
Console ports	VGA (D-Sub)
USB hub	Y
USB 2.0 Type-A hub ports quantity	2
USB connector type	USB Type-A
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Performance
HD type	WUXGA
Maximum resolution	1920 x 1200 Pixels
Video bandwidth	60 Hz
Scan interval	1, 255 s
Firmware upgradeable	Y
Design
Rack mounting	Y
Product colour	Black
Housing material	Metal, Plastic
LED indicators	Y
Display
Built-in display	Y
Display	LCD
Display diagonal	19 inch
Power
Power source	AC
Input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1 A
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85 procent
Storage relative humidity (H-H)	0 - 85 procent
Weight & dimensions
Width	689.2 mm
Depth	480 mm
Height	44 mm
Weight	13780 g
Packaging content
Quick installation guide	Y
Manual	Y
