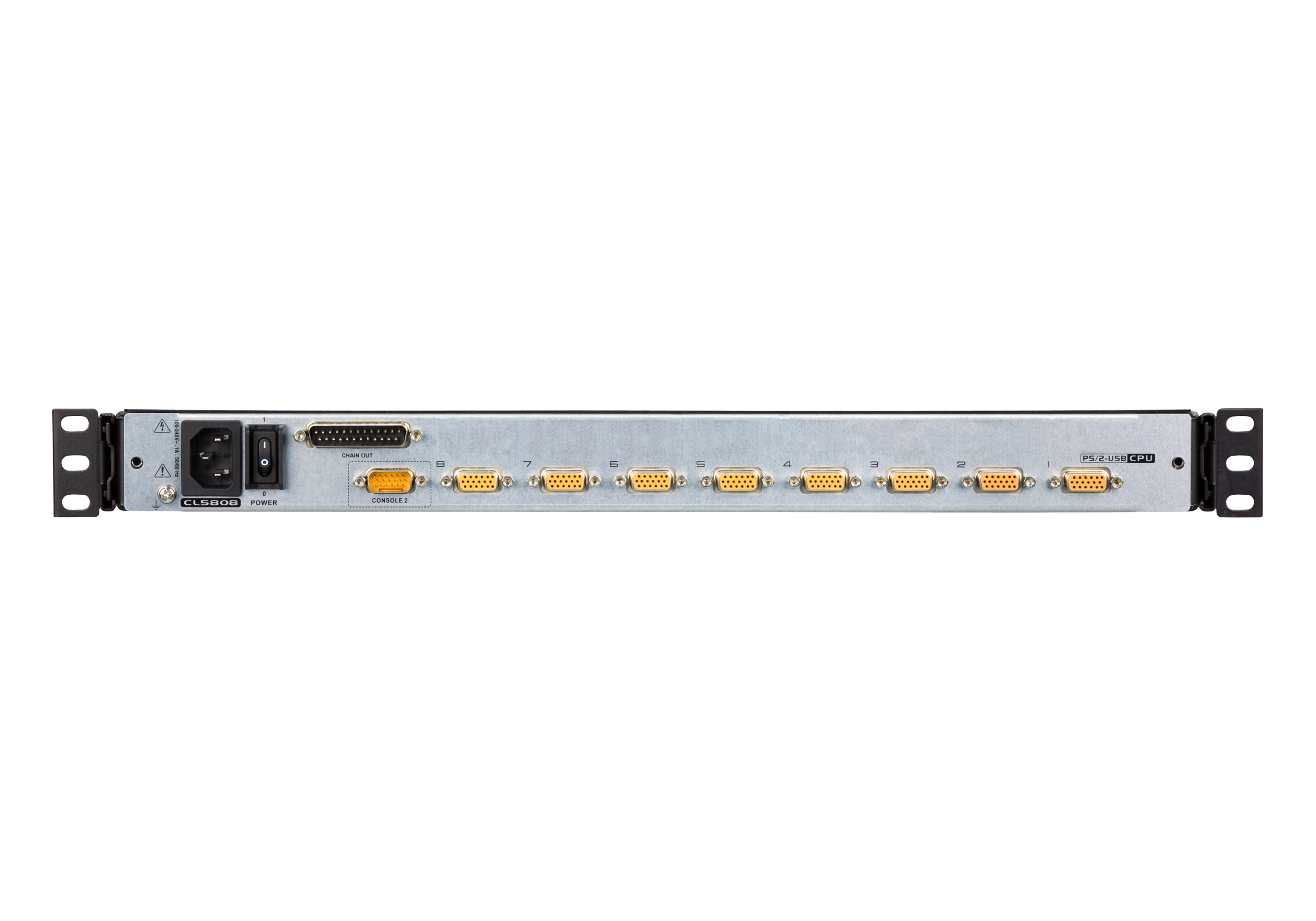

The CL5808 Slideaway™ Dual Rail LCD KVM Switch is a control unit that allows access to multiple computers from two PS/2 or USB KVM consoles. An extra console port is provided on the rear panel to manage the LCD KVM switch from an optional external consoles.

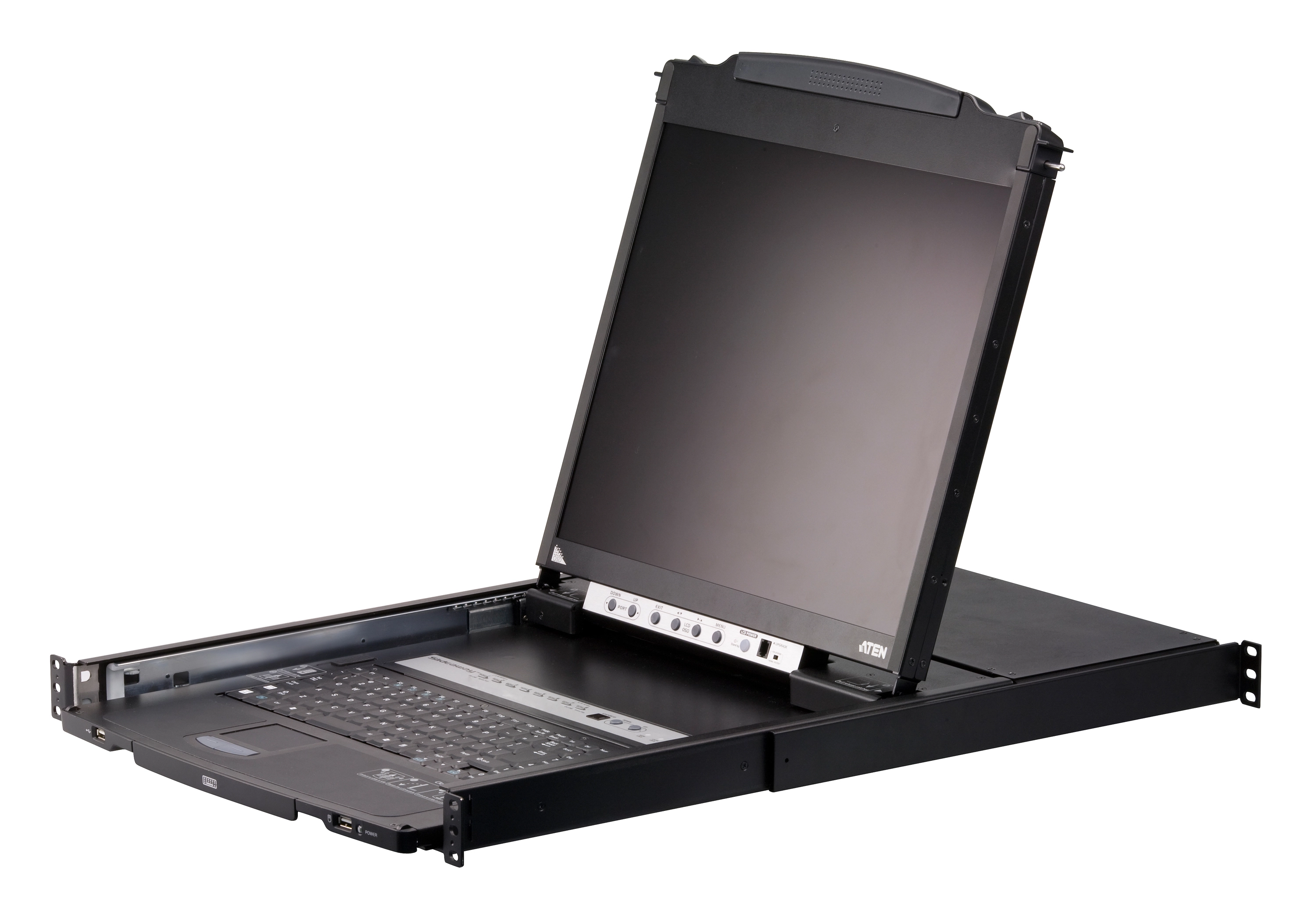

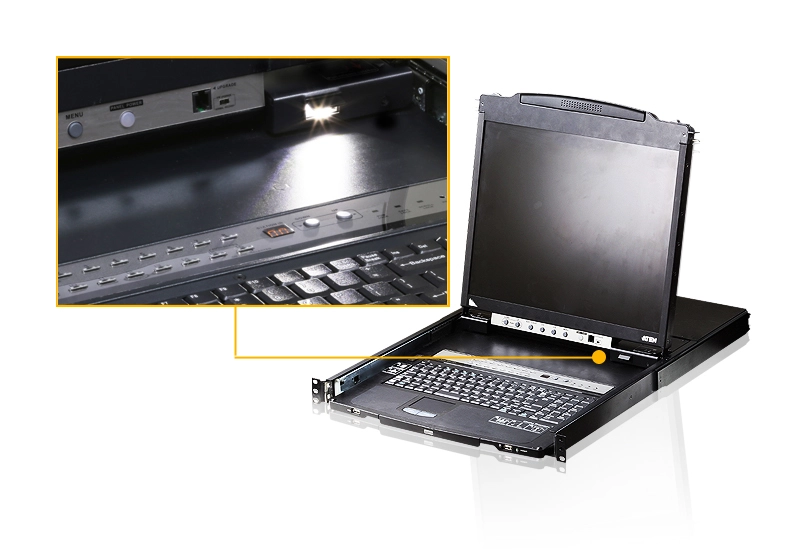

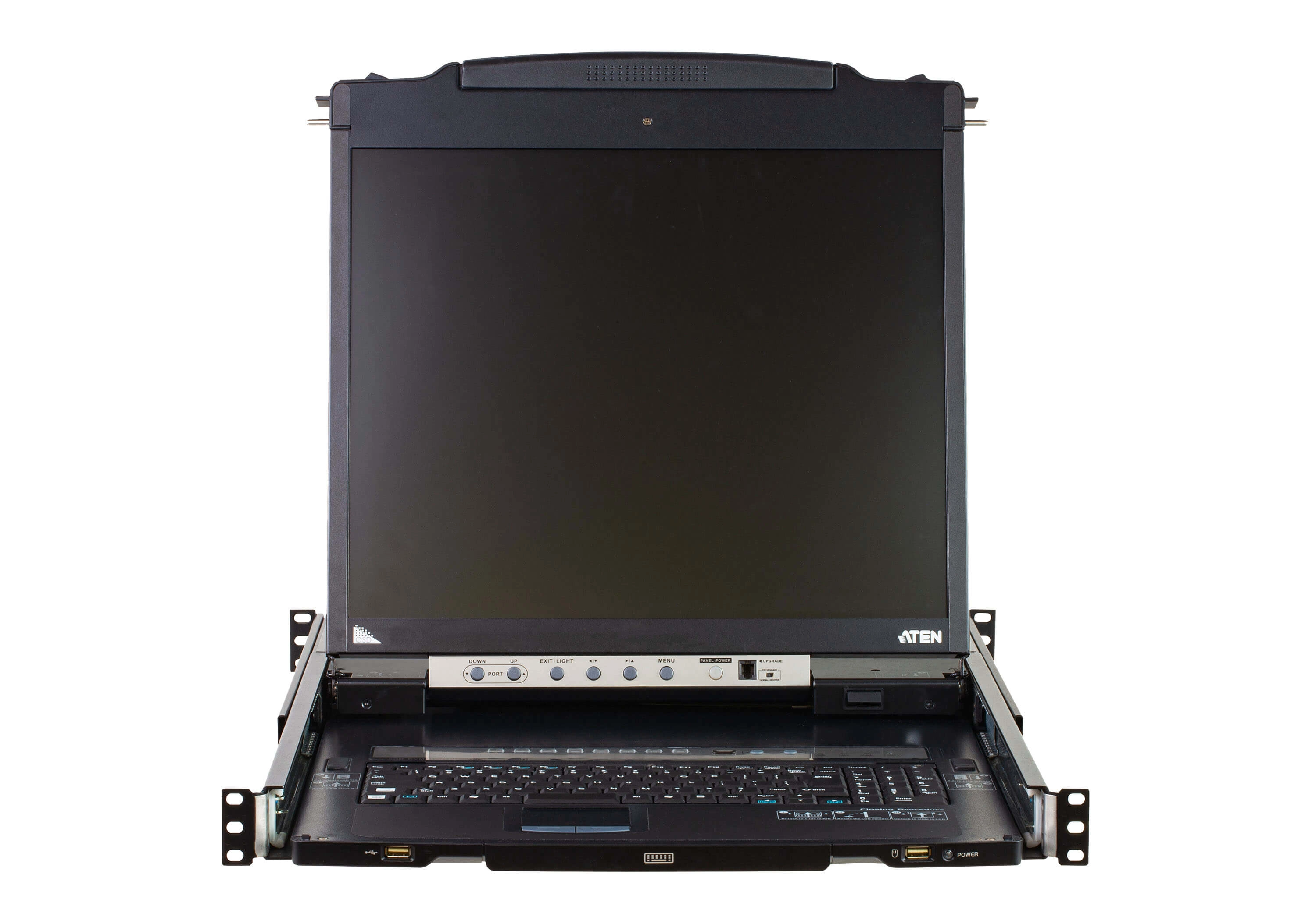

The CL5808 19" LED-backlit LCD monitor and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. Quickly and conveniently switch computer access with station and port selection pushbutton switches located on the keyboard module. Even when the keyboard module is in the retracted position you can still switch access with the Port Up/Port Down pushbuttons located on the monitor module.
The CL5808 supports both PS/2 and USB keyboards and mice for the connected computers, and the CL5808 supports USB peripheral devices to be used with the attached computers. A single CL5808 can control up to 8 computers. As many as 31 additional compatible KVM switches can be daisy chained together, so that up to 256 computers can all be controlled from a single keyboard, monitor, and mouse console.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Specification

Product
Product id	987731
Brand	Aten
Partnr	CL5808N-ATA-DNG
EAN/UPC code	4710469343407
Display
Display diagonal	19 inch
Display resolution	1280 x 1024 Pixels
Display	LCD
Response time	5 ms
Display type	TFT
Pixel pitch	0.294 x 0.294 mm
On Screen Display (OSD)	Y
Viewing angle, vertical	160 °
Viewing angle, horizontal	170 °
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Supported resolutions	1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
Technical details
Material	Metal, Plastic
LED indicators	Y
Number of computers controlled	256
Console port	SPHD-18
Daisy chain	Y
Rack mounting	Y
On/off switch	Y
KVM switch ports quantity	8
Push button	Y
Product colour	Black
Auto scan delay (min)	1 s
Operating relative humidity (H-H)	0 - 80 procent
Auto scan delay (max)	255 s
Built-in KVM switch	Y
Hot-Plug support	Y
Rack capacity	1U
Maximum resolution	1920 x 1200 Pixels
Compliance certificates	RoHS
Ports & interfaces
VGA (D-Sub) ports quantity	1
Video port type	VGA
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-A ports quantity	3
I/O ports	1x RJ-11 1x DB-25 8x SPHD-17/18
Keyboard
Built-in touchpad	Y
Hot keys	Y
System requirements
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in	Y
Weight & dimensions
Width	680.4 mm
Height	44 mm
Depth	480 mm
Weight	14480 g
Packaging content
Cables included	AC, KVM
Quick installation guide	Y
Manual	Y
Rack mount kit	Y
