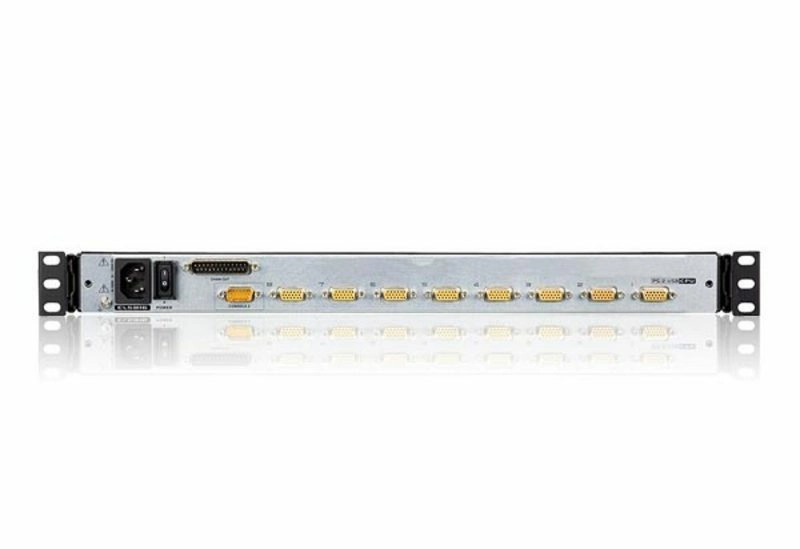

- The CL5808 Slideaway™ Dual Rail LCD KVM Switch is a control unit that allows access to multiple computers from two PS/2 or USB KVM consoles. An extra console port is provided on the rear panel to manage the LCD KVM switch from an optional external consoles.
- The CL5808 19" LED-backlit LCD monitor and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. Quickly and conveniently switch computer access with station and port selection pushbutton switches located on the keyboard module. Even when the keyboard module is in the retracted position you can still switch access with the Port Up/Port Down pushbuttons located on the monitor module.
- The CL5808 supports both PS/2 and USB keyboards and mice for the connected computers, and the CL5808 supports USB peripheral devices to be used with the attached computers. A single CL5808 can control up to 8 computers. As many as 31 additional compatible KVM switches can be daisy chained together, so that up to 256 computers can all be controlled from a single keyboard, monitor, and mouse console.

Specification

Product
Product id	987735
Brand	Aten
Partnr	CL5808N-ATA-ITG
EAN/UPC code	4710469344480
Ports & interfaces
Number of computers controlled	256
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
VGA (D-Sub) ports quantity	9
Console ports	VGA (D-Sub)
Performance
HD type	SXGA
Maximum resolution	1280 x 1024 Pixels
Video bandwidth	75 Hz
Scan interval	1, 255 s
DDC2B support	Y
Auto scan delay (min)	1 s
Hot-Plug support	Y
Auto scan delay (max)	255 s
Daisy chain	Y
Hot-swap	Y
Firmware upgradeable	Y
Design
Rack capacity	1U
Rack mounting	Y
Product colour	Black
Housing material	Metal, Plastic
LED indicators	Y
Push button	Y
Hot keys	Y
Keyboard language	Italian
Display
Built-in display	Y
Display	LCD
Display diagonal	19 inch
On Screen Display (OSD)	Y
Power
Power source	DC
Input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1 A
Power consumption (typical)	27.2 W
System requirements
Windows operating systems supported	Y
Linux operating systems supported	Y
Mac operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	480 mm
Depth	680.4 mm
Height	44 mm
Weight	14480 g
Packaging content
Cables included	AC, KVM
Quick installation guide	Y
Manual	Y
Rack mount kit	Y
Keyboard layout	QWERTY
