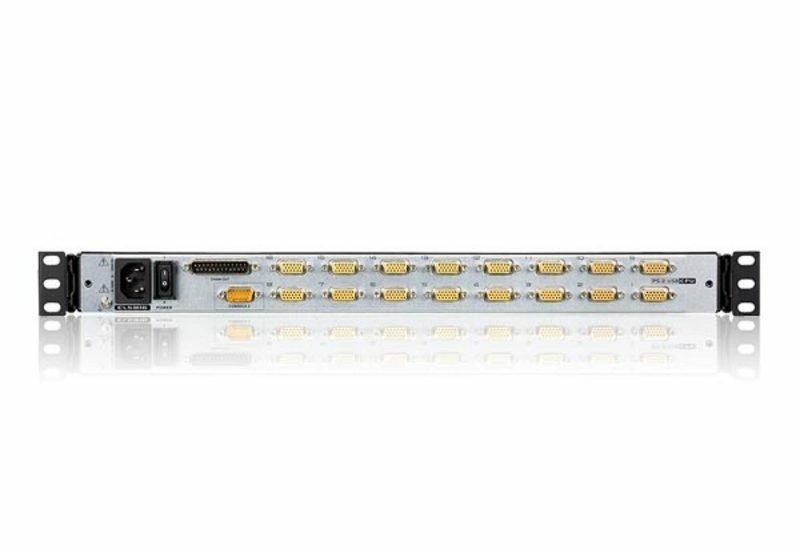

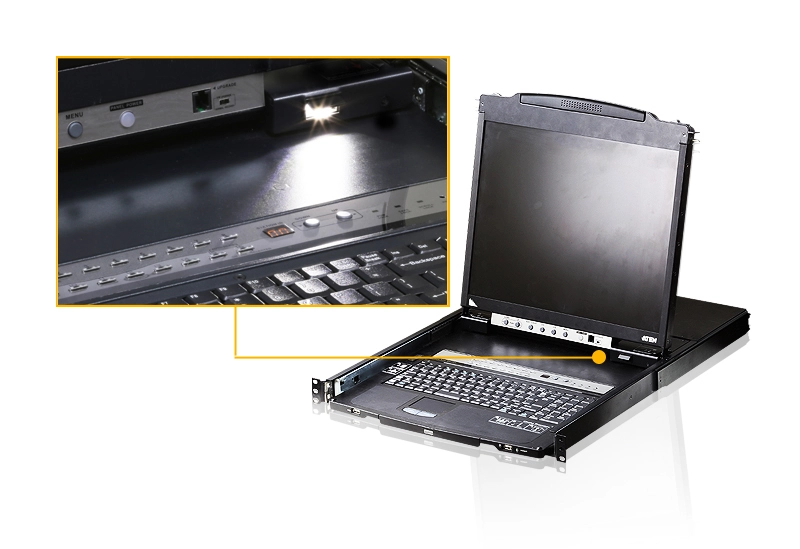

LCD KVM 16-Port LCD KVM Switch-UK-English Keyboard



Aten
Not in stock
€ 1.486,93
€ 1.799,19 incl 21% VAT
ATEN CL5816N-ATA-EG. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: SXGA, Maximum resolution: 1280 x 1024 pixels, Video bandwidth: 75 Hz. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Display: LCD, Display diagonal: 48.3 cm (19"). Power source: DC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz

Specification

Product
Product id 987740
Brand Aten
Partnr CL5816N-ATA-EG
EAN/UPC code 4710469345203
Ports & interfaces
Number of computers controlled 512
Keyboard port type USB, PS/2
Mouse port type USB, PS/2
Video port type VGA
VGA (D-Sub) ports quantity 17
Console ports VGA (D-Sub)
Performance
HD type SXGA
Maximum resolution 1280 x 1024 Pixels
Video bandwidth 75 Hz
Scan interval 1, 255 s
DDC2B support Y
Auto scan delay (min) 1 s
Hot-Plug support Y
Auto scan delay (max) 255 s
Daisy chain Y
Hot-swap Y
Firmware upgradeable Y
Design
Rack capacity 1U
Rack mounting Y
Product colour Black
Housing material Metal
LED indicators Y
Push button Y
Hot keys Y
Display
Built-in display Y
Display LCD
Display diagonal 19 inch
On Screen Display (OSD) Y
Power
Power source DC
Input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 1 A
Power consumption (typical) 27.2 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 procent
Weight & dimensions
Width 480 mm
Depth 680.4 mm
Height 44 mm
Packaging content
Cables included AC, KVM
Quick installation guide Y
Manual Y
Rack mount kit Y
