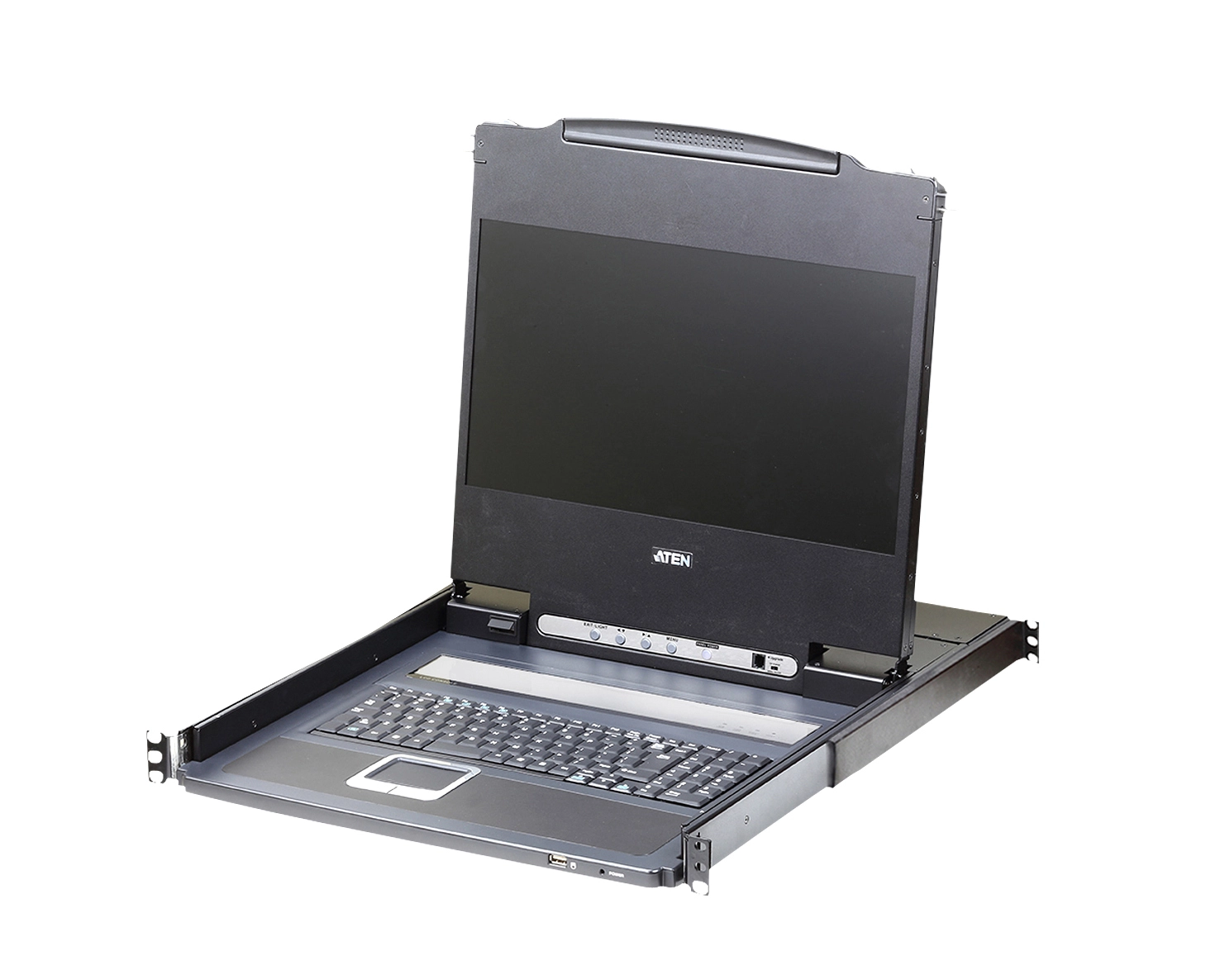

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.

Specification

Product
Product id	987750
Brand	Aten
Partnr	CL6700MW-ATA-GG
EAN/UPC code	4710469344220
Display
Display diagonal	17.3 inch
Display	LCD
Technical details
LED indicators	Y
Number of computers controlled	1
Rack mounting	Y
Product colour	Black
Operating relative humidity (H-H)	0 - 80 procent
Rack capacity	1U
Maximum resolution	1920 x 1080 Pixels
Compliance certificates	RoHS
Ports & interfaces
VGA (D-Sub) ports quantity	2
Mouse port type	USB
Keyboard port type	USB
Keyboard
Keyboard language	German
Keyboard layout	QWERTZ
System requirements
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Power
Power consumption (typical)	19.4 W
Input current	1 A
Weight & dimensions
Width	589.2 mm
Height	44 mm
Depth	480 mm
Weight	11380 g
Packaging content
Manual	Y
