Power advanced multi-screen workflows with an 8K dual-display KVM switch for creative, financial, and professional applications.

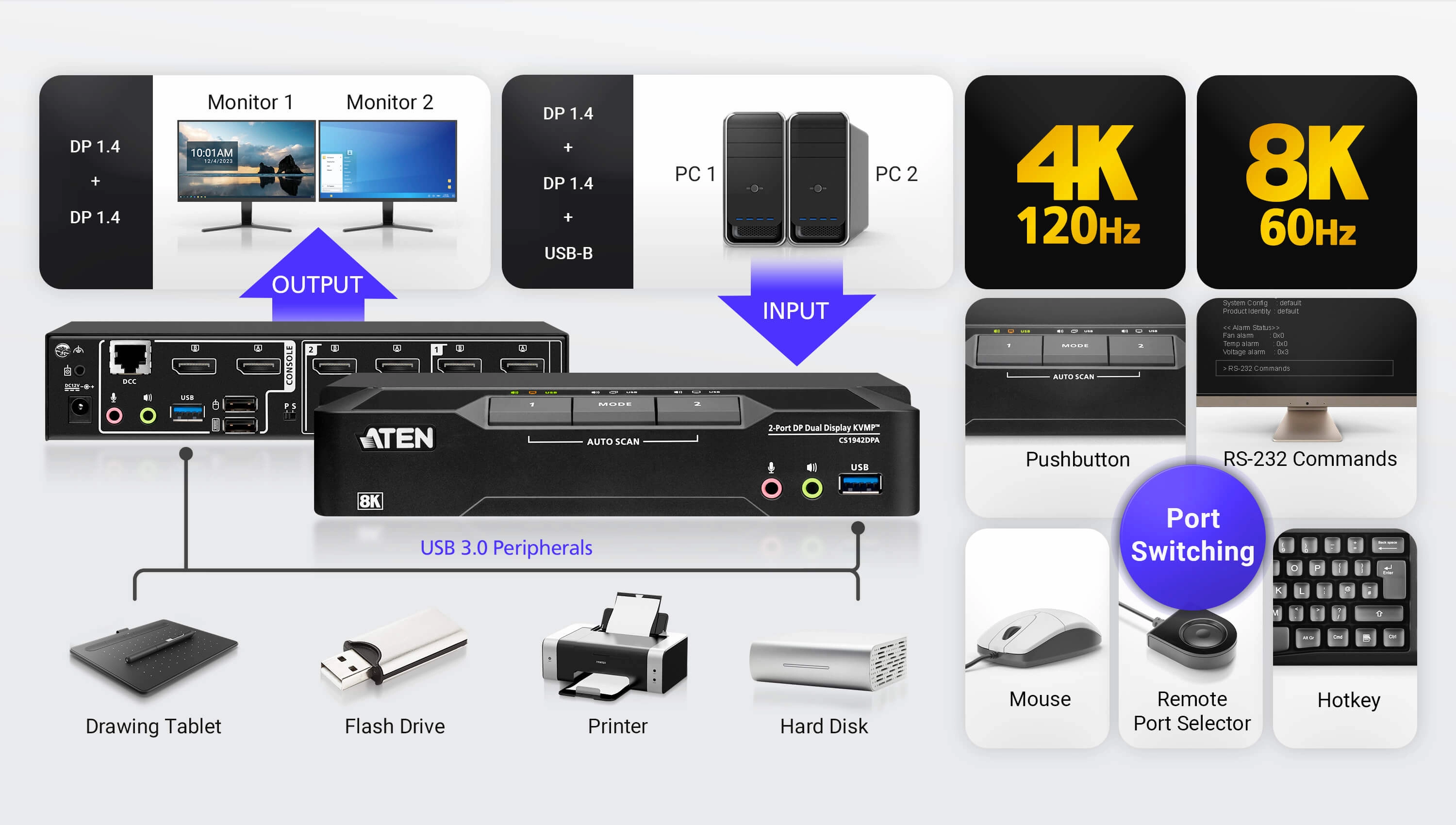

2 DisplayPort PCs, 2 DisplayPort Displays, One KVM Console

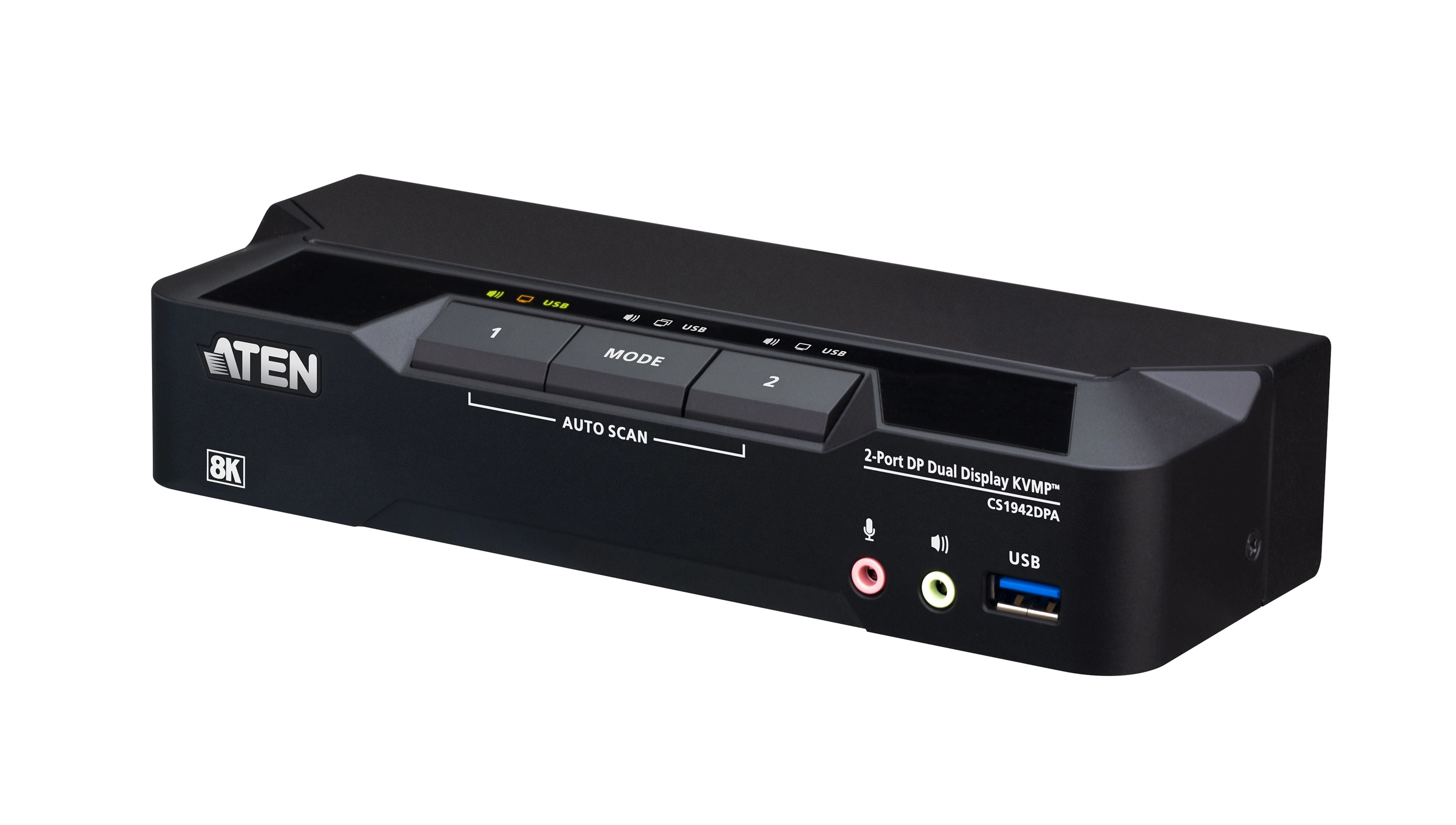

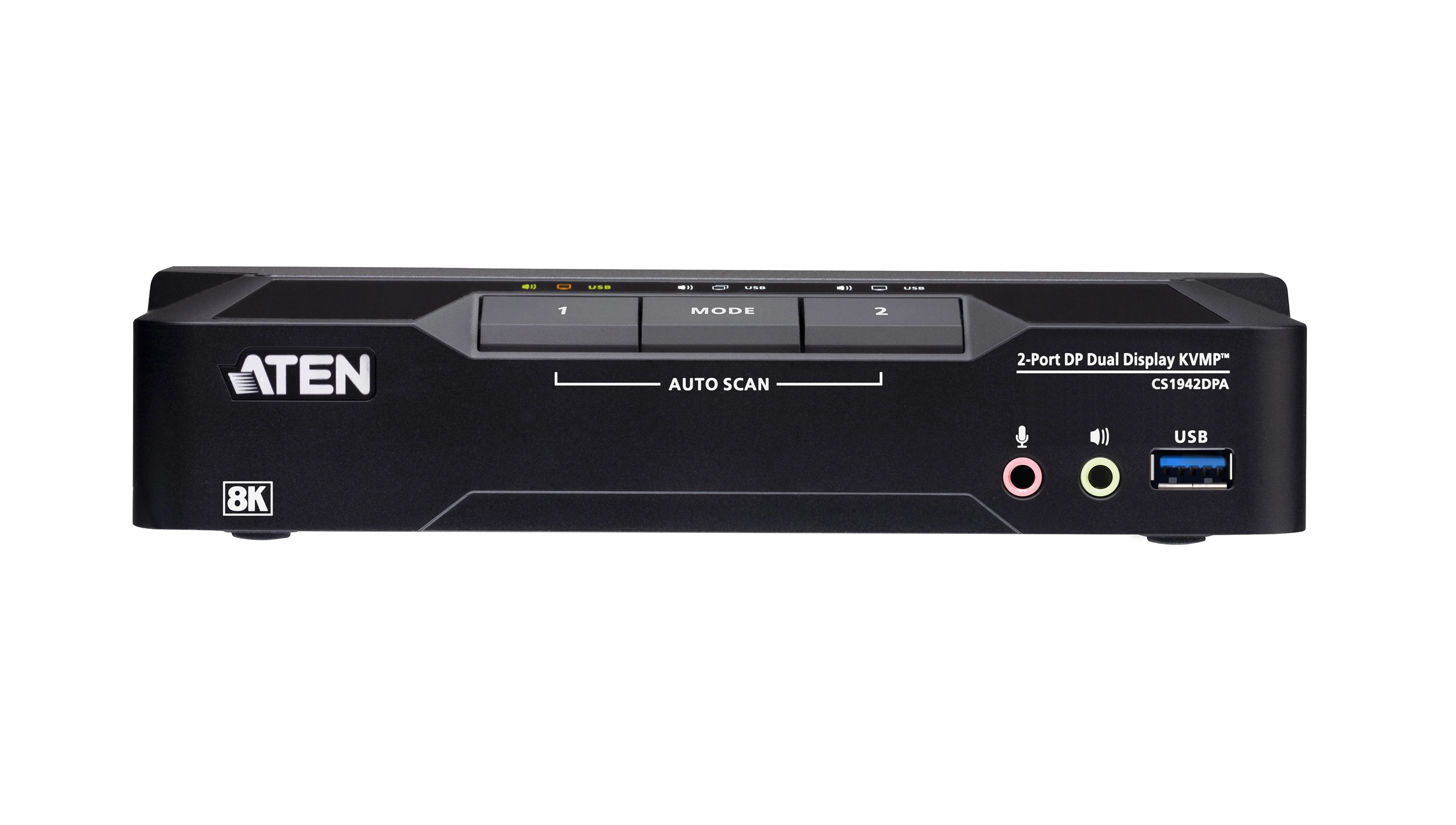

The CS1942DPA is a 2-port KVM switch that empowers you to switch between projects with ease on a 2-PC, dual-display desktop. With a single keyboard and mouse, you can maintain a tidy workspace while simplifying control of two DisplayPort computers across two DisplayPort displays. Whether you're a professional seeking a productivity booster for your daily office routines, a content creator, a hybrid worker, or someone looking for an immersive entertainment setup, the CS1942DPA is definitely your key to a workspace transformation.

Unlock your creativity at this multitasking KVM workstation with:
● A pristine visual experience up to 4K@240 and 8K@60
● Ultra-wide 21:9 and 32:9 aspect ratios for an expansive viewing experience
● A 2-port USB 3.0 hub for peripheral sharing, supporting up to 5 Gbps data transfer
● Multi-system compatibility with Windows, macOS, and Linux

Specification

Product
Product id	1029212
Brand	Aten
Partnr	CS1942DPA-AT-G
EAN/UPC code	4711581520547

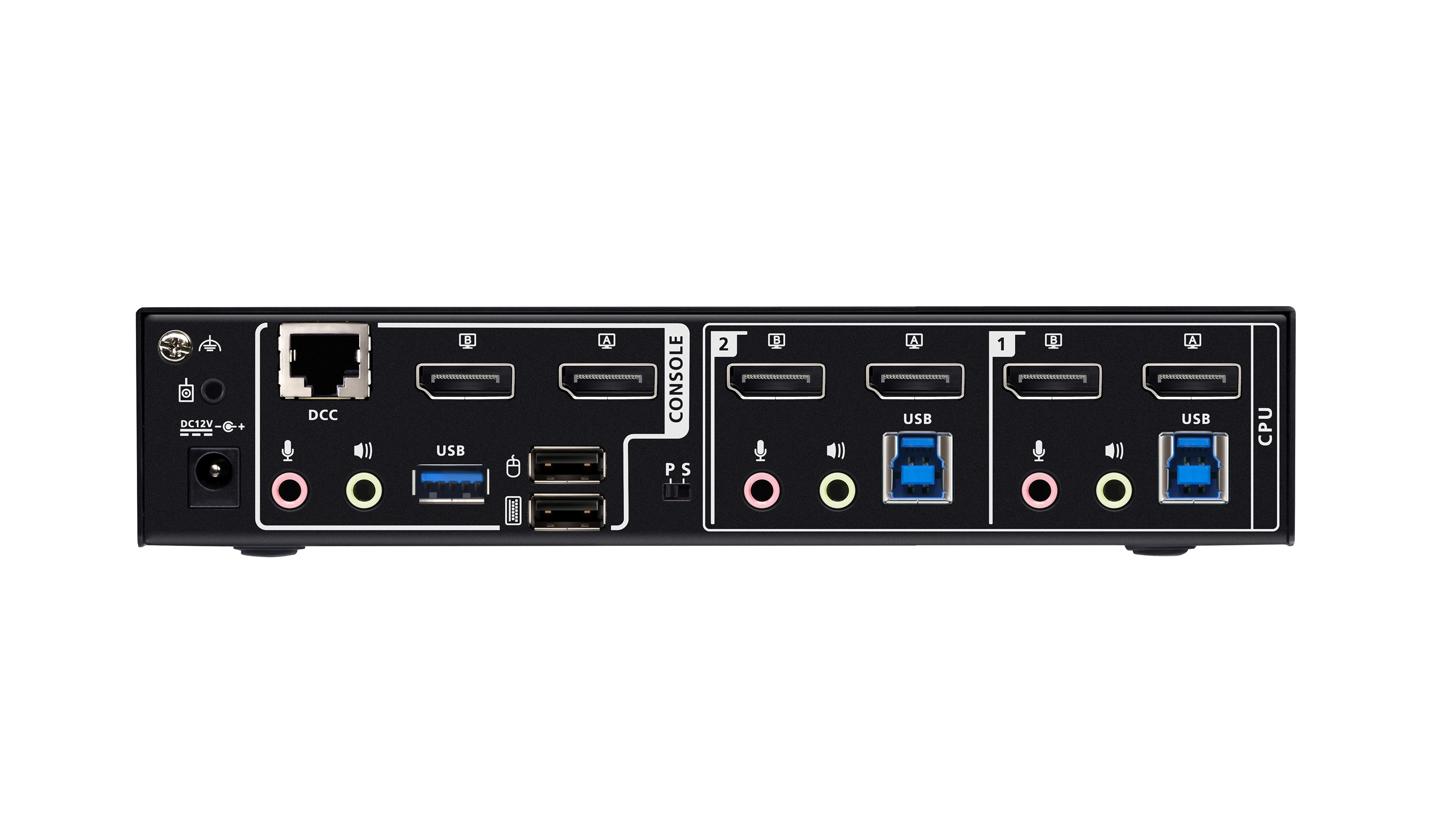

Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
Console ports	3.5mm headphone, DisplayPort, USB A
Console USB ports quantity	2
USB hub	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Console DisplayPorts ports quantity	4
USB connector type	USB Type-A, USB Type-B
Console RJ-45 ports quantity	1
Headphone outputs	4
Number of microphone inputs	4
DC-in jack	Y
Performance
HD type	8K Ultra HD
Maximum resolution	7680 x 4320 Pixels
Video bandwidth	60 Hz
Scan interval	1, 99 s
Maximum refresh rate	240 Hz
Design
Rack mounting	N
Product colour	Black
LED indicators	Y
Push button	Y
Display
Built-in display	N
Power
Power source	DC
Input voltage	12 V
Power consumption (typical)	3.18 W
Features
Country of origin	Thailand
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	71.8 mm
Depth	200 mm
Height	43 mm
Weight	470 g

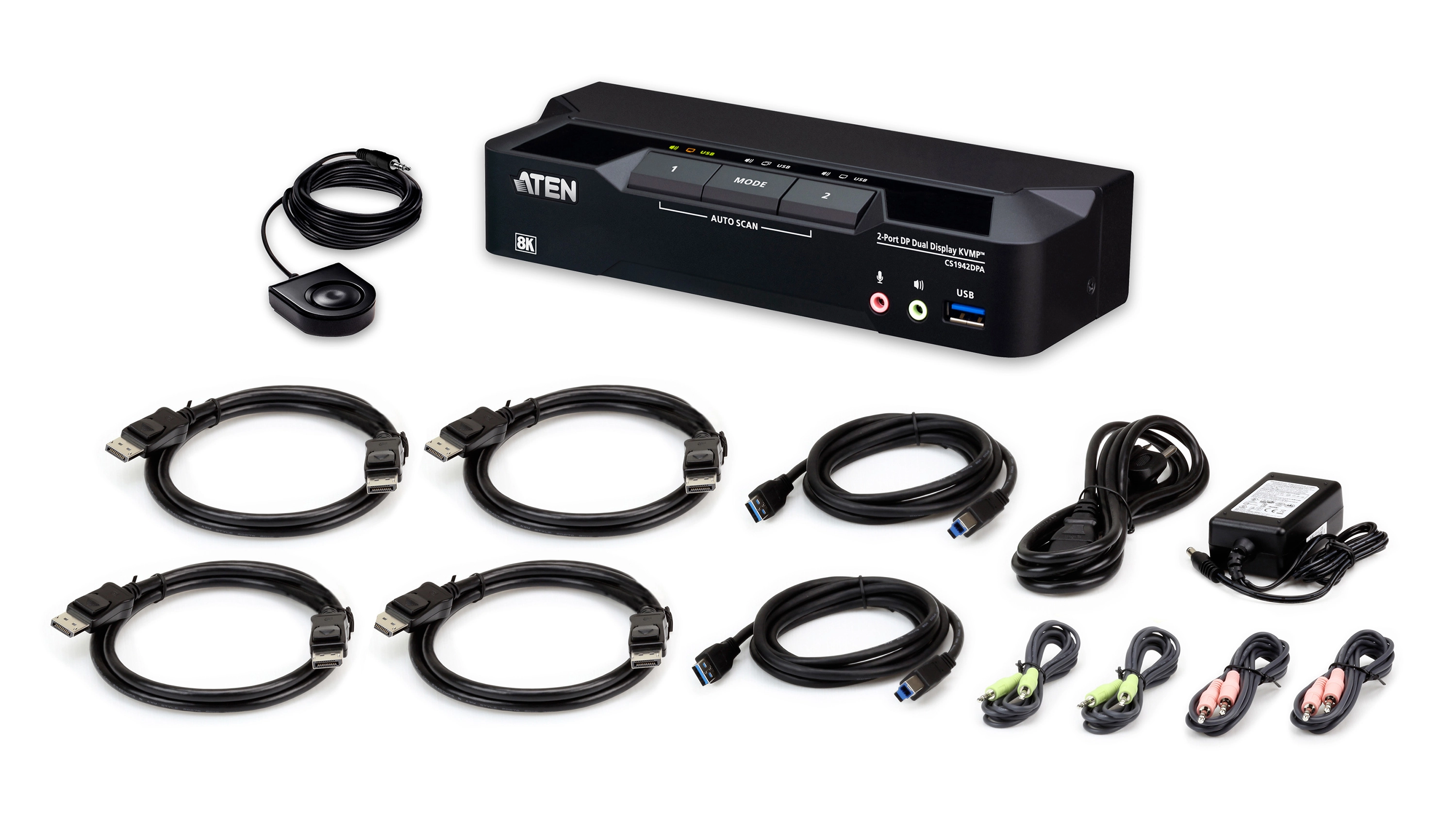

Packaging content
Quick installation guide	Y
Logistics data
Harmonized System (HS) code	84718000
