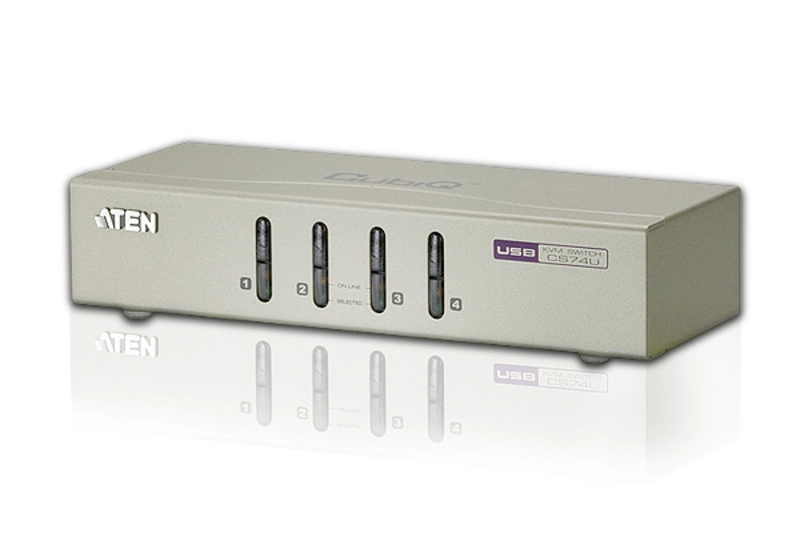

The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (keyboard and mouse, audio and VGA monitor).

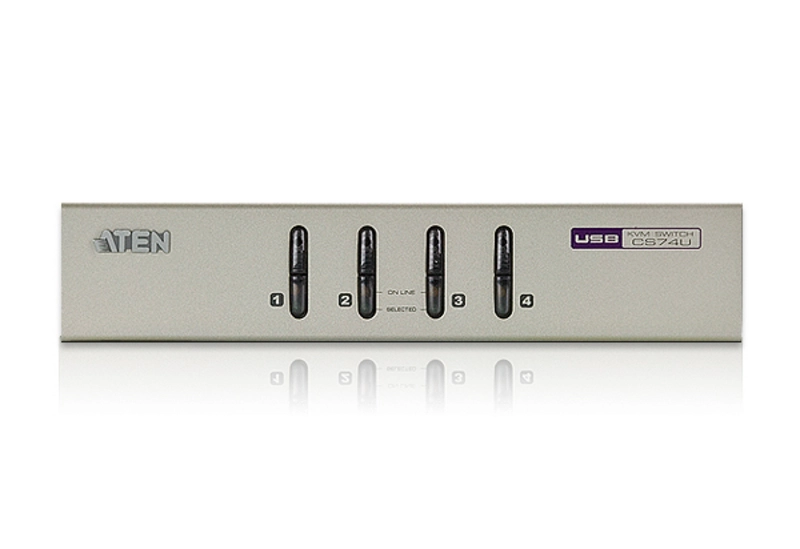

With the CS74U, you can access computers conveniently using port selection pushbuttons located on the unit's front panel.
1x CS74U 4-Port USB KVM Switch
2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
2x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
1x User Instructions

Note: The provided custom KVM cable set is custom-made to work with CS72U / CS74U, which transmits video, audio, and USB signals from the unit to the connected PC. There are two custom KVM cable sets available for purchase (1.2 m custom KVM cable set: LIN5-23X5-X31G; 1.8 m custom KVM cable set: LIN5-23X5-X32G). To purchase additional custom-made KVM cables, please contact your ATEN dealer for more information.

Specification

Product
Product id	416297
Brand	Aten
Partnr	CS74U-AT
EAN/UPC code	4710423773448
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
VGA (D-Sub) ports quantity	4

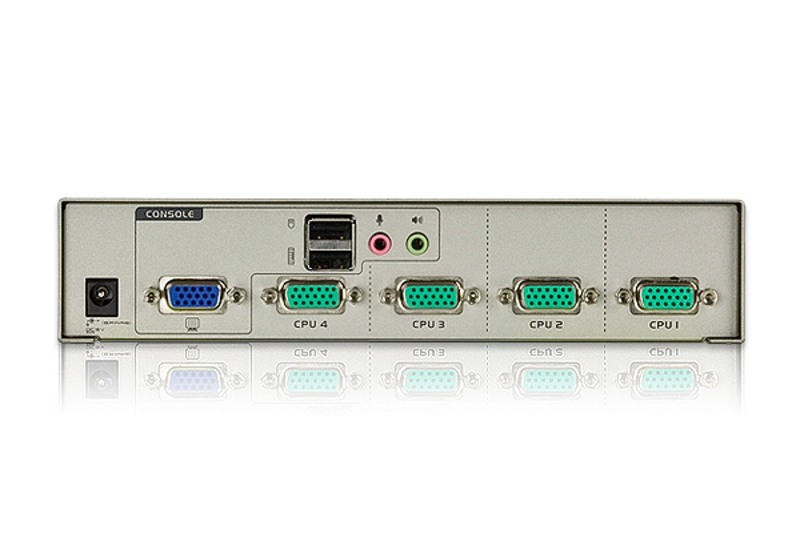

Console ports	3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity	2
Audio connections	Y
Headphone outputs	1
Number of microphone inputs	1
DC-in jack	Y
Performance
HD type	QXGA
DDC2B support	Y
Design
Rack mounting	N
Product colour	Grey
Housing material	Metal
Display
Built-in display	N
Power
Power source	DC
Input voltage	5 V
Power consumption (typical)	0.177 W
Packaging data
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	1670 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	200 mm
Depth	76.5 mm
Height	44 mm
Weight	1466 g
Packaging content
Quick installation guide	Y
Manual	Y
Logistics data
Master (outer) case net weight	7330 g
Master (outer) case width	292 mm
Harmonized System (HS) code	85176200
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case weight	8670 g
Quantity per master (outer) case	5 stuk(s)
