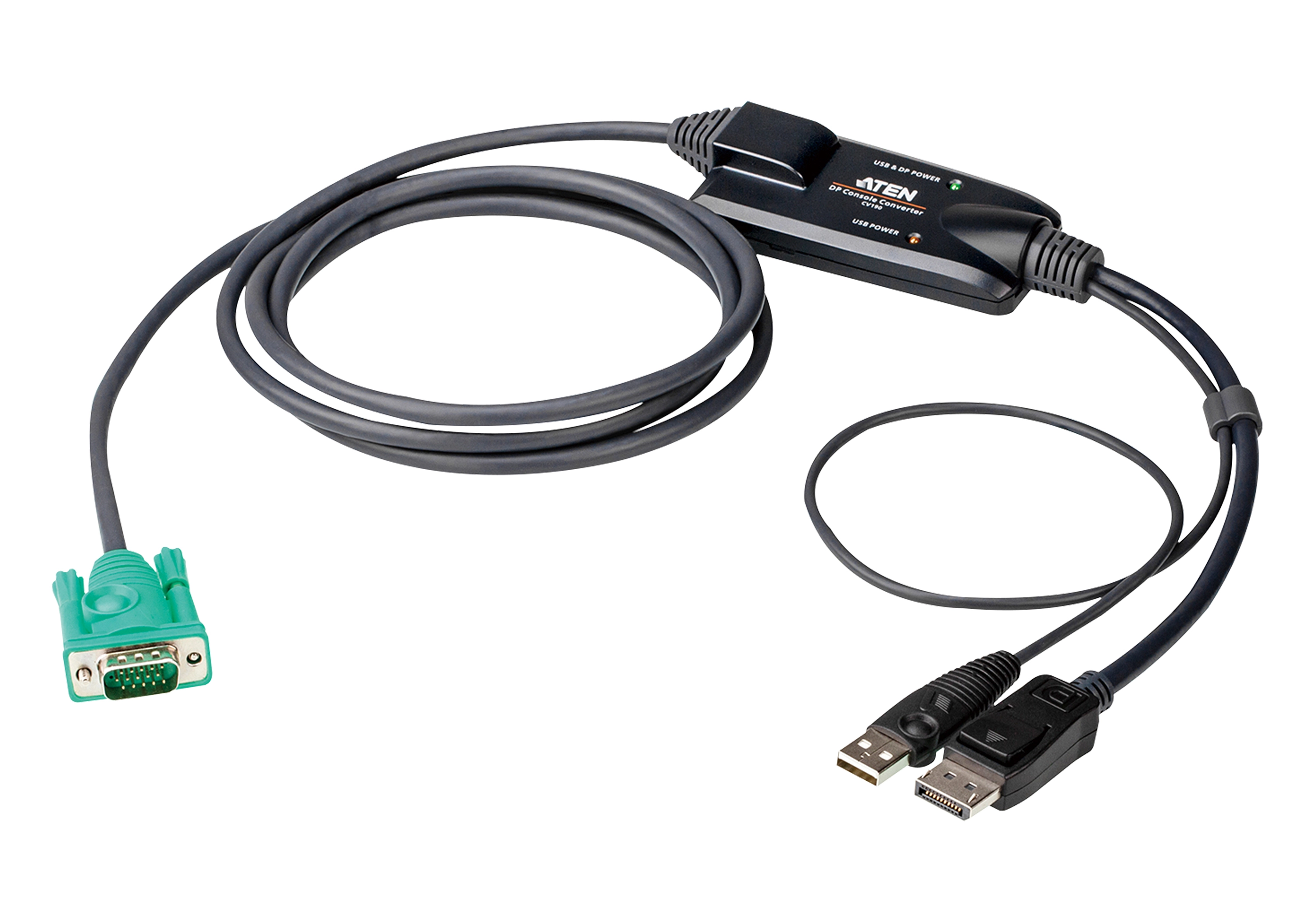

The CV190 is a DisplayPort console converter. It fully supports ATEN KVM switches, which use specially designed 15 pin Special High Density connectors (SPHD-15) to transmit the KVM data between the switch and the computer.
1x CV190 DisplayPort console converter cable

Specification

Product
Product id	681801
Brand	Aten
Partnr	CV190-AT
EAN/UPC code	4719264649523
Performance
Product colour	Black
Cable length	1.8 m
Keyboard port type	USB
Video port type	DisplayPort
Connector 1	USB Type A + DisplayPort
Connector 2	SPHD-15
Connector 1 gender	Male connector
Connector 2 gender	Male connector
Material	Plastic
Maximum video resolution	1920 x 1080 Pixels
Technical details
Sustainability certificates	RoHS
Packaging data
Weight	210 g
Package width	59 mm
Package depth	119 mm
Package height	160 mm
Package weight	254 g
Logistics data
Master (outer) case net weight	8400 g
Master (outer) case width	315 mm
Master (outer) case length	490 mm
Master (outer) case height	338 mm
Master (outer) case weight	10670 g
Quantity per master (outer) case	40 stuk(s)
Other features
Storage temperature (T-T)	-20 - 60 °C
