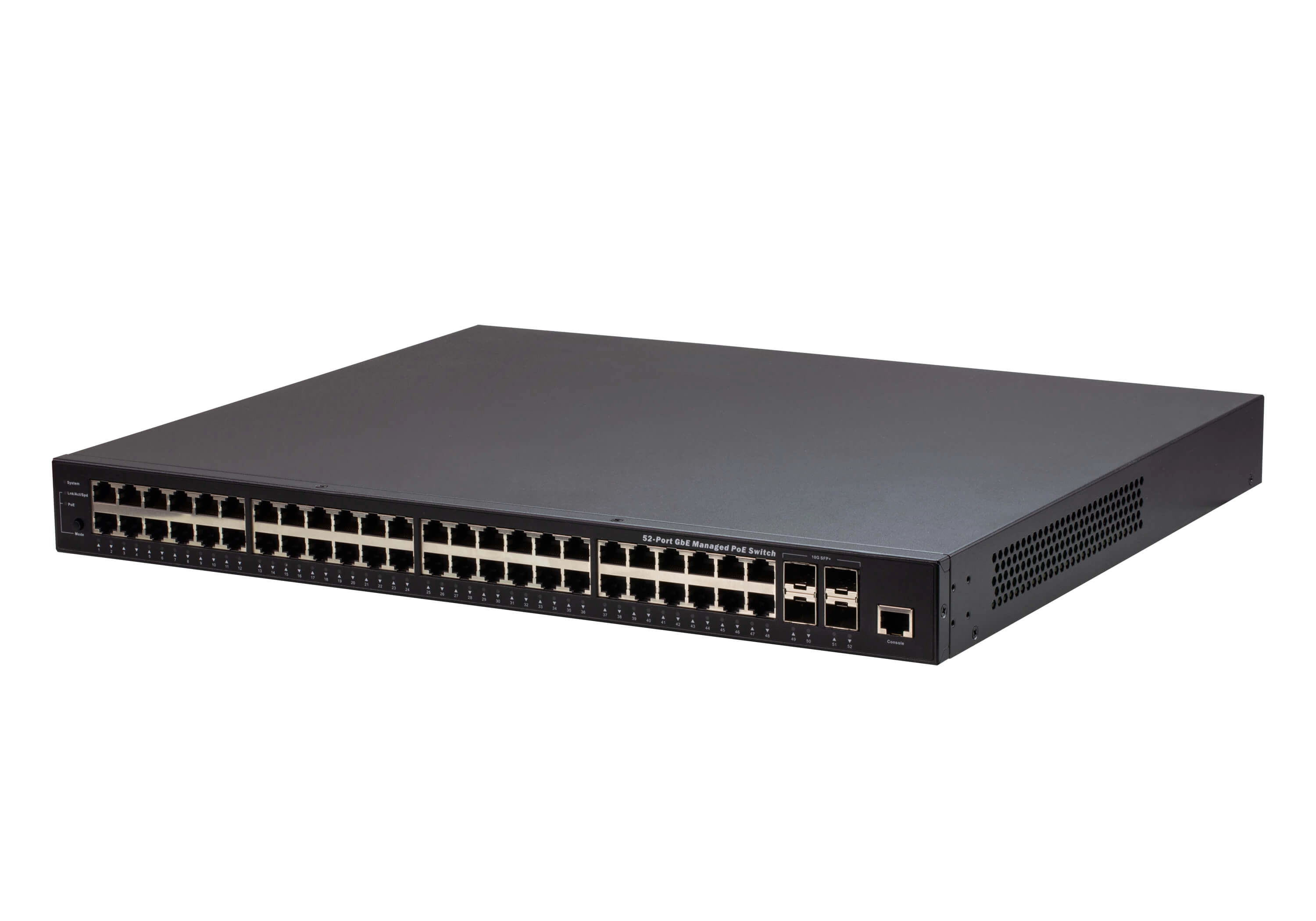

52-Port GbE PoE Managed Switch


The ES0152P is a feature-rich managed switch for ATEN KE series KVM over IP extenders and VE89 series Video over IP extenders. Ideal for installation in combination with the KE / VE89 series products, the ES0152P helps users build their OT infrastructure with the KE series by eliminating the hassles of complicated setup.
1x ES0152P 52-Port GbE PoE Managed Switch
1x LIN2-418K-E12G AC Power Cord
1x RJ45 to DB9 Serial Console Cable
1x Foot Pad Set (4 pcs. )
1x Mounting Kit
1x User Instructions

Specification

Product
Product id 790598
Brand Aten
Partnr ES0152P-AX-G
EAN/UPC code 4719264648441
Data transmission
Switching capacity 176 Gbit/s
Forwarding rate 130.95 Mpps
Jumbo frames support Y
Jumbo frames 10240
Network
Networking standards IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
10G support Y
Flow control support Y
Spanning tree protocol Y
Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 4
Console port RJ-45
Security
IGMP snooping Y
Weight & dimensions
Width 442 mm
Depth 375 mm
Height 44 mm
Weight 5930 g
Packaging data
Cables included AC
Package weight 6816 g
User guide Y
Package width 470 mm
Package depth 534 mm
Package height 138 mm
Power
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Design
Product colour Black
Housing material Metal
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 10 - 90 procent
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 10 - 90 procent
Power over Ethernet (PoE)
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 48
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 740 W
Logistics data
Master (outer) case net weight 11860 g
Master (outer) case width 488 mm
Master (outer) case length 551 mm
Master (outer) case height 312 mm
Master (outer) case weight 15090 g
Quantity per master (outer) case 2 stuk(s)
