Intelligent Control. Complete Visibility. Leaner Teams.
The KE8980MR is a high-performance KVM over IP Multi-View Receiver designed to revolutionize how you monitor and control physical and virtual servers across up to four displays at a single workstation. Seamlessly integrated into the KVM over IP Matrix System, it empowers operators to effortlessly manage up to 16 servers in stunning True 4K clarity using flexible multiview layouts, while simultaneously monitoring up to 108 servers to maximize productivity in high-stakes environments.

Engineered for operational excellence, the KE8980MR features ATEN’s exclusive Boundless Switching MX™, allowing real-time switching between systems simply by moving the mouse freely across displays and windows, ensuring an immediate response to mission-critical events when every second counts. Additionally, with video wall integration, the KE8980MR fosters timely team collaboration and sharp situational awareness.

Purpose-built for leaner operations, the KE8980MR minimizes hardware complexity and maximizes team efficiency. Whether in broadcast, air traffic control, surveillance, or mission-critical transportation hubs, it’s an indispensable solution that promotes agile teamwork, without expanding headcount.

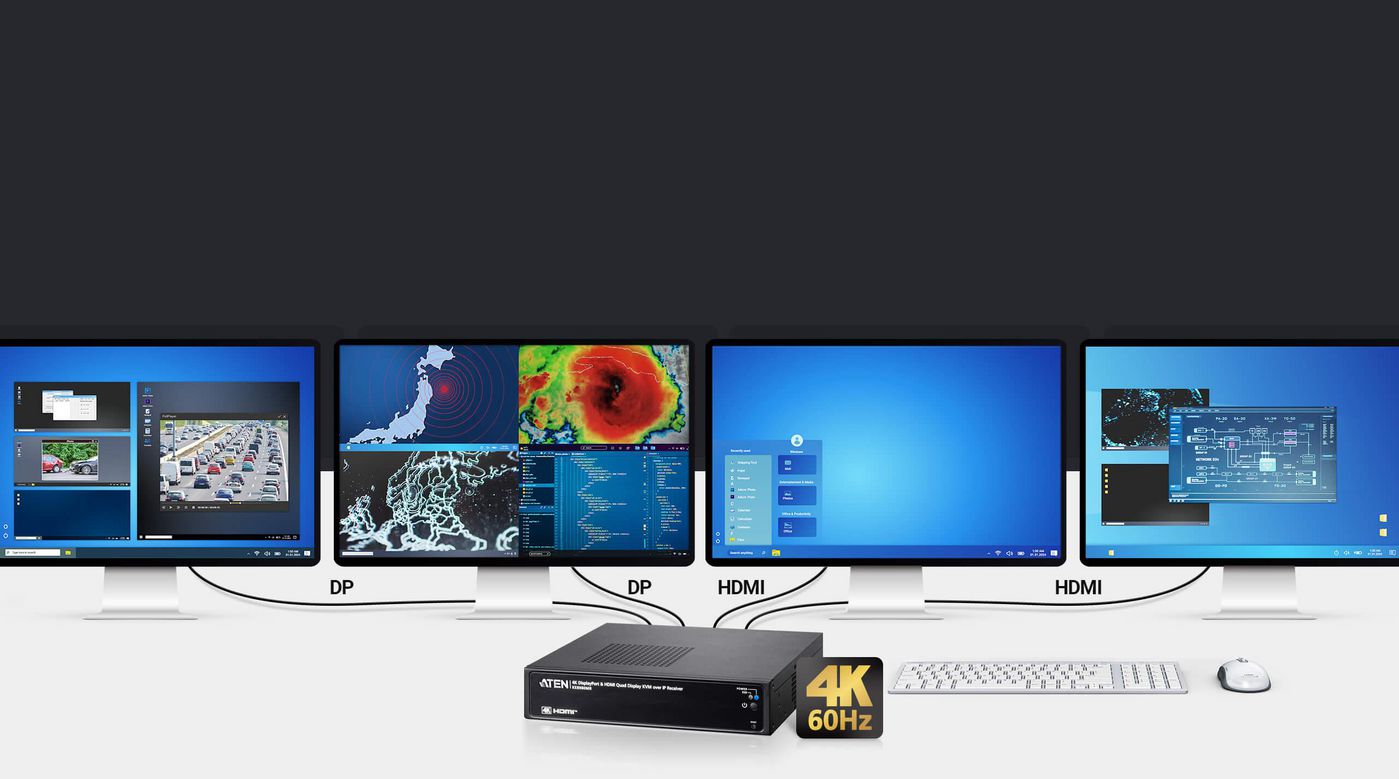

4K60 Visual Brilliance across Quad Displays
Experience ultra-crisp 4K@60 DCI visual performance across four displays (2× HDMI and 2× DisplayPort) with the KE8980MR – engineered for precision-critical monitoring and built to empower control room operations with informed, immediate decision-making.

Multiview Control with Boundless Switching MX™
Server management is straightforward, allowing up to 16 servers to be managed in separate, resizable windows that can be freely positioned or overlapped across four displays. KE8980MR is further powered by ATEN’s exclusive Boundless Switching MX™. By simply moving the mouse cursor across displays or windows, operator control instantly shifts to the corresponding system – enabling intuitive, seamless switching without the need for any other manual input.

Centralized Monitoring via Panel Array™
During active monitoring, the quad-display setup can be switched to operation mode – featuring Panel Array™, which highlights a specific server video on one screen for dedicated attention while displaying others in a multiview layout of up to a 6×6 array (i. e. 108 servers) – enabling centralized server management and a streamlined monitoring experience.

Virtualization via VNC or RDP
In addition to physical server systems, the KE8980MR enables access to and control of virtualized environments on VMware®, Microsoft®, and Citrix™ platforms via RDP (Remote Desktop Protocol) and VNC (Virtual Network Computing). Tasks such as mounting ISO images, booting and upgrading devices, and running diagnostics can all be performed remotely – just as if they were being executed locally.

Effortless Switching between Physical and Virtual Machines
Built for ultimate flexibility, the KE8980MR excels in dynamic IT infrastructures with transmitter-receiver connections in a matrix configuration, enabling highly adaptable deployments. As part of the scalable KVM over IP Matrix System, it empowers operators with real-time monitoring and seamless switching between physical servers connected via KE series KVM over IP transmitters and virtual machines – all effortlessly managed through ATEN’s intuitive CCKM system.

Share and Shift with Workspace Presets
The quad-display multiview setup can be customized and saved as a workspace preset, allowing seamless transitions between users in a shared workstation environment. Ideal for shift-based workflows, this feature empowers leaner teams to maintain peak productivity without compromising operational efficiency.

KVM Operation Recording via CCVSR
By integrating CCVSR (Control Center Video Session Recording) into the KVM over IP Matrix System, every operator session – including video output, keyboard input, and mouse activity – can be recorded in real time. This enhances security automation in control room and server room environments, supporting effective auditing, traceability, and proactive risk mitigation.

Applications
Designed for control room applications in mind, the KE8980MR is particularly well-suited for fast-paced control rooms in broadcast, surveillance, air traffic control, transportation hubs, and beyond.

Specification

Product
Product id	1007766
Brand	Aten
Partnr	KE8980MR-AX-G
EAN/UPC code	4710469349867
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
Console ports	DisplayPort, HDMI
USB hub	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Console DisplayPorts ports quantity	2
Console HDMI ports quantity	2
Audio connections	Y
Headphone outputs	1
Serial port type	RS-232
Serial ports quantity	1
Number of microphone inputs	1
DC-in jack	Y
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	2
Performance
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 Pixels
Design
Product colour	Black
Housing material	Metal
LED indicators	Power, Reset
Hot keys	Y
Display
Built-in display	N
On Screen Display (OSD)	Y
Power
Power source	DC
Output voltage	19 V
External power adapter	Y
Power consumption (typical)	33 W
Features
Country of origin	Taiwan
Packaging data
Package weight	2310 g
Package volume	11723.174 cm³
Operational conditions
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90 procent
Weight & dimensions
Width	190 mm
Depth	200 mm
Height	41.8 mm
Weight	1340 g
Packaging content
Cables included	AC
Manual	Y
AC adapter included	Y
Logistics data
Master (outer) case net weight	5700 g
Master (outer) case width	365 mm
Harmonized System (HS) code	84718000
Master (outer) case length	396 mm
Master (outer) case height	294 mm
Master (outer) case weight	7600 g
Master (outer) case volume	42503.587 cm³
