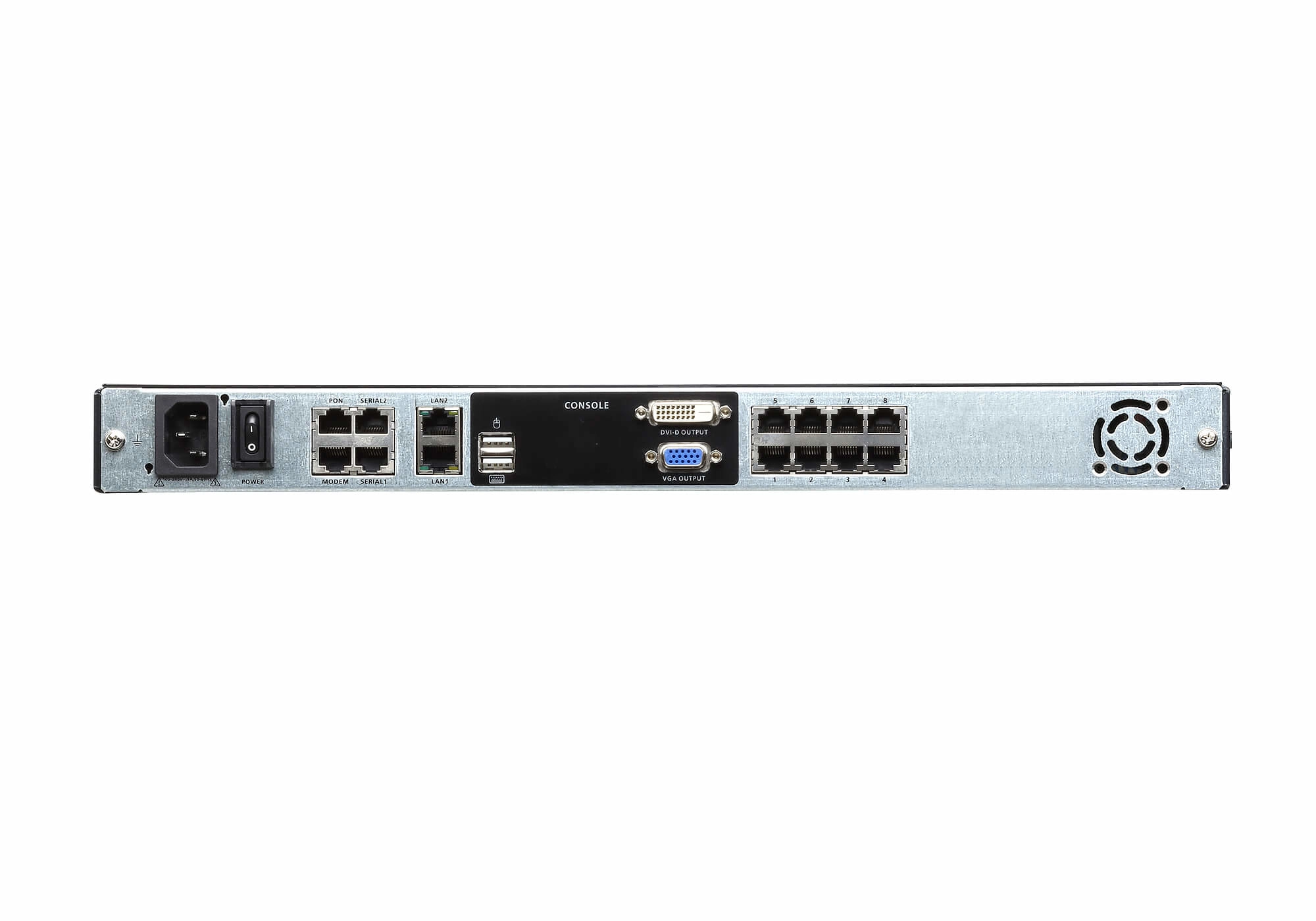

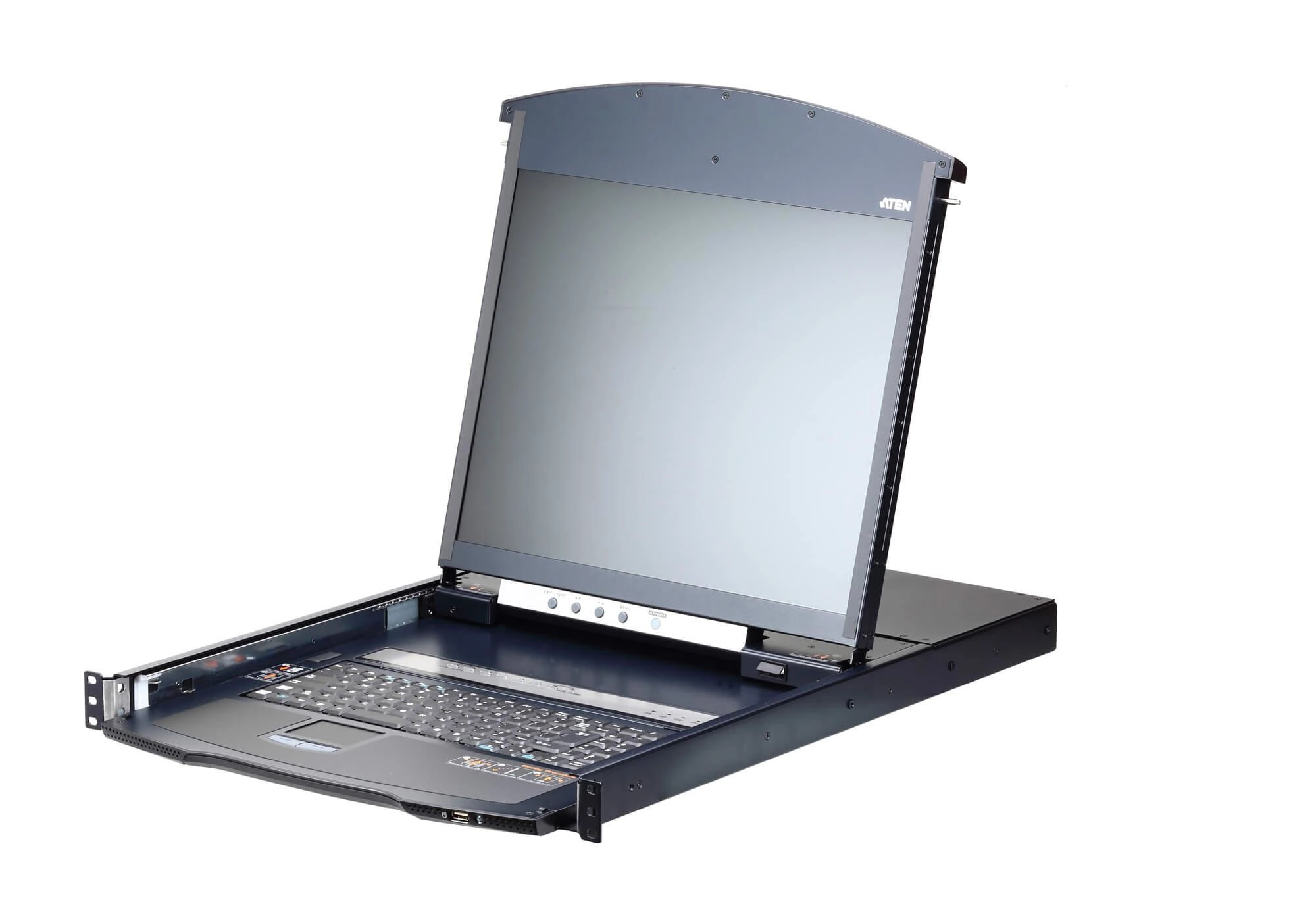

ATEN's KL1108VN 8-port Cat 5 Dual Rail LCD KVM over IP Switch features an independently retractable, dual slide 19" LED-backlit LCD monitor and keyboard with built-in touchpad.

1x KL1108VN Cat 5 Dual Rail LCD KVM over IP Switch with a Rack Mount Kit
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
1x LIN2-418K-E12G Power Cord
2x L Brackets
1x User Instructions

Specification

Product
Product id	975881
Brand	Aten
Partnr	KL1108VN-AXA-EG
EAN/UPC code	4710469345234
Display
Display diagonal	19 inch
Display resolution	1280 x 1024 Pixels
Display	LCD
Response time	5 ms
Display type	TFT
Pixel pitch	0.294 x 0.294 mm
On Screen Display (OSD)	Y
Viewing angle, vertical	160 °
Viewing angle, horizontal	170 °
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Supported resolutions	1920 x 1200@60Hz
Technical details
Material	Metal
LED indicators	Y
Number of computers controlled	128
Rack mounting	Y
On/off switch	Y
KVM switch ports quantity	8
Push button	Y
Product colour	Black
Auto scan delay (min)	1 s
Operating relative humidity (H-H)	0 - 80 procent
Auto scan delay (max)	255 s
Built-in KVM switch	Y
Rack capacity	1U
Maximum resolution	1920 x 1200 Pixels
Compliance certificates	RoHS
Ports & interfaces
VGA (D-Sub) ports quantity	1
DVI connector type	DVI-D
DVI input ports	1
Serial ports quantity	2
RJ-45 ports quantity	14
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-A ports quantity	3
Keyboard
Built-in touchpad	Y
Keyboard language	UK English
Keyboard layout	QWERTY
Hot keys	Y
System requirements
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Power
Power consumption (typical)	29 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Input current	1 A
AC (power) in	Y
Weight & dimensions
Width	701.2 mm
Height	44 mm
Depth	480 mm
Weight	15220 g
Packaging content
Cables included	AC, KVM
Quick installation guide	Y
Manual	Y
Rack mount kit	Y
