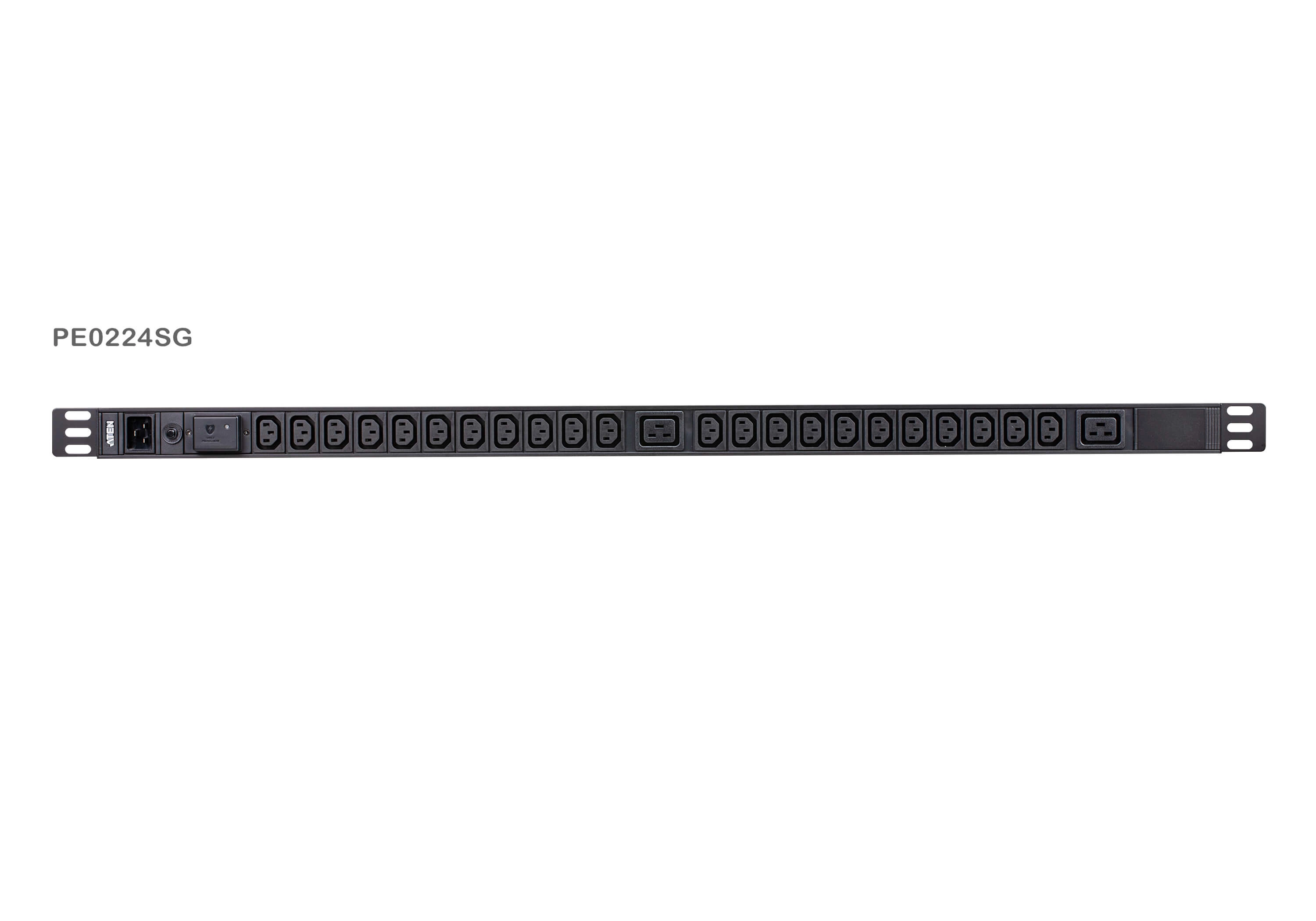

24-Outlet 0U Basic PDU with Surge Protection (16A) (22x C13 2x C19)


Not in stock
€ 111,55
€ 134,97 incl 21% VAT
ATEN's Basic PDU family is extended with 0U members containing 24 outlets and available in IEC or NEMA socket configurations. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency. Thanks to the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity; plus, the equipment downtime is reduced as a result of the overcurrent protection design. The Basic PDUs are tailored made for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets.
1 x power distribution unit
1 x power cord
1 x L-shaped mounting kit
1 x user instructions


Product id 789349
Brand Aten
Partnr PE0224SG-AT-G
EAN/UPC code 4719264649066
PDU types Basic
Rack capacity 0U
Housing material Aluminium
Ports & interfaces
AC outlets quantity 24 AC-uitgang(en)
Power plug IEC 320
AC outlet types C13 coupler, C19 coupler
Cables included AC
Surge protection Y
AC input frequency 50-60 Hz
Maximum current 16 A
Block 1 output current 10 A
Load capacity 3840 VA
Block 2 output current 16 A
Weight & dimensions
Width 44.4 mm
Depth 966.8 mm
Height 60 mm
Weight 2050 g
Package weight 2810 g
Packaging data
Package width 145 mm
Package depth 1177 mm
Package height 166 mm
Technical details
Nominal input voltage 100-240 V
Cable length 3.048 m
Maximum input current per phase 16 A
Certification CE
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 3000 m
Logistics data
Master (outer) case net weight 2050 g
Master (outer) case width 146 mm
Master (outer) case length 1177 mm
Master (outer) case height 166 mm
Master (outer) case weight 2810 g
Quantity per master (outer) case 1 stuk(s)
