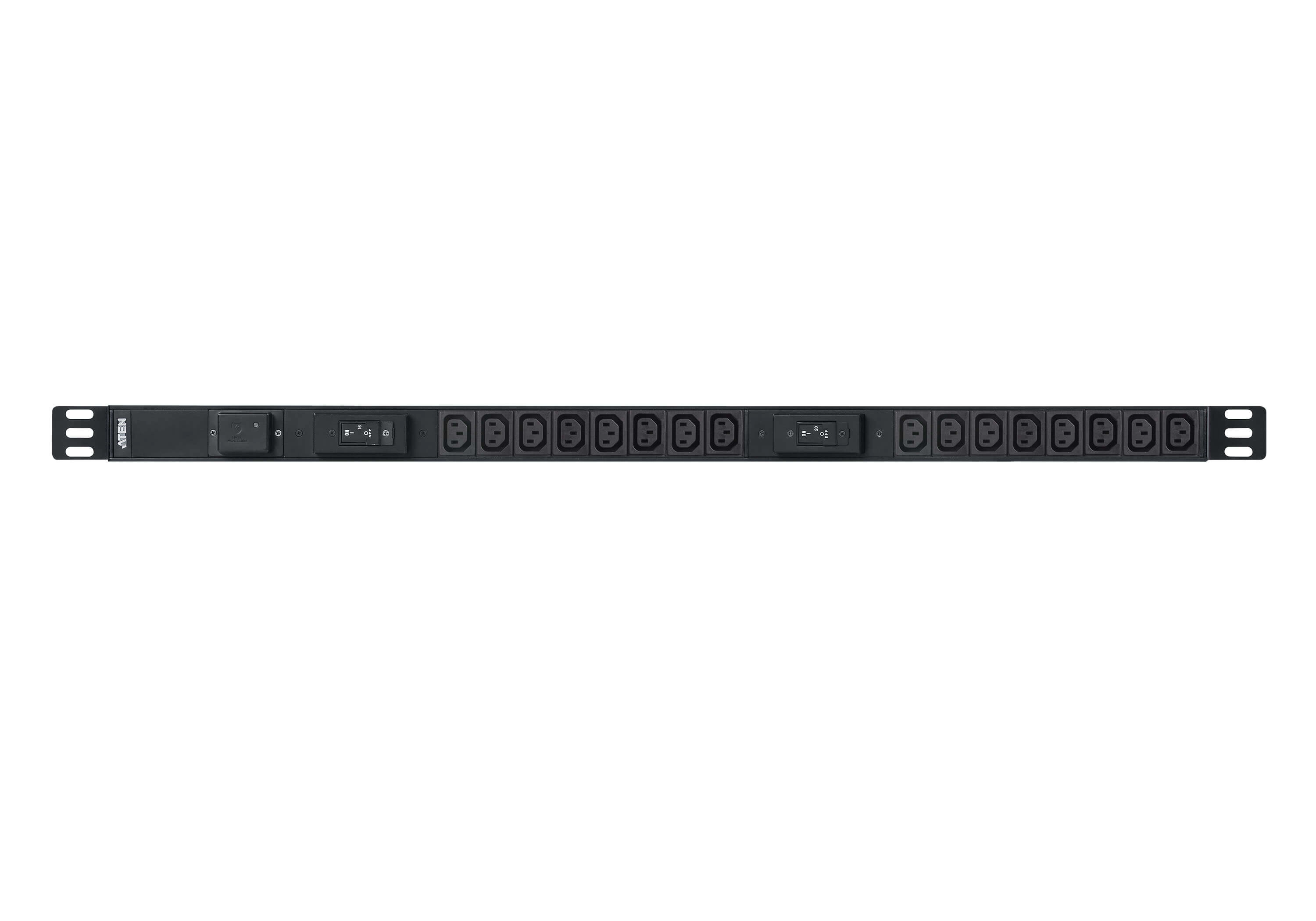

16-Outlet 0U Basic PDU with Surge Protection (32A) (16x C13)



Aten
Not in stock
€ 191,96
€ 232,27 incl 21% VAT
Would you like to ask us a question about this product?
ATEN’s Basic PDU family is extended with 0U members containing 16 outlets and available in IEC or NEMA socket configurations. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency. Thanks to the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity; plus, the equipment downtime is reduced as a result of the overcurrent protection design. The Basic PDUs are tailored made for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets.

Specification

Product
Product id 866738
Brand Aten
Partnr PE0316SG-AT
EAN/UPC code 4719264649080
Design
PDU types Basic
Rack capacity 0U
Housing material Aluminium
Ports & interfaces
AC outlets quantity 16 AC-uitgang(en)
Power plug IEC 60309
AC outlet types C13 coupler
Features
Surge protection Y
Power
AC input frequency 50 - 60 Hz
Maximum current 32 A
Load capacity 7680 VA
Power protection features Over current
Weight & dimensions
Width 44.4 mm
Depth 966.8 mm
Height 60 mm
Weight 2100 g
Package weight 3530 g
Packaging data
Package width 145 mm
Package depth 1061 mm
Package height 166 mm
Package volume 25485.16 cm³
Packaging content
Manual Y
Rack mount kit Y
Technical details
Sustainability compliance Y
Nominal input voltage 100 - 240 V
Sustainability certificates CE, Low Voltage Directive (LVD)
Cable length 3 m
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating altitude 0 - 3000 m
Logistics data
Country of origin Taiwan
Master (outer) case net weight 2770 g
Master (outer) case width 145 mm
Master (outer) case length 1061 mm
Master (outer) case height 166 mm
Master (outer) case weight 3530 g
Master (outer) case volume 25485.16 cm³
