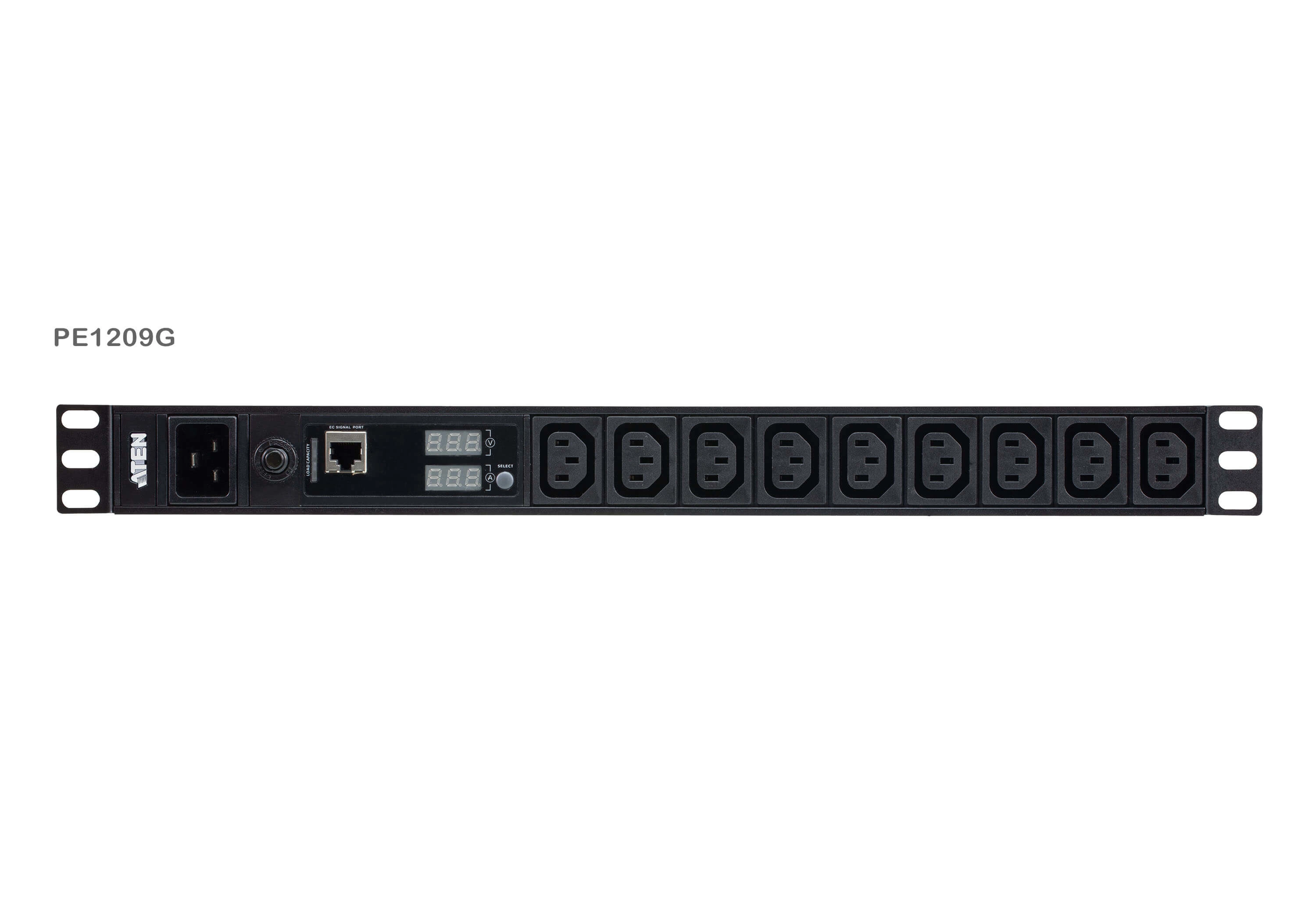

9-Outlet 1U PDU with Current & Voltage LCD display and Overcurrent protection (16A) (9xC13)



Aten
Not in stock
€ 118,78
€ 143,72 incl 21% VAT
Engineered to enhance the efficiency of power distribution and power status monitoring in an IT environment, the ATEN Basic Metered PDU Series contains 1U members with 9 outlets and is available in IEC or NEMA socket configurations. The compact form factor plus the support for rack mount installation helps to save space and eliminates clutter.

To monitor the power status of the connected devices, the units feature dual 3-digit 7-segment displays to show the input voltage and output current in real-time. The Basic Metered PDUs provide secure, centralized power usage of data center IT equipment, including servers, storage systems, KVM switches, network devices, to optimize power consumption and asset management.

Specification

Product
Product id 866742
Brand Aten
Partnr PE1209G-AT-G
EAN/UPC code 4710469340550
Design
PDU types Basic, Metered
Rack mounting Y
Rack capacity 1U
Display LCD
Ports & interfaces
AC outlets quantity 9 AC-uitgang(en)
Power plug C20 coupler
AC outlet types C13 coupler
Ethernet LAN (RJ-45) ports 1
Cables included AC
Management features
Monitoring Current
Power
AC input frequency 50/60 Hz
Maximum current 16 A
Load capacity 3840 VA
Power protection features Over current
Weight & dimensions
Width 44.4 mm
Depth 482 mm
Height 61 mm
Weight 800 g
Packaging content
Manual Y
Technical details
Sustainability compliance Y
Nominal input voltage 100 - 240 V
Sustainability certificates CE, Low Voltage Directive (LVD)
Cable length 3 m
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating altitude 0 - 3000 m
Logistics data
Country of origin China
