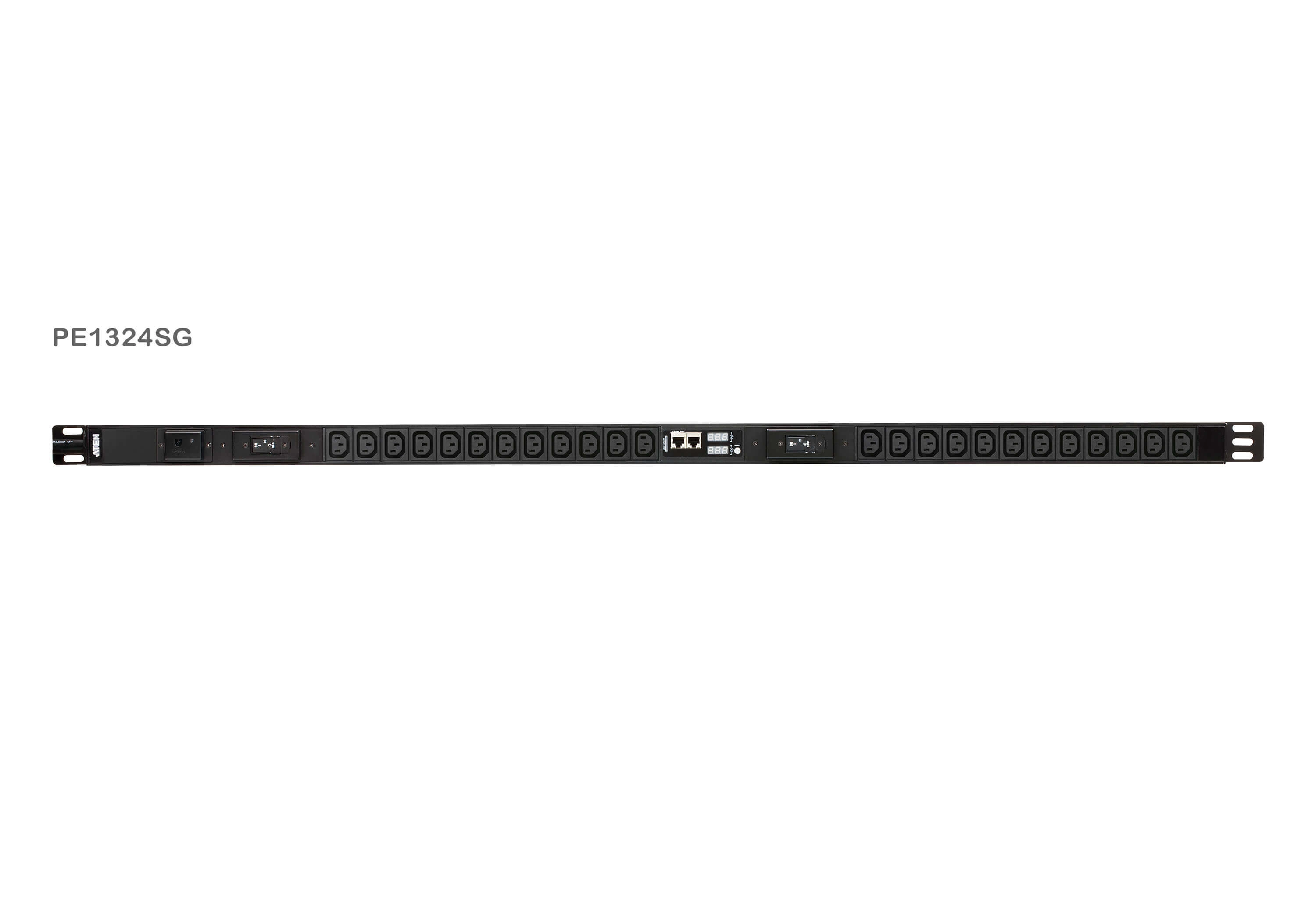

24-Outlet 0U PDU with Current & VoltageLCD display Overcurrent and Surge protection (32A) (24x C13)



Aten
Not in stock
€ 296,13
€ 358,31 incl 21% VAT
Engineered to enhance the efficiency of power distribution and power status monitoring in an IT environment, the ATEN Basic Metered PDU Series contains 0U members with 24 outlets and is available in IEC or NEMA socket configurations. The compact form factor plus the support for rack mount installation helps to save space and eliminates clutter. Benefits from the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity. The equipment downtime is reduced as a result of the overcurrent protection design.

To monitor the power status of the connected devices, the units feature dual 3-digit 7-segment displays to show the input voltage and output current in real-time. The Basic Metered PDUs provide secure, centralized power usage of data center IT equipment, including servers, storage systems, KVM switches, network devices, to optimize power consumption and asset management.

Specification

Product
Product id 866747
Brand Aten
Partnr PE1324SG-AT
EAN/UPC code 4710469340925
Design
PDU types Basic, Metered
Rack mounting Y
Rack capacity 0U
Display LCD
On/off switch Y
Ports & interfaces
AC outlets quantity 24 AC-uitgang(en)
Power plug IEC 60309
AC outlet types C13 coupler
Ethernet LAN (RJ-45) ports 2
Features
Surge protection Y
Management features
Monitoring Current
Power
AC input frequency 50/60 Hz
Maximum current 32 A
Load capacity 7680 VA
Power protection features Over current
Weight & dimensions
Width 44.4 mm
Depth 1327.1 mm
Height 60 mm
Weight 3550 g
Packaging content
Manual Y
Rack mount kit Y
Technical details
Sustainability compliance Y
Nominal input voltage 100 - 240 V
Sustainability certificates CE, Low Voltage Directive (LVD)
Cable length 3 m
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating altitude 0 - 3000 m
Logistics data
Country of origin China
