4-Outlet 1U Half-rack eco PDU Switched by Outlet (10A) (4x C13) with Auto Ping and Reboot


Not in stock
€ 189,48
€ 229,27 incl 21% VAT

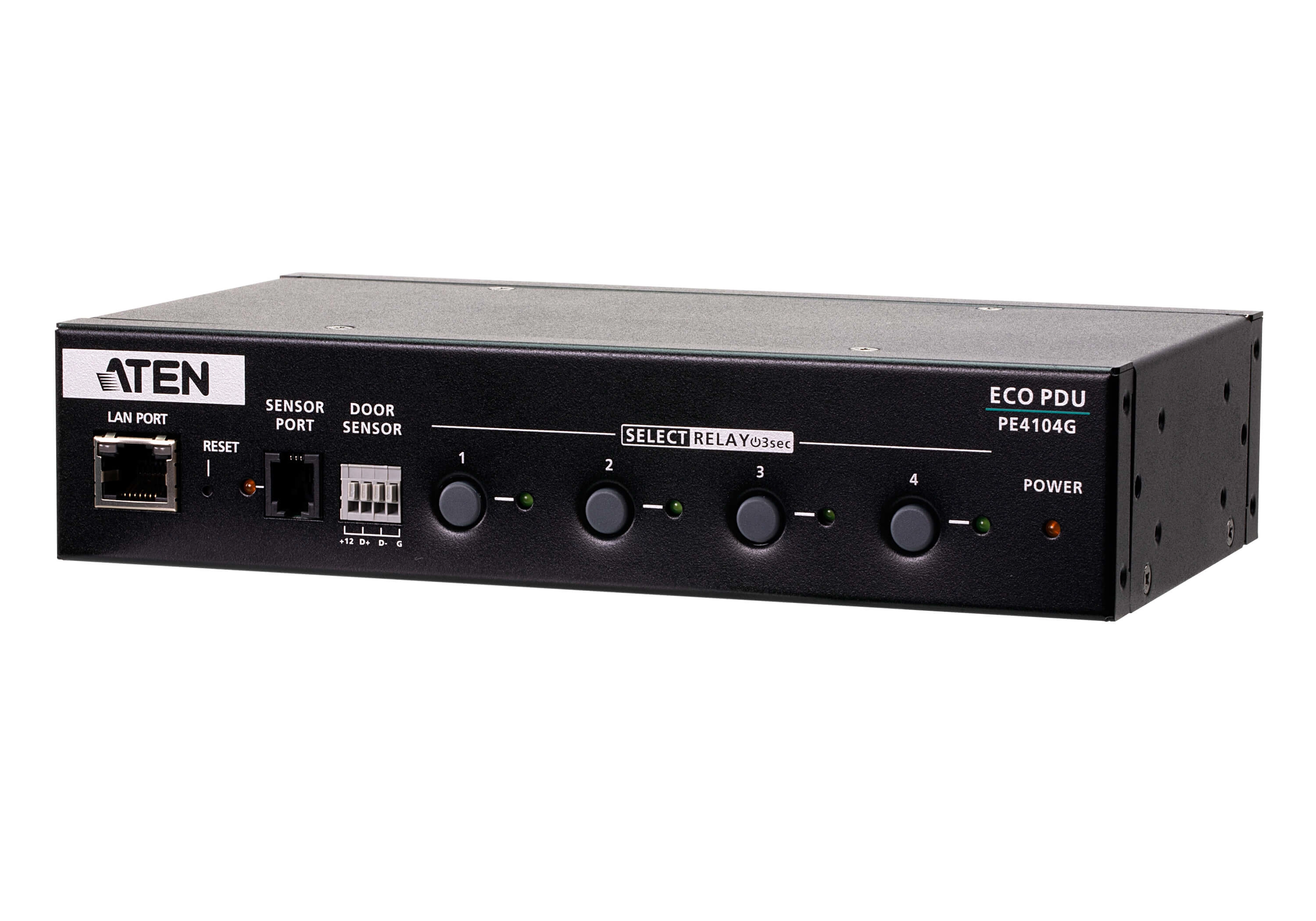

Engineered to be an intelligent power distribution solution, the PE4104G IP Control Box ships with 4 power outlets in an IEC socket configuration. It provides secure, centralized, intelligent, and remote power management of data center IT equipment to minimize the operating cost.

The PE4104G features the remote power control function, allowing you to control devices attached to the PDU at the PDU device level from practically any location via a TCP/IP connection. The power sequence design eliminates the risks for a power inrush to guarantee reliable operation and protects the overall system health. With the support for eco DC software, it provides an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and reboot the device in case any equipment lock-up occurs. The administrators can switch on/off or set a delay time for each power outlet or individual power outlets group whenever, wherever.

The PE4104G boasts a slim, compact form factor and supports desk mount as well as rack mount, ensuring easy installation in confined spaces. It is a smart power control box tailored for hospitality or retail applications, such as digital signages and video walls, for edge computing devices, including routers, servers and cameras, or for any data center environments where there is no need to keep the servers powered on at all times.


Product id 721805
Brand Aten
Partnr PE4104G-AT-G
EAN/UPC code 4710469340086
Rack capacity 1U
Ports & interfaces
AC outlets quantity 4 AC-uitgang(en)
Power plug C14 coupler
AC outlet types C13 coupler
Ethernet LAN (RJ-45) ports 1
Cables included AC
Reset button Y
LED indicators Y
Maximum current 10 A
Weight & dimensions
Width 200 mm
Depth 115 mm
Height 44 mm
Weight 900 g
Packaging content
Manual Y
Rack mount kit Y
Technical details
Nominal input voltage 100-240 V
Sustainability certificates CE
Cable length 3 m
Certification CE-EMC CE-LVD
Product colour Black
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 procent
